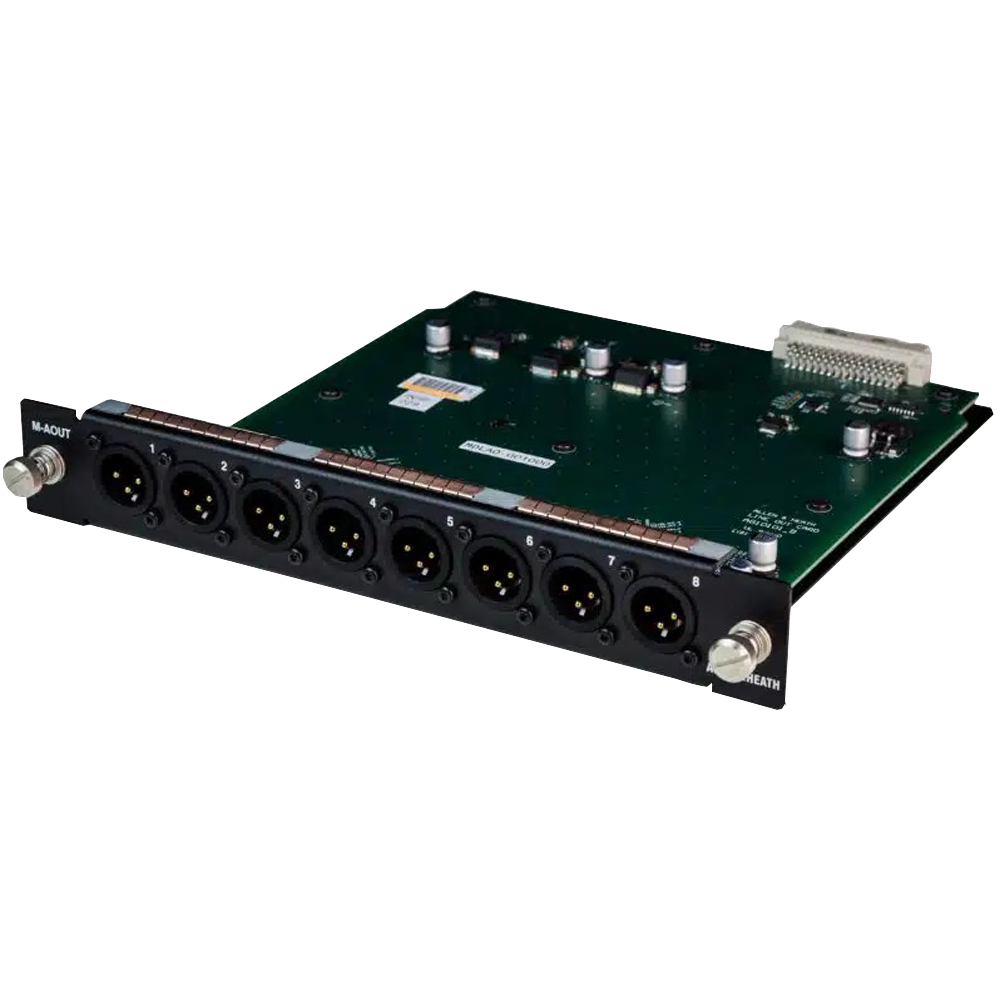

Allen & Heath 8 Ch Analog Output Module for DX32
0%, only 6 left
Allen & Heath 8 Ch Analog Output Module for DX32
Product SKU
    22334

Allen & Heath 8 Ch Analog Output Module for DX32

Product Short Title
    Balanced Line Output Module for DX32 Systems
$699.00

PICK UP TODAY

Quick & Complimentary Shipping

1.png__PID:7af1a3fd-a98e-4384-a357-aae772061f43

FREE SHIPPING

2.png__PID:f1a3fda9-8e83-44e3-97aa-e772061f434b

EXPERT SUPPORT

Copy of Untitled Design.png__PID:a98e8384-e357-4ae7-b206-1f434b4f7c25

HASSLE FREE RETURNS

Have a question?

Need help finding something?

Talk to a PRO

855-772-2937

_EBP8997_SQ_1.png__PID:e7077992-36de-44a6-a734-ae2d97143238

Related Products

BYFP ipCase for 12x PGA57/58 Wired Microphones
BYFP ipCase for 12x PGA57/58 Wired Microphones
BYFP ipCase for 12x PGA57/58 Wired Microphones
BYFP ipCase for 12x PGA57/58 Wired Microphones
BYFP ipCase for 12x PGA57/58 Wired Microphones
BYFP ipCase for 12x PGA57/58 Wired Microphones
BYFP ipCase for 12x PGA57/58 Wired Microphones
BYFP ipCase for 12x PGA57/58 Wired Microphones
BYFP ipCase for 12x PGA57/58 Wired Microphones
BYFP ipCase for 12x PGA57/58 Wired Microphones

BYFP ipCase for 12x PGA57/58 Wired Microphones

$149.99
BYFP ipCase for Shure SM7B Broadcast Pack
BYFP ipCase for Shure SM7B Broadcast Pack
BYFP ipCase for Shure SM7B Broadcast Pack
BYFP ipCase for Shure SM7B Broadcast Pack
BYFP ipCase for Shure SM7B Broadcast Pack
BYFP ipCase for Shure SM7B Broadcast Pack
BYFP ipCase for Shure SM7B Broadcast Pack
BYFP ipCase for Shure SM7B Broadcast Pack
BYFP ipCase for Shure SM7B Broadcast Pack
BYFP ipCase for Shure SM7B Broadcast Pack
BYFP ipCase for Shure SM7B Broadcast Pack
BYFP ipCase for Shure SM7B Broadcast Pack

BYFP ipCase for Shure SM7B Broadcast Pack

$349.99
BYFP ipCase for Beta 52A and Beta 91A Drum Microphones
BYFP ipCase for Beta 52A and Beta 91A Drum Microphones
BYFP ipCase for Beta 52A and Beta 91A Drum Microphones
BYFP ipCase for Beta 52A and Beta 91A Drum Microphones
BYFP ipCase for Beta 52A and Beta 91A Drum Microphones
BYFP ipCase for Beta 52A and Beta 91A Drum Microphones
BYFP ipCase for Beta 52A and Beta 91A Drum Microphones
BYFP ipCase for Beta 52A and Beta 91A Drum Microphones
BYFP ipCase for Beta 52A and Beta 91A Drum Microphones
BYFP ipCase for Beta 52A and Beta 91A Drum Microphones
BYFP ipCase for Beta 52A and Beta 91A Drum Microphones
BYFP ipCase for Beta 52A and Beta 91A Drum Microphones
BYFP ipCase for Beta 52A and Beta 91A Drum Microphones
BYFP ipCase for Beta 52A and Beta 91A Drum Microphones

BYFP ipCase for Beta 52A and Beta 91A Drum Microphones

$199.99
BYFP ipCase for 2x Shure SM81 Instrument Microphones
BYFP ipCase for 2x Shure SM81 Instrument Microphones
BYFP ipCase for 2x Shure SM81 Instrument Microphones
BYFP ipCase for 2x Shure SM81 Instrument Microphones
BYFP ipCase for 2x Shure SM81 Instrument Microphones
BYFP ipCase for 2x Shure SM81 Instrument Microphones
BYFP ipCase for 2x Shure SM81 Instrument Microphones
BYFP ipCase for 2x Shure SM81 Instrument Microphones
BYFP ipCase for 2x Shure SM81 Instrument Microphones
BYFP ipCase for 2x Shure SM81 Instrument Microphones
BYFP ipCase for 2x Shure SM81 Instrument Microphones
BYFP ipCase for 2x Shure SM81 Instrument Microphones
BYFP ipCase for 2x Shure SM81 Instrument Microphones
BYFP ipCase for 2x Shure SM81 Instrument Microphones

BYFP ipCase for 2x Shure SM81 Instrument Microphones

$169.99

8 line-level, balanced XLR outputs. The outputs are relay protected to prevent power-on or -off thumps.

FEATURES
    • 8-channel analogue line output module for the Allen & Heath DX32 modular I/O expander
    • Provides balanced analogue line-level outputs on XLR connectors
    • Relay-protected outputs to eliminate power-on and power-off thumps
    • Designed for use within the Allen & Heath Everything I/O ecosystem
    • Supports modular I/O configuration, allowing flexible system expansion
    • Compatible with dLive, SQ, Avantis, and AHM systems via DX32
    • Engineered for professional live sound, broadcast, and fixed installation applications
SPECIFICATIONS
    • Module Format: DX32 Modular I/O Card
    • Compatible Hardware: Allen & Heath DX32 Modular Expander, dLive Systems, SQ Series, Avantis and AHM Processors.
    • Channels: 8 Outputs
    • Output Type: Balanced analogue line-level
    • Connectors: XLR
    • Number of Outputs: 8
    • Nominal Output Level: +4 dBu (0 dB meter reference)
    • Maximum Output Level: +22 dBu
    • Output Impedance: < 75 Ω
    • Output Protection: Relay-protected outputs (prevents power on/off thumps)
    • Sampling Rate: 96 kHz
    • Bit Depth: 24-bit
    • Residual Output Noise: -92 dBu (muted, 20 Hz–20 kHz), -90 dBu (muted, 20 Hz–40 kHz)
CONTENTS
    • (1) Allen & Heath 8 Ch Analog Output Module for DX32
    • (1) User Guide
