4x stereo AES3 outputs on XLR (44.1 kHz, 48 kHz, 88.2 kHz, or 96 kHz switchable).
FEATURES
-

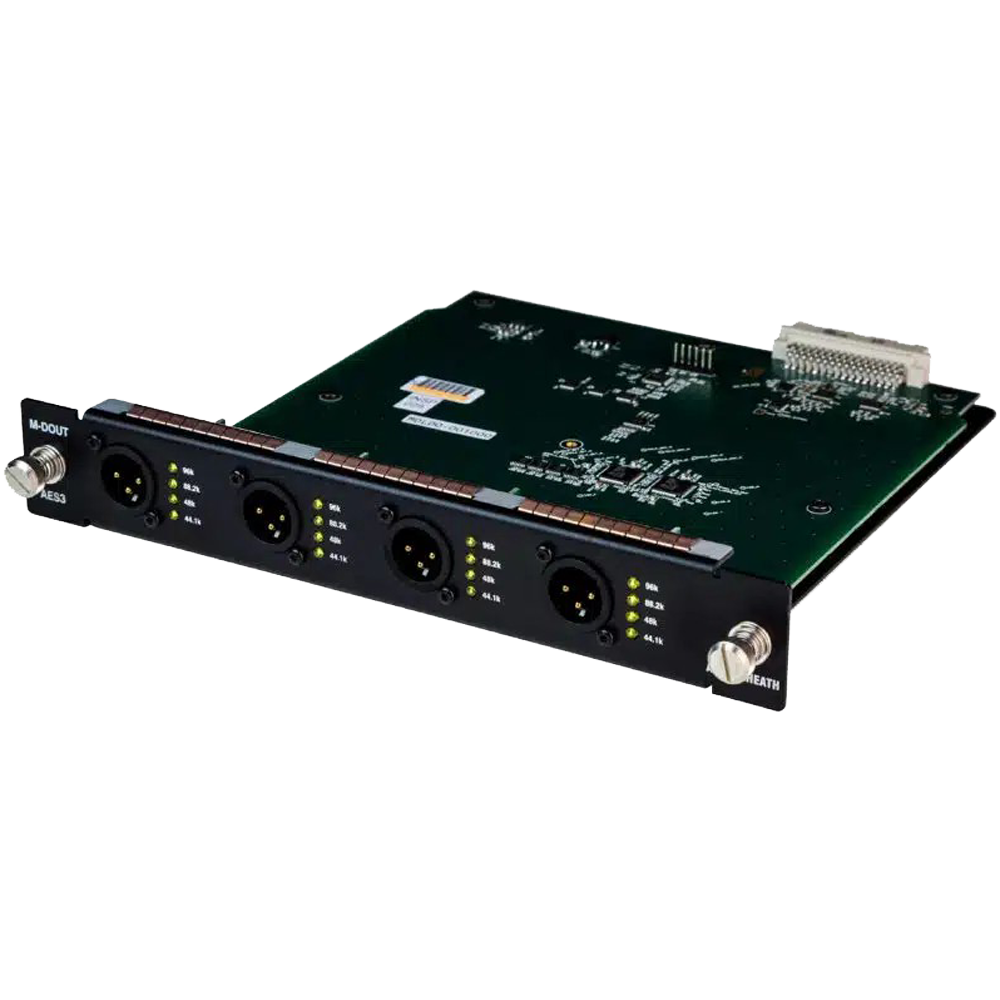

• Designed for the Allen & Heath DX32 modular I/O expander.
• Provides 4× stereo AES3 digital outputs on XLR connectors when fitted into a DX32 slot.
• Supports switchable sample rates: 44.1 kHz, 48 kHz, 88.2 kHz, and 96 kHz.
• Integrates seamlessly with dLive, Avantis, SQ, and AHM systems via the DX32 expansion platform.
• Part of the Everything I/O ecosystem, allowing mixing of analogue and digital I/O modules within the DX32 chassis.
• Easy plug-and-play installation — install into any available DX32 module slot with no module-specific configuration required at power-up.
SPECIFICATIONS
-
• Module Format: DX32 Modular I/O Card
• Compatible Hardware: Allen & Heath DX32 Modular Expander, dLive Systems, SQ Series, Avantis and AHM Processors.
• Channels: 8 (4× stereo AES3 outputs)
• Output Type: AES3 digital line-level
• Connectors: XLR
• Number of Outputs: 4 stereo (8 channels total)
• Sample Rates Supported: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
• Output Protection: Designed for safe plug-and-play installation in DX32 chassis
• Installation: Plug-and-play module, no configuration needed for power-up
• Operating Temperature: 0°C to +35°C (32°F to 95°F)
CONTENTS
-
• (1) Allen & Heath 8 Ch Digital Output Module for DX32
• (1) User Guide
