Next-generation 8-input preamp design with DC-coupled gain stage. Features a 32-bit / 96 kHz ADC for class-leading conversion.
FEATURES
-
• Next-generation Preamp Design With Dc-Coupled Gain Stage
• Use With DX32 for SQ, dLive & Avantis
• Each Individual Channel is Fine-tuned by Hand for Optimum Common Mode Performance
• Meticulous Design of Grounding and Power Supply to Minimise Noise and Distortion
• Full Metal Shielding for Increased RF Rejection Throughout
• The Very Latest 32-bit / 96kHz ADC for Class-leading Conversion
• 4 Channels of Summed ADC Per Input for Extended Dynamic Range and Increased SNR
• Optimised for Use With Our 96kHz XCVI FPGA Core
SPECIFICATIONS
-
• ADC: 96kHz, 32-bit Delta-Sigma
• Mic/Line XLR Inputs: Balanced XLR, +48V phantom power
• Mic/Line Preamp: Fully recallable
• Input Sensitivity (dLive): -60 to +15dBu
• Input Sensitivity (SQ): -60 to +20dBu
• Analogue Gain (dLive): +5 to +60dB, 1dB steps
• Analogue Gain (SQ): 0 to +60dB, 1dB steps
• Pad: -20dB Active PAD
• Maximum Input Level: +38dBu (PAD in)
• Input Impedance: >4kΩ (Pad out), >10kΩ (Pad in)
• Mic EIN: -127.5dBu with 150Ω source
• Phantom Power indication: Per socket, internal or external phantom power sensing, triggered at 24V
• Measured Prime in: to AES out, 20-20kHz, minimum Gain, Pad out
• Full Signal Dynamic Range: 114.8dB
• Noise at 0dB gain: -96.8dBu
• Frequency Response to AES output: At 0dB gain (10Hz - 20kHz +0/-0.3dB), At 30dB gain (10Hz - 20kHz +0/-0.3dB), At 60dB gain (10Hz - 20kHz +0/-0.25dB)
• THD+N (analogue in to AES out): 0.0009% @ +10dBu out 0dB gain, 0.0009% @ +10dBu out 10dB gain, 0.001% @ +10dBu out 20dB gain, 0.0011% @ +10dBu out 30dB gain
CONTENTS
-

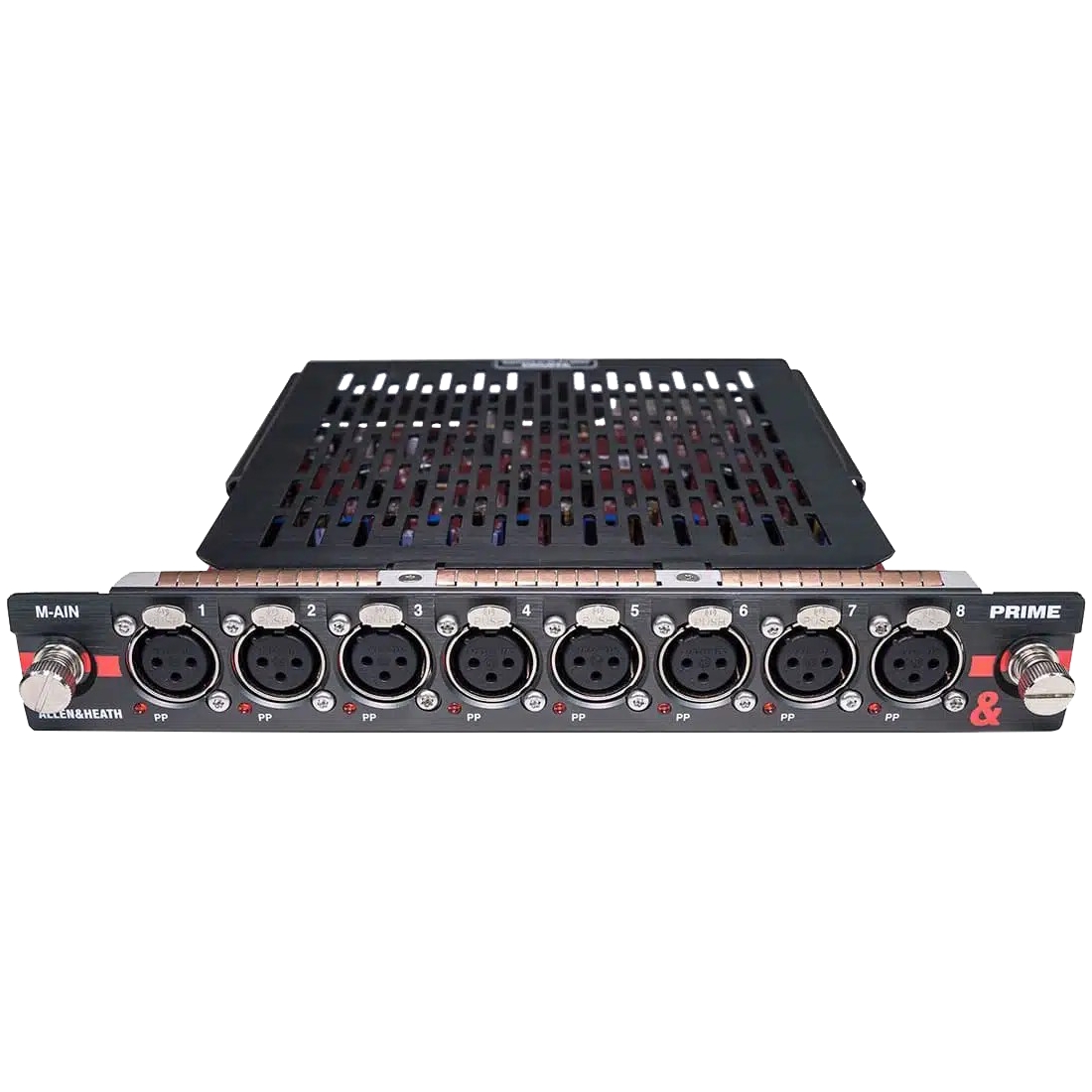

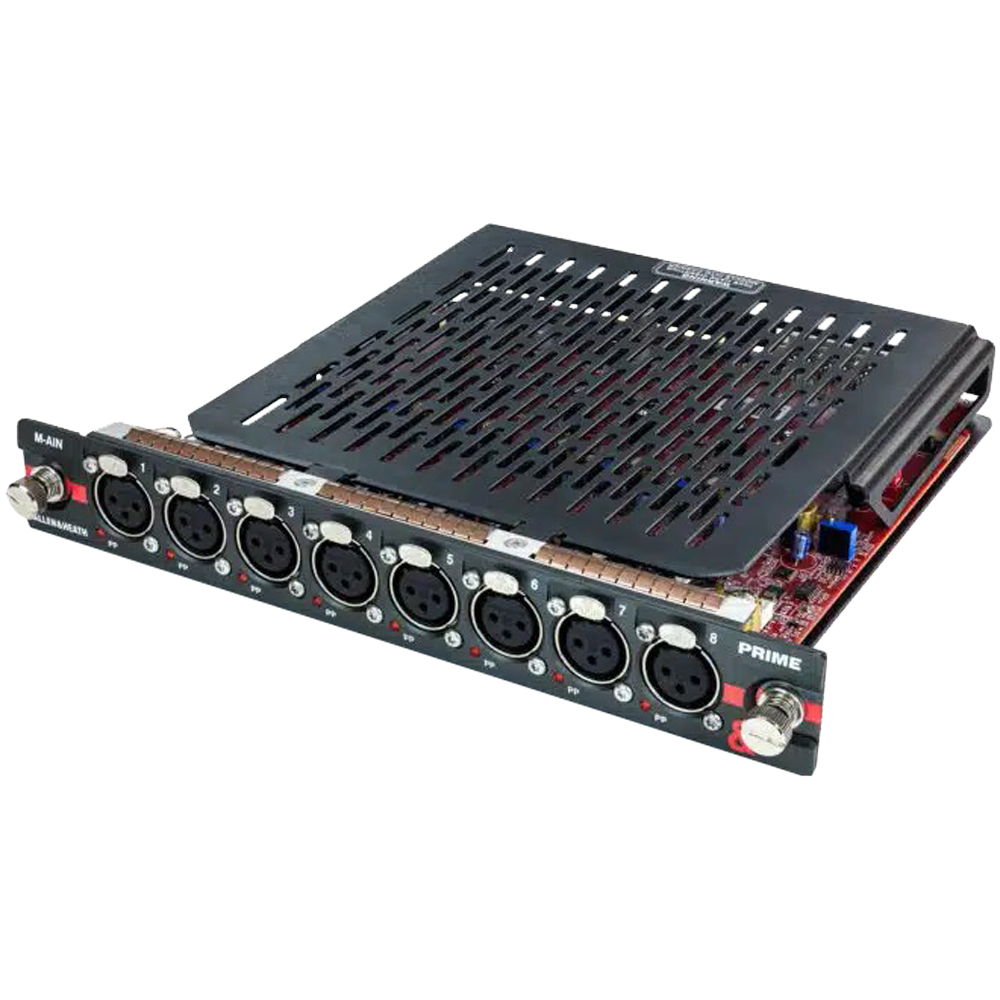

(1) Allen & Heath 8 Ch PRIME Input Module for DX32
(1) User Guide
