The DX88 provides 8 inputs and 8 outputs on Phoenix/Euroblock connectors for fixed installations and is an easy way to add local or remote expansion to AHM Audio Matrix Processors.
FEATURES
-
• Compatible with dLive, Avantis, SQ and AHM
• 8 Mic/Line Inputs on Phoenix euroblock connectors
• 8 Outputs on Phoenix euroblock connectors
• +48V phantom power
• DX A connection with Ethernet port
• DX B port for daisy chaining
• DC 12V powered
• Optional rack mount kit available
SPECIFICATIONS
-
• Mic/Line Inputs: Balanced Phoenix, +48V phantom power
• Mic/Line Preamp: Fully recallable
• Input Sensitivity: 60 to +15dBu
• Analogue Gain: +5 to +60dB, 1dB steps
• Pad: -20dB Active PAD
• Maximum Input Level: +30dBu (PAD in)
• Input Impedance: >4kΩ (Pad out), >10kΩ (Pad in)
• Mic EIN: -127dB with 150Ω source
• Sample Rate: 96 kHz
• Output Impedance: <75Ω
• Nominal Output: +4dBu = 0dB meter reading
• Maximum Output Level: +21dBu
• Residual Output Noise: -92dBu (muted, 20-20kHz), -90dBu (muted, 20-40kHz)
• Operating Temperature: 0 deg C to 40 deg C (32 deg F to 104 deg F)
• Power: 12V DC via external PSU, 3.3A max, 39.6W max
• Dimensions (W x D x H): 216.5 x 195.4 x 42.8 mm
• Weight: 1.51 kg
CONTENTS
-

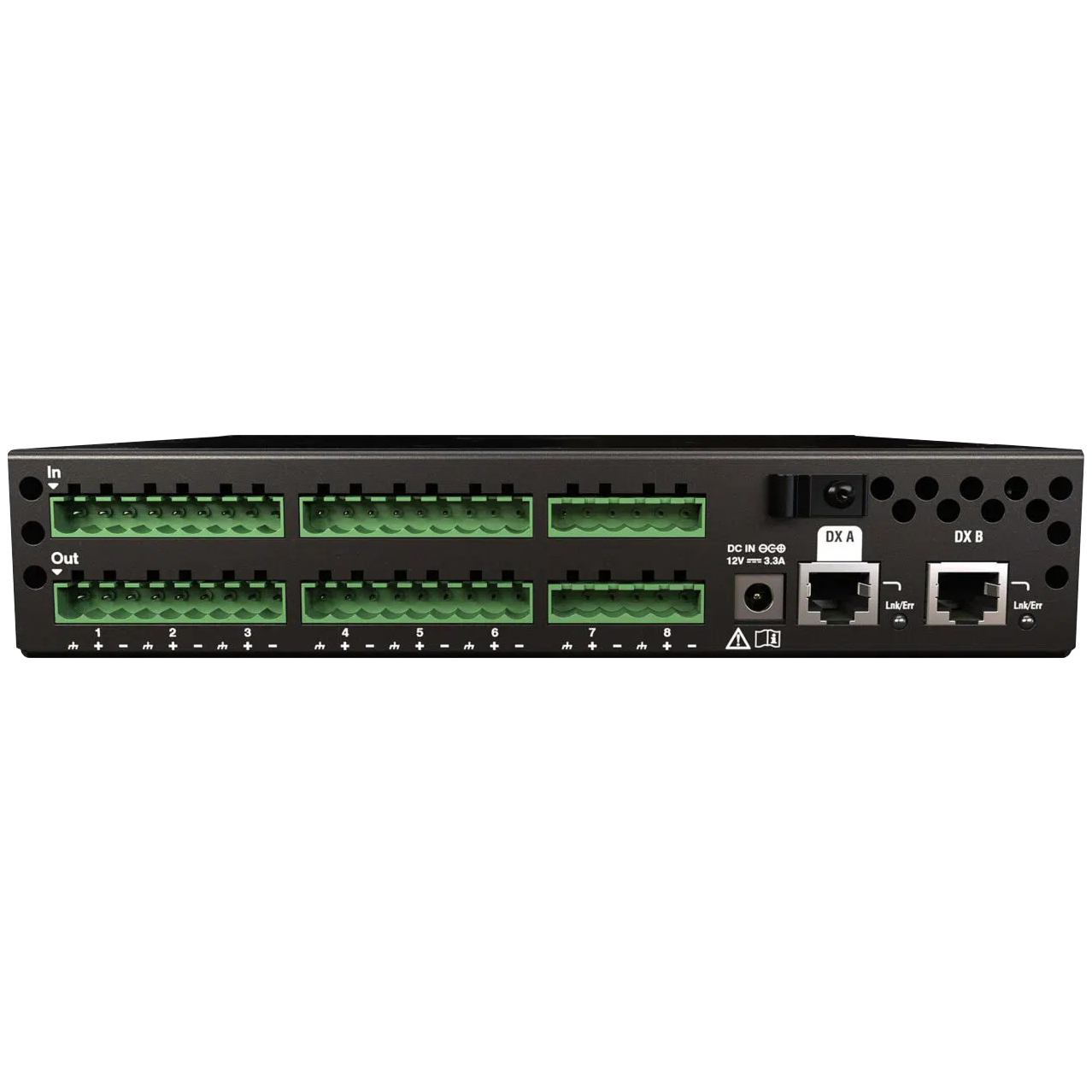

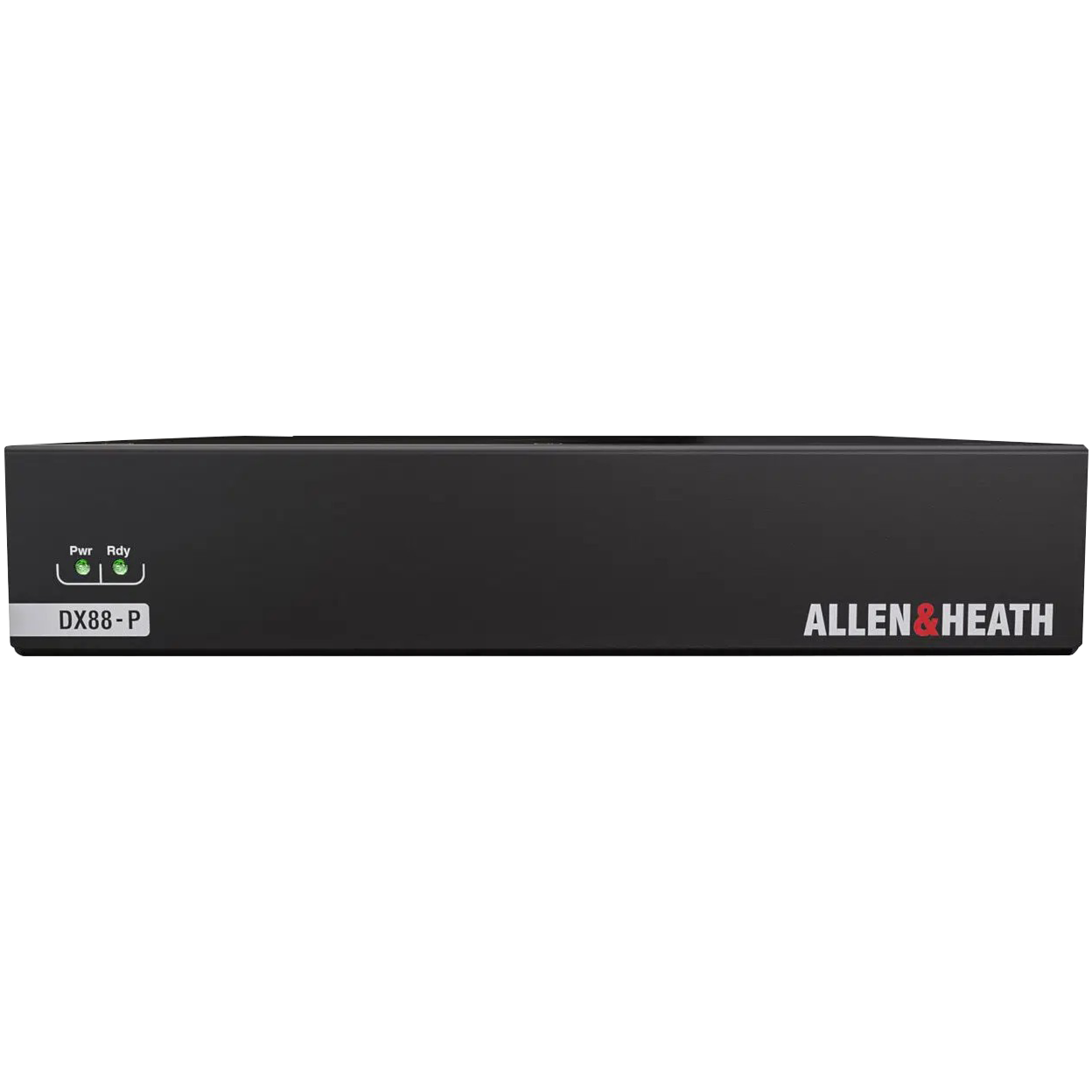

(1) Allen & Heath 8in x 8out I/O with Phoenix Connectors
(16) 3-Way Phoenix Contact Plug
(1) DC 12V Power Supply
(1) User Manual
