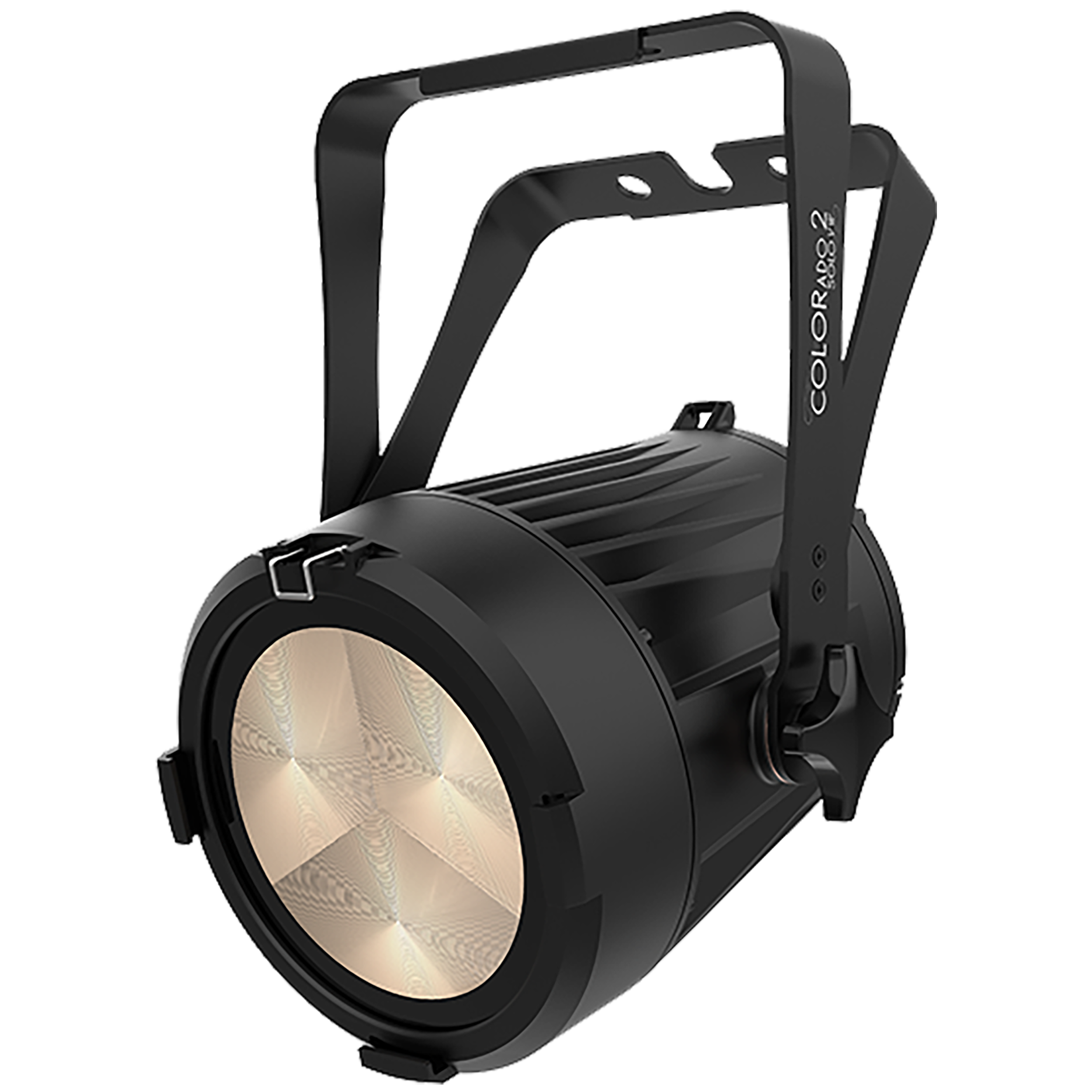

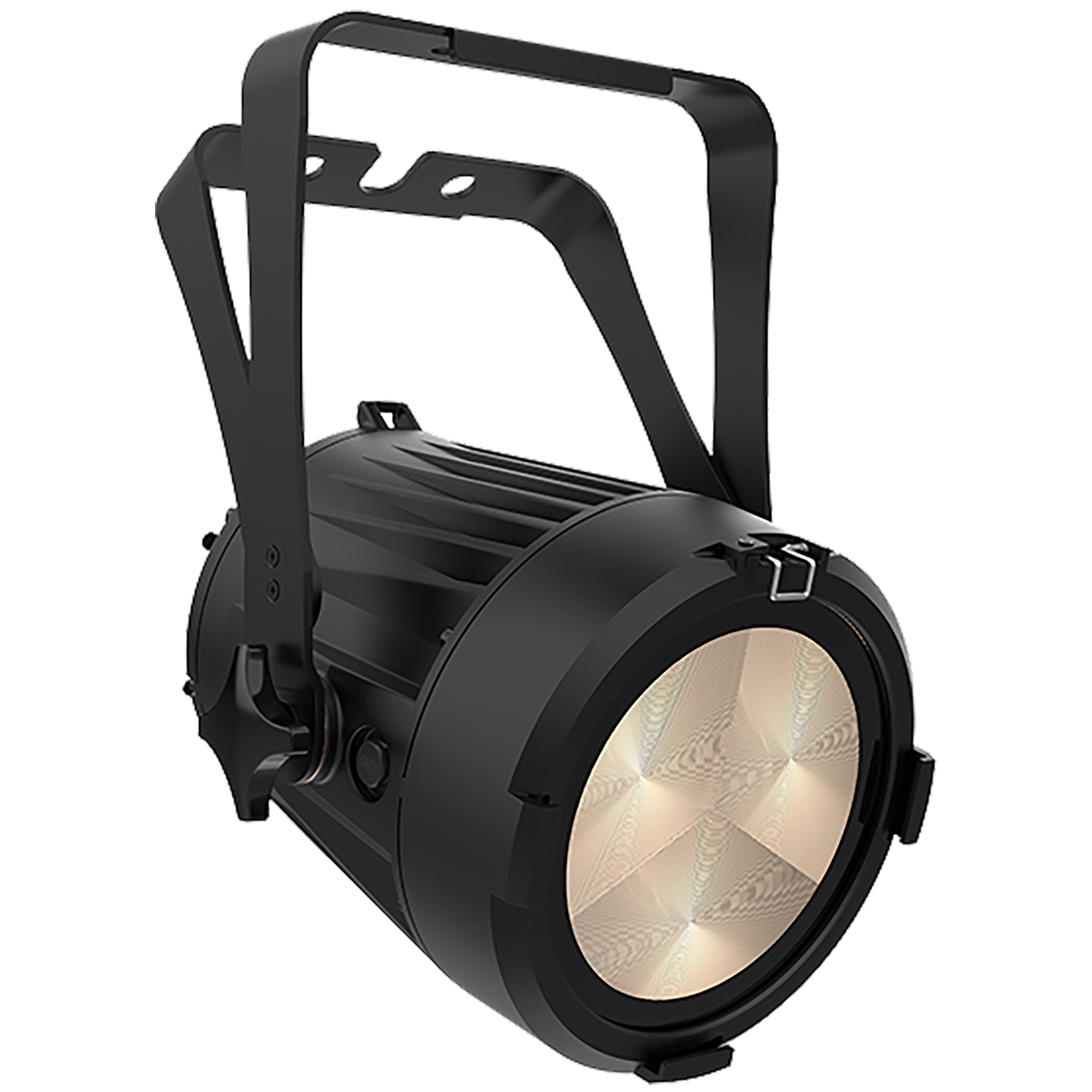

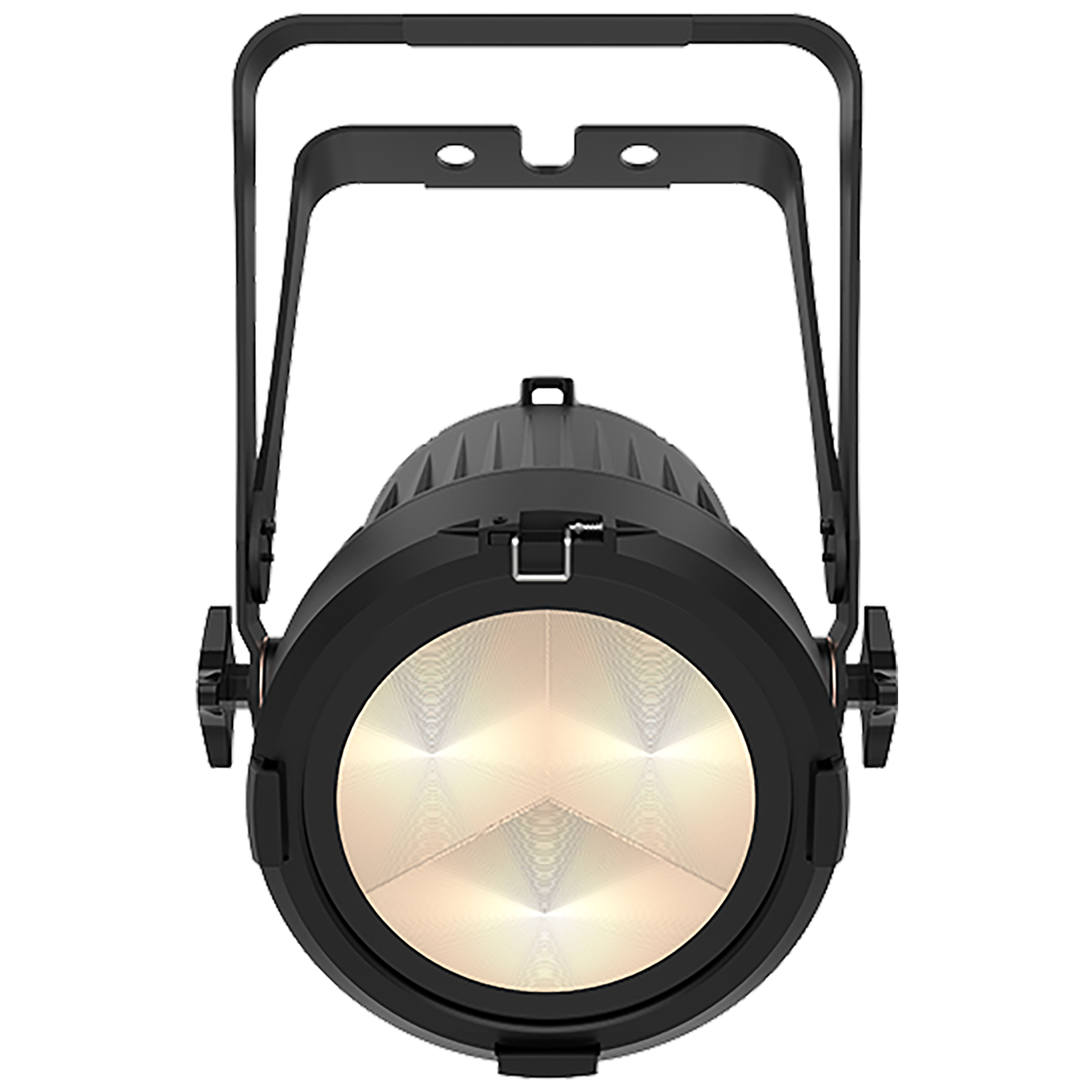

COLORado 2 Solo VW is fitted with three dual-color CW-WW LEDs to project a beautiful and fully homogenized wash with superior color temperature control and zoom. This indoor/outdoor wash light has IP rated power and data connectors, and full convection cooling to ensure a reliable and silent performance in a wide range of applications, from stage and studio to outdoor festival productions.
• Zooming variable white LED wash for touring, rental, and production, indoors or out
• Color Temperature (range): 2800 to 7000 K
• Completely homogenized wash with superior color mixing and zoom
• 5° to 48° smooth and fast zoom
• All environment operation with IP rated power and DMX connections
• Color temperature presets, from 2800 K to 7000 K
• Selectable, smooth dimming curves for programming versatility
• OLED display with password protection
OPTICAL
• Light Source: 3 LEDs (dual-color CW-WW) 35 W, (2.42A), 50,000 hours life expectancy.
• Color Temperature (Range): 2800 to 7000 K
• Color Temperature (At Full): 4565 K
• Front Lens Diameters: 160 mm
• CRI: 96
• Beam Angle: 4.8° to 35.5°
• Field Angle: 7.3° to 48.4°
• Cuto? Angle: 9° to 56.7°
• Zoom Range: (Beam angle to Cuto? angle) 4.8° to 56.7°
• Zoom Range: (Narrowest Beam Angle to Widest Field Angle) 4.8° to 48.4°
• Lumens (4.8°): 1,555
• Lumens (48.4°): 1,731
• Illuminance (4.8°): 8,744 lux @ 5 m
• Illuminance (48.4°): 213 lux @ 5 m
• Selectable PWM: 600 Hz, 1200 Hz, 2,000 Hz, 4,000 Hz, 6000 Hz, 25,000 Hz
DYNAMIC EFFECTS
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Zoom: Motorized
• Strobe Rate: 0 to 25 Hz
• Color Temperature Presets: Yes
• Dim Modes: 5
• Built-in Automated Programs: Yes
CONSTRUCTION / PHYSICAL
• Dimensions: 8.26 x 10.7 x 15.2 in (210 x 274 x 387 mm)
• Weight: 16.0 lb (7.2 kg)
• Exterior Color: Black
• Housing Material: Magnesium
• Accessory Holder/Gel Frame Size: 7.5 in (190 mm)

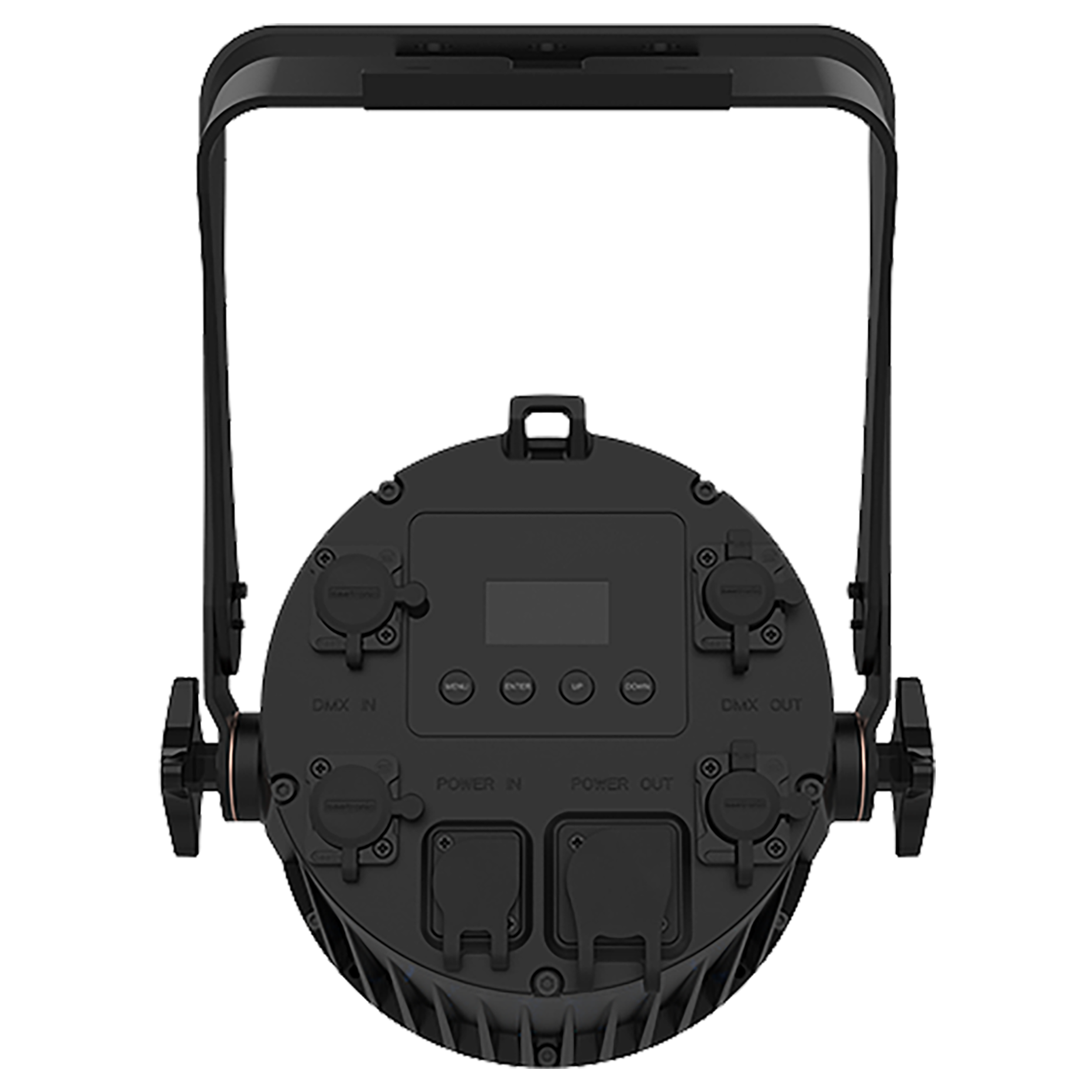

CONNECTIONS
• Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
• Power Input: Seetronic Powerkon IP65
• Power Output: Seetronic Powerkon IP65
• Data Connectors: 3- and 5-pin XLR
• Cable Length (Power): 5 ft (1.5 m)
CONTROL
• Control Protocol: DMX, RDM
• DMX Channels: 1, 4, 7 10 or 10STD
• Modes/Personalities: 5 personalities (1CH, 4CH, 7CH, 10CH, 10CH Steady)
ELECTRICAL
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 12 units @ 120 V; 21 units @ 208 V; 23 units @ 230 V
• Power and Current: 127 W, 1.064 A @ 120 V, 60 Hz
• Power and Current: 125 W, 0.627 A @ 208 V, 60 Hz
• Power and Current: 123 W, 0.571 A @ 230 V, 50 Hz
• Certifications / Qualifications: CE, MET
• IP Rating: IP65, outdoor/wet, with pressure equalizing M12 GORE® valve
(1) Chauvet COLORado 2 SOLO VW
(1) Seetronic Powerkon IP65 Power Cord
