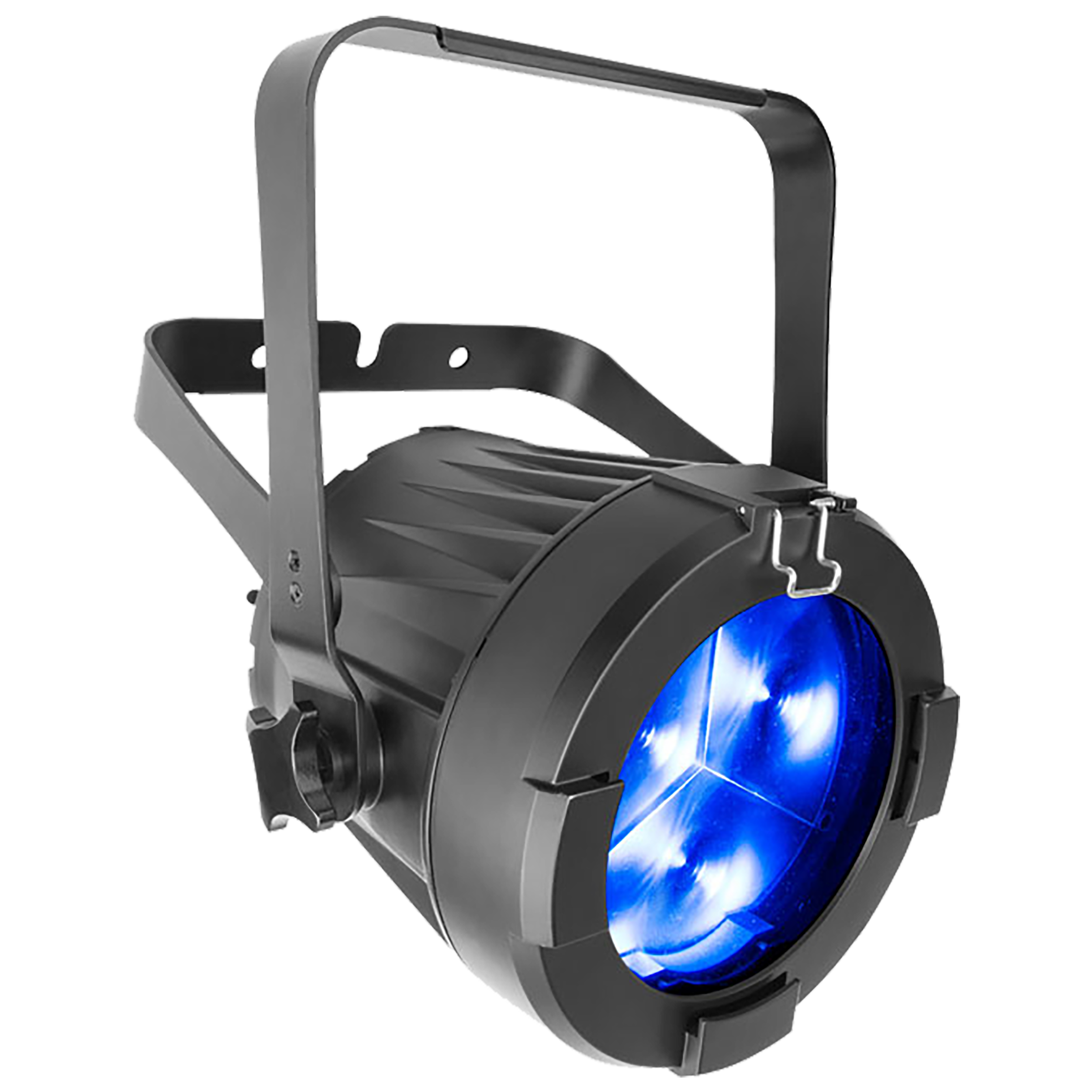

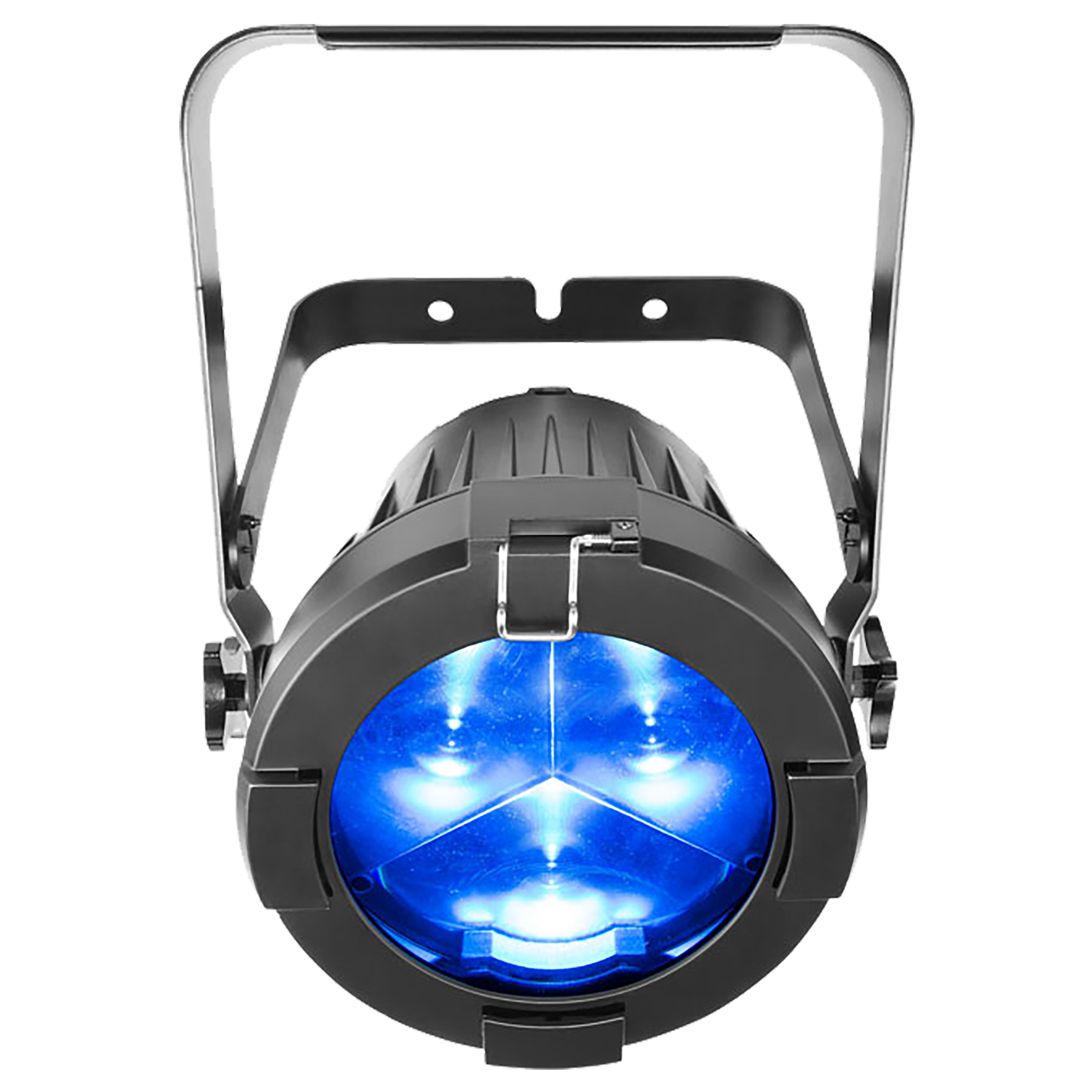

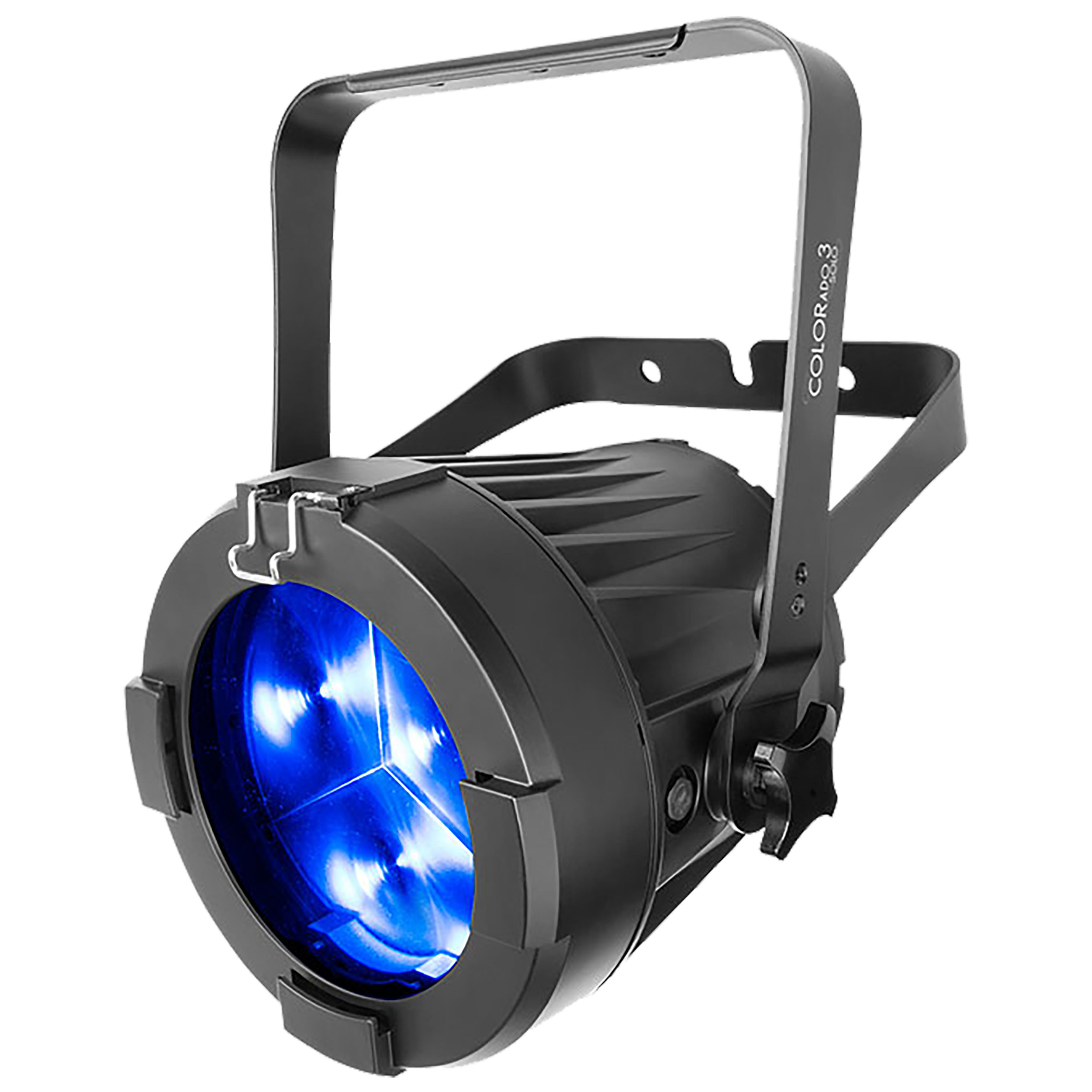

COLORado 3 Solo uses an advanced fast and smooth zoom and three 60 W RGBW LEDs to project an intense and fully homogenized beam through precision optics. This indoor/outdoor wash light has IP rated power and data connectors, and full convection cooling to ensure a reliable and silent performance in a wide range of applications, from theatrical stages to outdoor festival productions.
• Zooming RGBW LED wash for touring, rental, and production, indoors or out
• Completely homogenized wash with superior color mixing and zoom
• 4° to 45° smooth and fast zoom
• All environment operation with IP rated power and DMX connections
• Color temperature presets, from 3200 K to 10000 K
• Selectable, smooth dimming curves for programming versatility
• OLED display with password protection
OPTICAL
• Light Source 3 LEDs (quad-color RGBW) 60 W, (4.4 A), 50,000 hours life expectancy
• Beam Angle 4° to 34°
• Field Angle 8° to 45°
• Zoom Range 4° to 45°
• Illuminance (4°) 15,280 lux @ 5 m
• Illuminance (34°) 313 lux @ 5 m
• Selectable PWM 600 Hz, 1200 Hz, 2000 Hz, 2400 Hz, 6000 Hz, 25,000 Hz
DYNAMIC EFFECTS
• Dimmer Electronic
• Shutter/Strobe Electronic
• Zoom Motorized
• Strobe Rate 0 to 25 Hz
• Standalone Color Mixing Yes
• Color Temperature Presets Yes
• Dim Modes 5
• Built-in Automated Programs Yes
• Customizable Programs Yes
• Recall Custom Programs Yes
CONSTRUCTION / PHYSICAL
• Dimensions 9.84 x 12.36 x 16.25 in (250 x 314 x 413 mm)
• Weight 19.8 lb (9 kg)
• Exterior Color Black
• Housing Material Magnesium
• Accessory Holder/Gel Frame Size 7.5 in (191 mm)

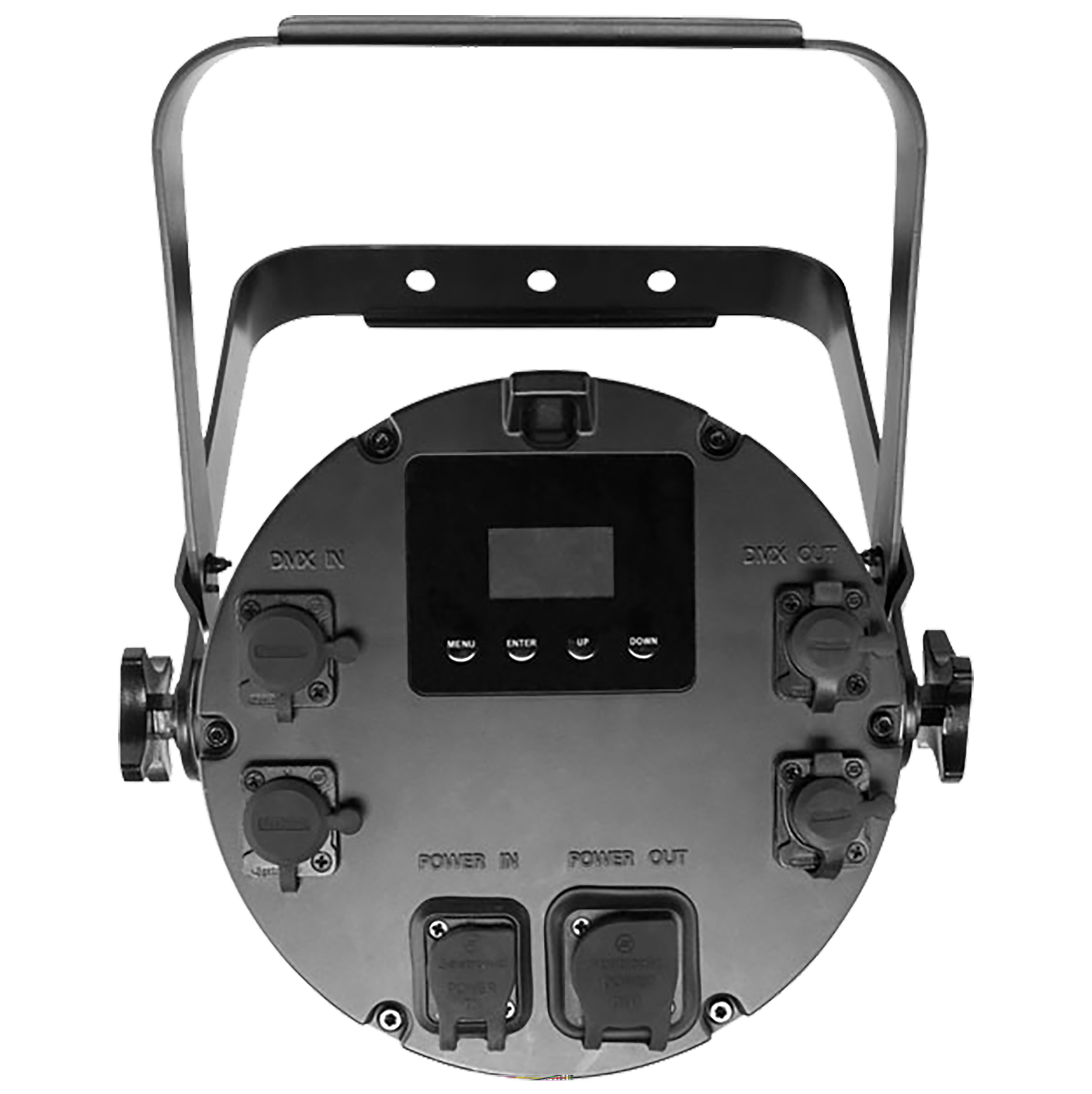

CONNECTIONS
• Power Connection Edison (Local) plug to Seetronic Powerkon IP65
• Power Input Seetronic Powerkon IP65
• Power Output Seetronic Powerkon IP65
• Data Connectors 3- and 5-pin IP65 XLR
• Cable Length (Power) 5 ft (1.5 m)
CONTROL
• Protocol(s) DMX, RDM
• DMX Channels 9, 12, or 17
• Modes/Personalities 4 personalities (HSIC, SSP, TOUR, TR16, STD.Y)
ELECTRICAL
• Input Voltage 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking 8 units @ 120 V; 14 units @ 208 V; 15 units @ 230 V
• Power and Current 187 W, 1.580 A @ 120 V, 60 Hz
• Power and Current 181 W, 0.909 A @ 208 V, 60 Hz
• Power and Current 175 W, 0.869 A @ 230 V, 50 Hz
• Certifications / Qualifications CE, MET, FCC
• IP Rating IP65, outdoor/wet, with pressure equalizing M12 GORE® valve
(1) Chauvet Professional COLORado 3 Solo
(1) Seetronic Powerkon IP65 power cord
(1) Operator's Instructions
