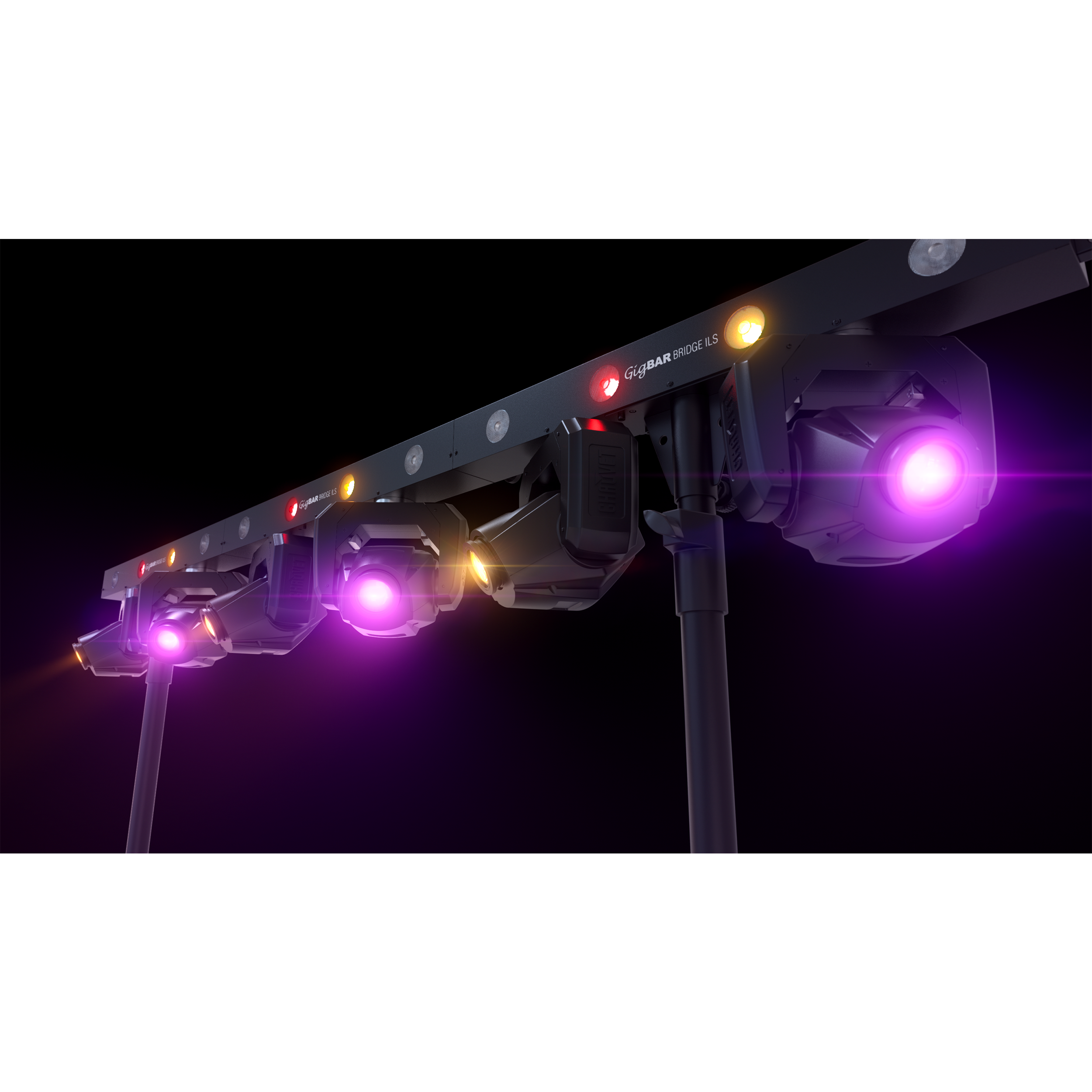

The Chauvet DJ GigBAR Bridge ILS is a versatile, all-in-one lighting system designed for mobile entertainers, DJs, and small to medium-sized venues. It features a comprehensive lighting package that includes 2 LED derby lights, 2 LED PARs, a laser, and 4 high-power LED strobe lights, all mounted on a single bar. This integrated system offers a wide array of dynamic lighting effects, including dazzling patterns, vibrant color washes, and captivating strobes, synchronized through its built-in ILS (Integrated Lighting System) technology. The GigBAR Bridge ILS is easily controlled via wireless footswitch, IRC-6 remote, or DMX, providing flexibility and convenience. Additionally, it is lightweight and portable, complete with a tripod stand, carry bag, and mounting hardware, making setup and transport effortless. This robust lighting solution is perfect for creating an immersive atmosphere, enhancing any performance or event with professional-grade illumination and effects.
• 2-in-1 lighting system that includes moving heads and washes pre-mounted on a single bar
• Quickly and securely connect multiple fixtures with the built-in locking system
• Built-in D-Fi transceiver communicates DMX or ILS signals wirelessly

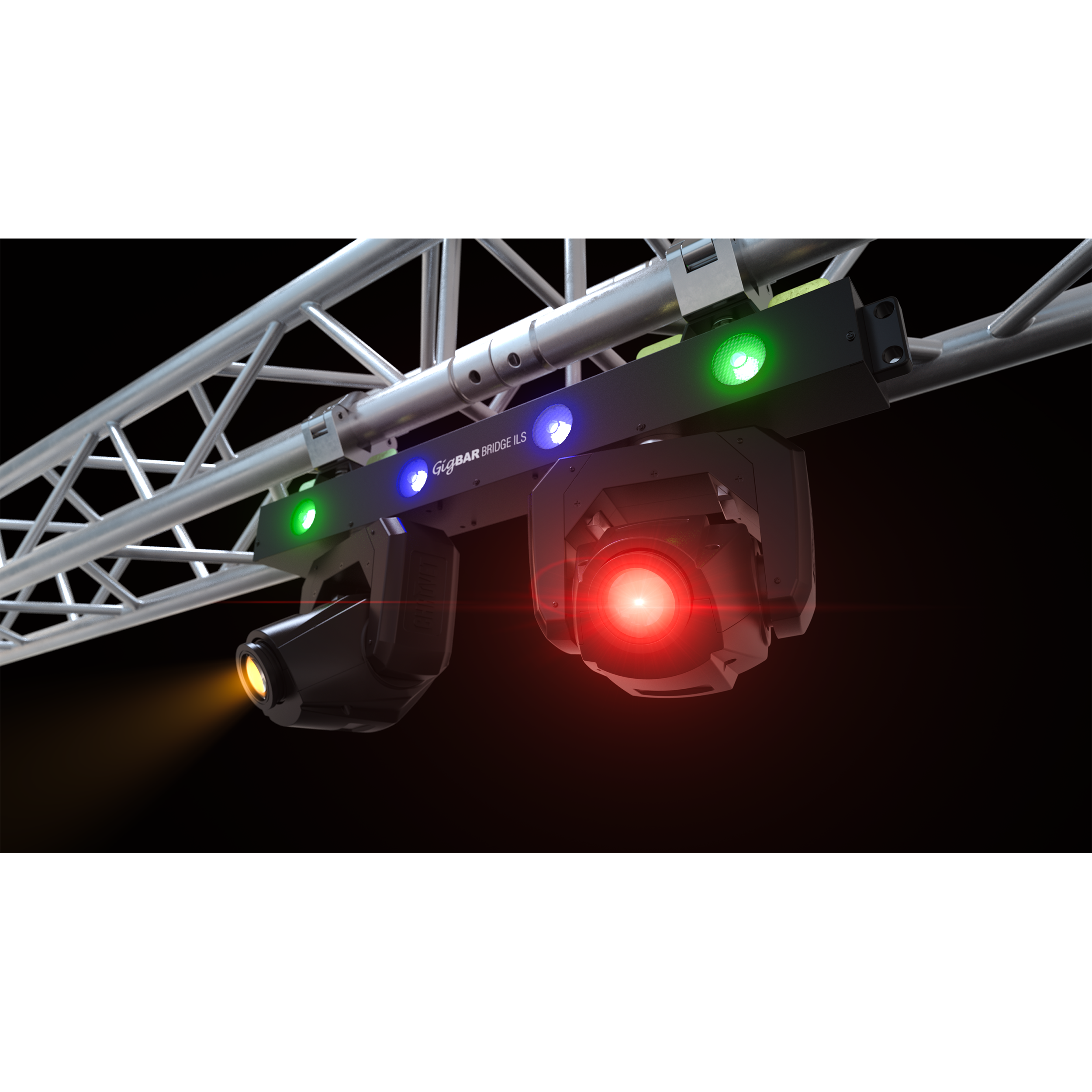

• Safely mounts onto truss or mobile tripods using the removable bracket
• Easy navigation and access all functions directly from the full-color LCD display
• Powerful moving heads with separate color and gobo wheels allow for creative programming
• Totem Mode keeps the moving heads focused on the dance floor
• Save time running cables and extension cords by power linking multiple units
• ILS compatibility for use in the ILS ecosystem
• DMX Channels: 3, 16 or 46
• DMX Connectors: 3-pin XLR
• Pan and Tilt: 270°/540°
• Colors (moving head): 9 + open, split colors, continuous scroll at variable speeds
• Gobos (moving head): 9 + open, continuous scroll at variable speeds
• Light Source (moving head): 1 LED (cool white) 70W (3A), 50,000 hours life expectancy
• Light Source (wash): 4 LEDs (hex-color RGBAW + UV) 10W (1.3 A), 50,000 hours life expectancy
• Strobe Rate: 0 to 20Hz
• Operating Frequency: 2.4 GHZ
• Beam Angle (moving head): 16°
• Beam Angle (wash): 22°
• Field Angle (wash): 38°
• Illuminance (moving head): 7,594 Lux @ 2 m (per head)
• Illuminance (wash): 375 lux @ 2 m (per section)
• Power Linking: 8 units @ 120 V; 13 units @ 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 191 W, 1.5 A @ 120 VAC, 60Hz
• Power and Current: 175 W, 1 A @ 230 VAC, 50Hz
• Fits Tripod Sizes: 1.5 in (37.4 mm)
• Max Unobstructed Distance (D-Fi): 600 ft (183 m)
• Approvals: CE, RoHS, FCC
(1) Chauvet DJ GigBAR Bridge ILS
(1) User Manual
