ÉPIX Flex Drive controls the ÉPIX Flex 20 with 2 plug and play outputs that drive up to 4 ÉPIX Flex 20 at 960 LEDs each. Adding ÉPIX Flex Boost to each output doubles the capacity of the drive to 1920 LEDs or 8 ÉPIX Flex 20, which reduces cost per linear feet. To ease installation, ÉPIX Flex Drive allows for 75ft of extension cables between it and the first ÉPIX Flex 20. Use either pixel control or its simplified 17 / 34-channel control personalities to support changing colors and built-in automatic programs. Webserver is supported for remote configuration and for firmware updates.
• The processing and power center of the ÉPIX Flex system drives the ÉPIX Flex 20 pixel product
• Versatile control options include DMX, Art-Net and sACN (streaming ACN) to support the touring/rental/installation markets

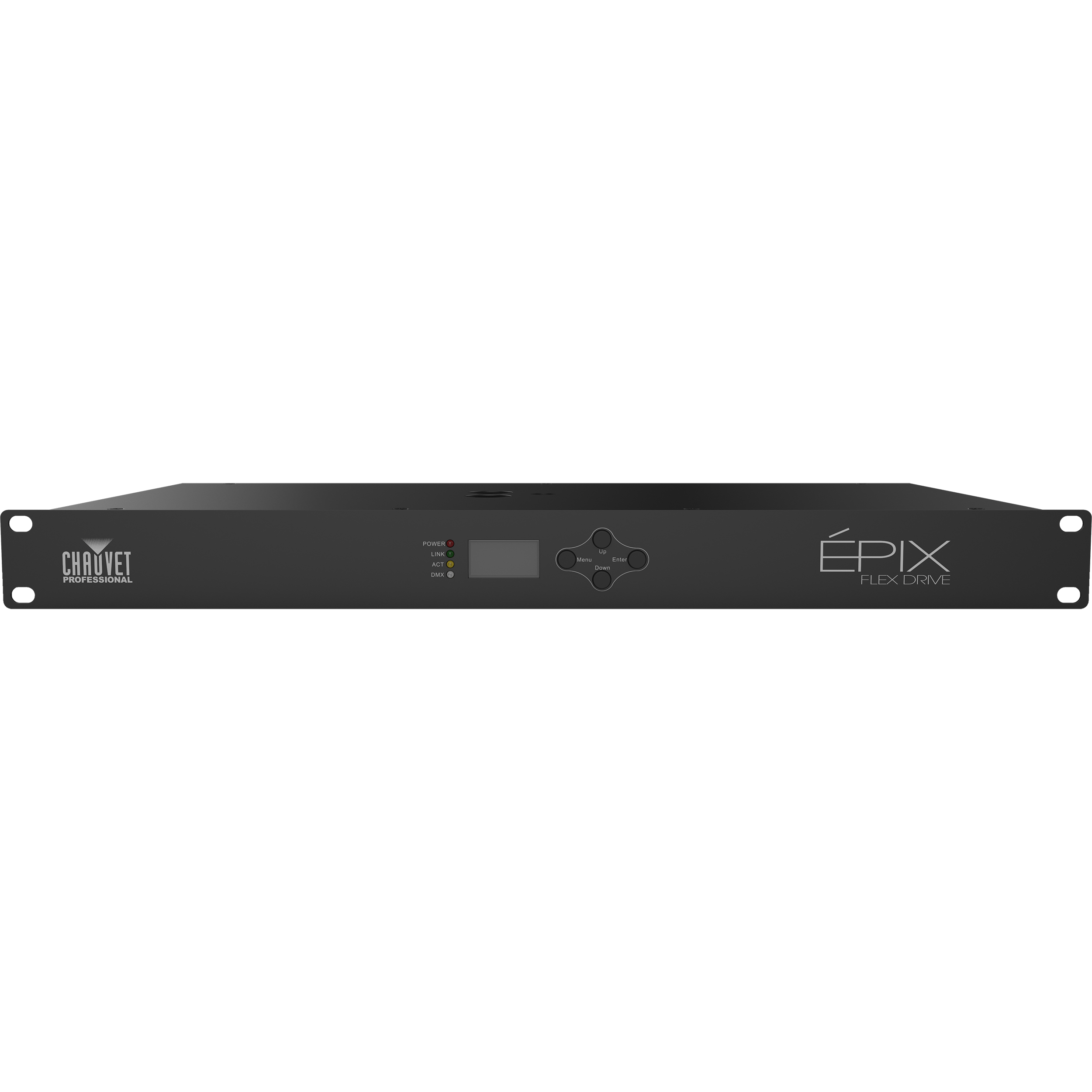

• Quickly and easily configure the ÉPIX Flex Drive using the built-in OLED display and menu
• Easily configure your ÉPIX Flex 20 by assigning the pixel count/output (2 total)
• Supports up to 4 ÉPIX Flex 20 5 meter rolls, or up to 8 with the ÉPIX Flex Boost (sold separately)
• Easily daisy chain fixtures directly from the 2 outputs of the Flex Drive
• Advanced power management design allows you to position the Flex Drive up to 75 ft away from your first Flex 20
• Works with Arkaos Media Master Express for a plug-n-play system that requires almost no training to operate
• Supports RDM over Artnet and full webserver interface for remote configuration and firmware updates
• Multiple control personalities offers flexibility for detailed pixel level control or simplified plug and play options using the 17/34 channel modes
• DYNAMIC EFFECTS:
• Standalone Color Mixing: Yes
• Built-in Automated Programs: Yes
• CONSTRUCTION / PHYSICAL:
• Dimensions: 19 x 17.52 x 1.7 in (483 x 445 x 44 mm)
• Weight: 6 lb (2.7 kg)
• Exterior Color: Black
• Housing Material: Steel
• Rackmount: 1U

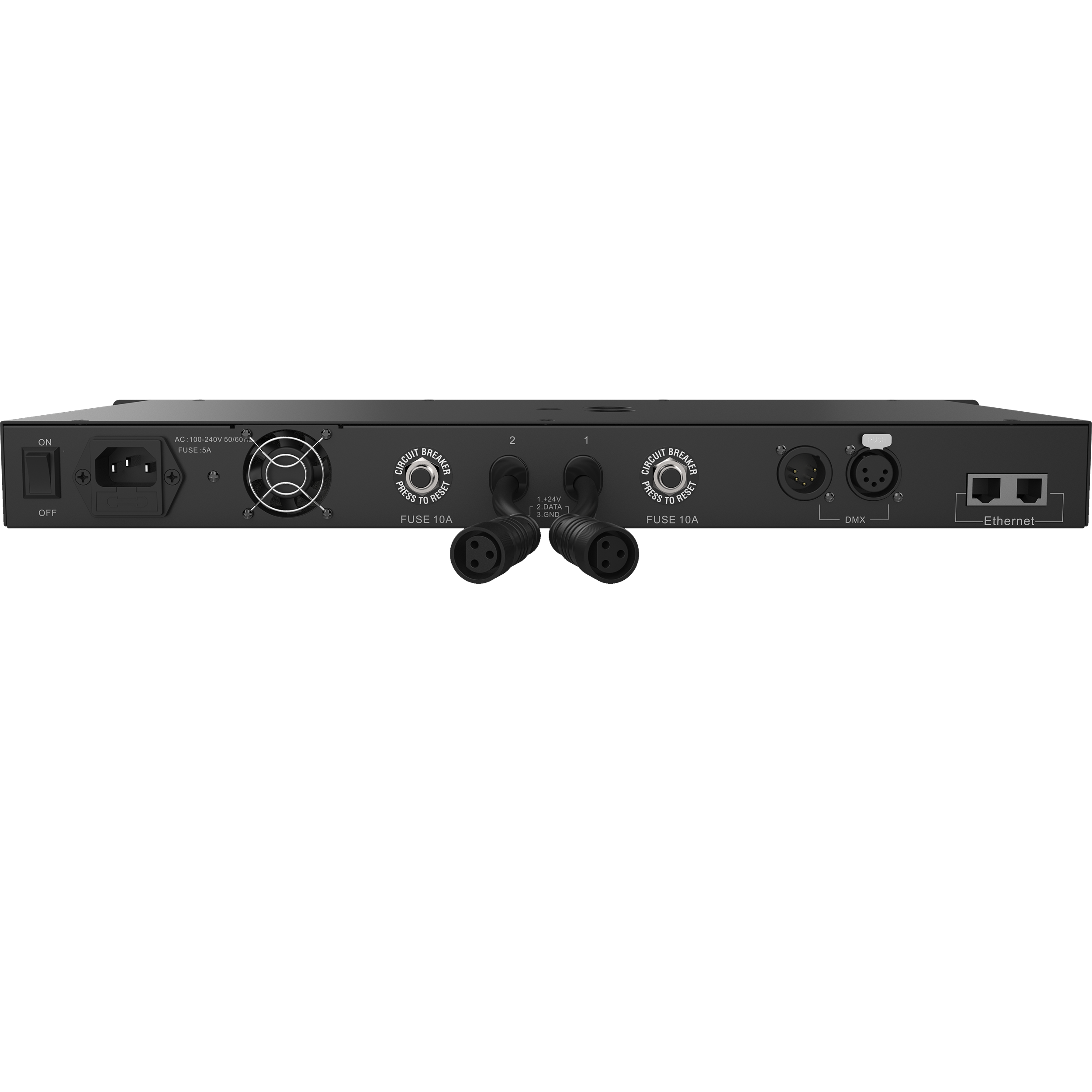

• CONNECTIONS:
• Power Connection: Edison (local) plug to IEC
• Power Input: IEC
• Cable Length (Power): 5 ft (1.5 m)
• Device Data Inputs: Ethernet (RJ45) (2 total) and 5-pin XLR (2 total)
• Device Outputs (3-pin IP65 ports): 2
• Physical Linking per port (without Flex Boost): 2 inline ÉPIX Flex 20 (with Flex Boost): 4 inline ÉPIX Flex 20
• CONTROL:
• Control Protocol: Art-Net, sACN, DMX
• DMX Channels: 17, 34 or PIXEL
• Art-Net Channels: 17, 34 or PIXEL
• Modes/Personalities: 3 personalities (17ch, 34ch, PIXEL)
• Maximum Supported LEDs (per port): 960
• Maximum Supported LEDs (total): 1920
• ELECTRICAL:
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 326 W, 2.75 A @ 120 V, 60 Hz 314 W, 1.64 A @ 208 V, 60 Hz 312 W, 1.50 A @ 230 V, 50 Hz
• CERTIFICATION/QUALIFICATIONS:
• Certifications / Qualifications: CE, MET
• IP Rating: IP20, dry location
• Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
• MET Listing Number: E114016-1144
• US Safety: UL 8750
• Canadian Safety: CSA C22.2 No. 250.13-12
• (1) Chauvet Professional ÉPIX Flex Drive
• (1) IEC Power Cord
