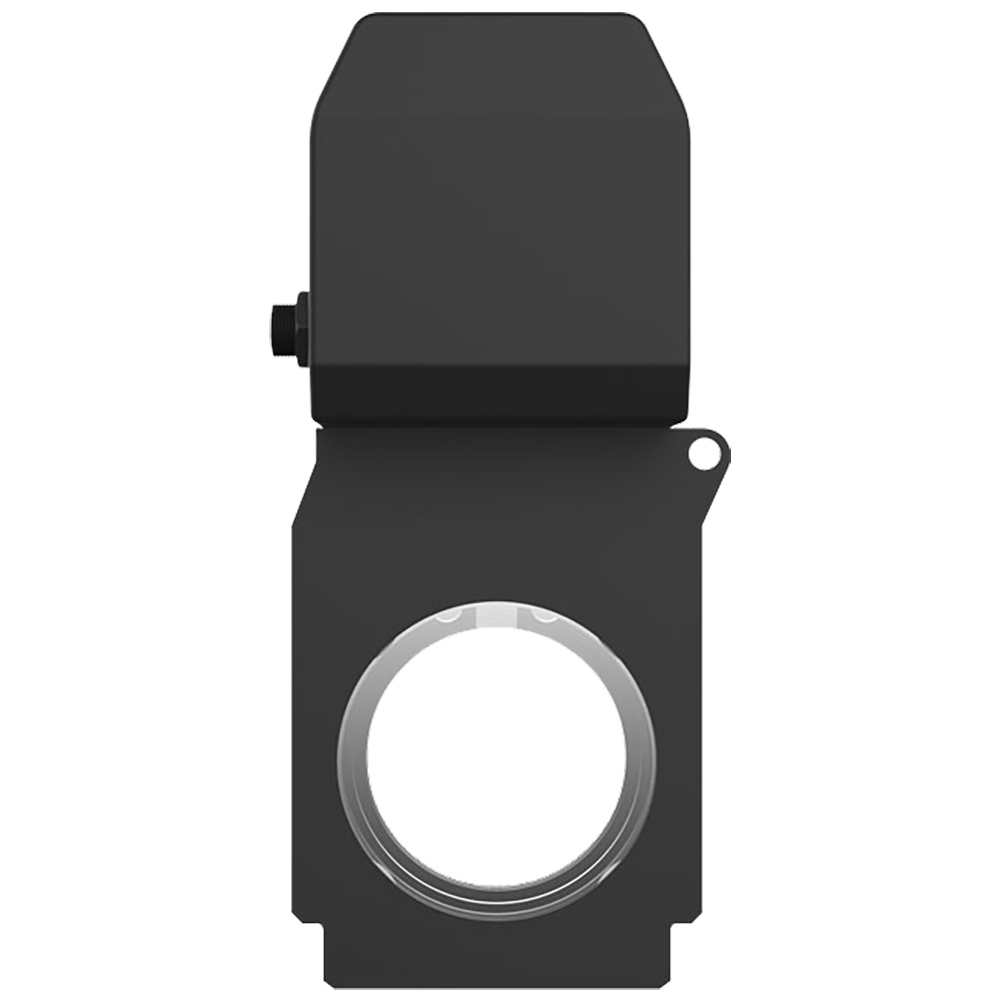

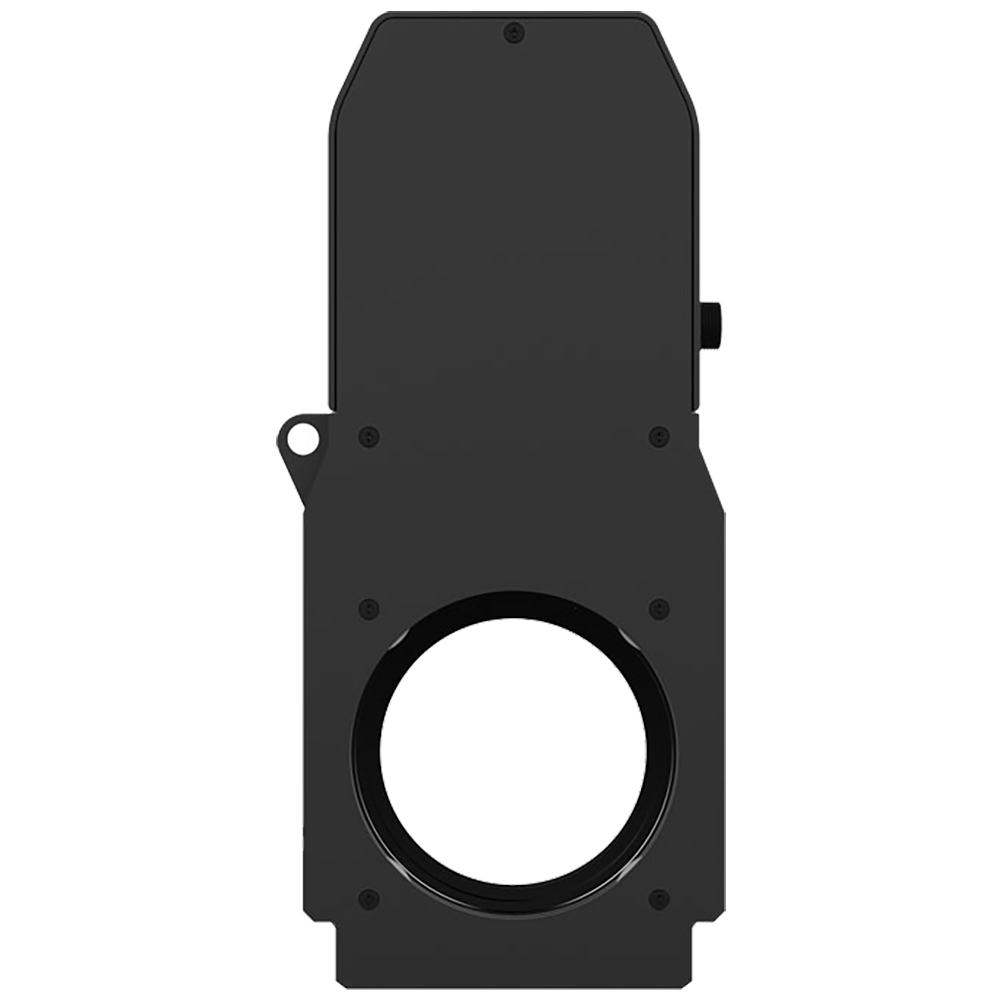

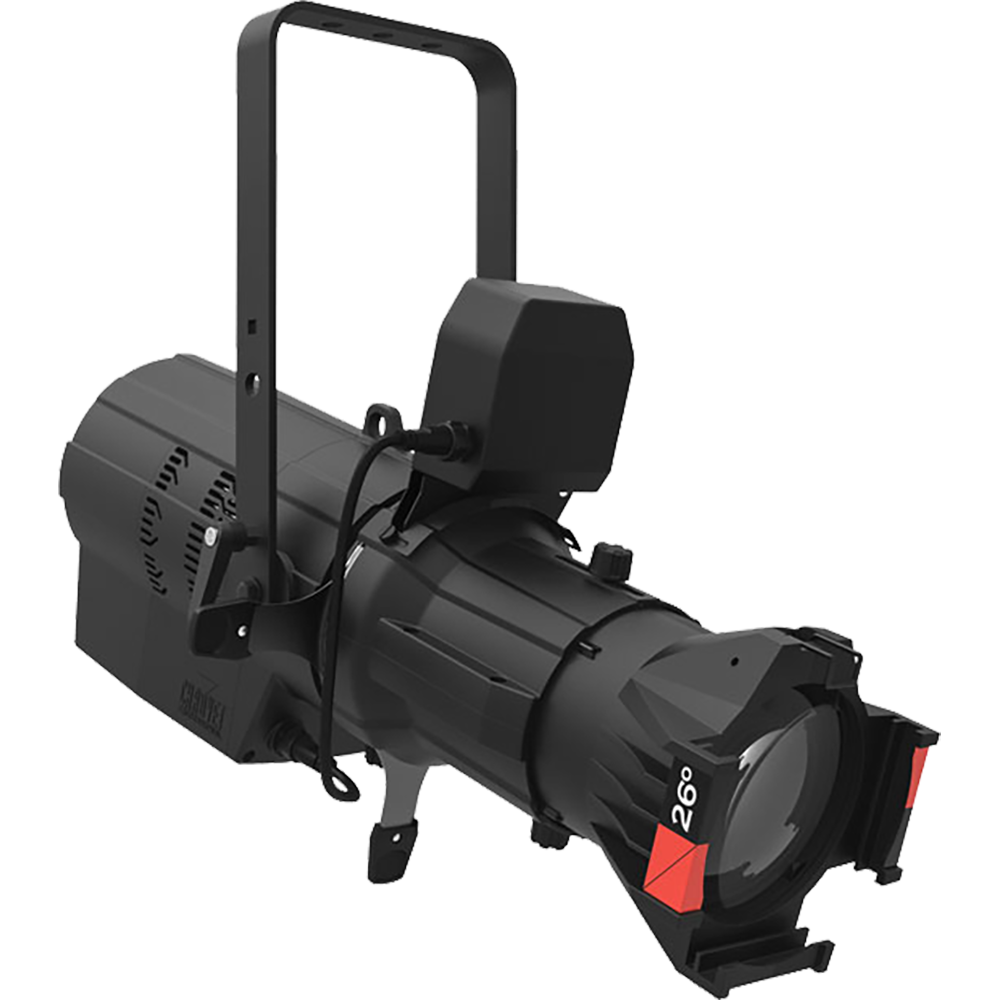

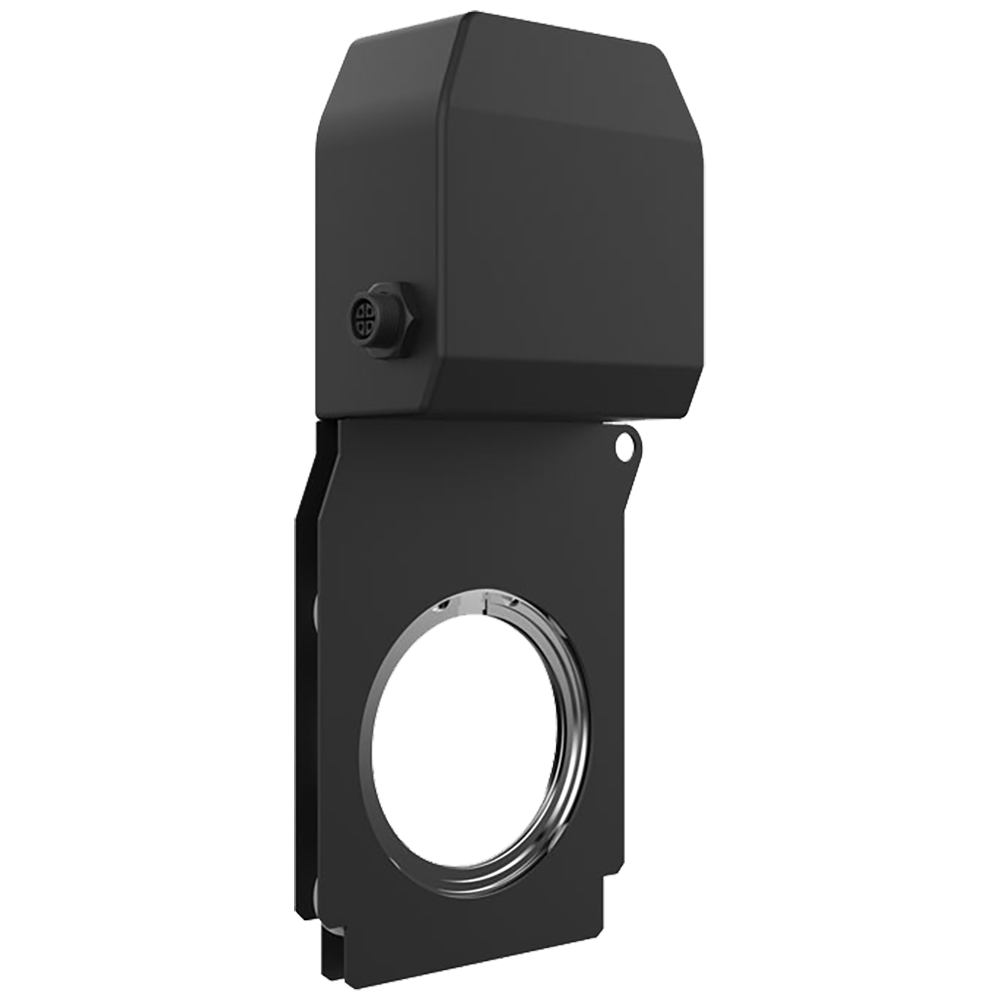

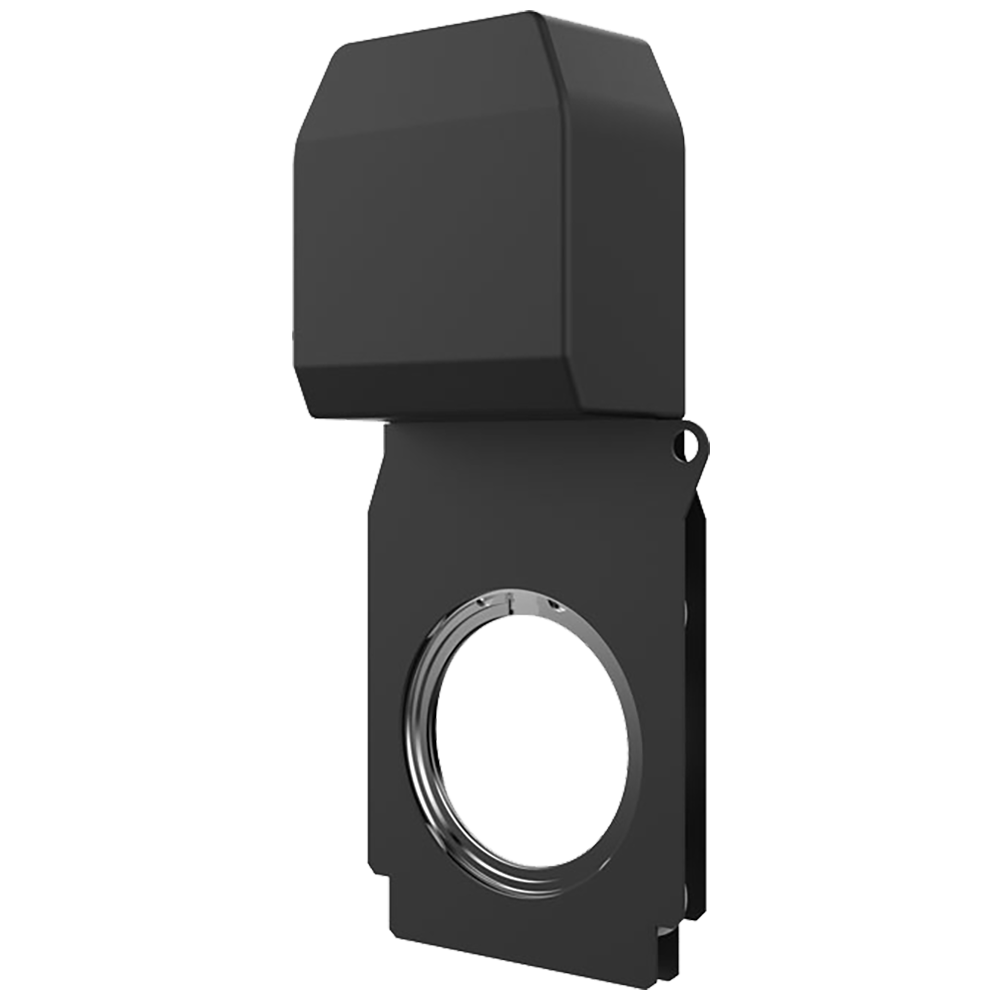

Ovation GR-1 IP is an IP65 rated gobo rotator for the Ovation E-260WW IP & OvationE-910FC IP. Power and control for the unit is delivered from the dedicated port on the fixtures and controlled via the fixture personality.
FEATURES
-
• IP65 rated gobo rotator for one single or two counter-rotating gobos
• Fully controllable via the Ovation E-260WW IP control personalities
• Variable speed, bi-directional 0.047-21 RPM (17°- 7,560° per minute) standard rotation
• Fully indexable positioning via DMX
• Dedicated power/control supplied by the Ovation E-260WW IP
• Stepper motor driven for ultra-quiet and super smooth movement without stalling or stuttering
SPECIFICATIONS
-
• DYNAMIC EFFECTS:
• Gobos size: B (metal, glass or effect)
• Effects: CW or CCW Rotation, indexing, infinite rotation at variable speeds
• Speed Range: 0.047 – 21 RPM (17° - 7,560° per minute)
• CONSTRUCTION / PHYSICAL:
• Dimensions: 10.9 x 4.7 x 2.2 in (277.5 x 120.5x 56.9 mm)
• Weight: 2.4 lb (1.2 kg)
• Exterior Color: Black
• Housing Material: Aluminum die-cast
• CONNECTIONS:
• Power Connection: Proprietary 4-pin IP65 input power/data cord (19 in/483 mm)
• Data Connectors: Proprietary 4-pin IP65 input power/data cord (19 in/483 mm)
• Cable Length (power/data): 19 in/483 mm
• CONTROL:
• Control Protocol: DMX
• DMX Channels: 1
• ELECTRICAL:
• Input Voltage: 24 VDC, 372 mA (via Ovation E-260WW IP)
• CERTIFICATION/QUALIFICATIONS:
• Certifications / Qualifications: CE
• IP Rating: IP65, temporary outdoor/wet use
• Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
CONTENTS
-
(1) Chuavet Professional Ovation GR-1 IP
(1) Power & Data Control Cable
