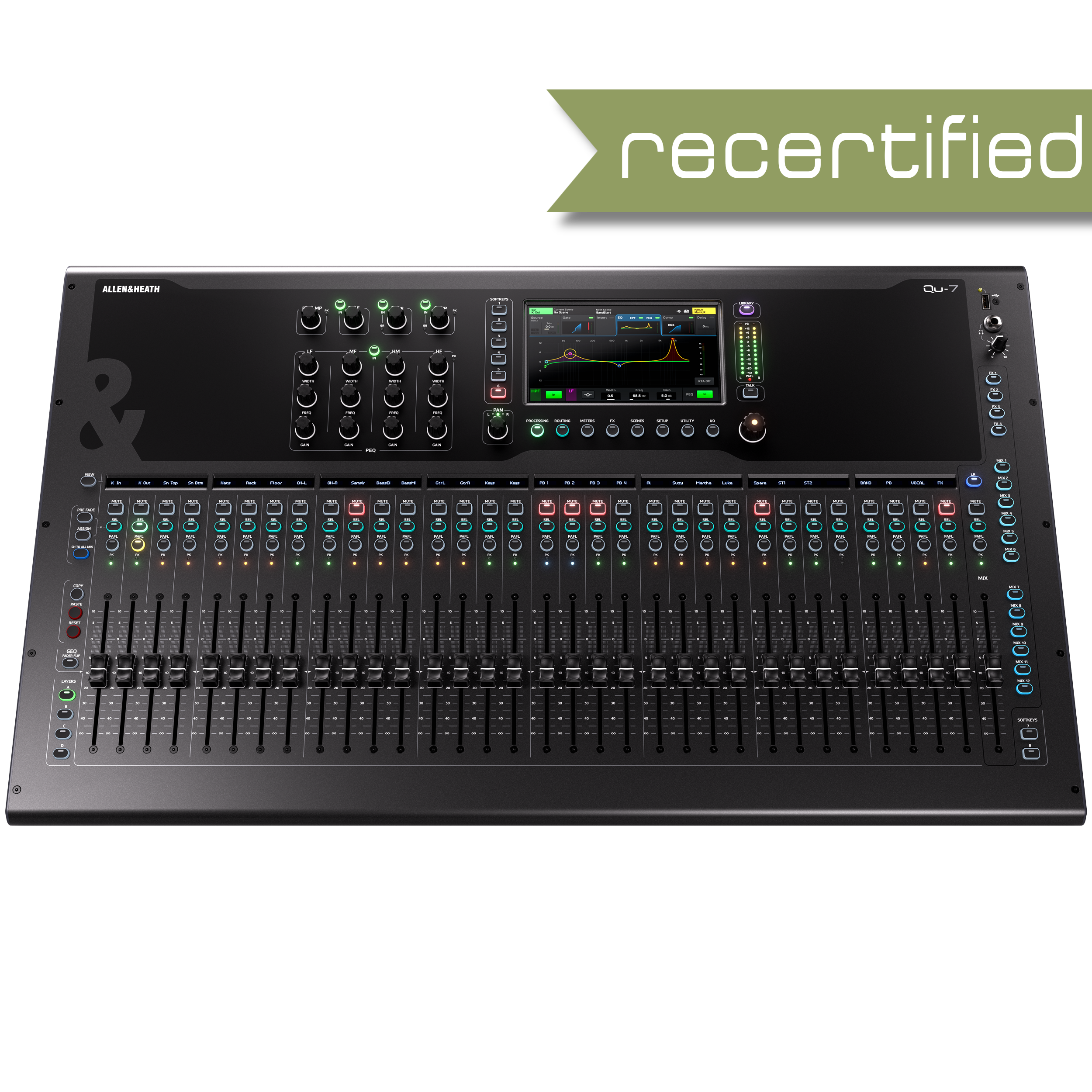

Allen & Heath Qu-7 Mixer
19%, only 0 left
Allen & Heath Qu-7 Mixer
Product SKU
    34446

Allen & Heath Qu-7 Mixer

$3,099.99

PICK UP TODAY

recertified+.png__PID:7672a0bd-1cf7-4ba8-9841-5171b10f1ebf
  • Like New Condition
  • Original Packaging
  • Full Factory Warranty

Have a question?

Need help finding something?

Talk to a PRO

855-772-2937

_EBP9032_SQ.jpeg__PID:828e756e-5126-4f82-9136-2bf92b17727c

Expertly tested refurbished and open box products

Backed by the BYFP satisfaction guarantee

Copy of Untitled Design (3).png__PID:0d4aaa6e-815d-4b5a-879b-7bd16634732b

Free Shipping

1.png__PID:3c5bc891-9c7e-4dda-94a6-30ba47708c69

Professionally Inspected

2.png__PID:5bc8919c-7ecd-4a14-a630-ba47708c69eb

Satisfaction Guaranteed

3.png__PID:c8919c7e-cdda-44a6-b0ba-47708c69eb73

Expert Support

DESCRIPTION

Allen & Heath’s legendary digital mixer is reborn, supercharged with a 96 kHz XCVI core for DEEP Processing capabilities, an increased channel count with fully flexible patching across 4 customizable layers, a completely redesigned user interface, significant hardware upgrades, extended connectivity, and optional Dante.

FEATURES
    • 96kHz XCVI Core variable bit-depth up to 96bit, <0.7ms latency
    • 38x Inputs to Mix (32x Mono/Linkable, 3x Stereo)
    • Stereo Main LR Output
    • 12x Mixes (6x Mono/Linkable Aux/Group, 6x Stereo Aux/Group)
    • 4x FX Sends
    • 4x Mono/Linkable Matrix Mixes
    • 32x XLR/Jack ‘Combi’ Mic/Line Input Sockets
    • 2x Stereo Line Input Sockets (each 2x TRS)
    • 1x XLR Talkback Socket
    • 12x XLR Output Sockets
    • 2x TRS Output Sockets
    • 1x AES3 Stereo Digital Output Socket
    • 128x128 SLink Port for Everything I/O expansion and system connections
    • Stereo Headphone Output
    • 7” Capacitive Touchscreen
    • 33x 100mm Motorised Faders
    • 4x Customisable Channel Strip Layers
    • 8x SoftKeys
    • 12V Lamp Socket
    • Configurable single/dual Footswitch Connection
    • Configurable Chromatic Channel Meter LED’s
    • IEC Mains Connection with Worldwide PSU
    • RJ45 Network Socket
    • USB-A For stereo audio record/playback and data (2 Channels @ 48/96 kHz, 24 bit)
    • USB-C Audio interface for multichannel record/playback (32x32 @ 48/96 kHz, 16/24 bit)
    • SD Card Slot for multichannel audio record/playback (16 Channels @ 96 kHz, 32 Channels @ 48 kHz, 24 bit)
    • Input processing – Trim, HPF, Gate, Parametric EQ, Compressor, Channel Delay
    • Mix processing – Graphic EQ, Feedback Assistant, PEQ, Compressor, Channel Delay
    • Fully patchable Insert points
    • 6x Multi-FX Engines with dedicated Stereo Return Channels and PEQ
    • 32 Channel, zero latency, DEEP Automatic Mic Mixer
    • 31/61 Band Real Time Analyser
    • Feedback Assistant with 8 simultaneous detectors
    • Gain Assistant
    • 300 Scene memories per Show
    • Channel Safes, Global/Per-Scene Recall Filters
    • FX, Processing and Channel Libraries
    • User Permissions to restrict operator access
    • DAW Control emulation via USB or TCP/IP
    • Compatible with ME personal monitoring range
    • Remote control via free apps - Windows / MacOS / iOS / Android
SPECIFICATIONS
    • Mic/Line Inputs: Balanced Combi XLR/Jack, fully recallable preamp
    • Input Sensitivity: -60 to +0dBu
    • TRS Inputs: -20dB Pad (Fixed)
    • Preamp Gain: 0dB to +60dB, 1dB steps
    • Maximum Input Level (XLR/Jack): +16dBu Mic input / +30dBu TRS pad input
    • Input Impedance: >1.5kΩ MIC / >20kΩ TRS
    • THD+N, Unity gain 0dB: 0.002% -92dB (20Hz-20kHz, AES Direct Out, @0dBu 1kHz)
    • THD+N, Mid gain +30dB: 0.004% -88dB (20Hz-20kHz, AES Direct Out, @-30dBu 1kHz)
    • Phantom Power: +48V (+3V / -2V)
    • Stereo Line Inputs: Balanced, 2x 1/4" TRS jack
    • Input Sensitivity: Nominal +4dBu
    • Trim: +/-24dB
    • Maximum Input Level: +21dBu
    • Input Impedance: >6kΩ
    • XLR Outputs: Balanced, XLR
    • Outputs A and B: Balanced 1/4" TRS Jack
    • Output Source: Fully patchable
    • Output Impedance: <75Ω
    • Nominal Output: +4dBu = 0dB meter reading
    • Maximum Output Level: +22dBu
    • Residual Output Noise: -88dBu (muted, 20Hz-20kHz)
    • AES Digital Output: Balanced XLR 2 channel, 96kHz sampling rate (Default with SRC Bypassed), Switchable output sample rates, 44.1/48/88.2/96kHz, 2.5Vpp balanced terminated 110Ω
    • SLink Connection: Neutrik EtherCON (RJ45)
    • dSnake mode: 40 input, 20+40(ME) output channels, 48kHz
    • DX mode: 32 input, 32 output channels, 96kHz
    • GigaACE/GX: 128 input, 128 output channels, 96kHz
    • SLink Inputs: Fully patchable
    • SLink Outputs: Fully patchable
    • SLink Sync/SRC: Assignable as audio clock source, 48kHz<>96kHz SRC
    • USB Audio Qu-Drive: USB-A or SD Card, recording or playback
    • Stereo Record (USB-A): 2 channel, WAV, 48/96kHz, 24-bit, fully patchable
    • Stereo Playback (USB-A): 1/2 channel, WAV, 44.1/48/96kHz 16/24-bit, fully patchable
    • Multitrack Record (SDHC): 16 channels 96kHz, 32 channels 48kHz, 24-bit, WAV, fully patchable
    • Multitrack Playback (SDHC): 16 channels 96kHz, 32 channels 48kHz, 24-bit, WAV, fully patchable
    • USB Audio SD Card: SDHC, 32GB, UHS-I, Class 10 for maximum channels, 48/96 kHz, 24-bit
    • USB Audio Streaming: USB-C connection, USB 2.0 Core Audio compliant, ASIO/WDM for Windows
    • Send (upstream): 32 channels, 48/96kHz, 24-bit
    • Return (downstream): 32 channels, 48/96kHz, 24-bit
    • Control Touch Screen: 7" Capacitive, 800 x 480 resolution, 24-bit RGB
    • Control SoftKeys: 8
    • Control Mute Groups / DCA Groups: 8 / 8
    • Control Network: TCP/IP Ethernet for Control and MIDI
    • Control MIDI: USB-C and TCP/IP
    • Control Footswitch: Single or Dual, Momentary or Latching
    • System 38 input, 28 bus, XCVI Core: Measured balanced XLR in to XLR out, 0dB gain, 0dBu input
    • Dynamic Range: 110 dB
    • Frequency Response: +0/-0.5dB 20Hz to 20kHz
    • System Headroom: +18dB
    • Internal operating Level: 0dBu
    • THD+N, Mic/Line routed to Main L/R Out: Unity gain, 0.005%, -87dB (20Hz-20kHz)
    • dBFS Alignment: +18dBu = 0dBFS (+22dBu at XLR output)
    • Meter Calibration: 0dB meter = -18dBFS (+4dBu at XLR out)
    • Main Meter Type: 2x 12 segment, fast (peak) response, follows PAFL
    • Channel Meter Type: Chromatic Channel Metering, fully programmable colour/brightness
    • Peak Indication: -3dBFS (+19dBu at XLR out), Multi-point sensing
    • Sampling Rate: 96kHz
    • Bit Depth: XCVI custom bit depths, up to 96-bit
    • Latency: <0.7ms, Local Mic Input to Main L/R
    • Operating Temperature Range: 0 deg C to 40 deg C (32 deg F to 104 deg F)
    • Mains Power: 00-240V AC, 50/60Hz
    • Max Power Consumption: 105W
    • Input Processing Source - Channels 1-32: Fully patchable
    • ST1 / ST2 / USB Channels: Fixed patch, ST1 / ST2 / USB1&2
    • USB Global Source: Qu-Drive or USB-C Streaming (Auto Switching)
    • Polarity: Normal/Invert
    • Trim: -24 to +24dB
    • High Pass Filter: 12/18/24dB per octave 20Hz – 2kHz
    • Insert: Fully Patchable (Digital/Analogue/-10dBV level)
    • Delay: Up to 341ms
    • Gate: Patchable Sidechain
    • Sidechain filter: Hi-pass (20Hz-5kHz), band-pass (120Hz-10kHz, Q=1), Lo-pass (120Hz-20kHz)
    • Threshold / Depth: -72dBu to +18dBu / 0 to 60dB
    • Attack / Hold / Release: 50µs to 300ms / 10ms to 5s / 10ms to 1s
    • PEQ: 4-Band fully parametric, 20Hz-20kHz, +/-15dB
    • Band 1, Band 4: Selectable Shelving (Baxandall), Bell, HPF/LPF 12dB/octave
    • Band 2, Band 3: Bell
    • Bell Width: Variable, 1.5 Q to 1/9th octave
    • Input Processing Compressor: Patchable Sidechain, Ducker mode, DEEP options, +18dB Makeup gain
    • Sidechain filter: Hi-pass (20Hz-5kHz), band-pass (120Hz-10kHz, Q=1), Lo-pass (120-20kHz)
    • Threshold / Ratio: -46dBu to 18dBu / 1:1 to infinity
    • Attack / Release: 30µs to 300ms / 50ms to 2s
    • Knee: Soft/Hard
    • Detector response: Peak/RMS switchable
    • Parallel Path Compression: dry/wet -inf to 0dB
    • Channel Direct Out: Follow Fader/Mute/Mute Group/DCA (Global)
    • Direct Out Source: Post-Preamp, Post-HPF, Post-Gate, Insert Return, Post-PEQ, PostComp, Post-Delay
    • Direct Out Level: trim -inf to 10dB (per channel)
    • Mix Processing Insert: Fully Patchable (Digital/Analogue/-10dBV level)
    • Delay: Up to 682ms
    • Feedback Assistant: Automatic feedback suppression, 16 filters per mix, 8 concurrent detectors
    • Filter Cut: 0dB to 18dB
    • Automatic Filter Width: 18 to 116 Q
    • Manual Filter Width: 6 to 640 Q
    • GEQ: 28 bands 31Hz-16kHz, +/-12dB Gain, Constant 1/3 oct, DEEP options
    • PEQ: As Input PEQ
    • Mix Processing Compressor: As Input Compressor
    • Internal FX: 6x FX engines, Send>Return (4 dedicated FX send) or Inserted (with Wet/Dry)
    • FX Types: SMR Reverb, Stereo Tap Delay, Gated Reverb, ADT, Blue Chorus Symphonic Chorus, Flanger, Phaser
    • 6x Dedicated Stereo FX returns: Fader, Pan, Mute, Routing to LR/Mix, 4-Band PEQ
    • Audio Tool PAFL: PFL or stereo in-place AFL, 0 to -24dB Trim, PAFL Delay Up to 682ms
    • Talkback: Dedicated input, Assignable to any mix, Preamp/Trim Control, 20Hz20kHz 12dB/oct HPF
    • Signal Generator: Assignable to any input or mix, Sine/White/Pink/Bandpass Noise
    • RTA: 2x 31-Band 1/3 oct (Stereo) or 61-Band 1/6 octave (Mono), 20Hz20kHz
    • AMM Type: 32 Channel, Gain Sharing Algorithm
    • AMM Sidechain Filter HPF / LPF: 250Hz / 5kHz (12dB/octave)
    • AMM Priority: -15dB to +15dB per channel
    • Dimensions (WxDxH) - Unit only: 800 x 476 x 213 mm (31.5" x 18.7" x 8.4")
    • Dimensions (WxDxH) - Packed in shipping box: 940 x 670 x 320 mm (37" x 26.4" x 12.6")
    • Unpacked weight: 16.7 kg (36.8 lbs)
    • Packed weight: 20.8 kg (45.9 lbs)
CONTENTS
    (1) Allen & Heath Qu-7 Mixer
    (1) Operator's Instructions
