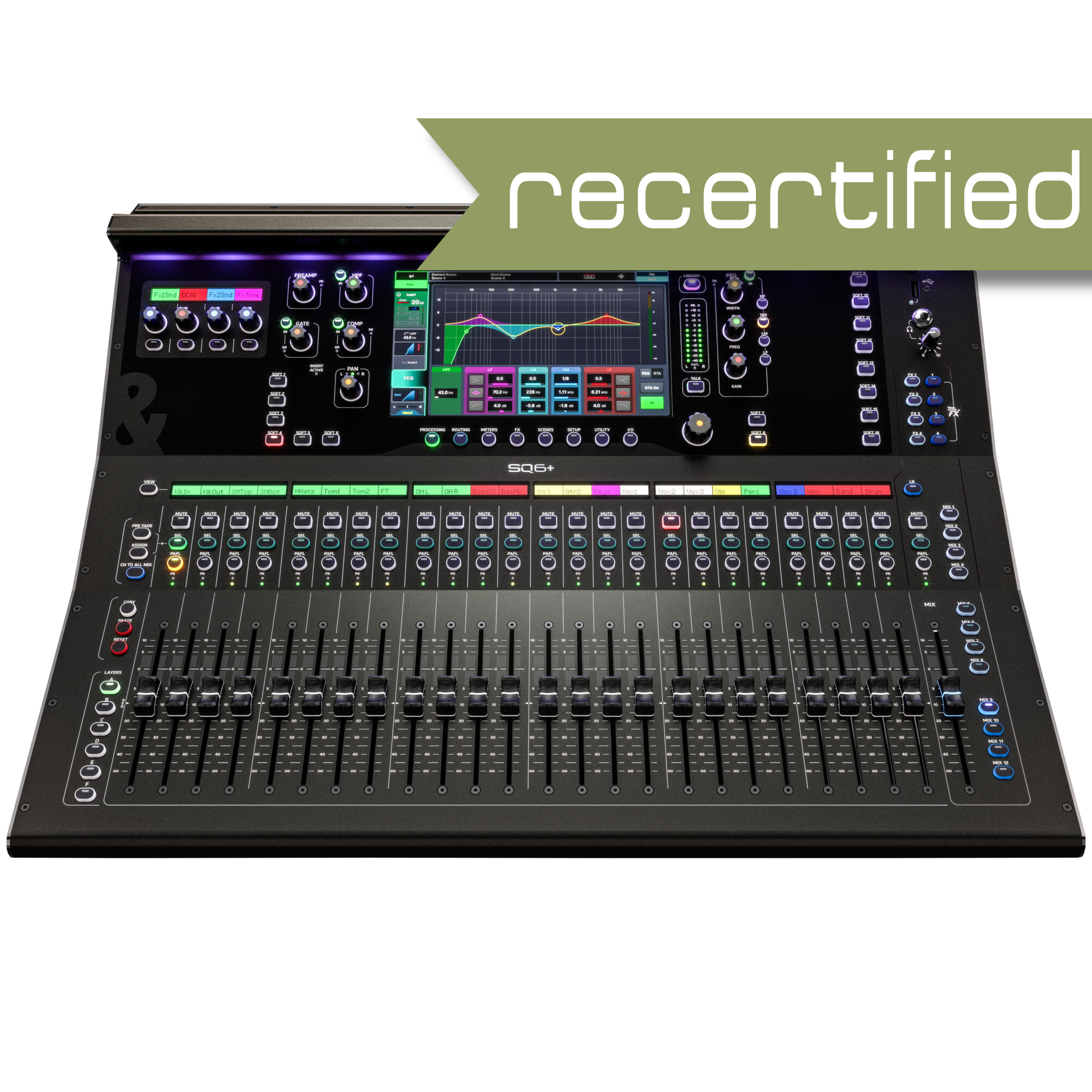

Allen & Heath SQ-6+ Mixer
Allen & Heath SQ-6+ Mixer
Allen & Heath SQ-6+ Mixer
Allen & Heath SQ-6+ Mixer
19%, only 0 left
Allen & Heath SQ-6+ Mixer
Allen & Heath SQ-6+ Mixer
Allen & Heath SQ-6+ Mixer
Allen & Heath SQ-6+ Mixer
Product SKU
    35422

Allen & Heath SQ-6+ Mixer

$4,999.99

PICK UP TODAY

recertified+.png__PID:7672a0bd-1cf7-4ba8-9841-5171b10f1ebf
  • Like New Condition
  • Original Packaging
  • Full Factory Warranty

Have a question?

Need help finding something?

Talk to a PRO

855-772-2937

_EBP9032_SQ.jpeg__PID:828e756e-5126-4f82-9136-2bf92b17727c

Expertly tested refurbished and open box products

Backed by the BYFP satisfaction guarantee

Copy of Untitled Design (3).png__PID:0d4aaa6e-815d-4b5a-879b-7bd16634732b

Free Shipping

1.png__PID:3c5bc891-9c7e-4dda-94a6-30ba47708c69

Professionally Inspected

2.png__PID:5bc8919c-7ecd-4a14-a630-ba47708c69eb

Satisfaction Guaranteed

3.png__PID:c8919c7e-cdda-44a6-b0ba-47708c69eb73

Expert Support

DESCRIPTION

The SQ6+ expands the range with 25 motorized faders, 16 assignable SoftKeys, and 4 SoftRotaries, giving you more physical control when working with larger, more complex shows. Add 4 built-in RackUltra FX engines, and you have a mixer that strikes the perfect balance between hands-on control and portability.

FEATURES
    • 96kHz XCVI Core: variable bit-depth up to 96bit <0.7ms latency
    • 48x Input Processing Channels
    • Stereo Main LR Output
    • 12x Mixes (Mono/Stereo, Aux/Group)
    • 4x FX Sends
    • 4x RackUltra FX Sends
    • 6x Mono/Linkable Matrix Mixes
    • 24x XLR Mic/Line Input Sockets
    • 2x Stereo Line Input Sockets (each 2x TRS)
    • 1x XLR Talkback Socket
    • 14x XLR Output Sockets
    • 2x TRS Output Sockets
    • 1x AES3 Stereo Digital Output Socket
    • 128x128 SLink Port for Everything I/O expansion and system connections
    • 64x64 I/O Port for Option Cards (128x128 with SLink card fitted)
    • Stereo Headphone Output
    • 9” Capacitive Touchscreen
    • 25x 100mm Motorised Faders
    • 6x Customisable Channel Strip Layers
    • 16x SoftKeys
    • 4x Soft Rotaries
    • Configurable single/dual Footswitch Connection
    • Configurable Chromatic Channel Meter LED’s
    • IEC Mains Connection with Worldwide PSU
    • RJ45 Network Socket for control
    • USB-A For stereo/multichannel audio record/playback and data (Stereo @48/96kHz, 24bit. 16 Channels @96kHz, 24bit. 32 Channels @48kHz, 24bit.)
    • USB-B Audio interface for multichannel record/playback (32x32 @48/96kHz, 16/24bit)
    • Input processing – Trim, HPF, Gate/Expander, Parametric EQ, Compressor, Channel Delay
    • Mix processing – Graphic EQ, PEQ, Compressor, Channel Delay
    • Fully patchable Insert points on all Input and Mix Channels
    • 8x Multi-FX Engines with dedicated Stereo Return Channels and PEQ
    • 4x RackUltra FX Engines with dedicated Stereo Return Channels and PEQ
    • 2x 24 Channel or 1x 48 channel, zero latency, DEEP Automatic Mic Mixer
    • 2x Real Time Analysers
    • 300 Scene memories per Show
    • Channel Safes, Global/Per-Scene Recall Filters
    • FX, Processing, Channel, User Permissions, Input Patch Libraries
    • 10 Configurable Users with Permissions to restrict operator access
    • DAW Control emulation via USB or TCP/IP
    • Compatible with ME personal monitoring range
    • Remote control via free apps – Windows/MacOS/iOS/Android
SPECIFICATIONS
    • Mic/Line Inputs: Balanced XLR, fully recallable
    • Input Sensitivity: -60 to +0dBu
    • Switchable Pad: -20dB
    • Analogue Gain: 0dB to +60dB, 1dB steps
    • Maximum Input Level: +30dBu (With pad engaged)
    • Input Impedance: >4kΩ
    • THD+N, Unity gain 0dB: 0.0015% -96dB (20Hz-20kHz, AES Direct Out, @0dBu 1kHz)
    • THD+N, Mid gain +30dB: 0.003% -91dB (20Hz-20kHz, AES Direct Out, @-30dBu INPUT 1kHz)
    • Phantom Power: +48V (+3V / -2V)
    • Stereo Line Inputs (ST1, ST2 connectors): Balanced, 1/4" TRS jack
    • Stereo Line Inputs (ST3 connector): Unbalanced, stereo 3.5mm Mini Jack
    • Input Sensitivity (ST1, ST2 / ST3): Nominal +4dBu / 0dBu
    • Trim: +/-24dB
    • Maximum Input Level (ST1,ST2 / ST3): +22dBu / +18dBu
    • Input Impedance: >6kΩ
    • XLR Outputs: Balanced, XLR
    • Outputs A and B: Balanced 1/4" TRS Jack
    • XLR Outputs Source: Patchable
    • Output Impedance: <75Ω
    • Nominal Output: +4dBu = 0dB meter reading
    • Maximum Output Level: +22dBu
    • Residual Output Noise: -91dBu (muted, 20Hz-20kHz)
    • AES Digital Output: Balanced XLR 2 channel, 96kHz sampling rate (Default with SRC Bypassed), Switchable output sample rates with SRC, 44.1kHz / 48kHz / 88.2kHz / 96kHz, 2.5Vpp balanced terminated 110Ω
    • SLink Connection: Neutrik EtherCON (RJ45)
    • dSnake mode: 40 input 20+40(ME) output channels, 48kHz
    • DX mode: 32 input 32 output channels, 96kHz
    • GigaACE/GX: 128 input 128 output channels, 96kHz
    • Inputs: Fully Patchable
    • Outputs: Fully Patchable
    • Sync/SRC: Assignable as audio clock source, 48kHz<>96kHz SRC
    • I/O Port: Multi-channel I/O option module
    • I/O Port Inputs: Fully Patchable
    • I/O Port Outputs: Fully Patchable
    • I/O Port Sync/SRC: Assignable as audio clock source, SRC on option card
    • SQ-Drive: USB-A
    • Stereo Record: 2 channel, WAV, 96kHz, 24-bit, source fully patchable
    • Stereo Playback: 1/2 channel, WAV, 44.1, 48, 96kHz 16,24-bit, source fully patchable
    • Multitrack Record: 1-16 channel 96kHz, 1-32 channel 48kHz, 24-bit, WAV, fully patchable
    • Multitrack Playback: 1-16 channel 96kHz, 1-32 channel 48kHz, 24-bit, WAV, fully patchable
    • USB Audio Streaming: USB-B, Core Audio compliant, ASIO/WDM for Windows
    • Send (upstream): 32 channel, 48/96kHz, 24-bit
    • Return (downstream): 32 channel, 48/96kHz, 24-bit
    • Faders: 100mm motorised
    • Touch Screen: 9" Capacitive, 1024 x 600 resolution, 24 bit RGB
    • SoftKeys: 16 (SQ6+)
    • SoftRotarys: 4 (SQ6+)
    • Mute Groups / DCA Groups: 8 / 8
    • Network: TCP/IP Ethernet for Control and MIDI
    • MIDI: TCP/IP and USB-B
    • Footswitch: Single or Dual, Momentary or Latching
    • System: Measured balanced XLR in to XLR out, 0dB gain, 0dBu input
    • Dynamic Range: 112 dB
    • Frequency Response: +0/-0.5dB 20Hz to 20kHz
    • Headroom: +18dB
    • Internal operating Level: 0dBu
    • THD+N, Mic/Line routed to Main L/R: Unity gain faders@0dB, 0.002%, -93dB (20 - 20kHz)
    • dBFS Alignment: +18dBu = 0dBFS (+22dBu at XLR output)
    • Meter Calibration: 0dB meter = -18dBFS (+4dBu at XLR out)
    • Main Meter Type: 2 x 12 segment, fast (peak) response
    • Channel Meter Type: Chromatic Channel Metering, fully programmable colour/brightness
    • Peak Indication: -3dBFS (+19dBu at XLR out), multi-point sensing
    • Sampling Rate: 96kHz
    • Bit Depth: Uses XCVI core custom bit widths in algorithms, up to 96bits
    • Latency: <0.7mS, Local Mic Input to Main L/R Local Output, all processing switched in
    • Operating Temperature Range: 0 deg C to 40 deg C (32 deg F to 104 deg F)
    • Mains Power: 100-240V AC, 50/60Hz
    • Max Power Consumption SQ6+: 105W
    • Input Processing Source (CH1-48): Fully patchable
    • USB Global Source: SQ-Drive or USB-B Streaming (Auto Switching)
    • Polarity: Normal/Invert
    • Trim: -24 to +24dB
    • High Pass Filter: 12/18/24dB per octave 20Hz – 2kHz
    • Insert (Pre EQ/Comp): Fully Patchable
    • Delay: Up to 341ms
    • Gate/Expander: Patchable Sidechain
    • Sidechain filter: Hi-pass (20-5k), band-pass (120-10k), Lo-pass (120-20k), Q=1
    • Threshold / Depth: -72dBu to +18dBu / 0 to 60dB
    • Attack / Hold / Release: 50µs to 300ms / 10ms to 5s / 10ms to 1s
    • Expander Ratio: 1:1 to 1:20
    • PEQ: 4-Band fully parametric, 20-20kHz, +/-15dB
    • Band 1, Band 4: Selectable Shelving (Baxandall), Bell, HPF/LPF 12dB/octave
    • Band 2, Band 3: Bell
    • Bell Width: Variable Q, 1.5 to 1/9th octave
    • Compressor: Patchable Sidechain, DEEP options
    • Compressor Sidechain filter: Hi-pass (20-5k), band-pass (120-10k), Lo-pass (120-20k), Q=1
    • Compressor Threshold / Ratio: -46dBu to +18dBu / 1:1 to infinity
    • Compressor Attack / Release: 30µs to 300ms / 50ms to 2s
    • Compressor Knee: Soft/Hard
    • Detector response: Peak/RMS switchable
    • Parallel Path Compression: dry/wet -inf to 0dB
    • Channel Direct Out: Follow Fader / Mute / Mute Group / DCA (global option)
    • Source select: Post Preamp, Post HPF, Post Gate, Post Insert Return, Post PEQ, Post Compressor, Post Delay, trim -inf to +10dB per channel
    • Mix Processing Insert (Pre EQ/Comp): Fully Patchable
    • Delay: Up to 682ms
    • GEQ: 28 bands 31Hz-16kHz, +/-12dB Gain, Constant 1/3 oct, DEEP options
    • PEQ: As Input PEQ
    • Mix Processing Compressor: As Input Compressor
    • Rack FX Engines: 8 x RackFX engine, Send>Return or Inserted (4 dedicated FX sends)
    • Rack FX Engines Types: SMR Reverb, Stereo Tap Delay, Gated Reverb, ADT, Blue Chorus, Symphonic Chorus, Flanger, Phaser (Plus optional Rack FX Add-Ons)
    • 8 dedicated Stereo FX returns: Fader, Pan, Mute, Routing to Mix/LR, 4-Band PEQ
    • RackUltra FX Engines: 4 x RackFX engine, Send>Return or Inserted (4 dedicated FX sends)
    • RackUltra FX Engines Types: SMR Reverb, Stereo Tap Delay, Gated Reverb, ADT, Blue Chorus, Symphonic Chorus, Flanger, Phaser (Plus optional Rack FX and RackUltra FX Add-Ons
    • 4 dedicated Stereo FX returns: Fader, Pan, Mute, Routing to Mix/LR, 4-Band PEQ
    • PAFL: PFL or stereo in-place AFL, 0 to -24dB Trim, PAFL Delay Up to 682ms, External Input Option
    • Talkback: Dedicated input, Assignable to any mix, Gain, Pad, 48V, 12dB/oct HPF
    • Signal Generator: Assignable to any input or mix, Sine/White/Pink/Bandpass Noise
    • Metering RTA: 2x 31-Band 1/3 octave (Stereo) or 61-Band 1/6 octave (Mono) 20-20kHz.
    • Channel RTA: PAFL/Selected Channel or Fixed Source
    • AMMs Configuration: 2x 24ch or 1x 48ch, freely assignable
    • AMMs Type: Gain Sharing
    • Sidechain Filter HPF / LPF: 12dB/octave 20Hz – 5kHz / 120Hz - 20kHz
    • AMMs Priority: -15dB to +15dB per channel
    • Add-Ons: DEEP Preamps: Tube Stage, DEEP Expanders: Source Expander, Dual Threshold Expander, DEEP Compressors: Opto, 16T, 16VU, PeakLimiter76, Mighty, OptTronik, Bus, CompStortion, DEEP GEQ's: Proportional-Q, DiGi-GEQ, Hybrid, RackFX units: De-Esser, DynEQ4, MultiBD3, MultiBD4, Bucket Brigade, Echo, Hypabass and RackUltra FX: Spaces Reverb, Plate Reverb, Vocal Tuner, Vocal Gridder, Vocal Shifter, Dual Autokey Harmoniser, Quad Harmoniser, Amp+Cab Distortion, Saturator
    • Dimensions (W × D × H): 514.9mm x 638mm x 198.5mm (20.3" x 25.1" x 7.8")
    • Weight: 15.15kg (33.5lbs)
CONTENTS
    (1) Allen & Heath SQ-6+ Mixer
    (1) IEC Power Cord
    (1) Operator's Instructions
