DESCRIPTION

Professional equipment in mission-critical applications is all about reliability and confidence.

Introducing the world’s first video converters truly designed for the road.

FEATURES

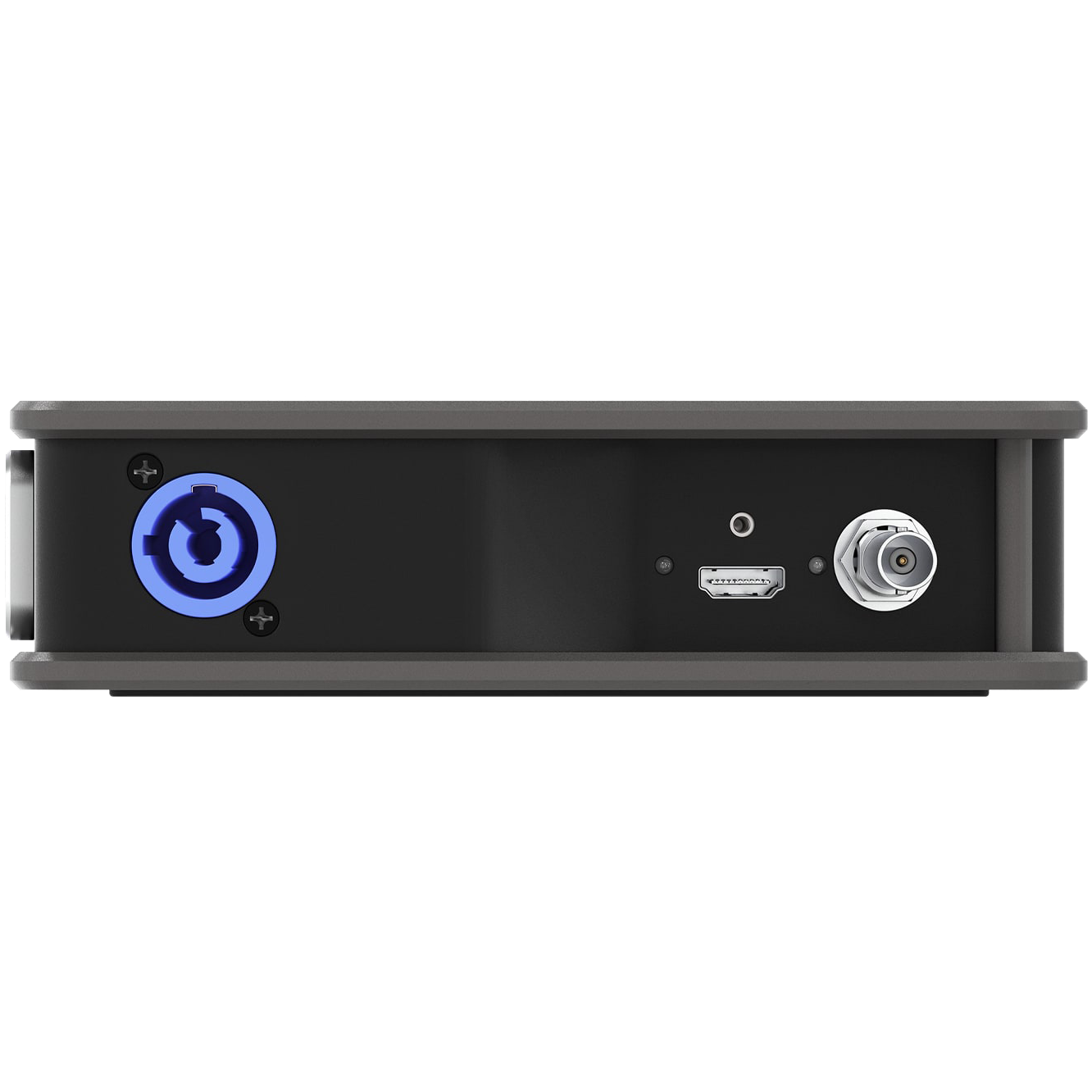

    • Integrated power supply with locking PowerCON connector. Never rely on a cluster of wall-warts again.

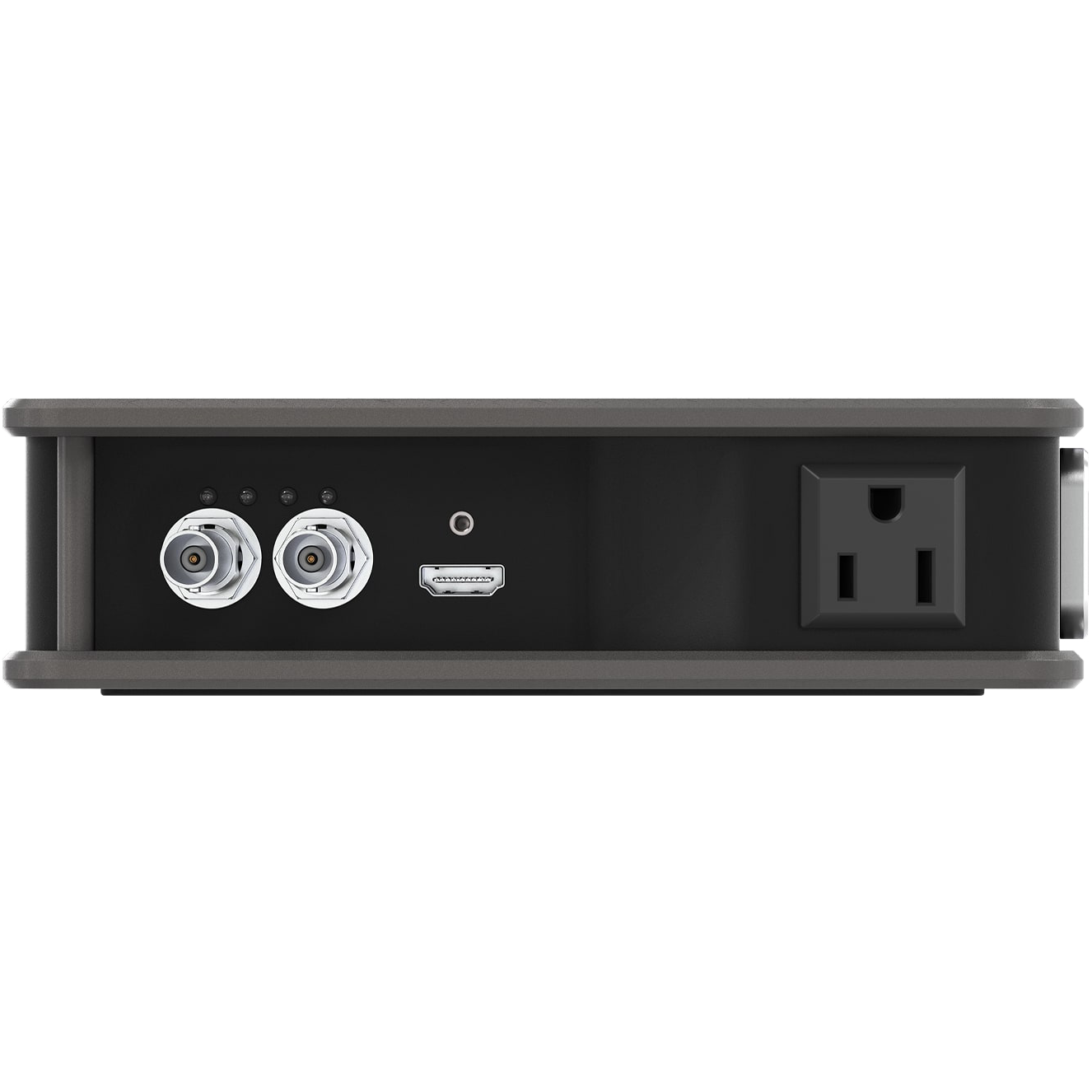

    • Built-in convenience 120V outlet to power nearby projector, TV, laptop...Power bar to power both the converter and device not required anymore.

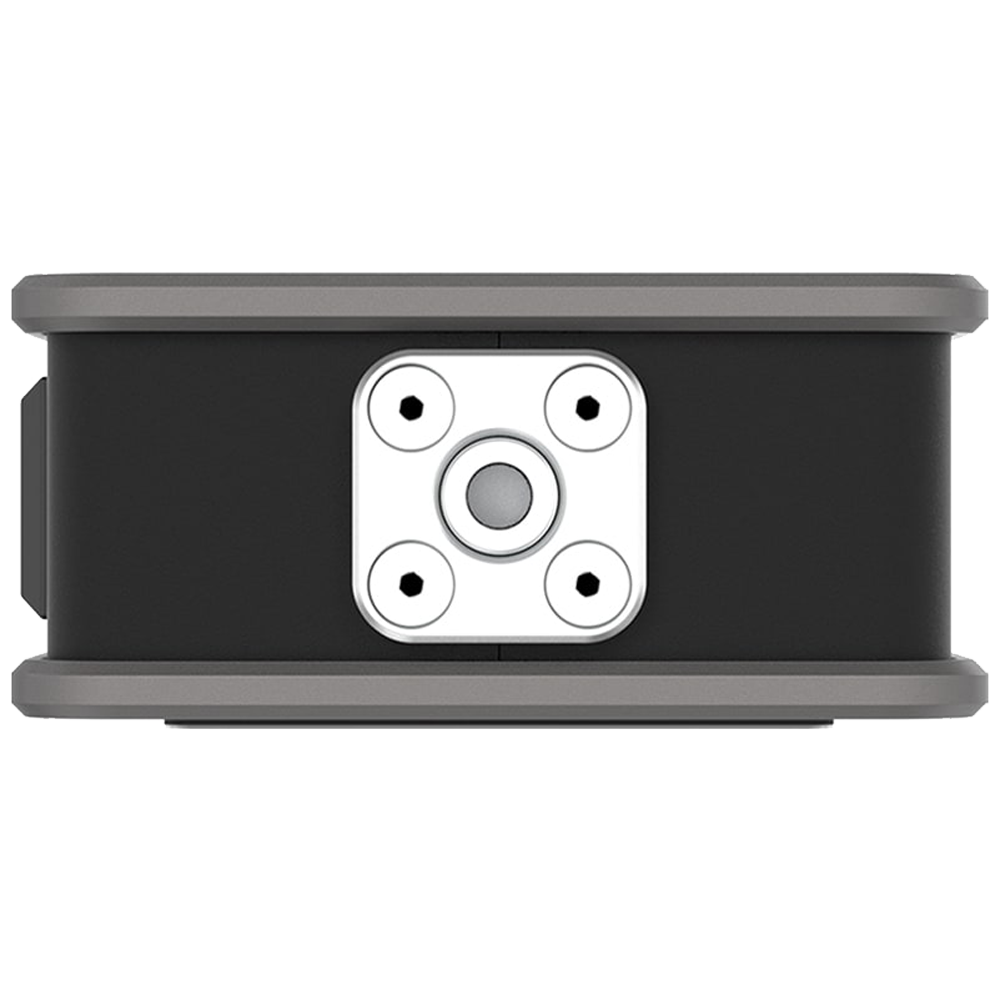

    • Magnetic stacking system and non-skid rubber pad. Saves a lot of gaffer's tape!
    • Multiple mounting options: C-Clamp, wall-mount adapter, LCD mount adapter. (all sold separately)
    • Rugged, tour-ready and aesthetic enclosure: The sexiest widget in your tool box, that will keep looking good for years to come.
    • Plug-n-play operation; No dipswitches, buttons or menus to fumble with: It just works.

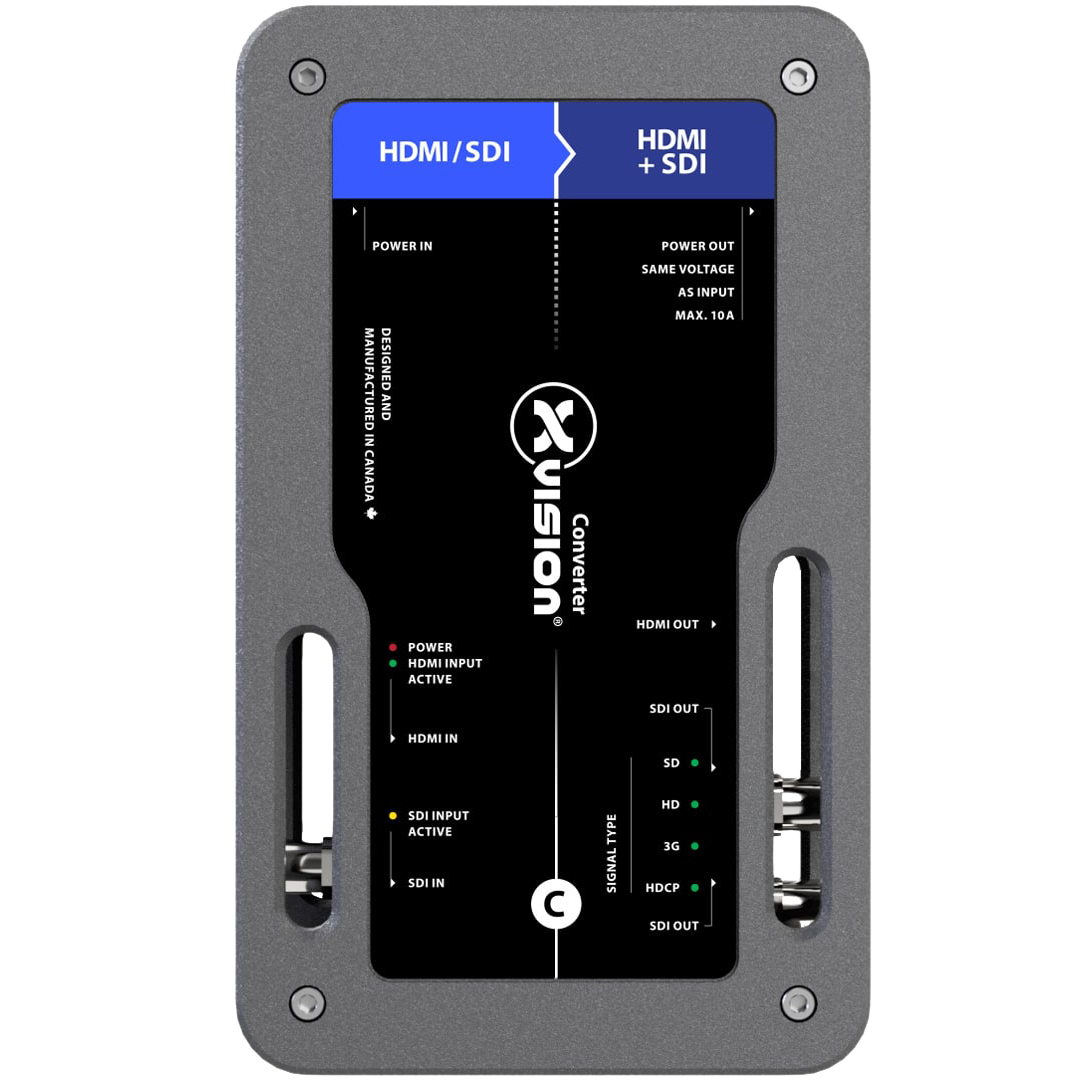

    • Clear and ample status LED indicators for quick troubleshooting.
    • Easy on-the-field identification with unique color and alphabetic coding system.
    • Locking HDMI port prevents accidental disconnection.
    • The only converter you’ll need: SDI to HDMI or HDMI to SDI with automatic incoming signal type detection.
    • Reclocked and amplified SDI outputs.
SPECIFICATIONS
    • Video Input: Auto switching between 1 x 3G/HD/SD SDI, BNC & 1 x HDMI 1.2 type A with locking system
    • Video Output: 1 x HDMI 1.2 type A with locking system, 2 x 3G/HD/SD SDI BNC
    • Input Priority: SDI input
    • 3G Format Support: 1080p50, 1080p59.94, 1080p60.
    • HD Format Support: 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30
    • SD Format Support: 525/23.98 NTSC, 525/29.97 NTSC, 625/25 PAL
    • SDI Video Sampling: 4:2:2 and 4:4:4
    • SDI Audio Sampling: Sample rate of 48 kHz and 24 bit
    • SDI Color Space: YUV and RGB
    • SDI Auto Switching: Automatically detects incoming signal format.
    • SMPTE Standards: 425M Level A & B, 424M Level A, 292M, 259M
    • Height: 50 mm (1.97 in)
    • Depth: 180 mm (7.08 in)
    • Width: 107 mm (4.21 in)
    • Weight: 1 kg (2.2 lbs)
    • Alternate Form Factor: Also available as a Reversible Module
    • Relative Humidity: 0% to 90% non-condensing
    • Operating Temperature: 0-40 °C
    • Power Supply (powerCON): Built-in power supply, PowerCON input, Edison Nema 5-15 output (loop-thru)

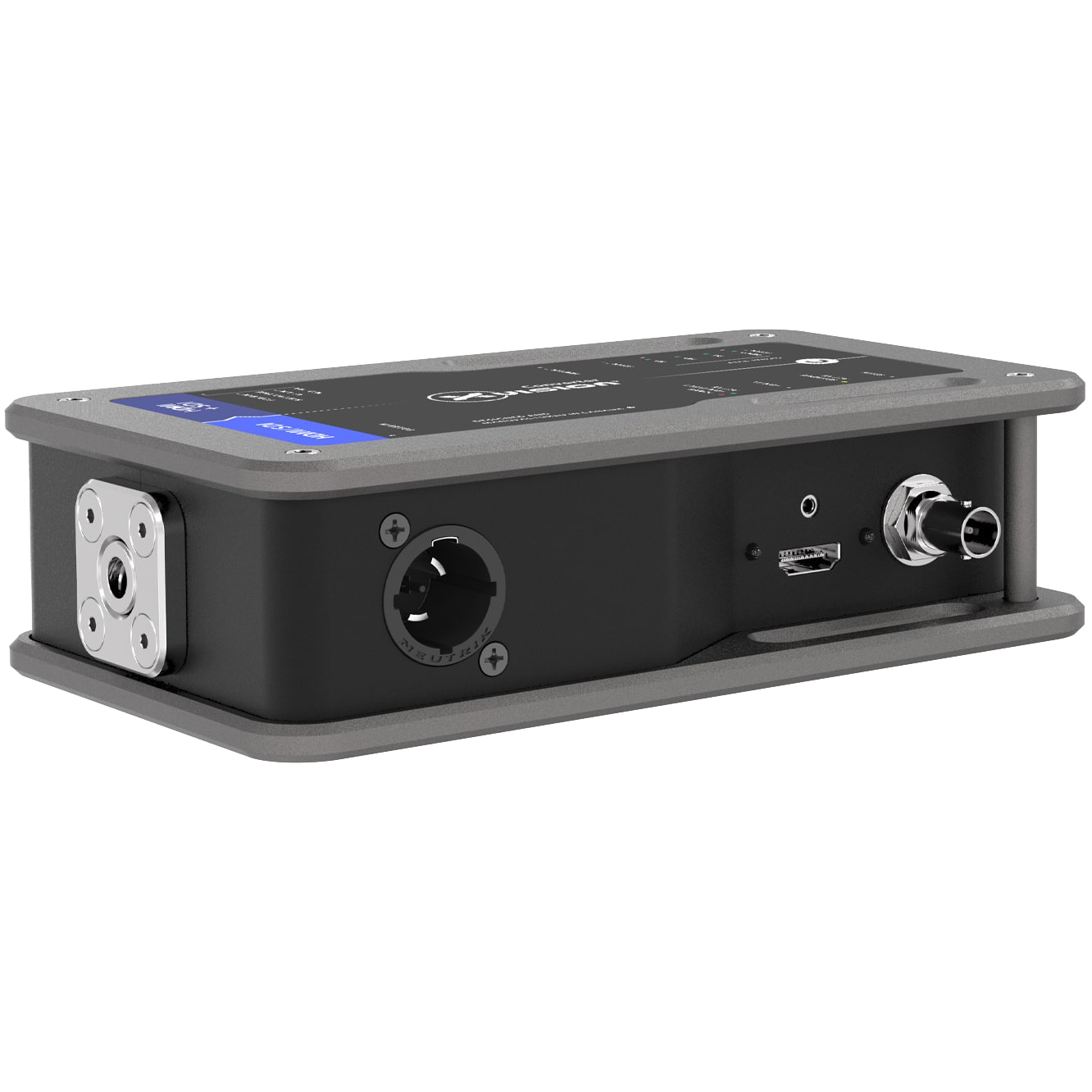

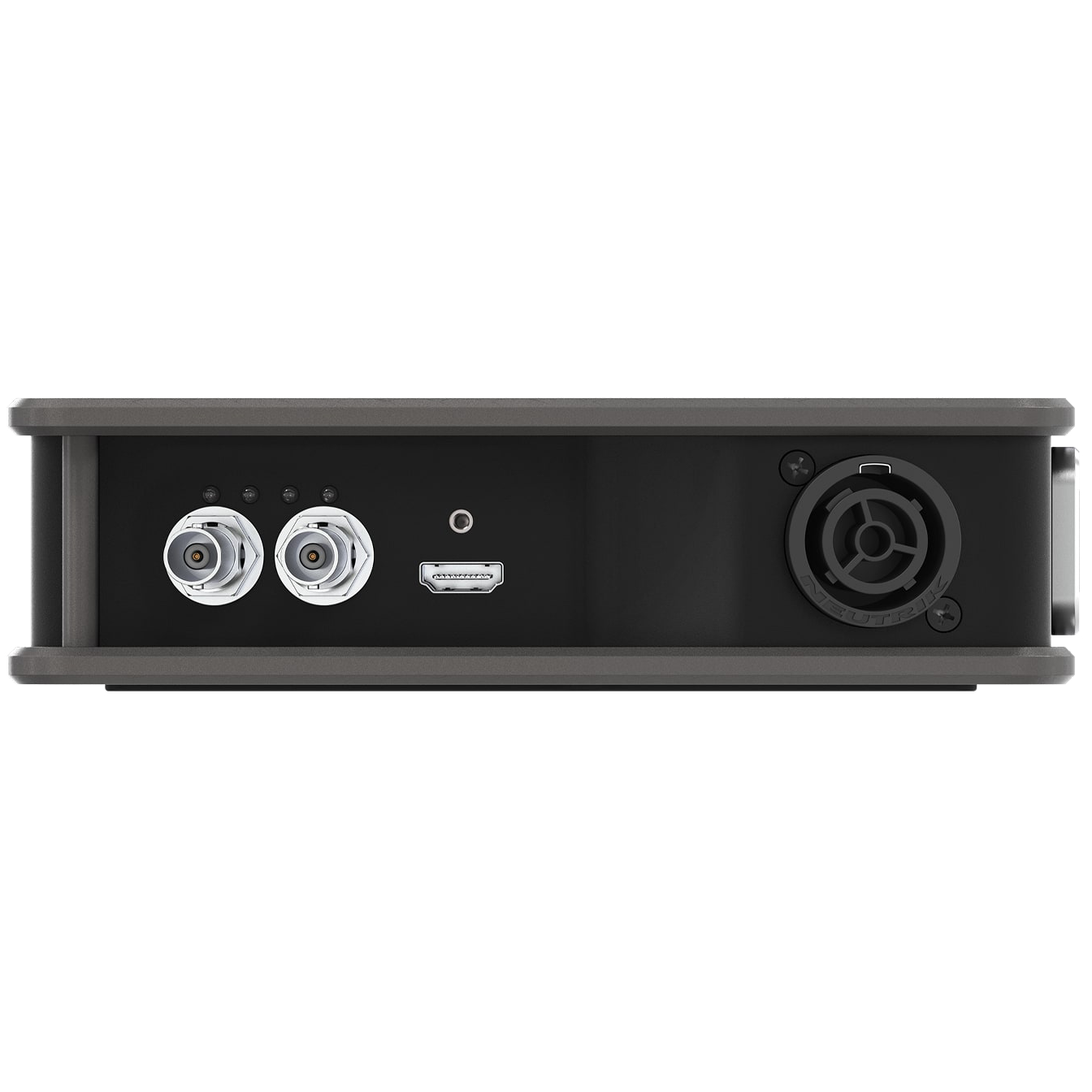

    • Power Supply (True1): Built-in power supply, PowerCON True1 input, PowerCON True1 output (loop-thru)
    • Power Consumption: 15W
    • Voltage Range (powerCON): 100-120V, 50-60Hz
    • Voltage Range (True1): 100-240V, 50-60Hz
    • Courtesy Outlet: Max 10A, same voltage as input
CONTENTS
    • (1) xVision Bidirectional 3G-SDI - HDMI Converter
    • (1) 1m Locking HDMI Male to DVI Male Cable
    • (1) 1.5m xVision Converter SDI/HDMI Bidirectional
    AC Mains to PowerCON Cable
