Professional equipment in mission-critical applications is all about reliability and confidence.
Introducing the world’s first video converters truly designed for the road.
FEATURES
-
• Integrated power supply with locking PowerCON True1 connector. Never rely on a cluster of wall-warts again.
• Built-in convenience outlet to power nearby monitor, flat-screen, laptop, video projector or any device up to 10 amps… Power bar to connect both converter and device not required anymore.

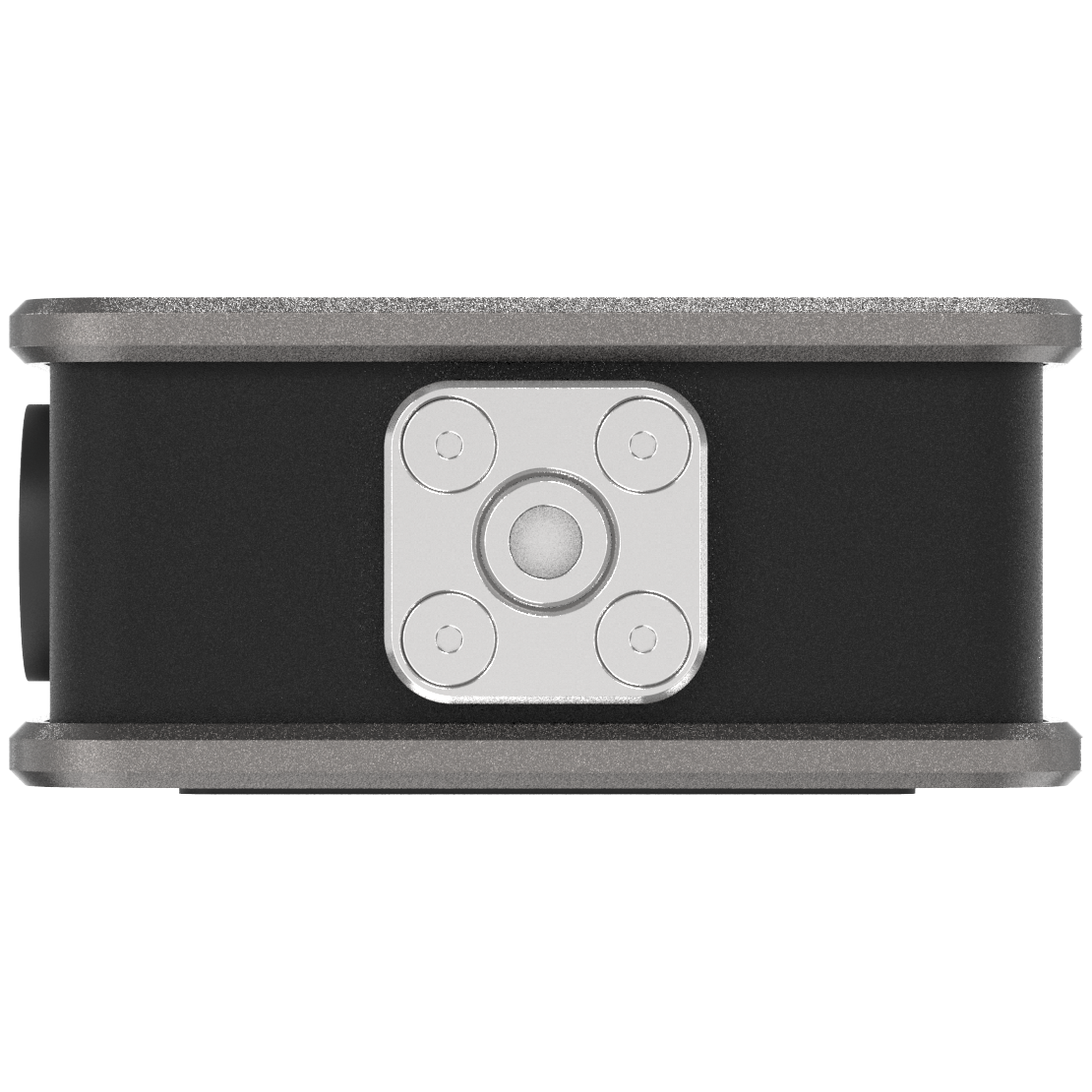

• Magnetic stacking system and non-skid rubber pad. Saves a lot of gaffer's tape!
• Multiple mounting options: C-Clamp, wall-mount adapter, LCD mount adapter. (all sold separately)
• Rugged, tour-ready and aesthetic enclosure: The sexiest widget in your tool box, that will keep looking good for years to come.
• Plug-n-play operation; No dipswitches, buttons or menus to fumble with: It just works.

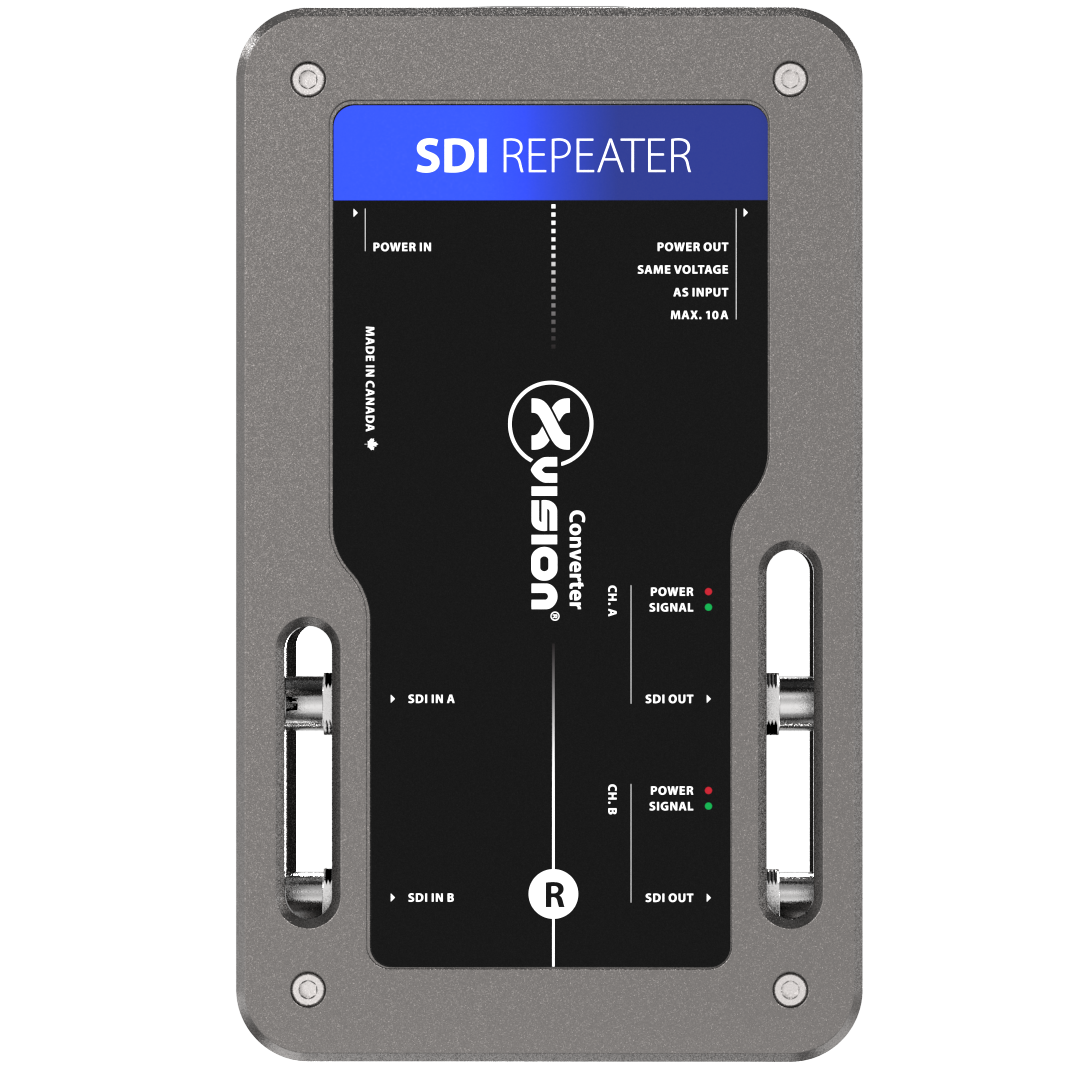

• Clear and ample status LED indicators for quick troubleshooting.
• Easy on-the-field identification with unique color and alphabetic coding system.
• Extend two 3G-SDI lines up to another 100 m / 330 ft.
• All outputs fully reclocked and amplified.
SPECIFICATIONS
-
• Video Input: 2 x 3G/HD/SD SDI BNC
• Video Output: 2 x 3G/HD/SD SDI BNC
• 3G Format Support: 1080p50, 1080p59.94, 1080p60.
• HD Format Support: 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30
• SD Format Support: 525/23.98 NTSC, 525/29.97 NTSC, 625/25 PAL
• SDI Video Sampling: 4:2:2 and 4:4:4
• SDI Audio Sampling: Sample rate of 48 kHz and 24 bit.
• SDI Color Space: YUV and RGB
• SDI Auto Switching: Automatically detects incoming signal format.
• SMPTE Standards: 425M Level A & B, 424M Level A, 292M, 259M
• Height: 50 mm (1.97 in)
• Depth: 180 mm (7.08 in)
• Width: 107 mm (4.21 in)
• Weight: 1 kg (2.2 lbs)
• Alternate Form Factor: Also available as a Reversible Module
• Relative Humidity: 0% to 90% non-condensing
• Operating Temperature: 0-40 °C
• Power Supply: Built-in power supply, PowerCON True1 input, PowerCON True1 output (loop thru)
• Power Consumption: 15W
• Voltage Range: 100-240V, 50-60Hz
• Courtesy Outlet: Max 10A, same voltage as input
CONTENTS
-
• (1) xVision Dual Channel 3G-SDI Repeater
• (1) 1.5m PowerCON True1 to PowerCON Cable
