DESCRIPTION

Professional equipment in mission-critical applications is all about reliability and confidence.

Introducing the world’s first video converters truly designed for the road.

FEATURES
    • Integrated power supply with locking PowerCON / PowerCON True 1 connector. Never rely on a cluster of wall-warts again.
    • Built-in convenience outlet to power nearby monitor, flat-screen, laptop, video projector or any device up to 10 amps… Power bar to connect both converter and device not required anymore.

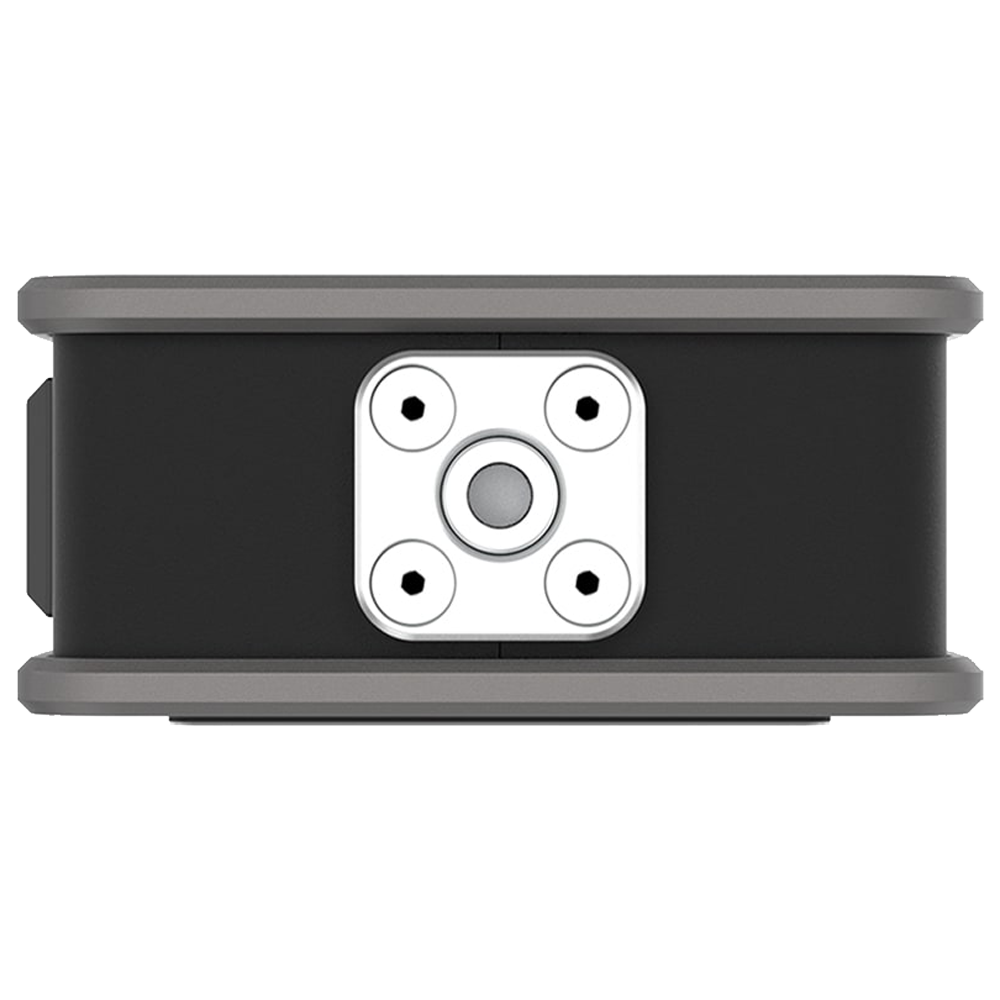

    • Magnetic stacking system and non-skid rubber pad. Saves a lot of gaffer's tape!
    • Multiple mounting options: C-Clamp, wall-mount adapter, LCD mount adapter. (all sold separately)
    • Rugged, tour-ready and aesthetic enclosure: The sexiest widget in your tool box, that will keep looking good for years to come.
    • Clear and ample status LED indicators for quick troubleshooting.
    • HDMI input tested and compatible with Apple computers and iPad.
    • Easy on-the-field identification with unique color and alphabetic coding system.
    • Locking HDMI port prevents accidental disconnection.
    • Effortlessly stream Full HD 1080p, H.264-encoded video to YouTube, Facebook Live, or any RSTP or RTMP destination.
    • Wide range of transport protocols supported
    • One-button operation after configuration with broad- cast-grade operation keys directly on unit.
    • Built in web server for configuration and control
    • Native support for HDMI and 3G-SDI signals with built-in scaling engine
    • Professional locking EtherCON connector for Ethernet connection
SPECIFICATIONS
    • Video Input: Switchable 1 x 3G/HD/SD SDI BNC & 1 x HDMI 1.2 type A with locking system
    • Network Interface: 1 x Locking EtherCON 10/100 Mbps Ethernet, Built-in web server for configuration and control, DHCP or static IP client
    • Local control: Plug and play operation (2 buttons)
    • Video Format Support: 1920x1080p 60/50/30/25/24fps, 1920x1080i, 60/50fps, 1280x720p 60/50fps, 1280x1024p, 60fps, 1280x960p 60fps, 1024x768p 60fps, 800x600p 60fps, 720x480p 60fps, 720x480i, 60fps, 640x480p 60fps, 720x576p 50fps, 720x57i 50fps
    • Video Codec Support: H.264 (Baseline/Main/High) Configurable bit rate up to 10 Mbps (User selectable between Variable/Constant/Average Bit Rate), Downscaling available from 1920×1080 down to 128×128
    • Streaming Protocols: RTSP over HTTP/TCP/UDP (RTSP elementary stream), RTMP Publish (For YouTube/Facebook Live…), TS over TCP/UDP/HTTP (unicast & multicast)
    • Embedded Audio: AAC-LC Configurable bit rate range from 32 Kbps to 384 Kbps, Sample rate of 48 KHz, 16 bit
    • Embedded Audio: AAC-LC Configurable bit rate range from 32 Kbps to 384 Kbps, Sample rate of 48 KHz, 16 bit
    • Height: 50 mm (1.97 in)
    • Depth: 180 mm (7.08 in)
    • Width: 107 mm (4.21 in)
    • Weight: 1 kg (2.2 lbs)
    • Alternate Form Factor: Also available as a Reversible Module
    • Relative Humidity: 0% to 90% non-condensing
    • Operating Temperature: 0-40°C
    • Power Supply (powerCON): Built-in power supply, PowerCON input, Edison Nema 5-15 output (loop-thru)
    • Power Supply (True1): Built-in power supply, PowerCON True1 input, PowerCON True1 output (loop thru)
    • Power Consumption: 15W
    • Voltage Range (powerCON): 100-120V, 50-60Hz
    • Voltage Range (True1): 100-240V, 50-60Hz
    • Courtesy Outlet: Max 10A, same voltage as input
CONTENTS
    • (1) xVision HDMI & 3G-SDI Streaming Server
    • (1) 1.5m Edison Nema 5-15 or 1.5m PowerCON True1 to PowerCON Cable
