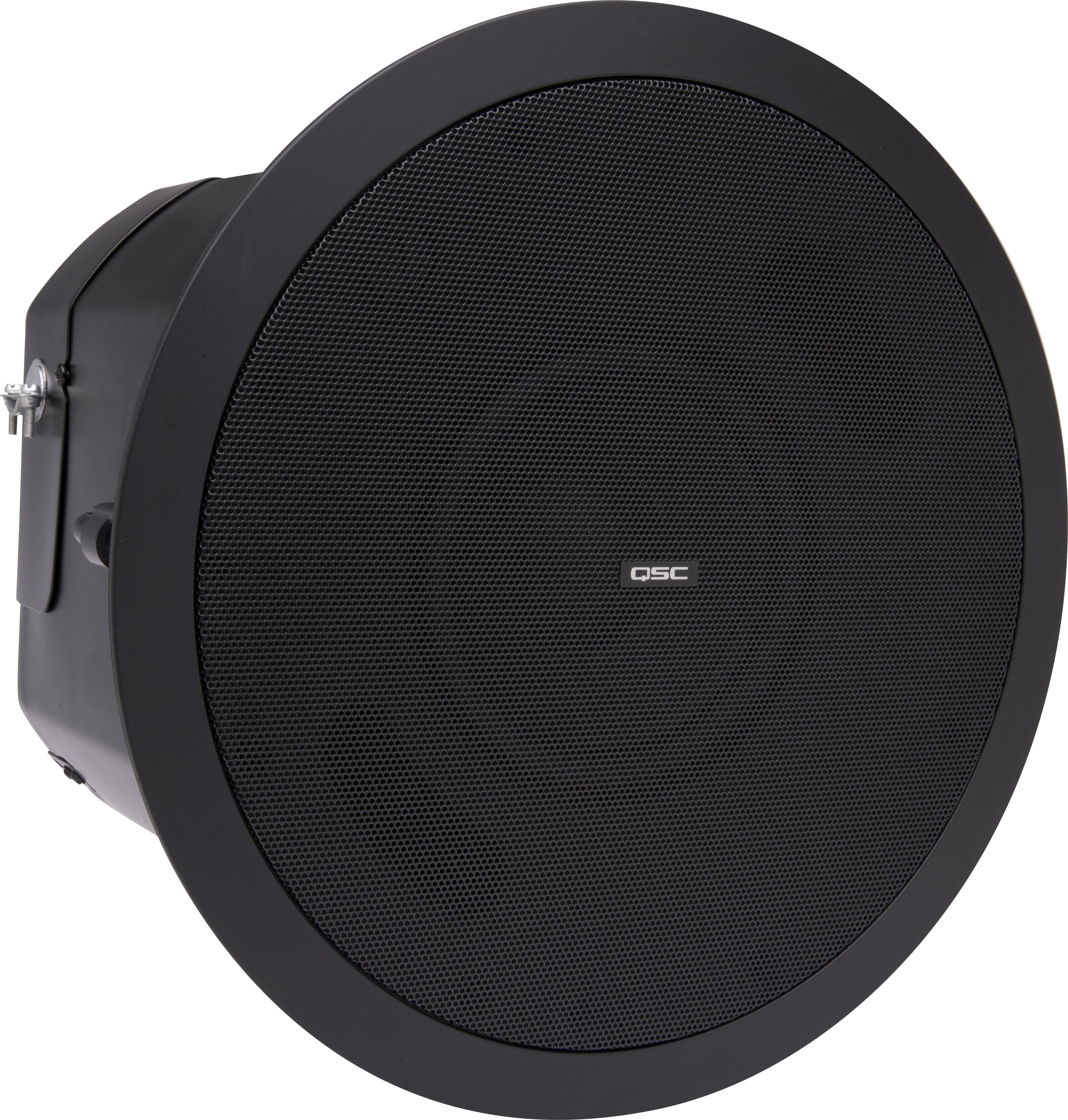

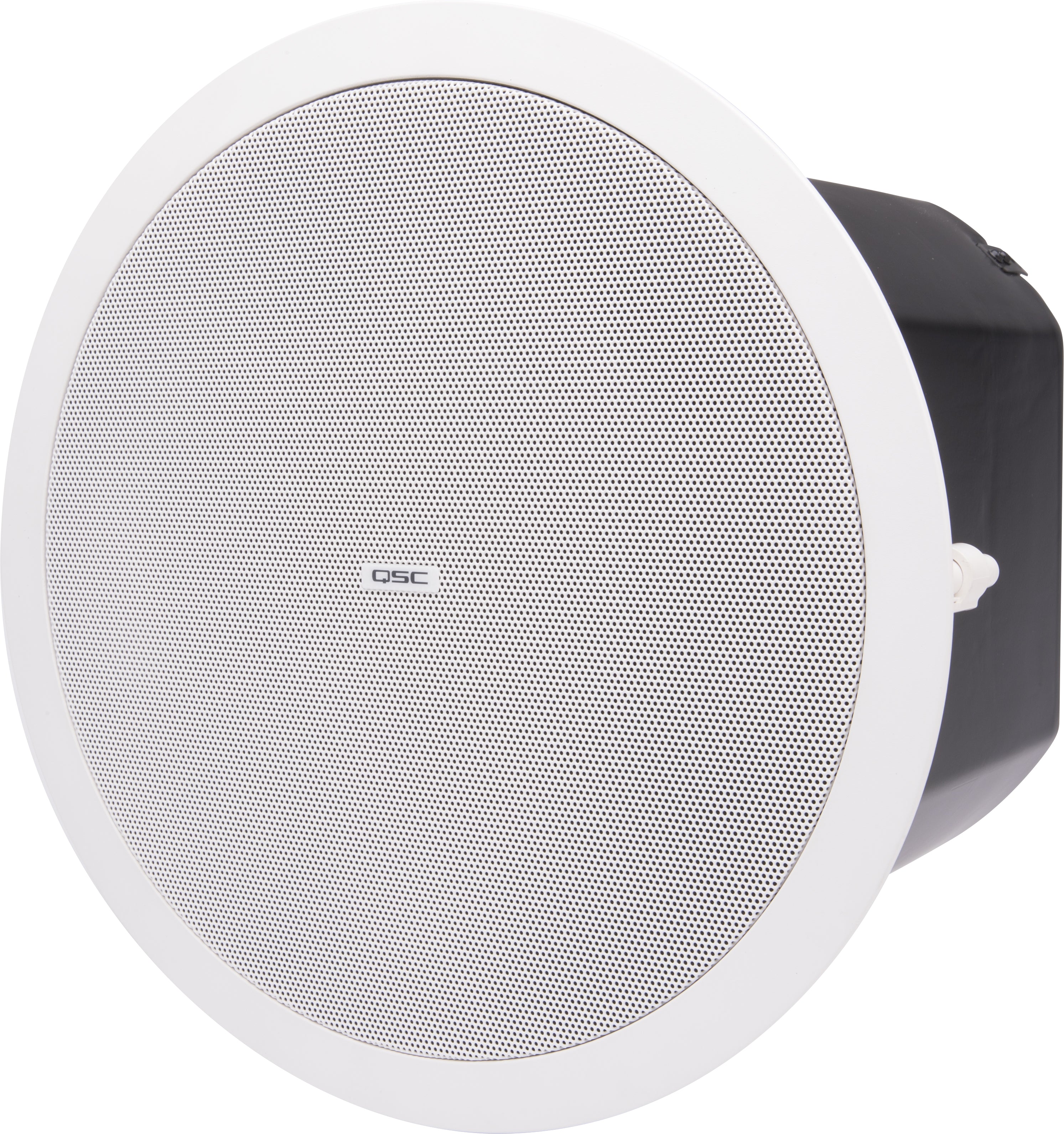

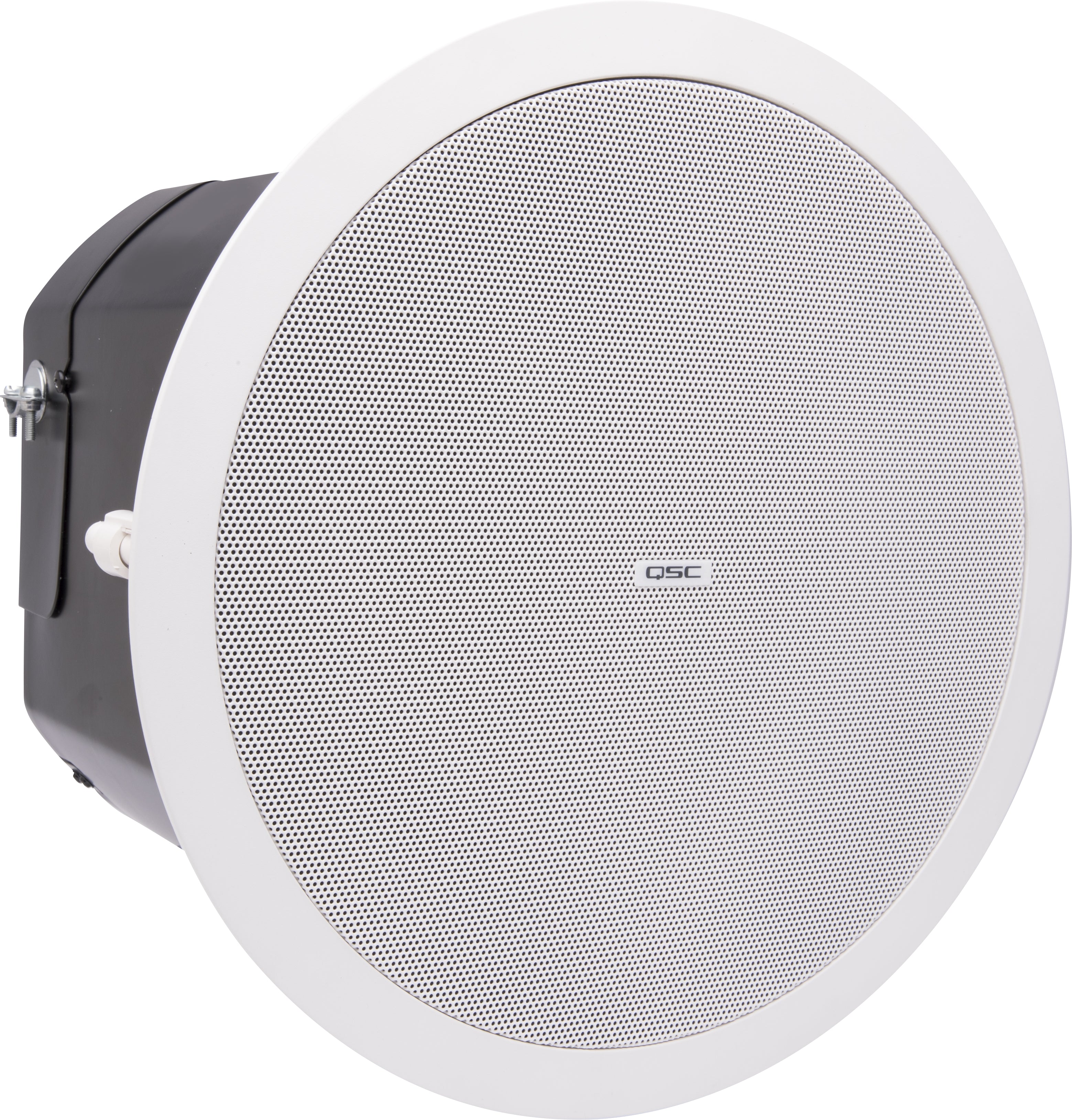

QSC AcousticDesign Ceiling Subwoofer
QSC AcousticDesign Ceiling Subwoofer
QSC AcousticDesign Ceiling Subwoofer
QSC AcousticDesign Ceiling Subwoofer
QSC AcousticDesign Ceiling Subwoofer
QSC AcousticDesign Ceiling Subwoofer
QSC AcousticDesign Ceiling Subwoofer
QSC AcousticDesign Ceiling Subwoofer
QSC AcousticDesign Ceiling Subwoofer
QSC AcousticDesign Ceiling Subwoofer
QSC AcousticDesign Ceiling Subwoofer
QSC AcousticDesign Ceiling Subwoofer
0%, only 8 left
QSC AcousticDesign Ceiling Subwoofer
QSC AcousticDesign Ceiling Subwoofer
QSC AcousticDesign Ceiling Subwoofer
QSC AcousticDesign Ceiling Subwoofer
QSC AcousticDesign Ceiling Subwoofer
QSC AcousticDesign Ceiling Subwoofer
QSC AcousticDesign Ceiling Subwoofer
QSC AcousticDesign Ceiling Subwoofer
QSC AcousticDesign Ceiling Subwoofer
QSC AcousticDesign Ceiling Subwoofer
QSC AcousticDesign Ceiling Subwoofer
QSC AcousticDesign Ceiling Subwoofer

QSC AcousticDesign Ceiling Subwoofer

['{"currentVariantId":"44361483419816","currentType":"single_line_text_field","currentKey":"variation_sku","currentProps":{"badgeWidth":28,"badgeHeight":28,"showDate":true,"dateFormat":"%m-%d-%Y","showTime":true,"timeFormat":"%I:%M %p","showTimezone":true,"showUnit":true,"showMaxScale":true,"trueValText":"TRUE","falseValText":"FALSE","linkToUrl":true,"linkText":null}}',[{},{"id":53537772503208,"title":"Black","option1":"Black","option2":null,"option3":null,"sku":"28777","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"QSC AcousticDesign Ceiling Subwoofer - Black","public_title":"Black","options":["Black"],"price":55700,"weight":5387,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},], ]
$557.00
1.png__PID:7af1a3fd-a98e-4384-a357-aae772061f43
FREE SHIPPING
2.png__PID:f1a3fda9-8e83-44e3-97aa-e772061f434b

EXPERT SUPPORT

Copy of Untitled Design.png__PID:a98e8384-e357-4ae7-b206-1f434b4f7c25

HASSLE FREE RETURNS

Have a question?

Need help finding something?

Talk to a PRO

855-772-2937

CHRISTIAN.png__PID:56b62e6c-9b7a-4608-a7da-0056a14b24c8
SCHEDULE A DEMO TODAY
DESCRIPTION

The AcousticDesign Series offers integrators a premium quality installed sound solution where performance, consistent coverage, and aesthetics are paramount. Specifically designed to maintain a consistent tonal characteristic across the entire family in ceiling, surface, and pendant enclosures, the AcousticDesign Series allows integrators seamless transitions within blended installations.

The AcousticDesign Series SUB/SAT loudspeakers have been specifically designed to be mix-and-match capable. Any combination of satellites may be paired with any subwoofer in the SUB/SAT line.

For your system integration needs, complete EASE, CF2, CAD, and BIM files will be available for download at QSC.com.

FEATURES
    • Dual voice-coil for improved thermal dissipation and higher output
    • Low saturation and low-loss 70 / 100 V transformers with 4 O bypass
    • 4x built-in high-pass filtered outputs
    • Snap-fit magnetic grills
    • Locking 4-pole Euroblock connectors
    • Removable conduit cover plate

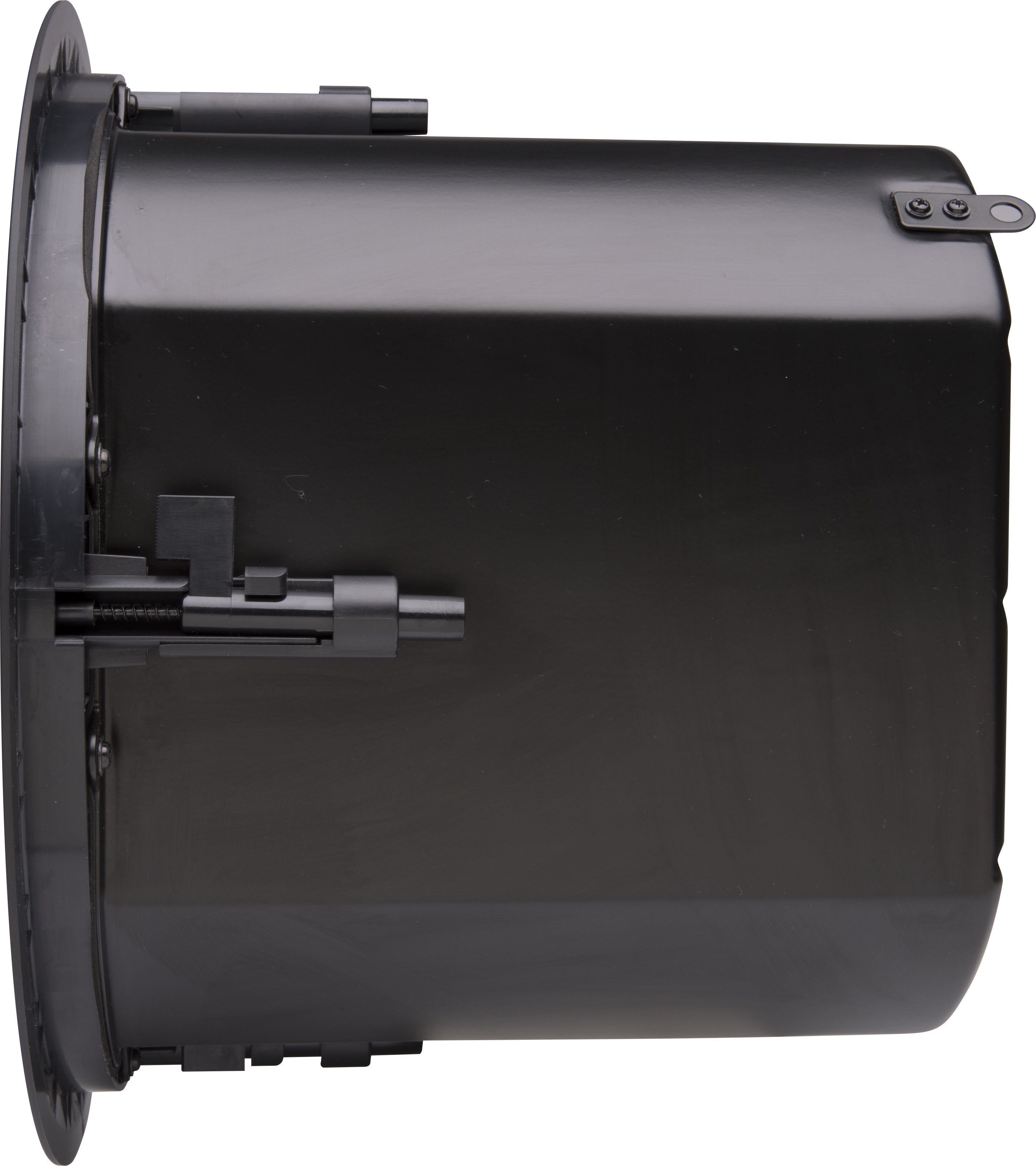

    • 4x double stepped, long travel dog-ear blind mount system
    • Intrinsic Correction™ voicings available via MP-M Series mixers and Q-SYS Platform
    • UL1480 and UL2043 certified
SPECIFICATIONS

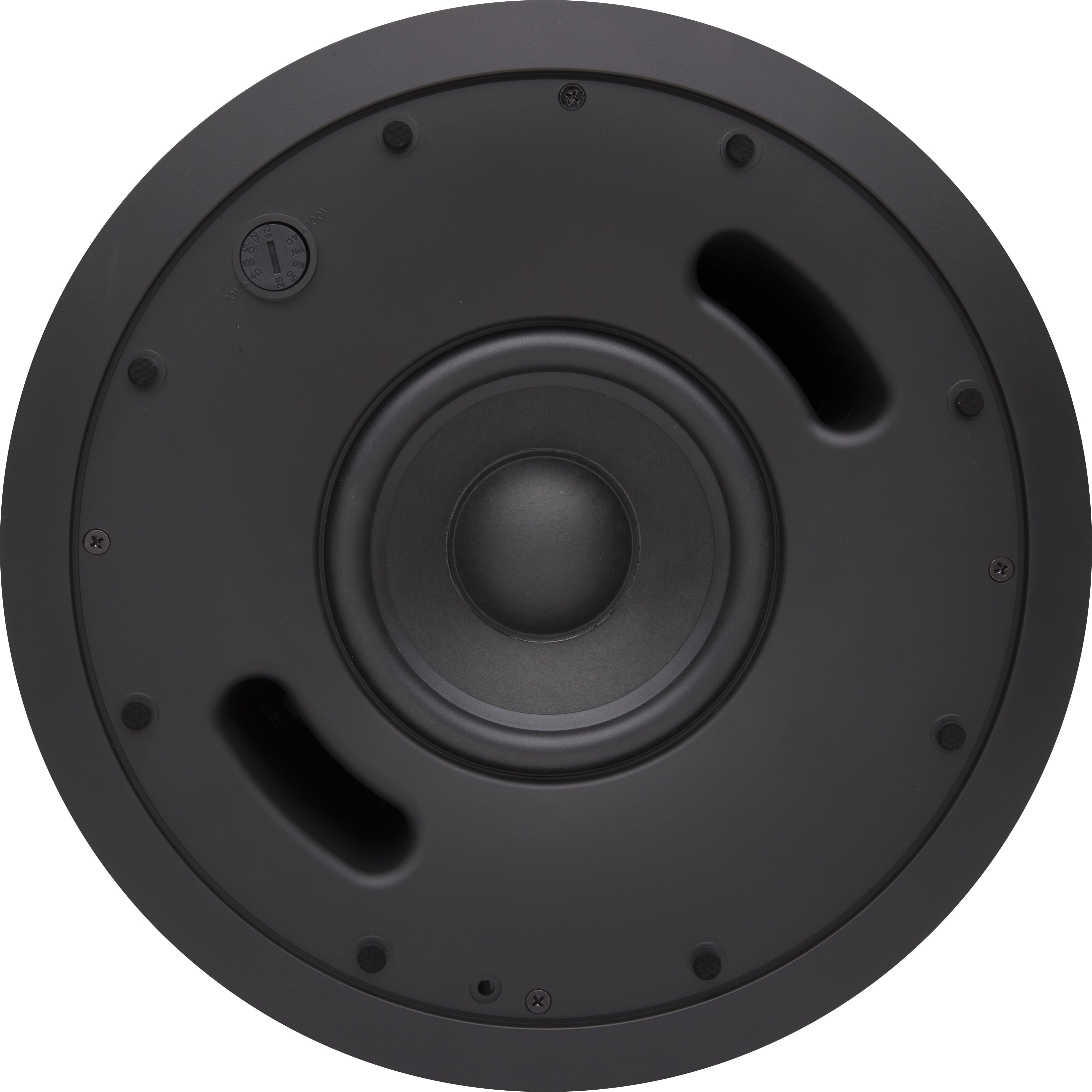

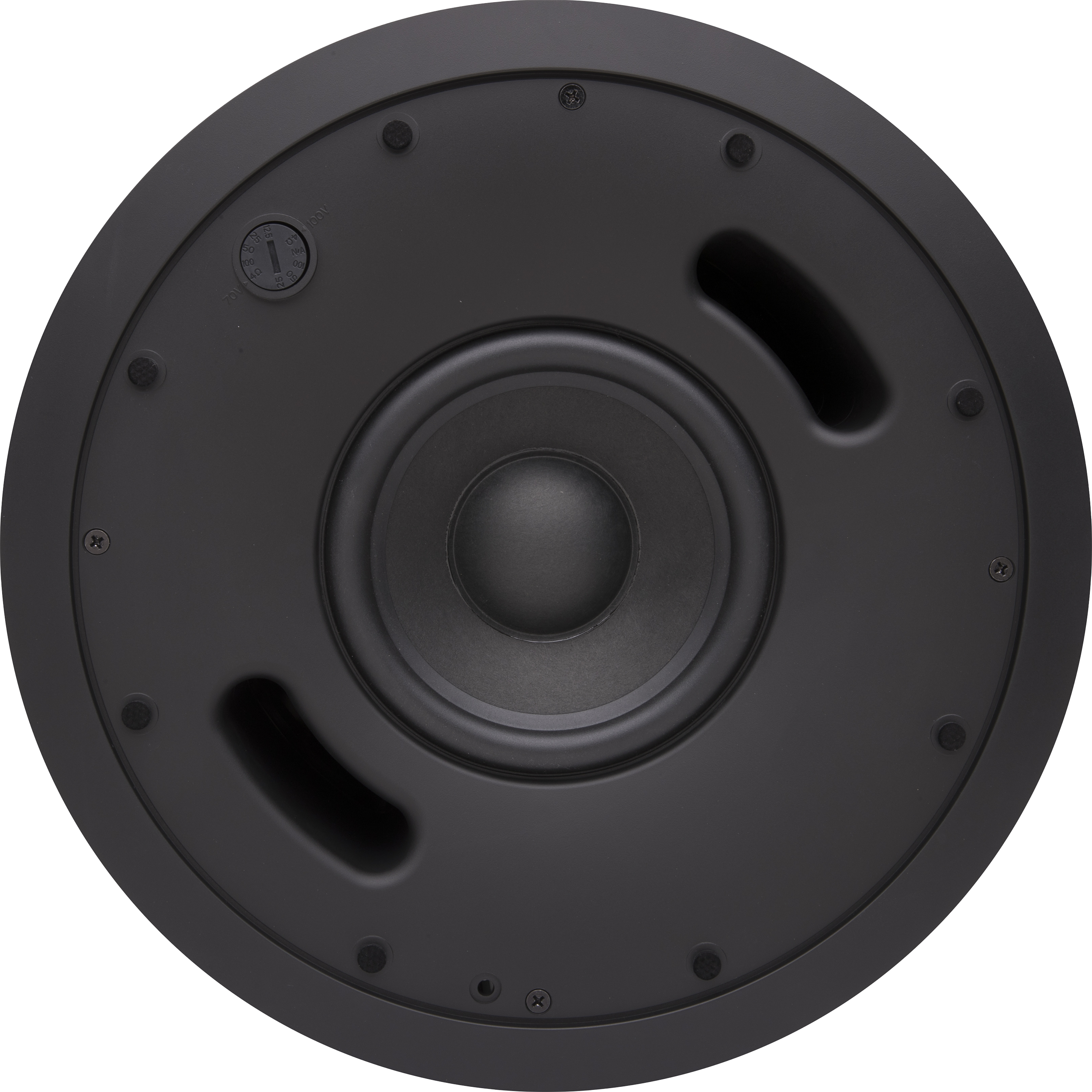

    • LF transducer: 6.5-inch (165 mm) dual voice-coil weather treated paper cone woofer
    • HF transducer: N/A
    • Effective frequency range: 45 Hz – 150 Hz
    • Rated noise power / voltage: 100 W / 20 V (rms)
    • Sensitivity [dB] (rated @ 1 W, 1 m): 86
    • Coverage (-6 dB): Omni
    • Directivity factor: TBD
    • Directivity index [dB]: TBD
    • Maximum SPL [dB] (continuous / peak): 100 / 106
    • Recommended amplifier: 100 W
    • Transformer taps / impedance: Bypass: 4 Ohm; 100 W (70 V); NA (100 V) Tap: 50 Ohm; 50 W (70 V); 100 W (100 V) Tap: 100 Ohm; 25 W (70 V); 50 W (100 V) Tap: 200 Ohm; 12.5 W (70 V); 25 W (100 V) Tap: 400 Ohm
    • Connectors: Mono input: 4-pole Euroblock with thru output Hi-pass mono output: 2x 4-pole Euroblock for 4x satellites

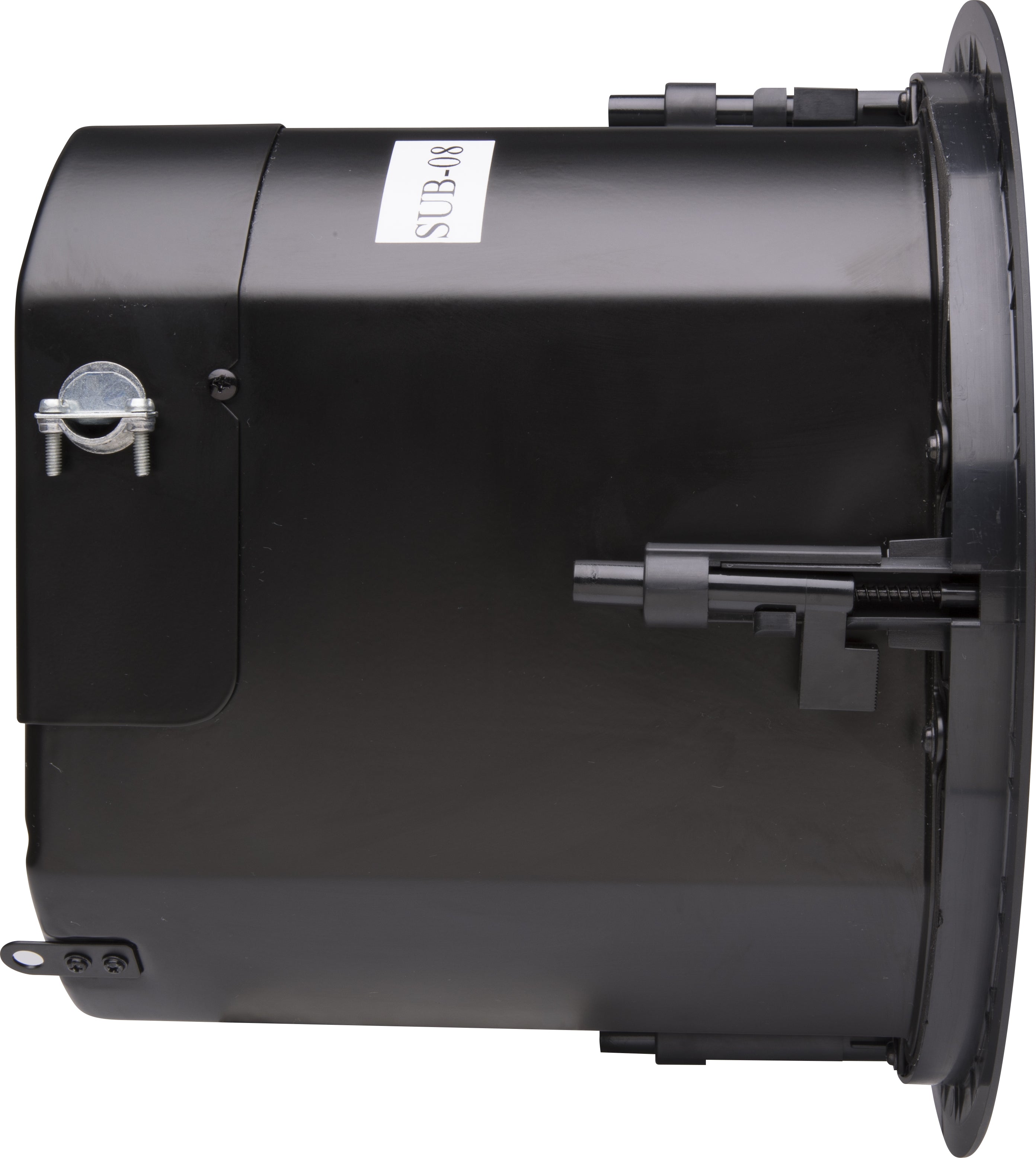

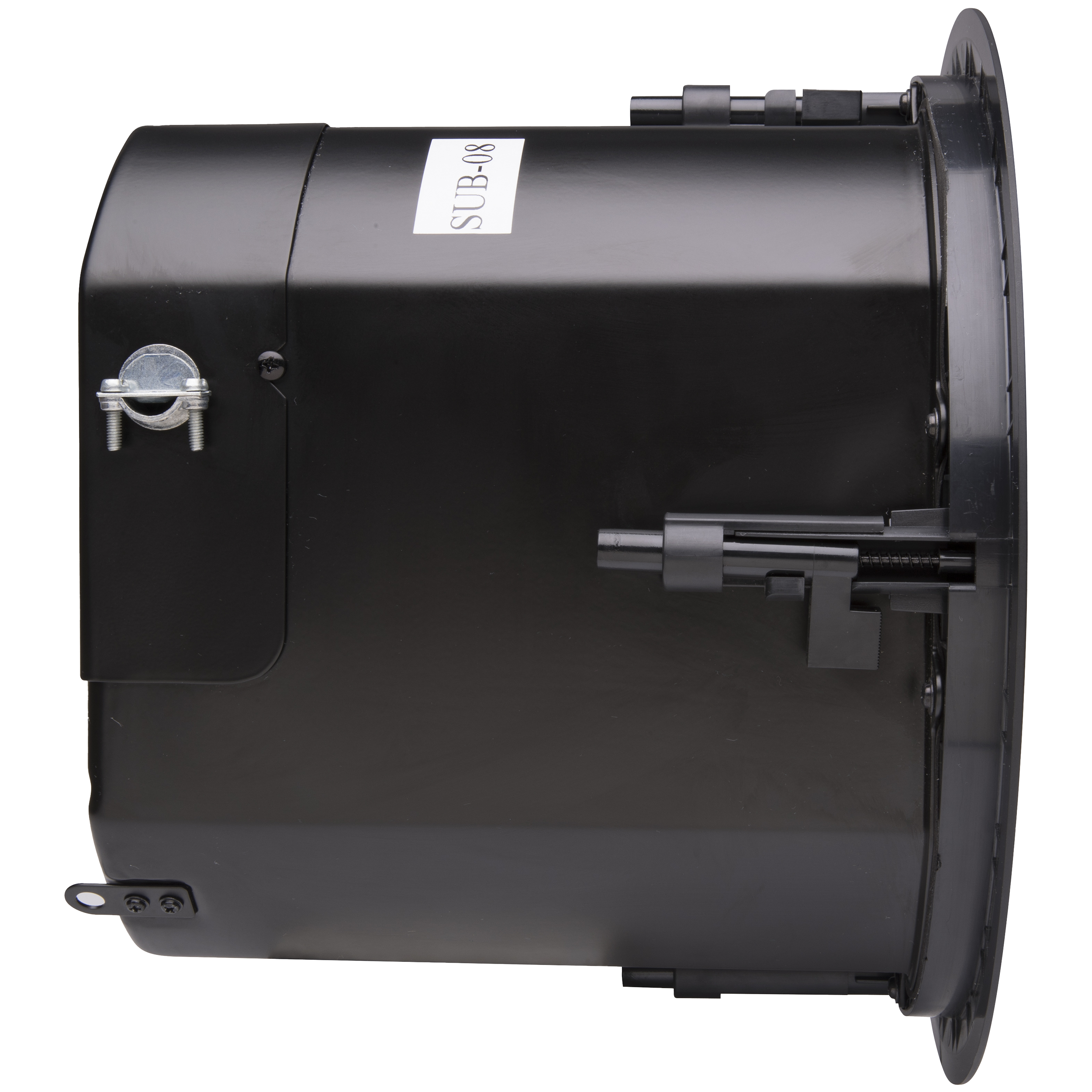

    • Enclosure material: ABS baffle on powder coated steel back can

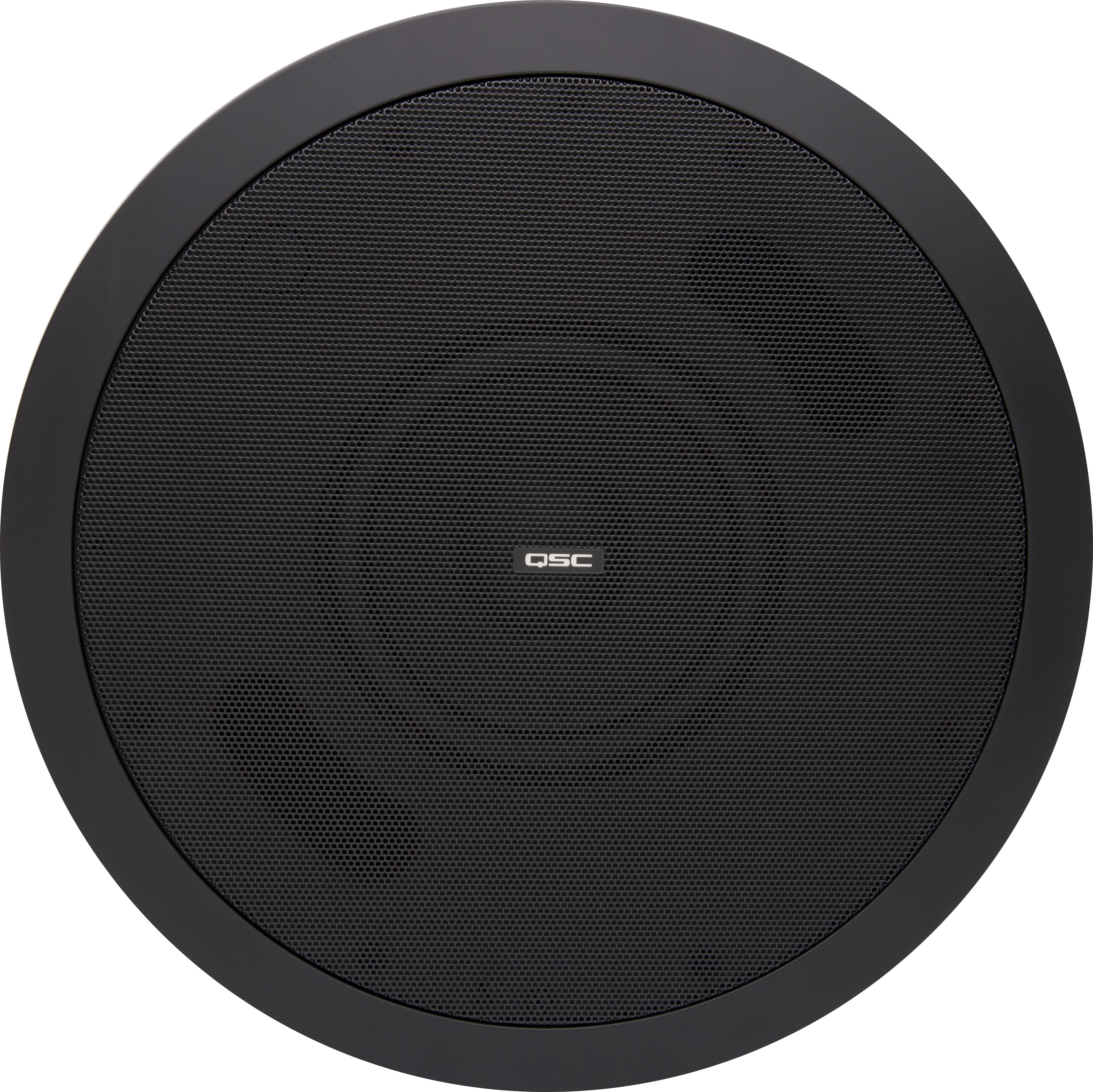

    • Grill material: Powder coated steel
    • Ingress protection: IP-34
    • Operating environment: Designed for indoor use
    • Operating temperature range: -4 to 122° F (-20 to 50° C)
    • Net weight: 19.2 lb (8.7 kg)
    • Product dimensions (Ø x H): Ø 13.4 x 10-inch (Ø 340 x 254 mm)
    • Safety agency: UL1480, UL2043, NFPA90, NFPA70 suitable for use in air handling spaces. Transformer UL registered per UL1876, ROHS, CE compliant. Baffle meets UL94-V0 and UL94-5VB flamibility rating; in accordance with IEC60849 / EN60849 systems.

CONTENTS

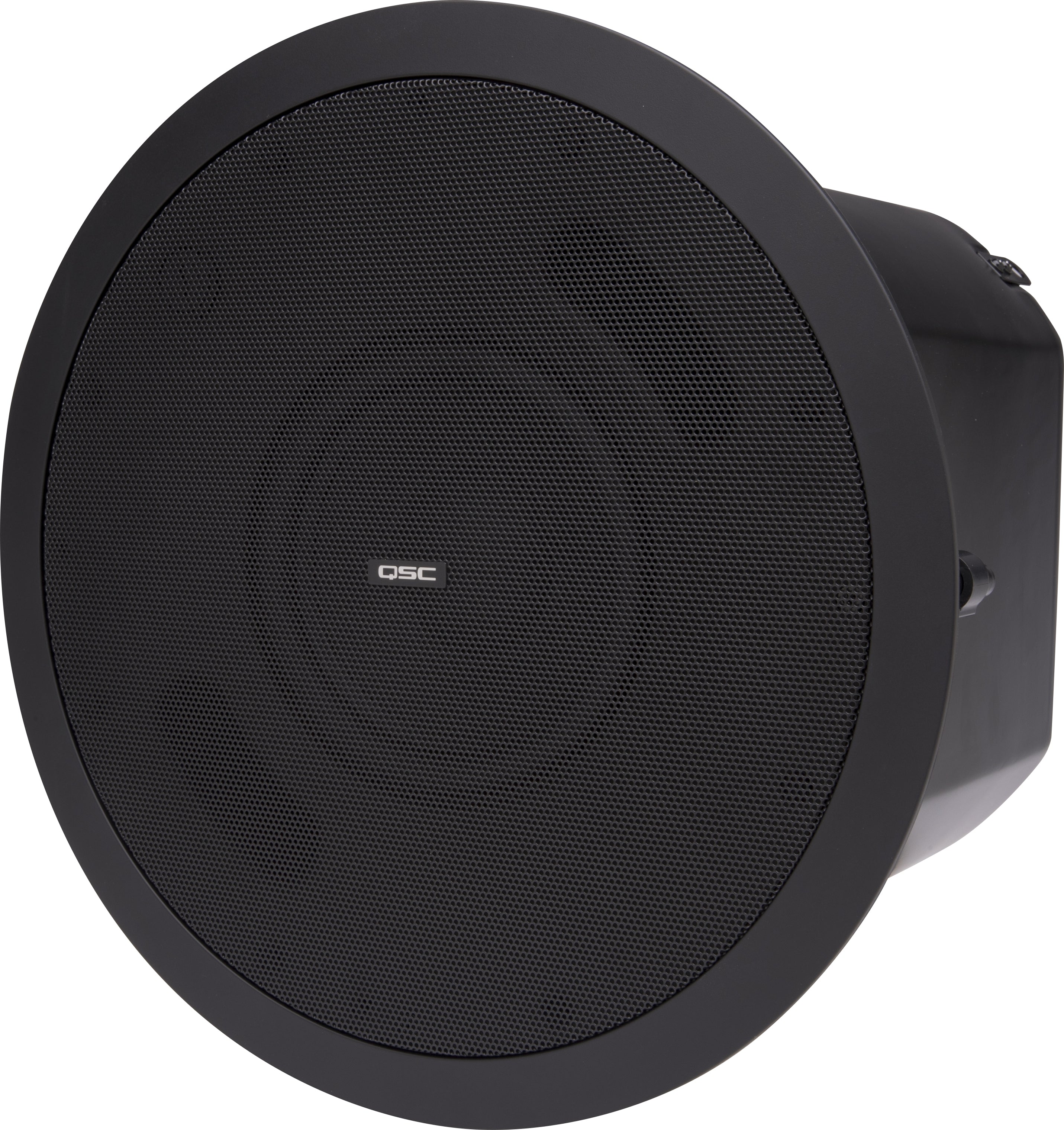

    • (1) QSC AD-C.SUB in Black
    • (1) C-ring and tile rails
    • (1) Rail screws
    • (3) Euroblock connector
    • (1) Cut-out template
    • (1) Grill
