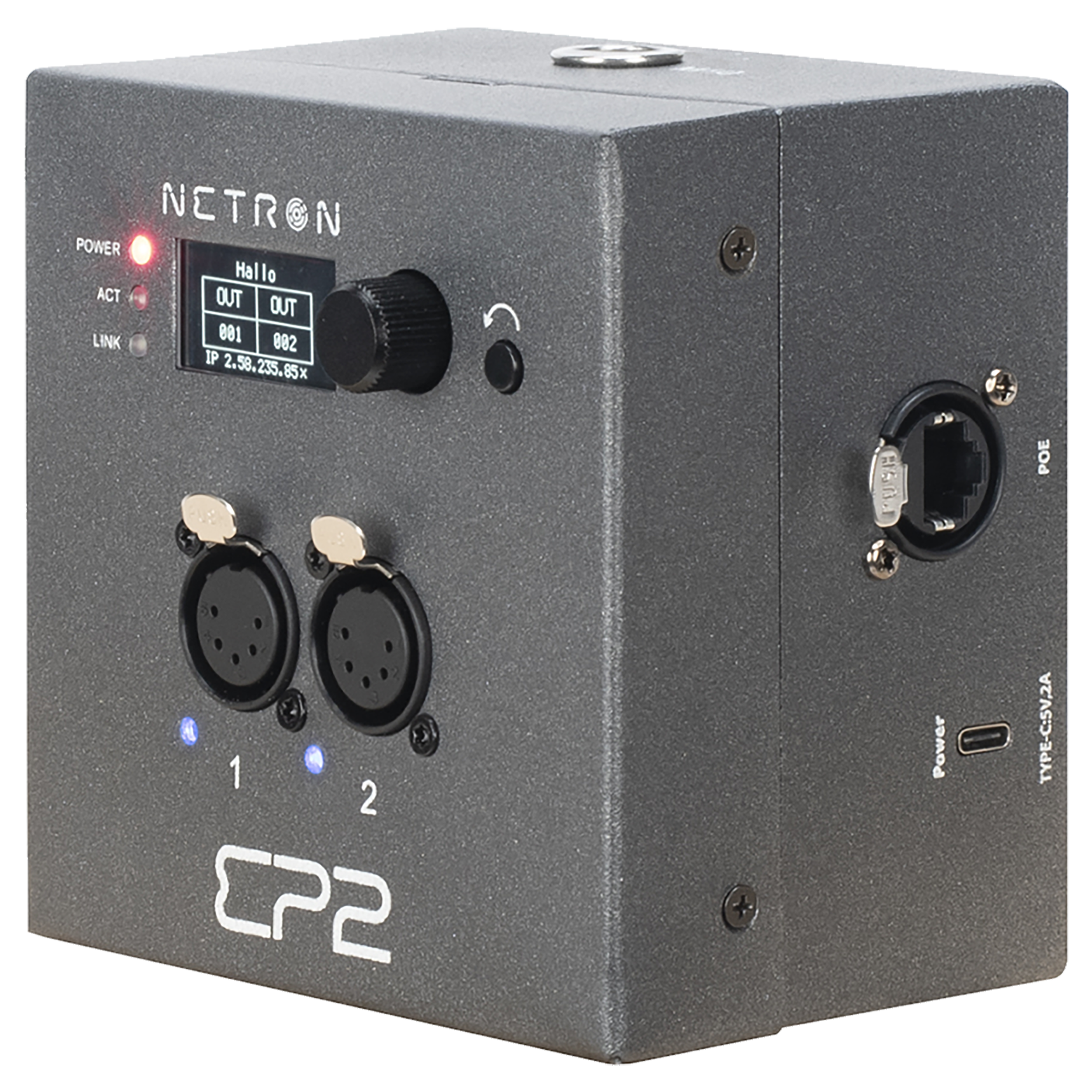

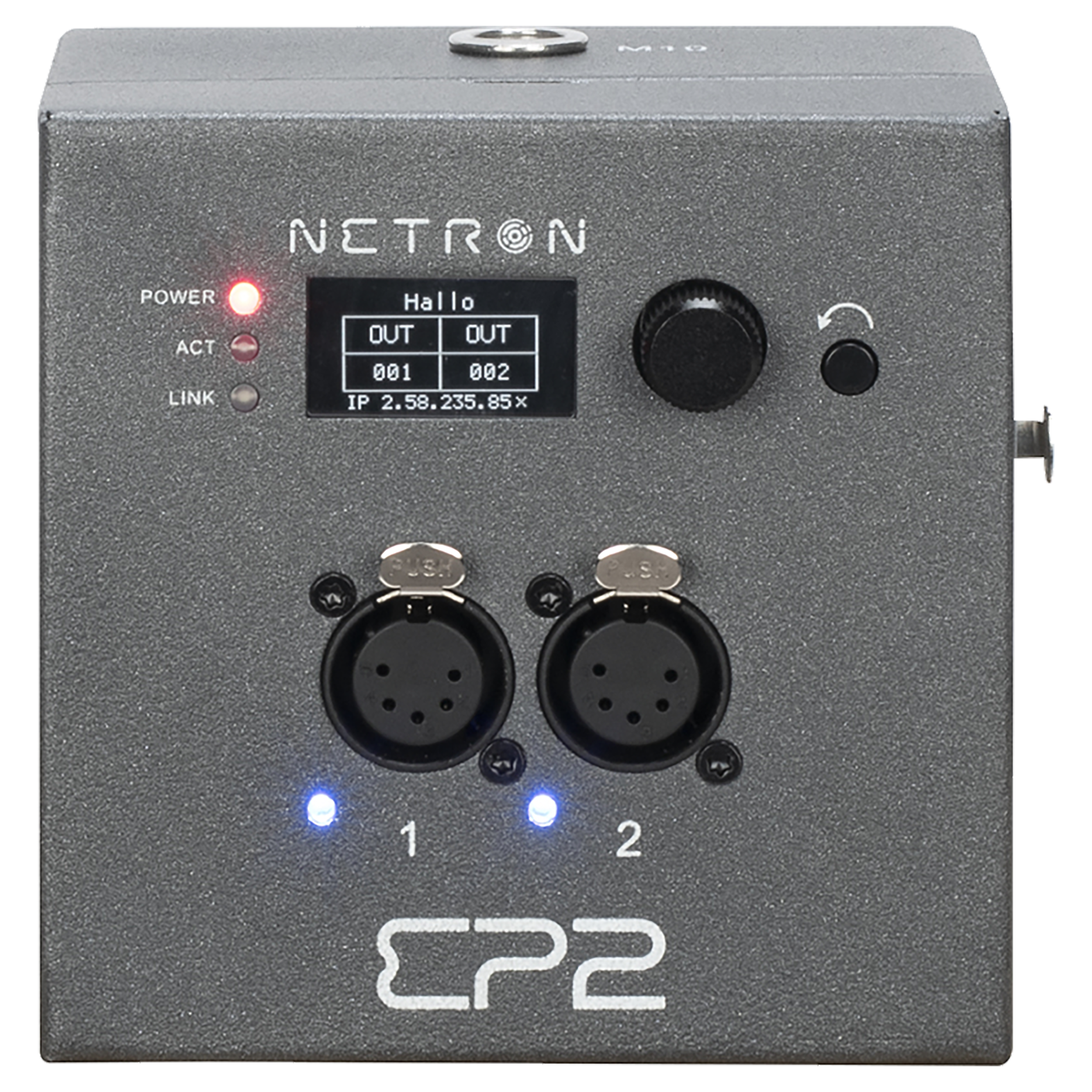

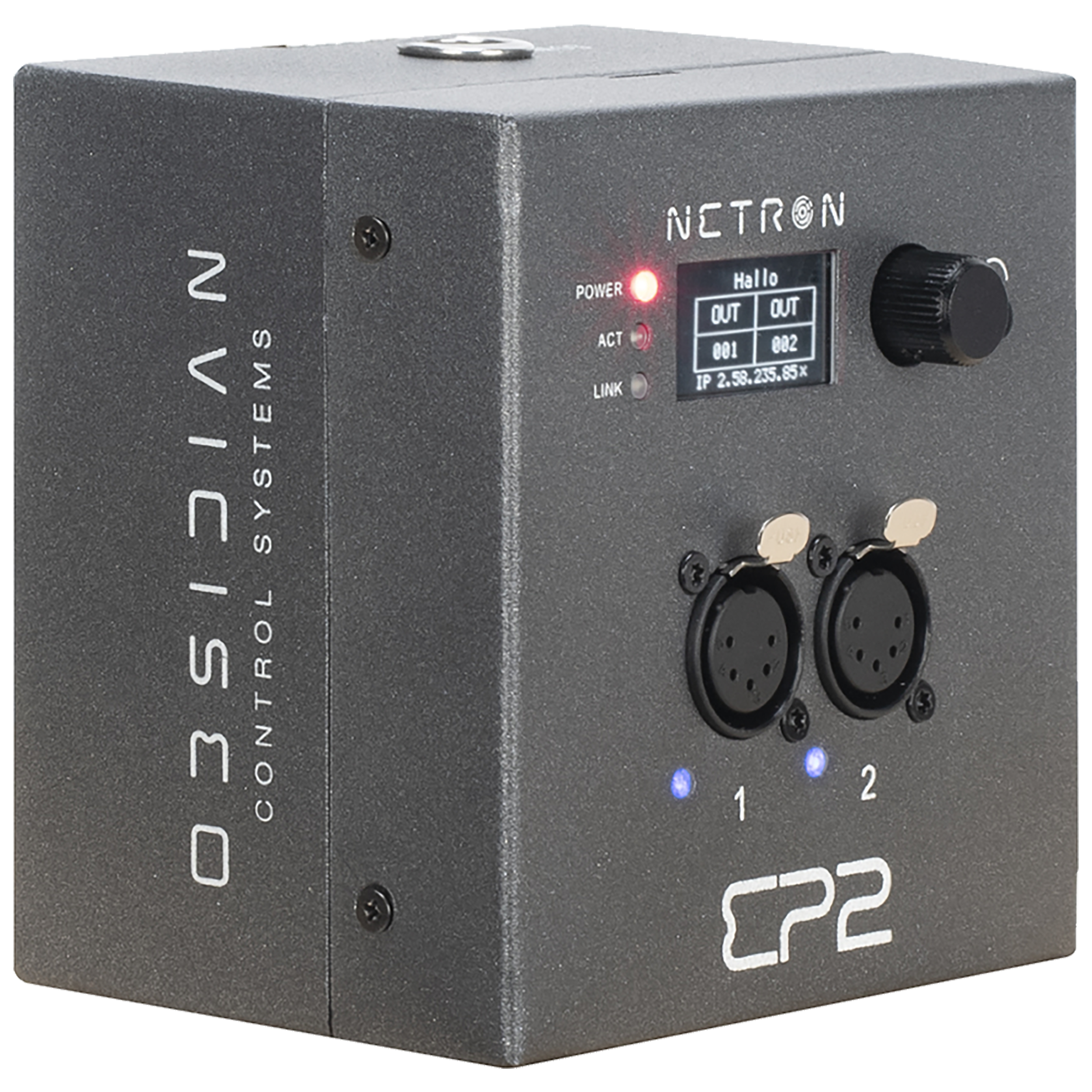

The Netron EP2 is a compact Ethernet to DMX gateway with two RDM compatible ports designed for wall mount, truss mount and standalone installations.
It is configurable via its internal web remote and powered over Ethernet or via the convenient USB-C connection.

FEATURES

• RDM, ArtNet and sACN support
• Factory and user presets for plug and play setups
• POE or USB-C powered
• 1.3” OLED Display with rotary knob
• Remote configuration via internal webpage
• Powder-coated compact metal housing
• Connect to ONYX PC for a full four Universe Solution
• In-wall, On-Wall, Truss and Standalone mounting
• Unlocks ONYX NOVA 4-Universe License

SPECIFICATIONS

Mounting: Standalone (backbox included), Truss-mount (M10 + M12 mounting hole) and In or On-wall 2-Gang (US) or 50mm round (EU)
Front Connections: (2) 5pin DMX/RDM optically isolated ports and Ports are bidirectional for DMX In and Output
Side Connections: (1) Locking RJ45 Ethernet network connections (POE) and USB-C power option (5V, 2A)
Electrical: USB-C 5V and POE 802.3af
Power Consumption: 2.8 W
Approval/Ratings: CE / UKCA / IP20
Product Weight: 1.76 lbs
Product Dimension: 4.6" x 4.5" x 3.5"

CONTENTS

(1) Obsidian Netron EP2 Compact Ethernet to DMX Gateway
(1) Universal 5V/2A USB Power Adapter (UK, US, Europe, & AUS connectors), 100-240V
(1) 1.5m Obsidian USB-C cable
(1) Wallmount Enclosure
(1) In-wall mounting ring
