The Netron EP4 is a compact Ethernet to DMX gateway with four RDM compatible ports. It is configurable via its internal web remote and powered over Ethernet or via the USB-C connection.

As a four Universe Node the EP4 is ideally suited for the powerful ONYX NOVA Edition.

FEATURES

• RDM, Artnet and sACN support
• Factory and user presets for plug and play setups
POE or USB-C powered
• 99 Internal cues with fade and delay time
• Remote configuration via internal webpage
• Powder-coated compact aluminum housing
• Unlocks ONYX NOVA 4-Universe License

SPECIFICATIONS

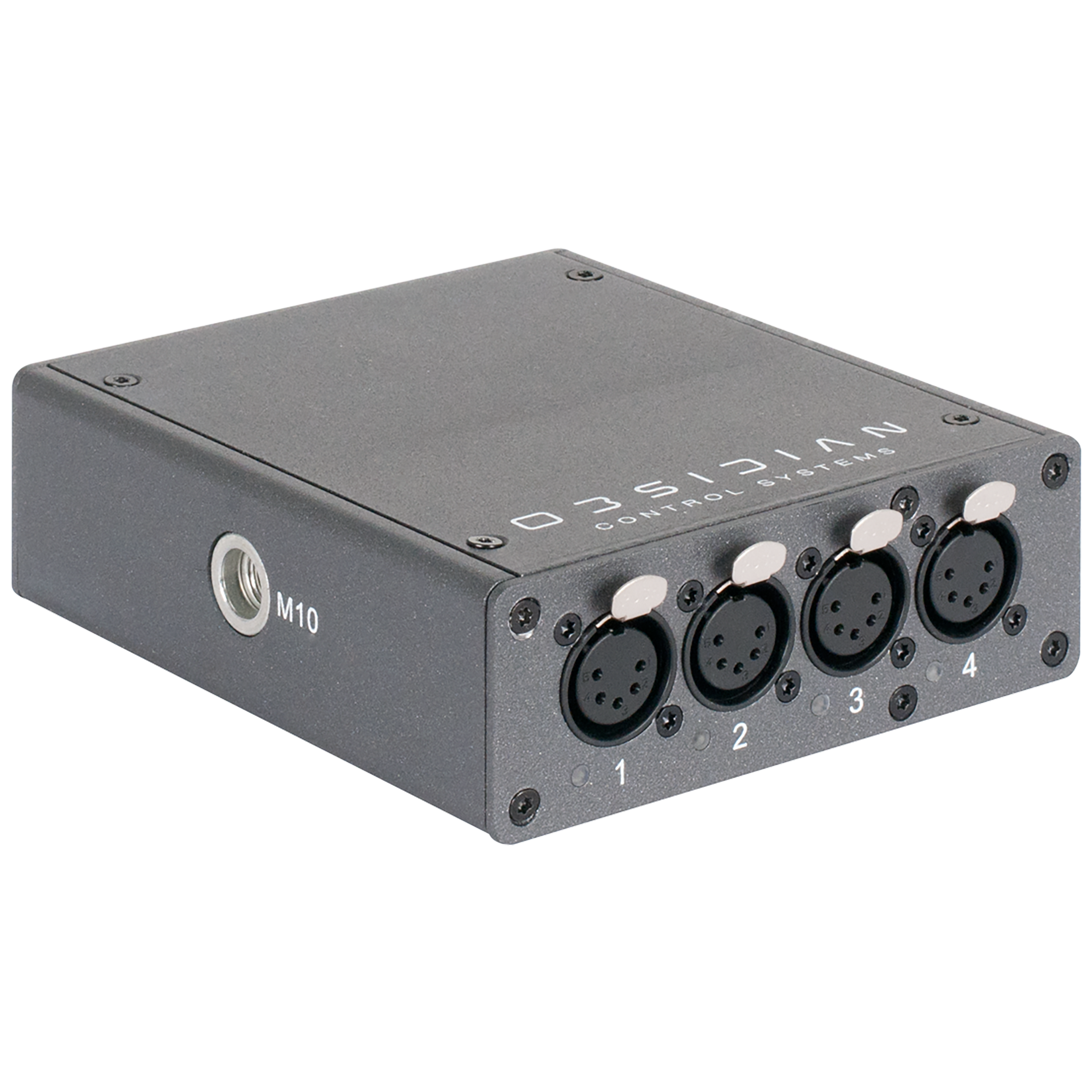

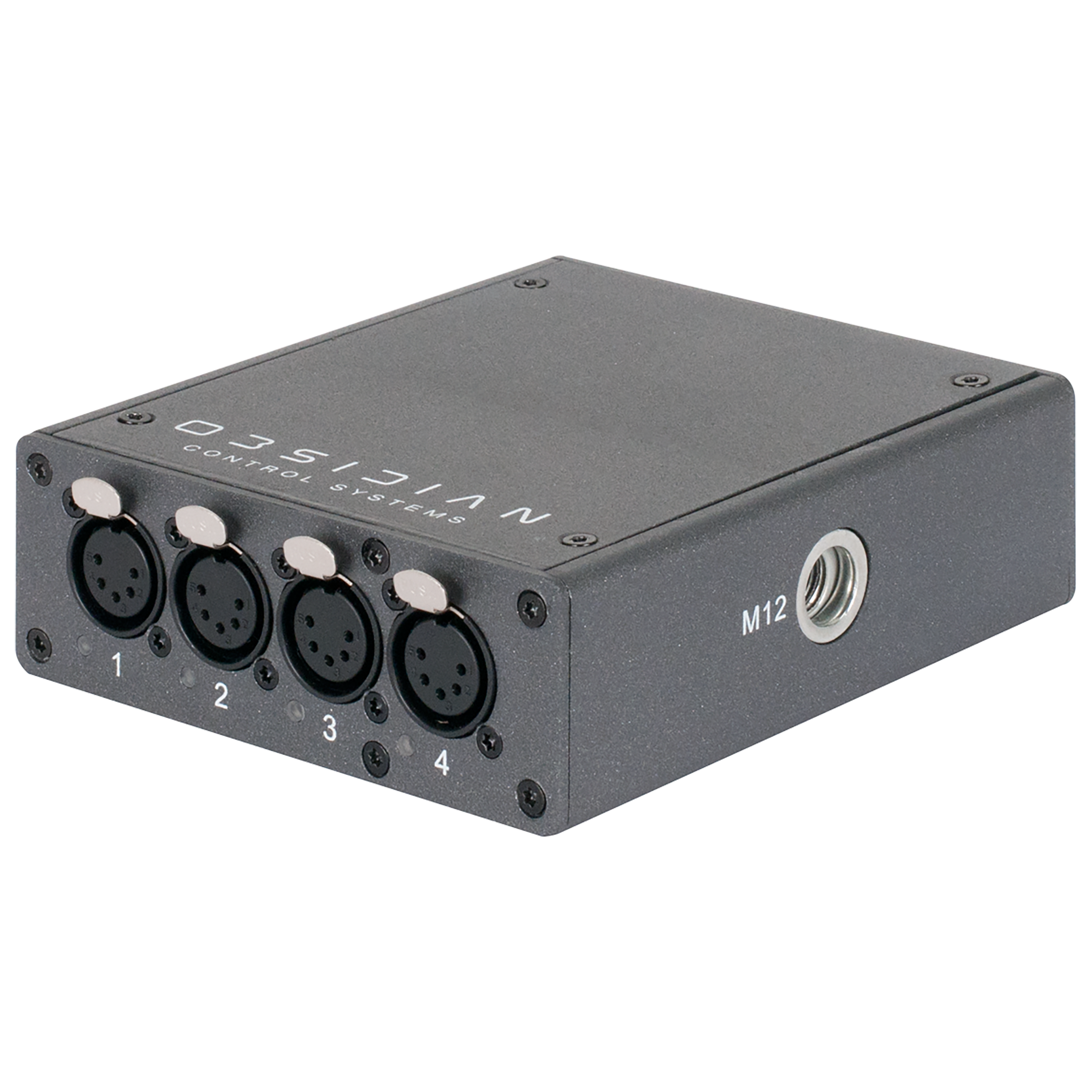

Mounting: Standalone, Truss-mount (M10 or M12 mounting hole), Wall-mount horizontal or vertical (included), DIN Rail horizontal or vertical (included)

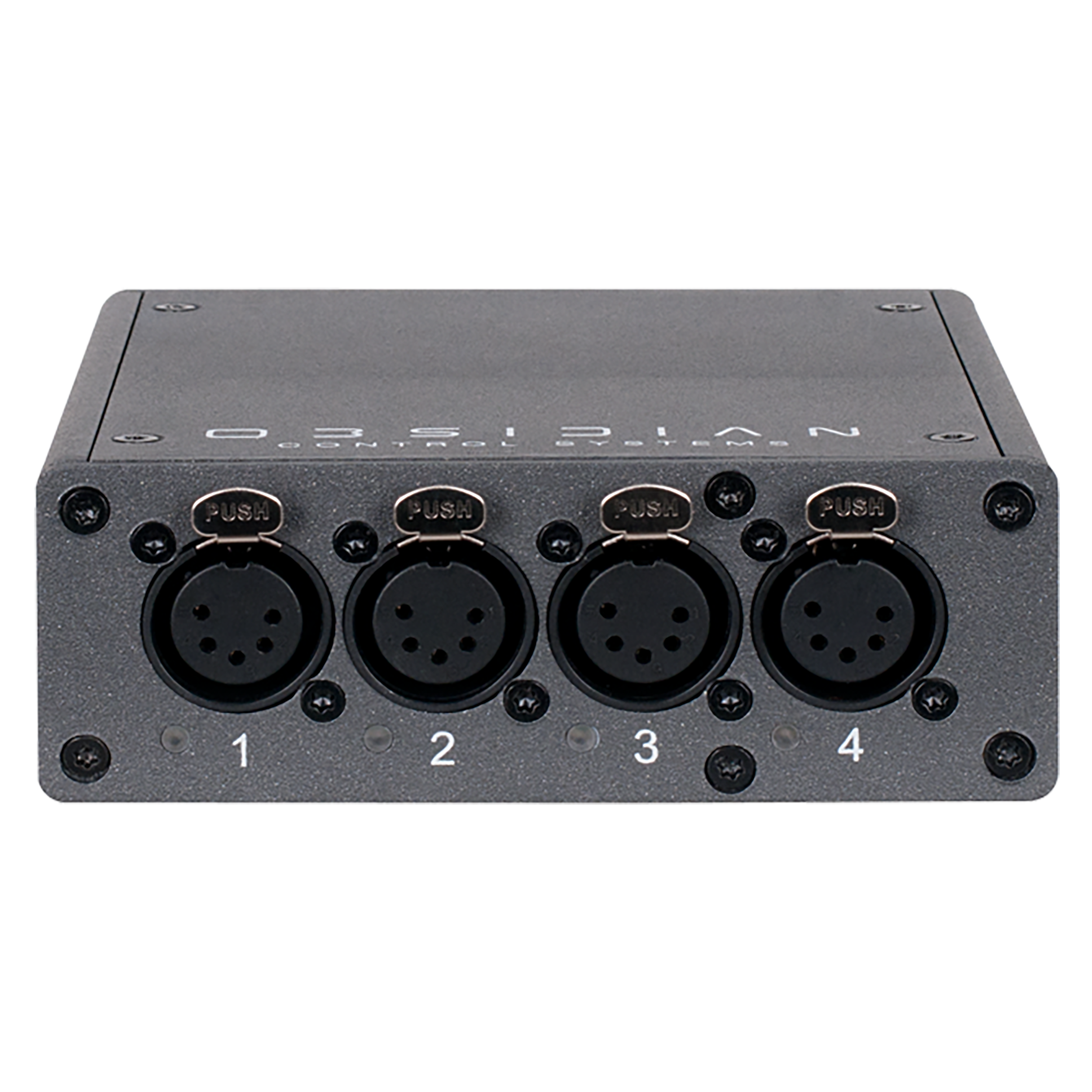

Front Connections: (4) 5pin DMX/RDM optically isolated ports and Ports are bidirectional for DMX In and Output

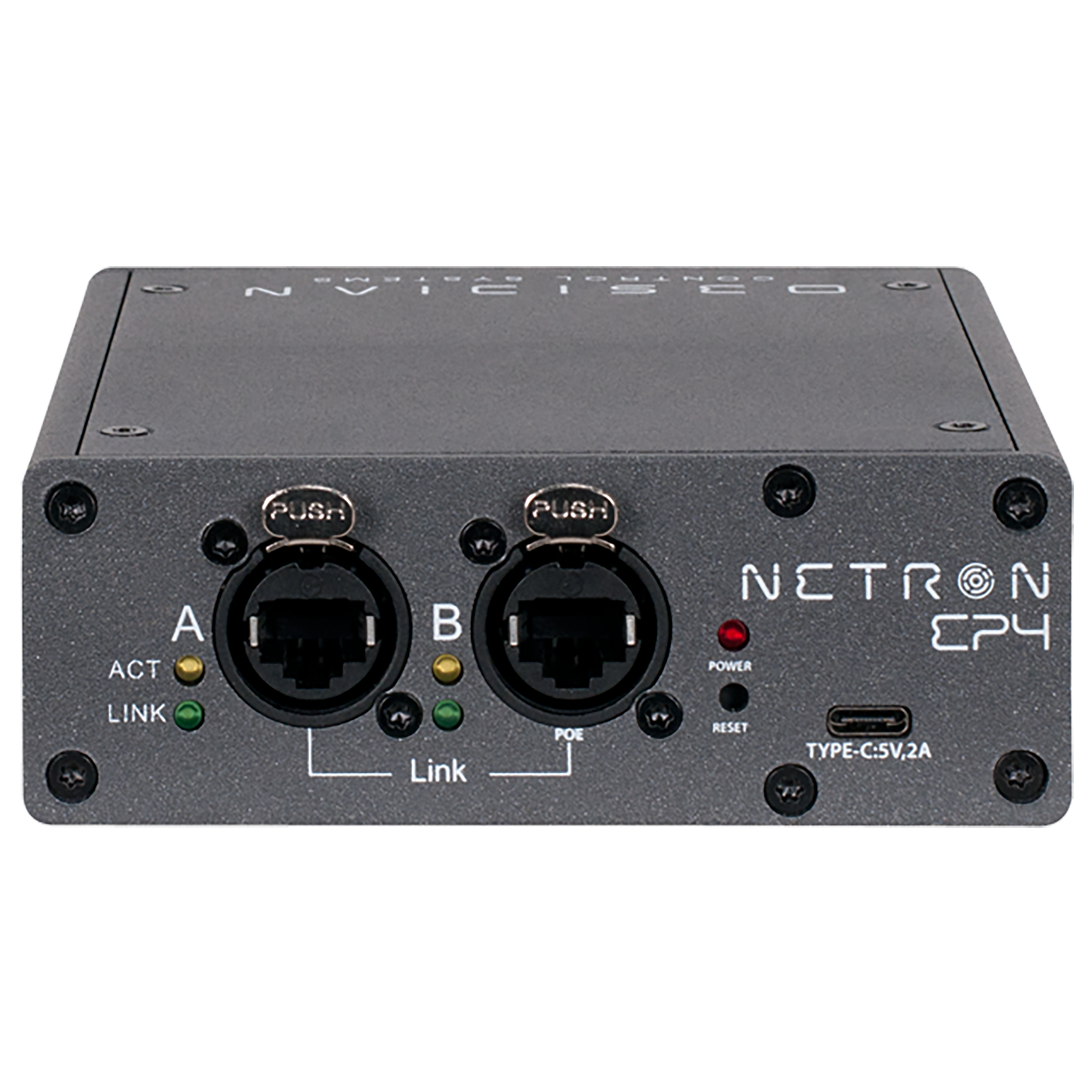

Back Connections: (2) Locking RJ45 Ethernet network connections (1x POE) and USB-C power option (5V, 2A)
Electrical: USB-C 5V and POE 802.3af
Power Consumption: 3.8W
Approval/Ratings: CE / IP20
Product Weight: 1.1 lbs
Product Dimension: 5.3" x 4.6" x 1.65"

CONTENTS

(1) Obsidian Netron EP4 Compact Ethernet to DMX Gateway
(1) Universal 5V/2A USB Power Adapter (UK, US, Europe, & AUS connectors), 100-240V
(1) 1.5m Obsidian USB-C cable
(2) Wallmount plates
(1) DIN-Rail clamp
