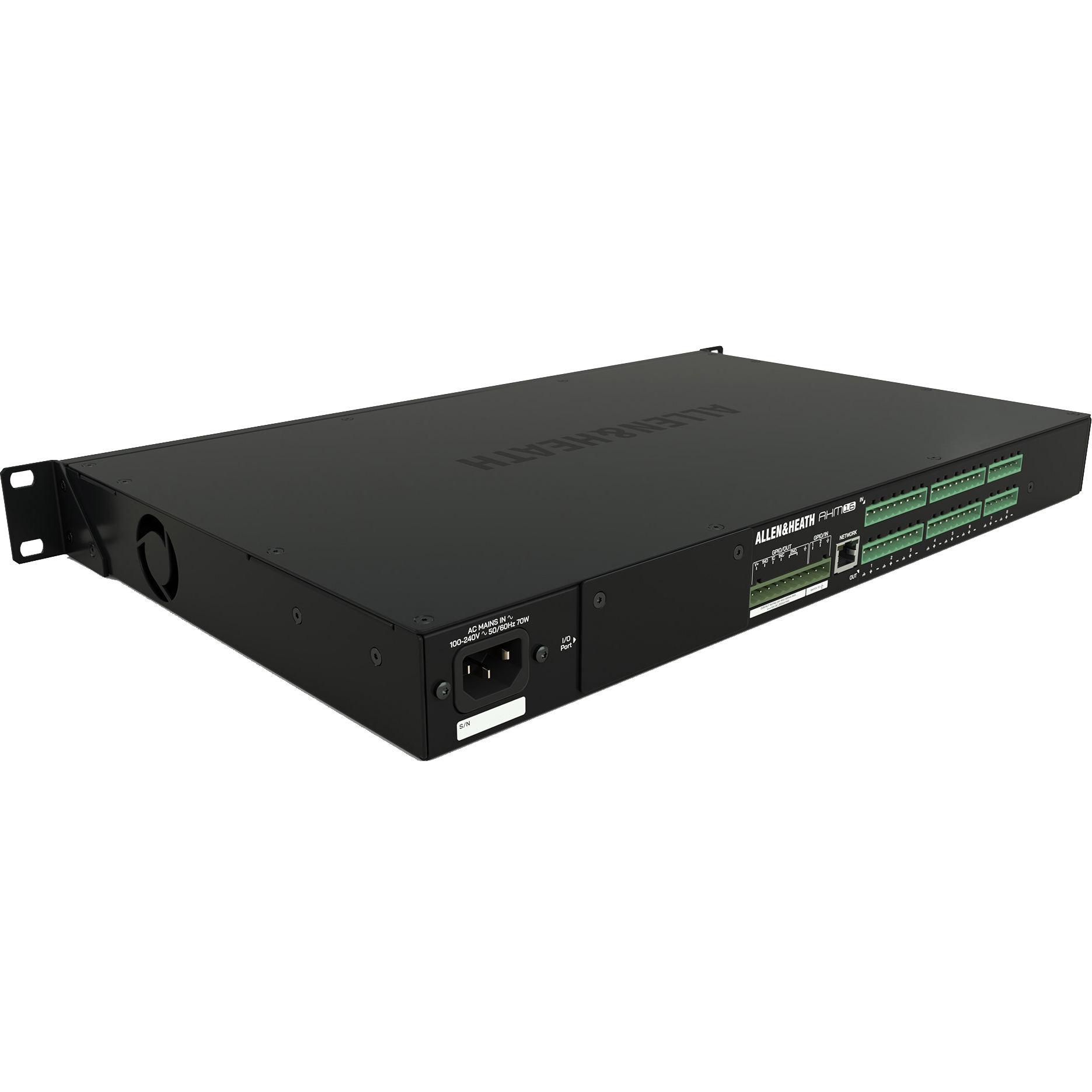

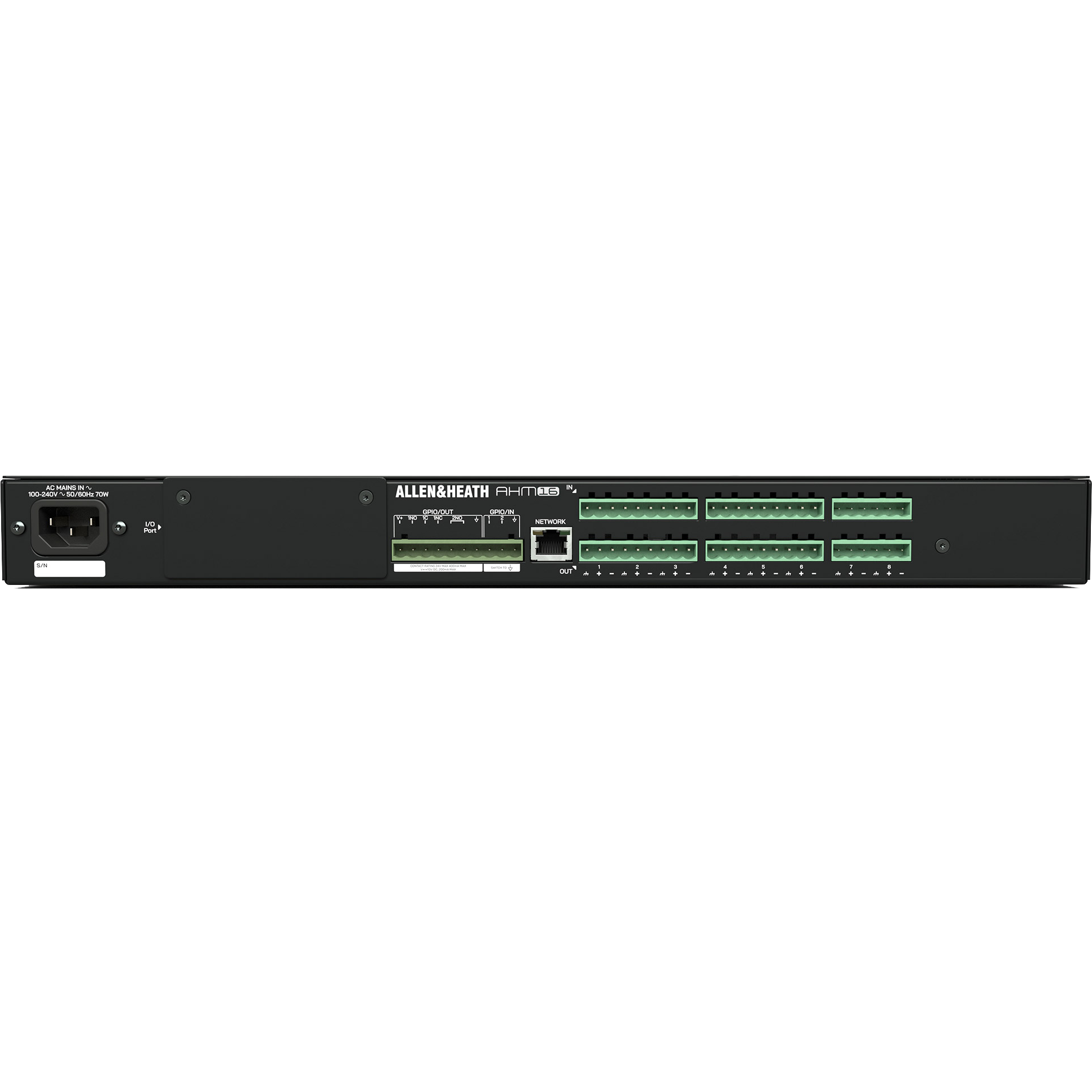

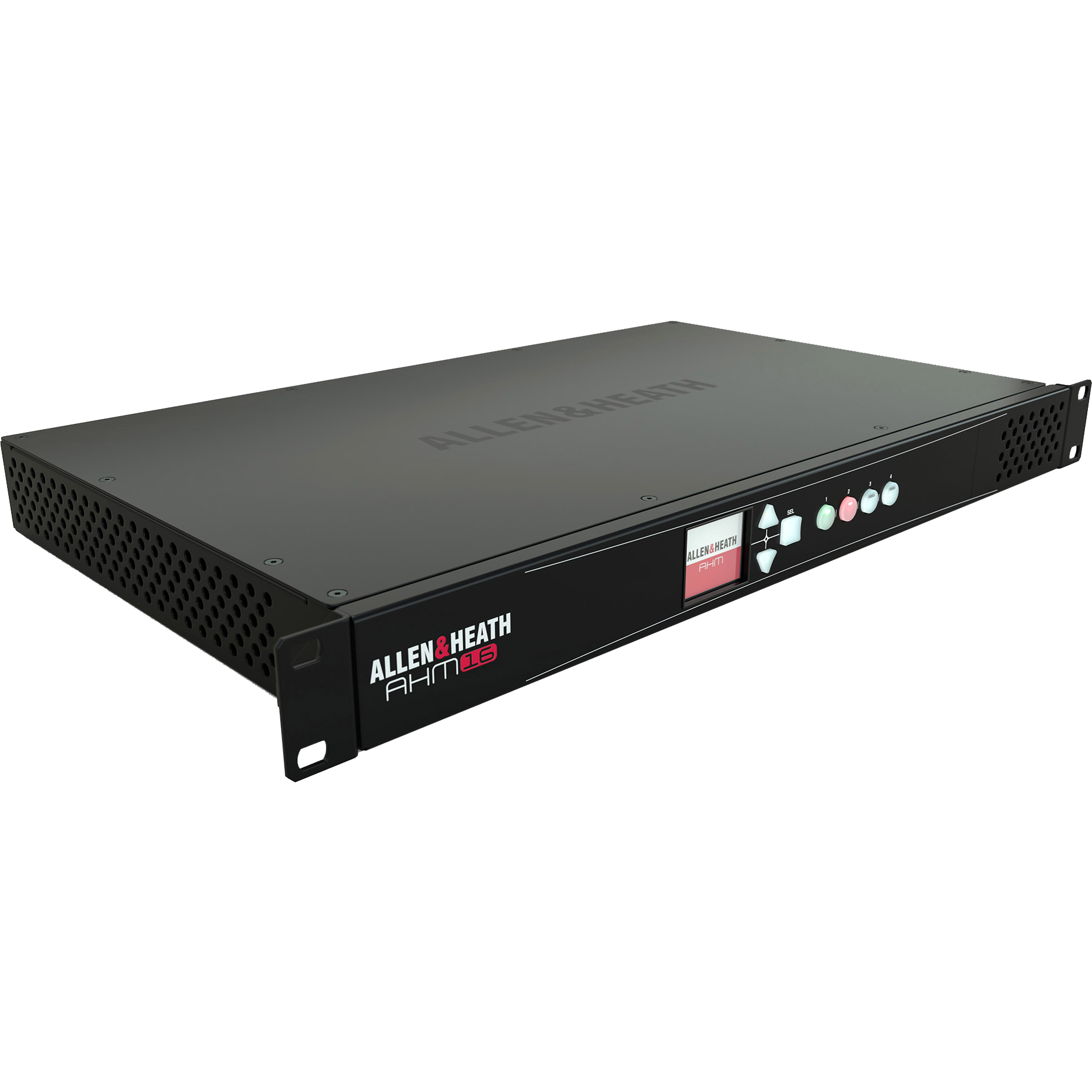

AHM-16 is an audio matrix processor for sound management and installation. It is designed for audio distribution, paging, conferencing and speaker processing in a multitude of environments including corporate, hospitality, education, event and multi-purpose venues, retail, theatres, cruise ships and sports venues.
The AHM-16 processor is complemented by an extended ecosystem of remote audio expanders, remote controllers, interfaces, apps and software.
A family of portable, rack-mountable or wallmount audio expanders is available with a choice of proprietary point-to-point Layer-2 or Dante transport protocols.
A range of IP remote controllers is available for volume control, music source selection, preset recall and more. AHM can also integrate with third party devices over GPIO, TCP/IP, or industry standard control systems. The Custom Control editor and app from Allen & Heath offer more control options and tailored user interfaces for multiple users and device types, with kiosk and BYOD capability.
• 16x16 processing matrix
• 8x8 local analogue I/O
• I/O Port for audio networking, up to 128x128
• Dante 96kHz option card (AES67 and DDM ready)
• SLink 128x128 option card for audio expansion
• 16 configurable processing outputs – mono / stereo zones or speaker processing
• 96kHz FPGA core with ultra-low latency

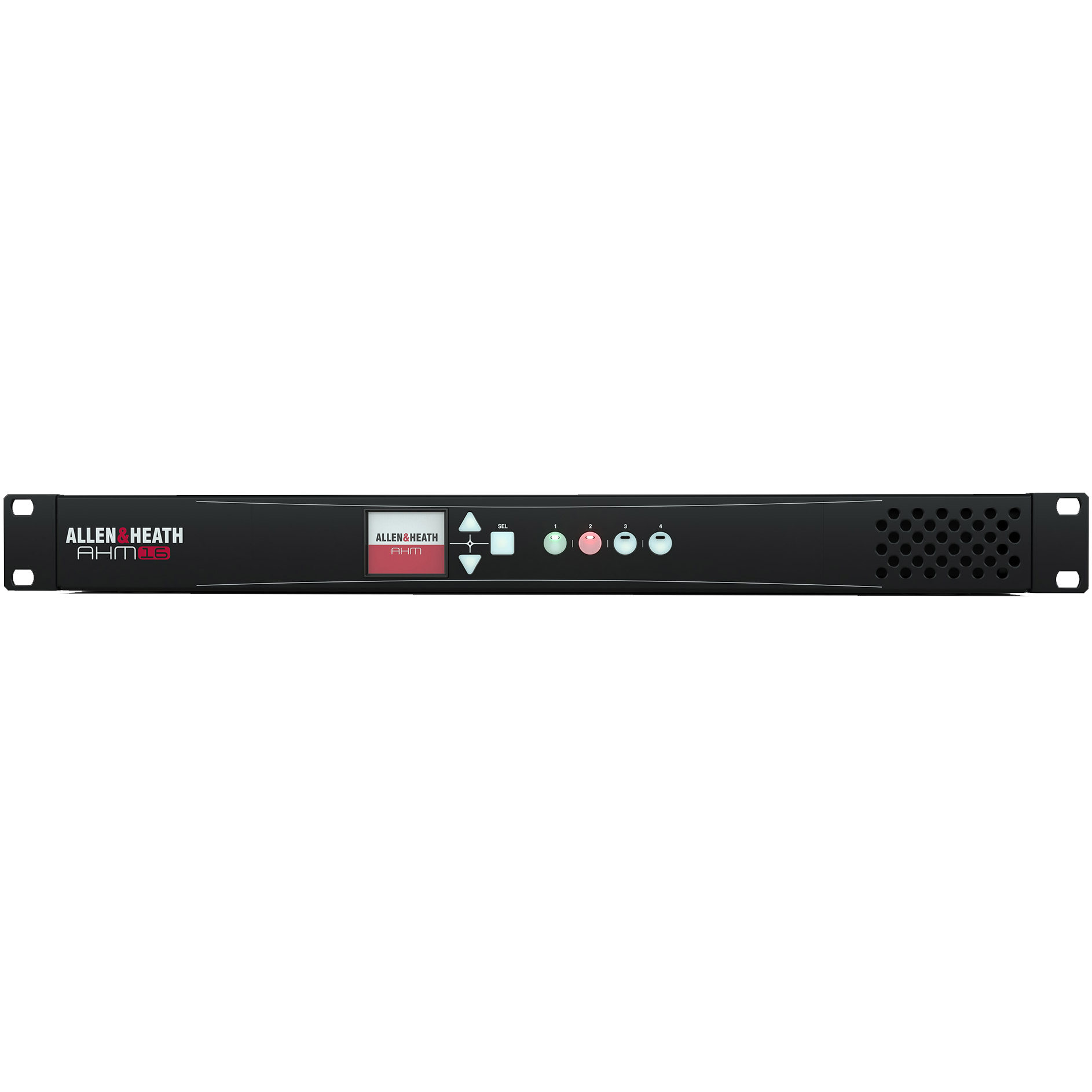

• Front panel screen and navigation
• 4x SoftKeys
• Compatible with IP1, IP6, IP8 remote controllers
• 2x2 local GPIO plus networkable GPIO interface
• TCP/IP protocol for third party integration
• Crestron, AMX and Extron drivers
• Mac / Windows System Manager software
• Custom Control app and editor for BYOD
• 4 user profiles
• Integrated stereo playback
• Event scheduler
• Inputs:
• Mic/Line Inputs: Balanced, +48V phantom power
• Mic/Line Preamp: Fully recallable
• Input Sensitivity: -60 to +15dBu
• Analogue Gain: +5 to +60dB, 1dB steps
• Pad: -20dB Active PAD
• Maximum Input Level: +30dBu (PAD in)
• Input Impedance: >3kO (Pad out), >8kO (Pad in)
• Mic EIN: -127dB with 150? source
• Outputs:
• Analogue Outputs: Balanced, Relay protected
• Output Impedance: <75O
• Nominal Output: +4dBu = 0dB meter reading
• Maximum Output Level: +21dBu
• Residual Output Noise: -92dBu (muted, 22-22kHz)
• System: Measured balanced XLR in to XLR out, 20-20kHz, +5dB Gain, Pad out, signal @ 0dB (meter)
• Dynamic Range: 108dB
• System Signal to Noise: -92dB
• Frequency Response: 20Hz - 20kHz +0/-0.5dB
• THD+N (analogue in to out): 0.005% @ +16dBu output, 1kHz +5dB gain
• Headroom: +18dB
• Sampling Rate: 96kHz +/- 20 PPM
• Acoustic Noise: Typical loading, 22 deg C ambient
• No I/O Port installed: 31dBA
• With I/O Port installed: 33dBA
(1) Allen & Heath AHM Matrix Processor
(1) Operator's Manual
(1) Safety Sheet
(1) IEC Mains Lead
(1) Phoenix connectors with strain relief - 1x 10-pin, 16x 3-pin
