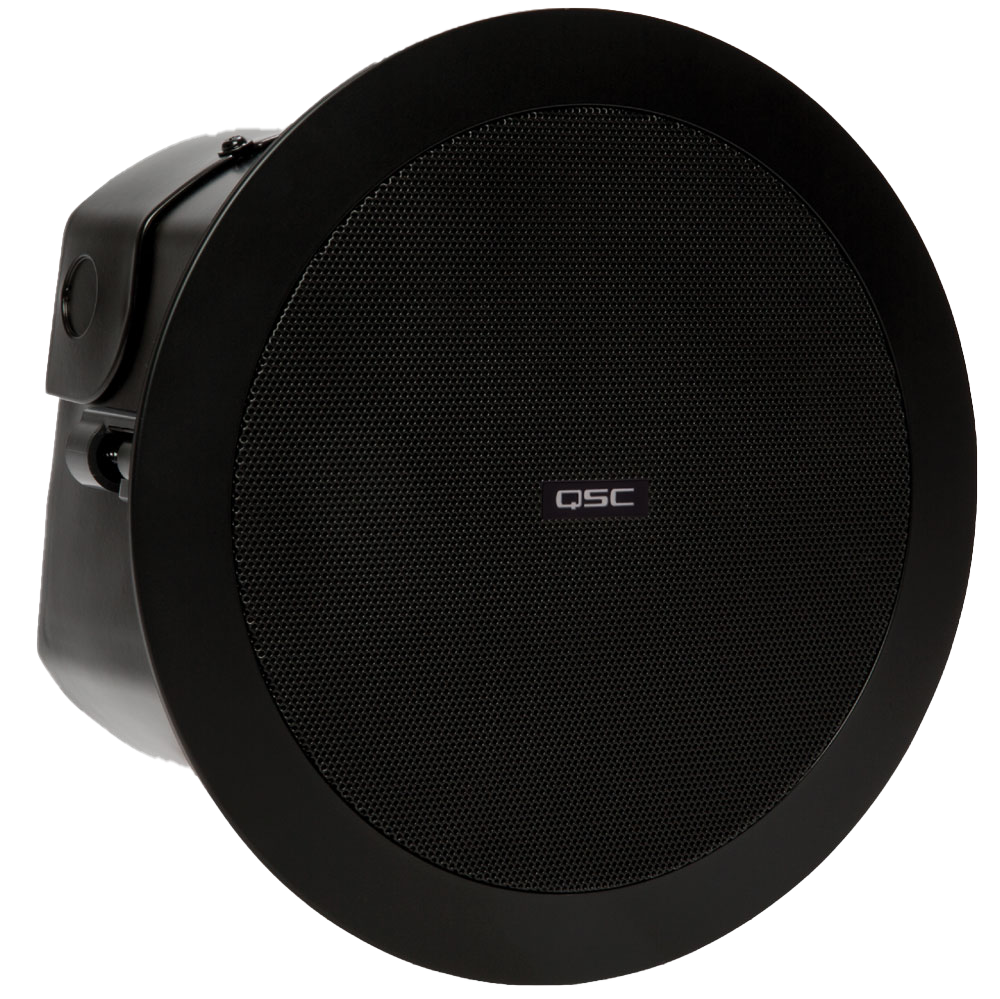

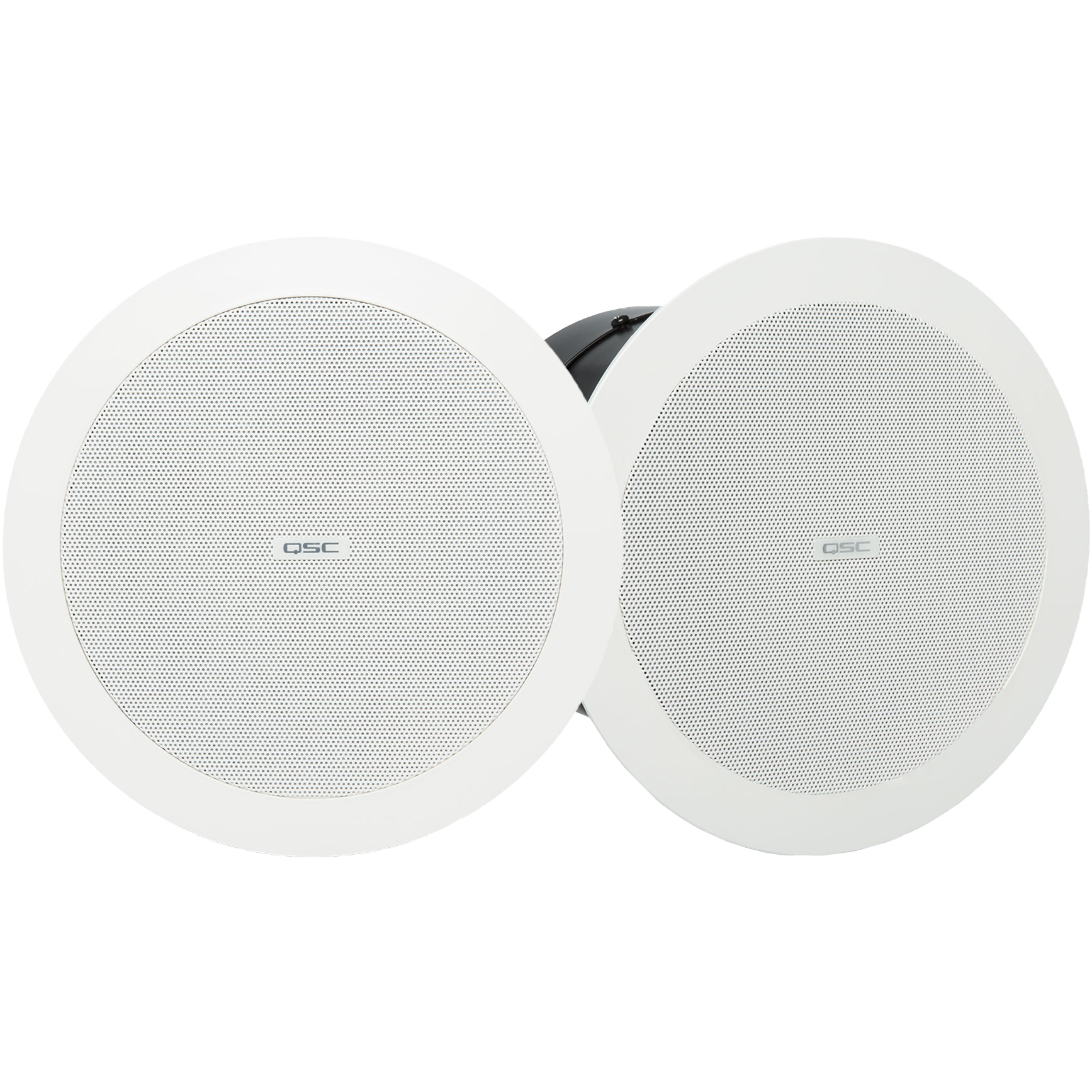

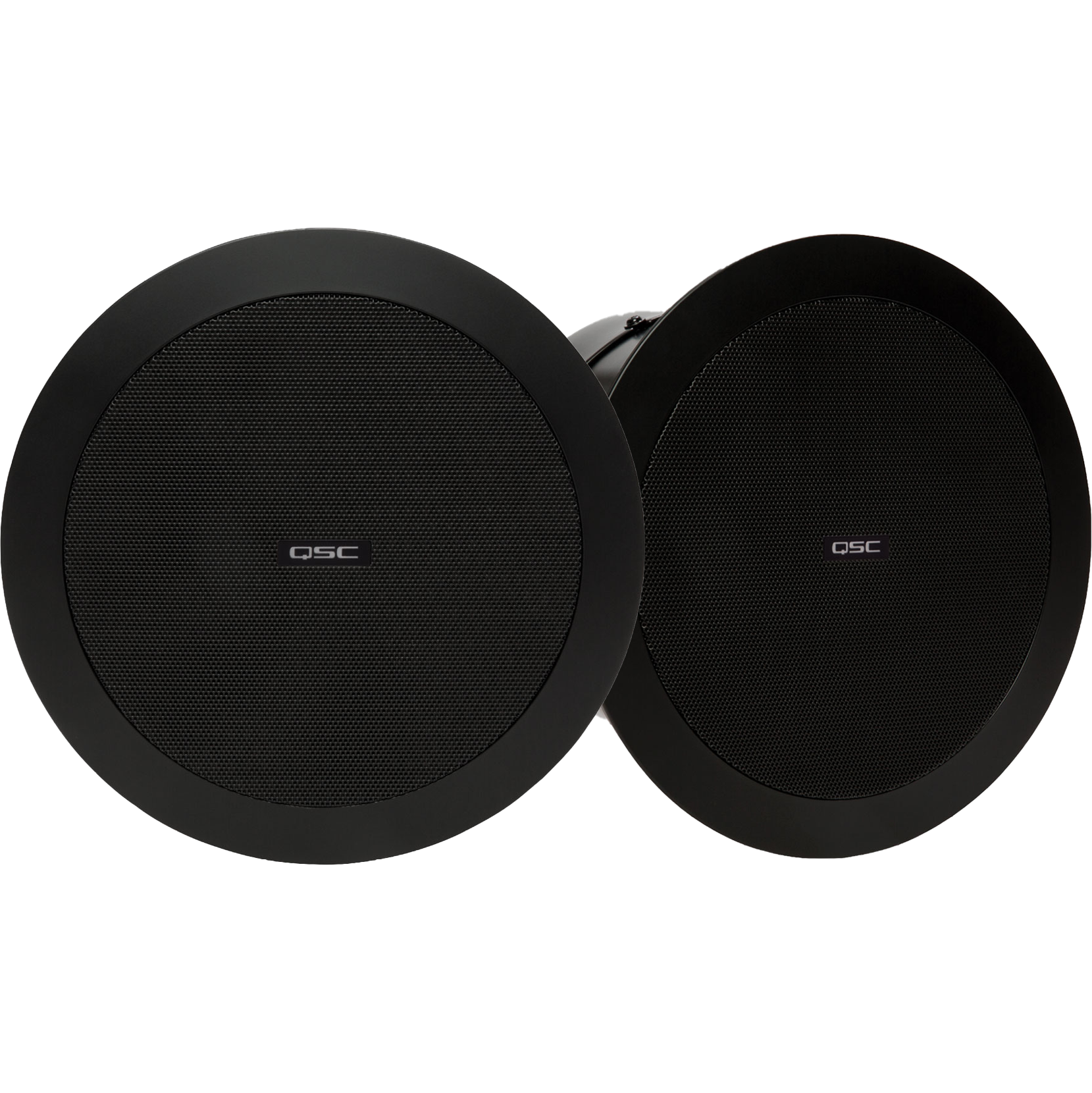

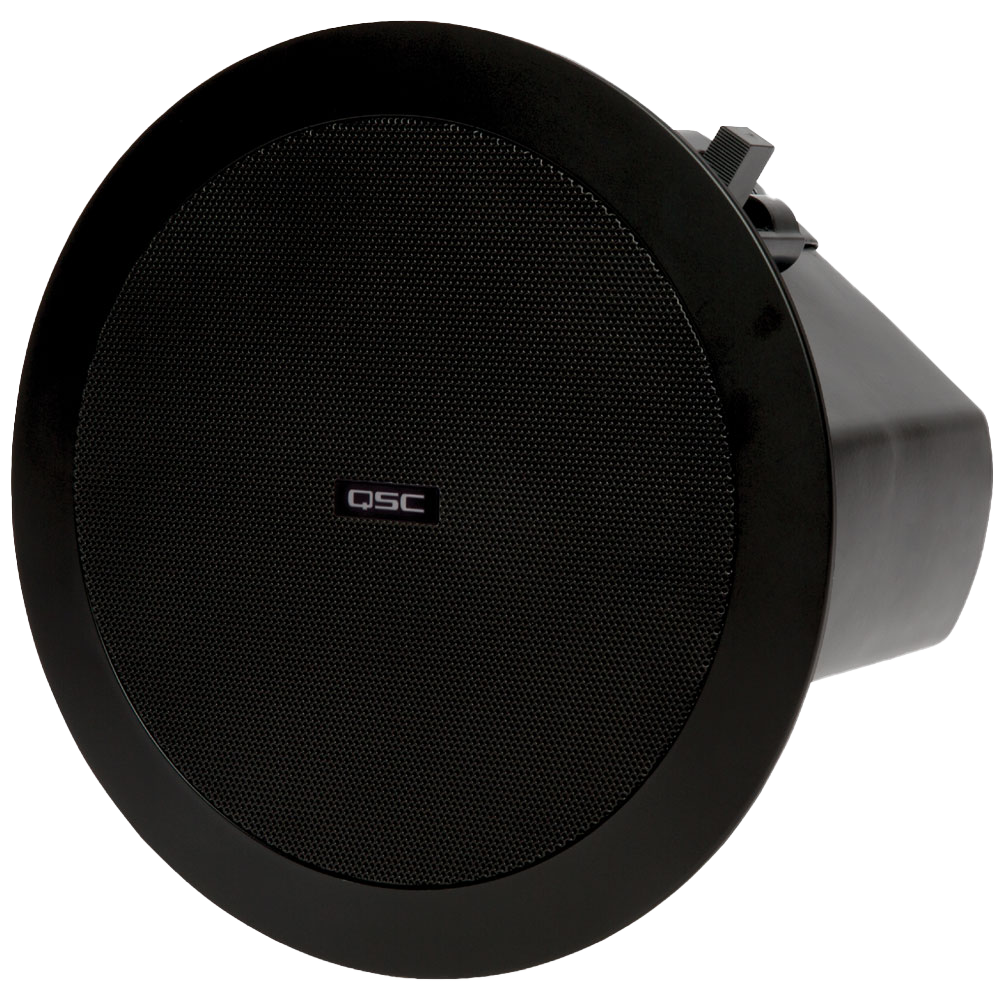

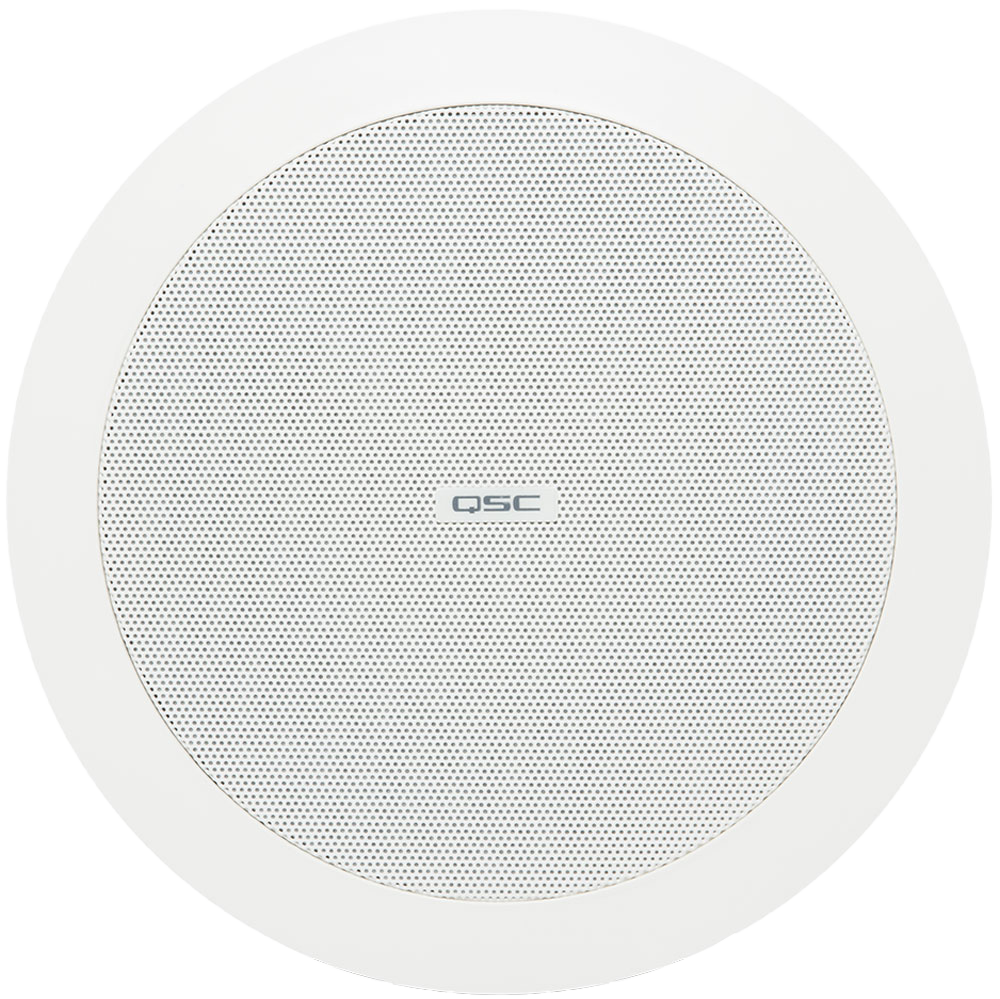

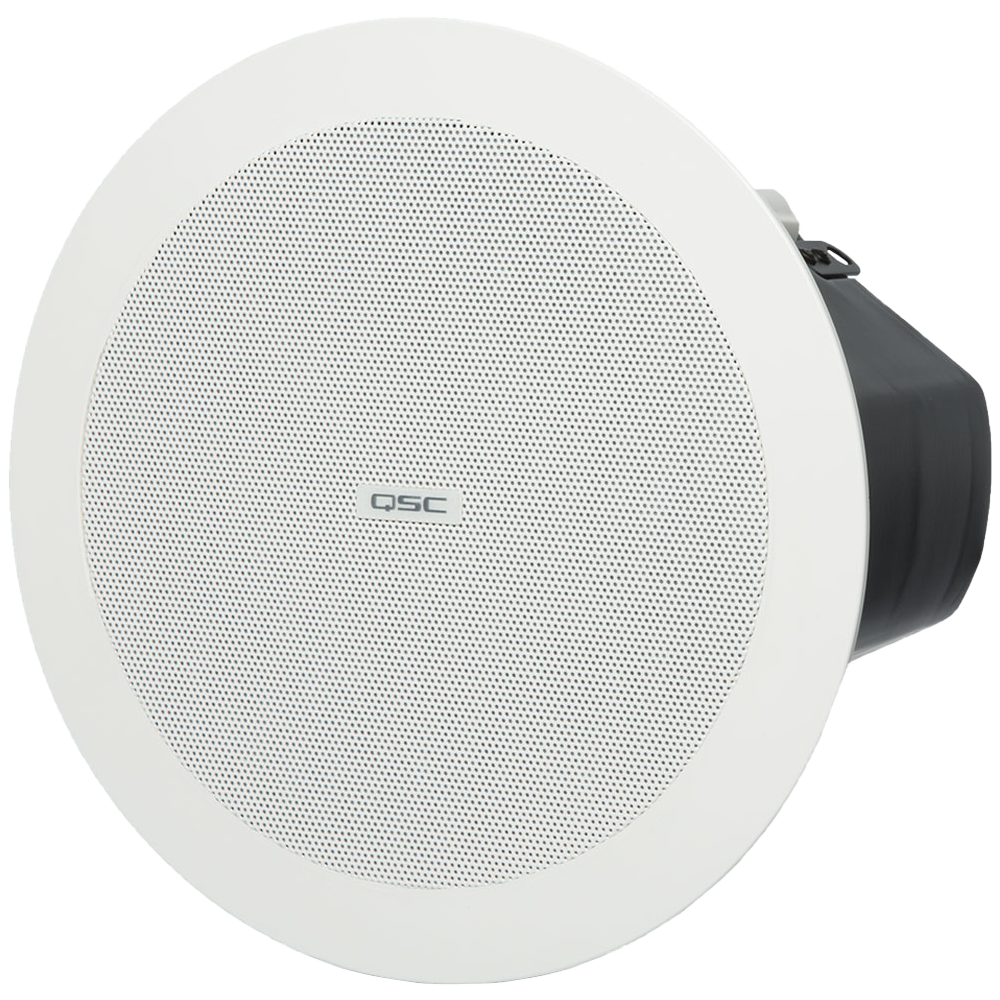

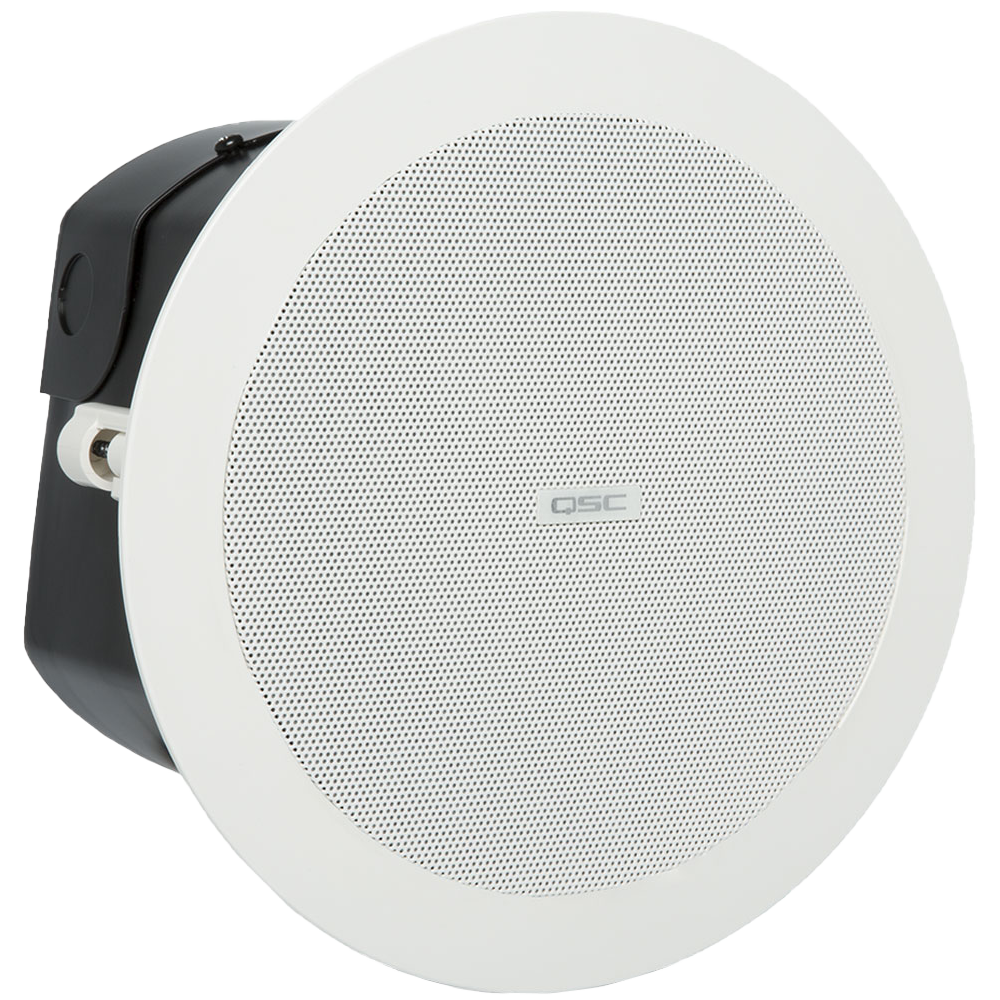

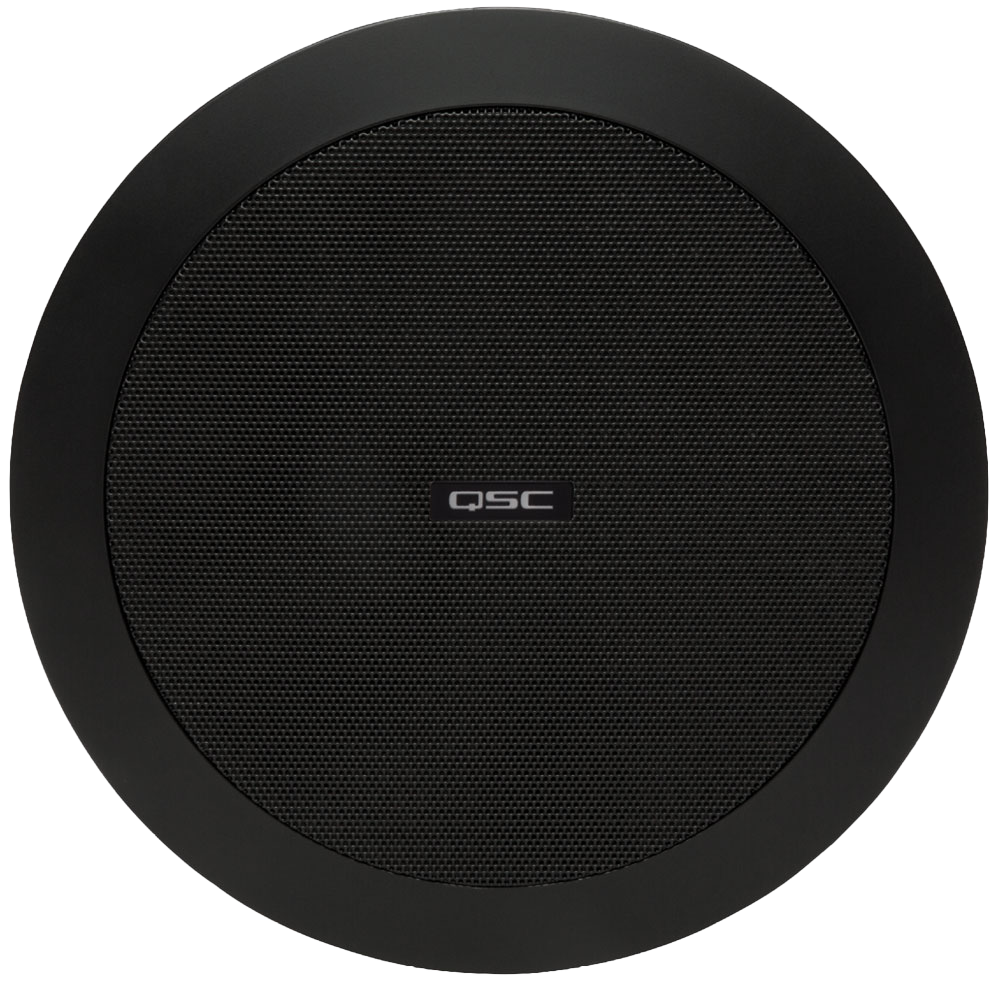

QSC AcousticDesign Series Ceiling-Mount Loudspeakers

    Product SKU # 30684
['{"currentVariantId":"44361483419816","currentType":"single_line_text_field","currentKey":"variation_sku","currentProps":{"badgeWidth":28,"badgeHeight":28,"showDate":true,"dateFormat":"%m-%d-%Y","showTime":true,"timeFormat":"%I:%M %p","showTimezone":true,"showUnit":true,"showMaxScale":true,"trueValText":"TRUE","falseValText":"FALSE","linkToUrl":true,"linkText":null}}',[{"variation_sku":"Product SKU # 30684"},{"id":42283408654504,"title":"AD-C4T 4.5\" Two Way \/ Black","option1":"AD-C4T 4.5\" Two Way","option2":"Black","option3":null,"sku":"30684","requires_shipping":true,"taxable":true,"featured_image":{"id":33243525447848,"product_id":7428277043368,"position":1,"created_at":"2022-05-11T10:15:52-07:00","updated_at":"2022-05-11T10:19:15-07:00","alt":"30684","width":1659,"height":1660,"src":"\/\/www.avbyfp.com\/cdn\/shop\/products\/143859_1-Pair.png?v=1652289555","variant_ids":[42283408654504]},"available":true,"name":"QSC AcousticDesign Series Ceiling-Mount Loudspeakers - AD-C4T 4.5\" Two Way \/ Black","public_title":"AD-C4T 4.5\" Two Way \/ Black","options":["AD-C4T 4.5\" Two Way","Black"],"price":43000,"weight":2948,"compare_at_price":null,"inventory_management":"shopify","barcode":"684284067524","featured_media":{"alt":"30684","id":25625642926248,"position":1,"preview_image":{"aspect_ratio":0.999,"height":1660,"width":1659,"src":"\/\/www.avbyfp.com\/cdn\/shop\/products\/143859_1-Pair.png?v=1652289555"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},], [{"variation_sku":"Product SKU # 30685"},{"id":42283408687272,"title":"AD-C4T 4.5\" Two Way \/ White","option1":"AD-C4T 4.5\" Two Way","option2":"White","option3":null,"sku":"30685","requires_shipping":true,"taxable":true,"featured_image":{"id":33243529871528,"product_id":7428277043368,"position":6,"created_at":"2022-05-11T10:17:37-07:00","updated_at":"2022-05-11T10:19:15-07:00","alt":"30685","width":1735,"height":1735,"src":"\/\/www.avbyfp.com\/cdn\/shop\/products\/143860_5-PAIR.png?v=1652289555","variant_ids":[42283408687272]},"available":true,"name":"QSC AcousticDesign Series Ceiling-Mount Loudspeakers - AD-C4T 4.5\" Two Way \/ White","public_title":"AD-C4T 4.5\" Two Way \/ White","options":["AD-C4T 4.5\" Two Way","White"],"price":43000,"weight":2948,"compare_at_price":null,"inventory_management":"shopify","barcode":"684284067531","featured_media":{"alt":"30685","id":25625647513768,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1735,"width":1735,"src":"\/\/www.avbyfp.com\/cdn\/shop\/products\/143860_5-PAIR.png?v=1652289555"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},], [{"variation_sku":"Product SKU # 30686"},{"id":42283408785576,"title":"AD-C4T LP 4.5\" Two Way, Low Profile \/ White","option1":"AD-C4T LP 4.5\" Two Way, Low Profile","option2":"White","option3":null,"sku":"30686","requires_shipping":true,"taxable":true,"featured_image":{"id":33243775860904,"product_id":7428277043368,"position":11,"created_at":"2022-05-11T11:15:11-07:00","updated_at":"2022-05-11T11:15:53-07:00","alt":"30686","width":1000,"height":999,"src":"\/\/www.avbyfp.com\/cdn\/shop\/products\/143860_5_40e265bd-ae1f-4127-9797-1bbc8e9ea03d.png?v=1652292953","variant_ids":[42283408785576]},"available":true,"name":"QSC AcousticDesign Series Ceiling-Mount Loudspeakers - AD-C4T LP 4.5\" Two Way, Low Profile \/ White","public_title":"AD-C4T LP 4.5\" Two Way, Low Profile \/ White","options":["AD-C4T LP 4.5\" Two Way, Low Profile","White"],"price":52000,"weight":2948,"compare_at_price":null,"inventory_management":"shopify","barcode":"684284067524","featured_media":{"alt":"30686","id":25625900613800,"position":11,"preview_image":{"aspect_ratio":1.001,"height":999,"width":1000,"src":"\/\/www.avbyfp.com\/cdn\/shop\/products\/143860_5_40e265bd-ae1f-4127-9797-1bbc8e9ea03d.png?v=1652292953"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},], [{"variation_sku":"Product SKU # 30687"},{"id":42283408818344,"title":"AD-C6T 6.5\" Two Way \/ Black","option1":"AD-C6T 6.5\" Two Way","option2":"Black","option3":null,"sku":"30687","requires_shipping":true,"taxable":true,"featured_image":{"id":33243768619176,"product_id":7428277043368,"position":12,"created_at":"2022-05-11T11:13:41-07:00","updated_at":"2022-05-11T11:15:53-07:00","alt":"30687","width":1659,"height":1660,"src":"\/\/www.avbyfp.com\/cdn\/shop\/products\/143859_1-Pair_f0618318-a878-4528-b0da-c9cd4e2204af.png?v=1652292953","variant_ids":[42283408818344]},"available":true,"name":"QSC AcousticDesign Series Ceiling-Mount Loudspeakers - AD-C6T 6.5\" Two Way \/ Black","public_title":"AD-C6T 6.5\" Two Way \/ Black","options":["AD-C6T 6.5\" Two Way","Black"],"price":52000,"weight":4536,"compare_at_price":null,"inventory_management":"shopify","barcode":"684284067555","featured_media":{"alt":"30687","id":25625893175464,"position":12,"preview_image":{"aspect_ratio":0.999,"height":1660,"width":1659,"src":"\/\/www.avbyfp.com\/cdn\/shop\/products\/143859_1-Pair_f0618318-a878-4528-b0da-c9cd4e2204af.png?v=1652292953"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},], [{"variation_sku":"Product SKU # 26995"},{"id":42283408851112,"title":"AD-C6T 6.5\" Two Way \/ White","option1":"AD-C6T 6.5\" Two Way","option2":"White","option3":null,"sku":"26995","requires_shipping":true,"taxable":true,"featured_image":{"id":33243784315048,"product_id":7428277043368,"position":17,"created_at":"2022-05-11T11:17:02-07:00","updated_at":"2022-05-11T11:17:04-07:00","alt":"26995","width":1735,"height":1735,"src":"\/\/www.avbyfp.com\/cdn\/shop\/products\/143860_5-PAIR_207f947c-05c5-4312-8645-7becd1da73db.png?v=1652293024","variant_ids":[42283408851112]},"available":true,"name":"QSC AcousticDesign Series Ceiling-Mount Loudspeakers - AD-C6T 6.5\" Two Way \/ White","public_title":"AD-C6T 6.5\" Two Way \/ White","options":["AD-C6T 6.5\" Two Way","White"],"price":52000,"weight":4536,"compare_at_price":null,"inventory_management":"shopify","barcode":"684284067562","featured_media":{"alt":"26995","id":25625908936872,"position":17,"preview_image":{"aspect_ratio":1.0,"height":1735,"width":1735,"src":"\/\/www.avbyfp.com\/cdn\/shop\/products\/143860_5-PAIR_207f947c-05c5-4312-8645-7becd1da73db.png?v=1652293024"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},], [{"variation_sku":"Product SKU # 30688"},{"id":42283408883880,"title":"AD-C6T LP 6.5\" Two Way, Low Profile \/ White","option1":"AD-C6T LP 6.5\" Two Way, Low Profile","option2":"White","option3":null,"sku":"30688","requires_shipping":true,"taxable":true,"featured_image":{"id":33243788312744,"product_id":7428277043368,"position":22,"created_at":"2022-05-11T11:17:53-07:00","updated_at":"2022-05-11T11:17:54-07:00","alt":"30688","width":1000,"height":999,"src":"\/\/www.avbyfp.com\/cdn\/shop\/products\/143860_5_0ddb39b2-f814-4cc5-a933-a628f7547646.png?v=1652293074","variant_ids":[42283408883880]},"available":true,"name":"QSC AcousticDesign Series Ceiling-Mount Loudspeakers - AD-C6T LP 6.5\" Two Way, Low Profile \/ White","public_title":"AD-C6T LP 6.5\" Two Way, Low Profile \/ White","options":["AD-C6T LP 6.5\" Two Way, Low Profile","White"],"price":52000,"weight":4536,"compare_at_price":null,"inventory_management":"shopify","barcode":"684284067579","featured_media":{"alt":"30688","id":25625913229480,"position":22,"preview_image":{"aspect_ratio":1.001,"height":999,"width":1000,"src":"\/\/www.avbyfp.com\/cdn\/shop\/products\/143860_5_0ddb39b2-f814-4cc5-a933-a628f7547646.png?v=1652293074"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},], ]
$430.00
1.png__PID:7af1a3fd-a98e-4384-a357-aae772061f43
FREE SHIPPING
2.png__PID:f1a3fda9-8e83-44e3-97aa-e772061f434b

EXPERT SUPPORT

Copy of Untitled Design.png__PID:a98e8384-e357-4ae7-b206-1f434b4f7c25

HASSLE FREE RETURNS

Have a question?

Need help finding something?

Talk to a PRO

855-772-2937

CHRISTIAN.png__PID:56b62e6c-9b7a-4608-a7da-0056a14b24c8
SCHEDULE A DEMO TODAY
DESCRIPTION

AcousticDesign™ ceiling loudspeakers offer a variety of models specifically tailored for demands of higher fidelity applications. Designed for clarity and presence, these blind mount loudspeaker systems deliver pristine audio reproduction for installations requiring a refined audio experience.

The AcousticDesign ceiling speakers are packaged with the backcan, support bracket, tile rails, and a grille. For integration with any décor, the trim and grille can be painted. Additionally, these speakers are well suited for use in air handling spaces per UL2043 and UL1480. They also feature a seismic tab for secondary support.

FEATURES
    • AD-C4T
    • Consistent tonal characteristics across the entire AcousticDesign™ family in both surface or ceiling applications
    • DMT (Directivity Matched Transition™) waveguide ensures smooth, uniform frequency response over the coverage area
    • Snap-fit magnetic grille

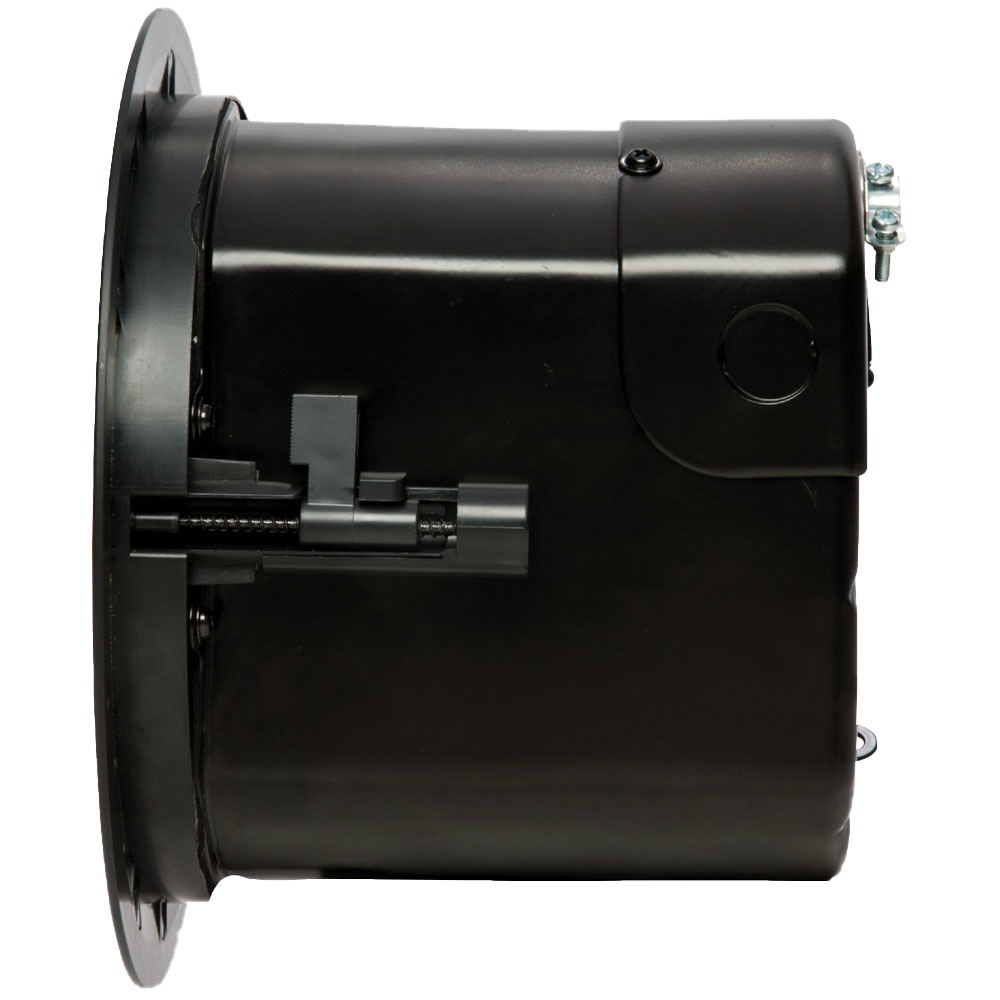

    • 3x double stepped, long travel dog-ear blind mount system
    • Advanced Intrinsic Correction™ voicings available via Q-SYS™ Ecosystem and CXD processing amplifiers
    • Low-saturation and low-loss 70/100V transformers with 16O bypass
    • Blemish-free removable logo
    • Removable conduit cover plate, also available as accessory for pre-install wiring
    • UL1480 and UL2043 certified EN54-24 Type A

    • AD-C6T
    • Consistent tonal characteristics across the entire AcousticDesign™ family in both surface or ceiling applications
    • DMT (Directivity Matched Transition™) waveguide ensures smooth, uniform frequency response over the coverage area
    • Snap-fit magnetic grille
    • 3x double stepped, long travel dog-ear blind mount system
    • Advanced Intrinsic Correction™ voicings available via Q-SYS™ Ecosystem and CXD processing amplifiers
    • Low-saturation and low-loss 70/100V transformers with 16O bypass
    • Low-saturation and low-loss 70/100V transformers with 16O bypass
    • Blemish-free removable logo
    • Removable conduit cover plate, also available as accessory for pre-install wiring
    • UL1480 and UL2043 certified EN54-24 Type A
SPECIFICATIONS
    • AD-C4T
    • Effective frequency range: 70 Hz – 20 kHz
    • Rated noise power / voltage: 30 watts / 22 volts (rms)
    • Sensitivity [dB]: 87.5
    • Sensitivity at 4m, 100V maximum tap: TBD
    • Rated coverage (-6 dB): 150° conical DMT
    • Directivity factor (Q): 4.5
    • Directivity index (DI) [dB]: 6.5
    • Maximum continuous SPL [dB]: 102
    • Maximum peak SPL [dB]: 108
    • Nominal impedance [ohms]: 16
    • Recommended amplifier: 60 watts
    • Transformer taps / impedance: 16O (in bypass setting) ; 3.75W (70V); 7.5W (100V) Tap: 1333O; 7.5W (70V); 15W (100V) Tap: 667O ; 15W (70V); 30W (100V) Tap: 333O; 30W (70V); N/A (100V) Tap: 167O
    • LF transducer: 114 mm [4.5-inch] weather resistant paper cone woofer
    • HF transducer: 19 mm [0.75-inch] aluminum dome tweeter
    • Input connector type: Euroblock connector with parallel output
    • Enclosure material: ABS baffle on powder coated steel back can
    • Grille material: Powder coated steel
    • Ingress protection: IP-34
    • Operating environment: Designed for indoor use
    • Operating temperature range: -20 to 50° C [-4 to 122° F]
    • Cutout dimension: Ø 195 mm [Ø 7.68-inch]
    • Product Weight: 6.4 lb
    • Product Dimension (D x H): 9.06" x 6.93"

    • AD-C6T
    • Effective Frequency Range: 60 Hz–20 kHz
    • Rated Noise Power/Voltage: 30 watts / 15.5 volts rms
    • Broad-Band Sensitivity: 86 dB SPL
    • Coverage Angle (-6 dB): 130° conical (500 Hz–5 kHz)
    • Directivity Factor (Q): 6
    • Directivity Index: 8 dB
    • Maximum Continuous SPL: 101 dB
    • Maximum Peak SPL: 107 dB
    • Rated Impedance: 8 ohms
    • Receommended Amplified Power: 60 watts into 8 ohms
    • Transformer Tap 1: 70V: 30, 15, 7.5, 3.7, 1.9 watts
    • Transformer Tap 2: 100V: 30, 15, 7.5, 3.8 watts
    • Transformer Bypass: 8 ohms
    • LF Transducer: 165 mm (6.5-inch) polypropylene woofer with 25mm (1-inch) voice coil
    • HF Transducer: 25-mm (1-inch) aluminium dome tweeter with 25mm (1-inch) voice coil
    • Input Connector Type: Euroblock connector with parallel output
    • Enclosure Material: UV treated, high impact ABS Polymer
    • Grille Material: Powder coated steel
    • Yoke Material: Powder coated steel with brass inserts
    • Ingress Protection: IP-44
    • Operating Environment: Designed for indoor use
    • Operating Temperature Range: -20 to 50° C (-4 to 122° F)


CONTENTS
    • AD-C4T
    • (2) QSC AD-C4T-BK
    • (2) C-ring and tile rails
    • (2) Rail screws
    • (2) Euroblock connector
    • (1) Cut-out template
    • (2) Grille

    or

    •AD-C6T
    • (2) QSC AD-C6T-BK
    • (2) C-Ring and tile rails
    • (2) Cut-out templates
    • (2) Grilles
    • (2) Euroblock connectors
