DESCRIPTION

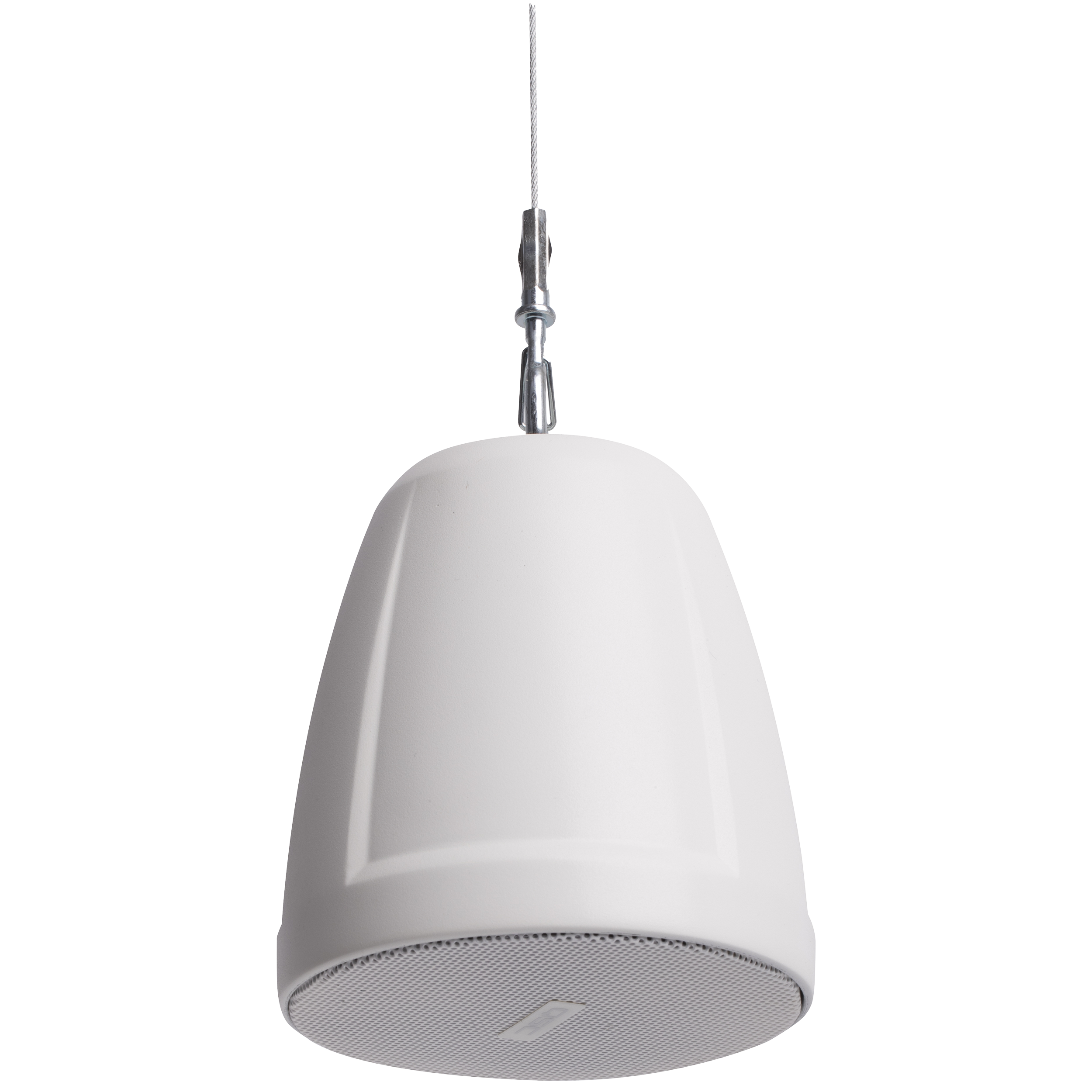

The QSC AD-P.SAT is part of the AcousticDesign™ Series SUB/SAT loudspeaker line which are ideally suited for background music applications that require refined depth and clarity even at lower volume settings.

The AcousticDesign Series offers integrators a premium quality installed sound solution where performance, consistent coverage, and aesthetics are paramount. Specifically designed to maintain a consistent tonal characteristic across the entire family in ceiling, surface, and pendant enclosures, the AcousticDesign Series allows integrators seamless transitions within blended installations.

The AcousticDesign Series SUB/SAT loudspeakers have been specifically designed to be mix-and-match capable. Any combination of satellites may be paired with any subwoofer in the SUB/SAT line.
Installers will appreciate the supplied quicklink cable assemblies and slip-lock fasteners to speed the installation. Intrinsic Correction™ voicings that optimize performance and speed the install process are easily deployed via the MP-M Series music and paging mixers as well as Q-SYS Platform, including CXD-Q Series amplifiers, as part of a complete QSC systems solution.

FEATURES
    • Inverted aluminum dome dust cap
    • Rated at 16 O
    • Locking 2-pole Euroblock connectors
    • Snap-fit magnetic grills
    • Quick link cable assemblies and slip-lock fasteners supplied
    • Intrinsic Correction™ voicings available via MP-M Series mixers and Q-SYS Platform, including the CXD-Q Series amplifiers
    • UL1480 certified
SPECIFICATIONS
    • LF transducer: N/A
    • HF transducer: 2.75-inch (70 mm) weather treated paper cone woofer
    • Effective frequency range: 150 Hz – 20 kHz
    • Rated noise power / voltage: 25 W / 20 V (rms)
    • Sensitivity [dB] (rated @1 W, 1 m): 82
    • Coverage (-6 dB) [°]: 170° Conical
    • Directivity factor: TBD
    • Directivity index [dB]: TBD
    • Maximum SPL [dB] (rated, 1 m (continuous / peak)): 90 / 96
    • Recommended amplifier: 25 W (with 1st order high-pass filter at 200 Hz)
    • Impedance: 16 O
    • Connectors: 2-pole Euroblock
    • Enclosure material: ABS
    • Grille material: Powder coated steel
    • Ingress protection: IP-34
    • Operating environment: Designed for indoor use
    • Operating temperature range: -4 to 122° F (-20 to 50° C)
    • Product Weight: 0.92 lb
    • Product Dimension (D x H): 4.3" x 4.5"
CONTENTS
    • (1) QSC AD-P.SAT Pendant Mount Loudspeaker
    • (1) Cable rigging
    • (1) Euroblock connector
    • (1) Grille
    • (1) User Manual
