DESCRIPTION
The QSC TouchMix is designed for musicians, production professionals and live performance venues that need the power and capability of a large "concert" mixing console in a compact, affordable and easy to use form. TouchMix offers the power and functionality to satisfy the most demanding professionals and a range of features and functions that help less experienced users achieve quality results quickly.
Just as digital cameras offer advanced features to meet the needs of highly skilled professional photographers with "point and shoot" features to assist novice users in achieving optimum results, the TouchMix-16 (20 input channels) provides the user a choice of Advanced Mode operation that offers total control over all parameters or Simple Mode that provides only the most essential controls.
The QSC TouchMix Series represents a breakthrough in innovation and digital mixer design - the result of a remarkable collaboration between QSC and industry icons Greg Mackie and Peter Watts (M&W Pro Audio Ltd.) TouchMix not only resets the bar for performance and value, but also redefines the user experience for both professionals and novices alike.
FEATURES
-
• Gate and compressor on all input channels.
• Four professional quality stereo DSP effects plus a pitch corrector.
• 1/3-octave graphic equalization, limiters, delay and notch filters on main and aux. outputs.
• Eight DCA and eight mute groups.
• Color, capacitive touch screen graphical user interface combined with hardware controls for fast and intuitive operation.
• Wizards, info and preset libraries assist the user with channel setup, effects selection and more.
• Direct to hard-drive recording and playback of multi-track wave files. Capable of recording all input channels plus a user-selected stereo output pair.
• Remote control via mobile devices. Wi-Fi interface included.
• 20 total inputs: 16 mic, (four with XLR/TRS combo connector) and two stereo line (TRS)
• Dedicated talkback mic input
• Stereo Main L/R outputs (XLR)
• Ample monitor outputs (eight total) with 6 mono auxiliary mixes (XLR) and 2 stereo auxiliary mixes.
• The 2 stereo aux outputs can drive wired in-ear monitor...-cut and low-cut filters, Gate, Compressor (with de-esser)
• Main and auxiliary outputs feature: 1/3-octave graphic EQ (four-band parametric EQ on stereo auxiliaries), Limiter, Delay, Notch filters
• Four professional quality stereo DSP effects. Choose from: Two types of reverb, Mono delay, Stereo delay, Chorus, Pitch-change
• A pitch correct processor is assignable to any input channel
• Great results and easy to use
• Input channel preset library features over 100 presets developed by experienced concert engineers specifically for live sound applications
• On board Info system gives you instant access to the user manual
• Save your own channel presets and complete mixer scenes to internal memory or USB device
• Capturing live performance to multi-track has never been easier. Record 22 tracks (all inputs plus a stereo mix) directly to USB hard-drive. Mix down on TouchMix or import into your favorite DAW
• Remote control via iPad®
• USB Wi-Fi interface and carrying case are included
SPECIFICATIONS
-
• Display: 6.1" x 3.5" (156 mm x 90 mm) color TFT, touch sensing
• Inputs (Mic/Line): 20 Total: Four XLR/TRS combo, 12 XLR, Two stereo 1/4" TRS
• Input (Talkback): One XLR
• Outputs: Two Main XLR, Line, Six Aux XLR, Line, Two Stereo Aux. TRS, (Line or In Ear Monitor, 16Ohm min. impedence), One Stereo Monitor, TRS, (Line or headphone, 16Ohm min. impedance), One Stereo Cue, TRS, (Line or headphone, 16Ohm min. impedance)
• Mic & Line Input Channel Processing: 4-band, parametric EQ with Hi/Low shelving option, variable 24 db/octave HPF & LPF, Gate, Compressor
• 2-Track (USB) & FX Return Processing: 2-band shelving EQ, variable 24db/octave HPF, Gate, Compressor
• Output Channel Processing: Main outputs and auxes 1 through 6: 1/3 octave GEQ, Variable HPF and LPF, 4-band variable notch filters, Limiter, Auxes 7/8 & 9/10 (TM-16 only): 4-band parametric EQ, Limiter
• Recording: 20 tracks, requires USB 3.0 HD, minimum 7200 RPM
• Groups: Eight DCA groups (with mutes), eight Mute groups
• Cue: In...er Preset: Factory and user mixer presets including all mixer parameters may be stored internally or loaded to / from USB, Channel Preset: User channel presets may be stored internally or loaded to / from USB
• External Control: iOS mixer app for iPad, control via Wi-Fi provides access to all mixer functions
• Wi-Fi: USB Wi-Fi adapter included
• Dimensions (HWD): 3.5" x 14.2" x 11.7" (89 mm x 360 mm x 297 mm)
• Weight: 5.9 lb (2.98 kg)
• Line Voltage Requirements: 100 VAC - 240 VAC, 50 - 60 Hz
• Sampling Frequency: Selectable 44.1 kHz or 48 kHz
• Internal Processing: 32-bit floating point
• Frequency Response: 20 Hz - 20 kHz ±0.5 dB, any input to any output
• Dynamic Range: 105 dB
• Equivalent Input Noise: -128 dBu
• Residual Output Noise: -86 dBu
• Crosstalk: -80 dB
• S/N Ratio: -94 dB
• Maximum Input Level: +16 dBu (Mic inputs), +22 dBu (Line inputs)
• Phantom Power: 48V, individually switchable per channel
• Included Accessories: USB WiFI adapter, Soft Carrying Case, Power Supply
CONTENTS
-

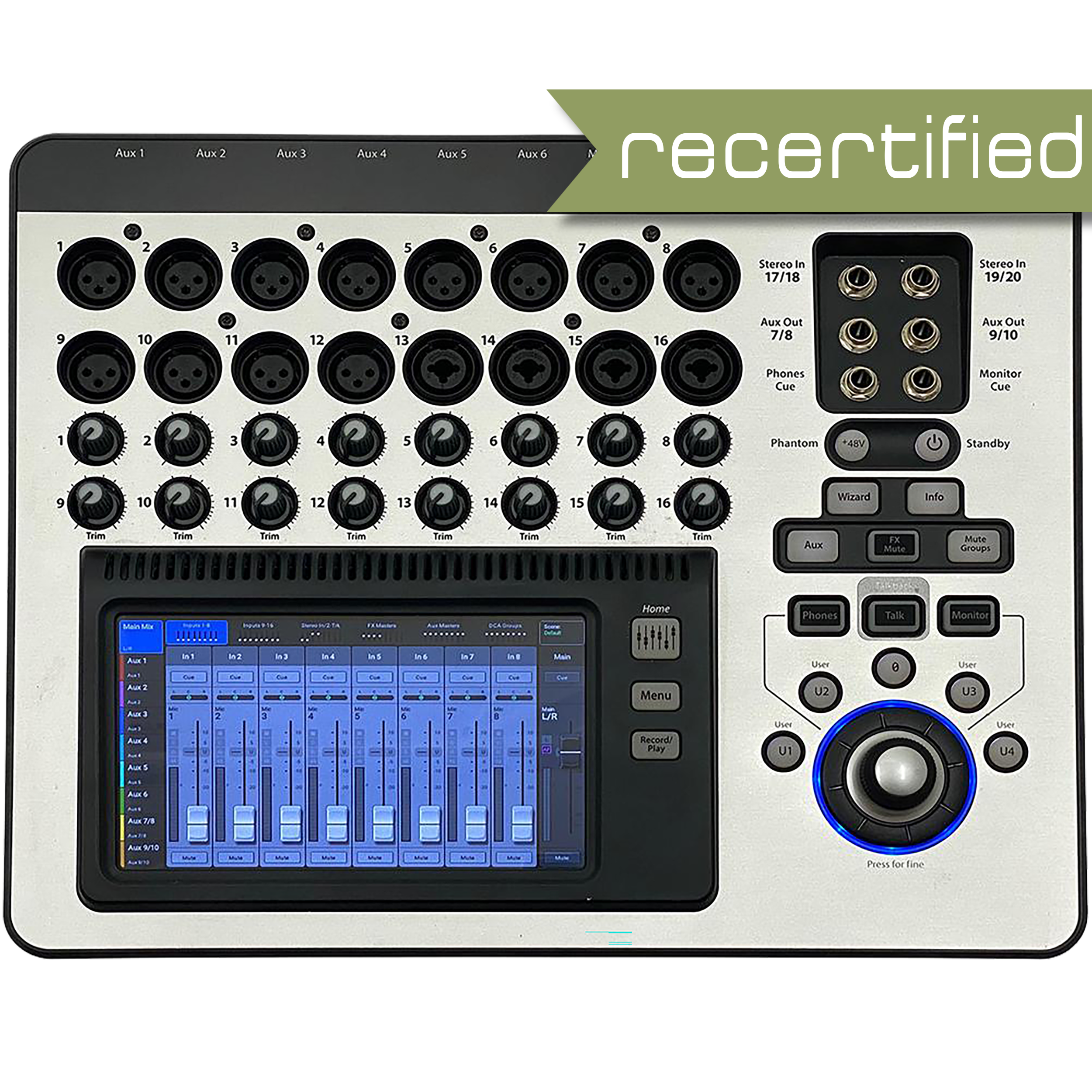

(1) QSC TouchMix 16 Compact Digital Mixer
(1) USB WiFI Adapter

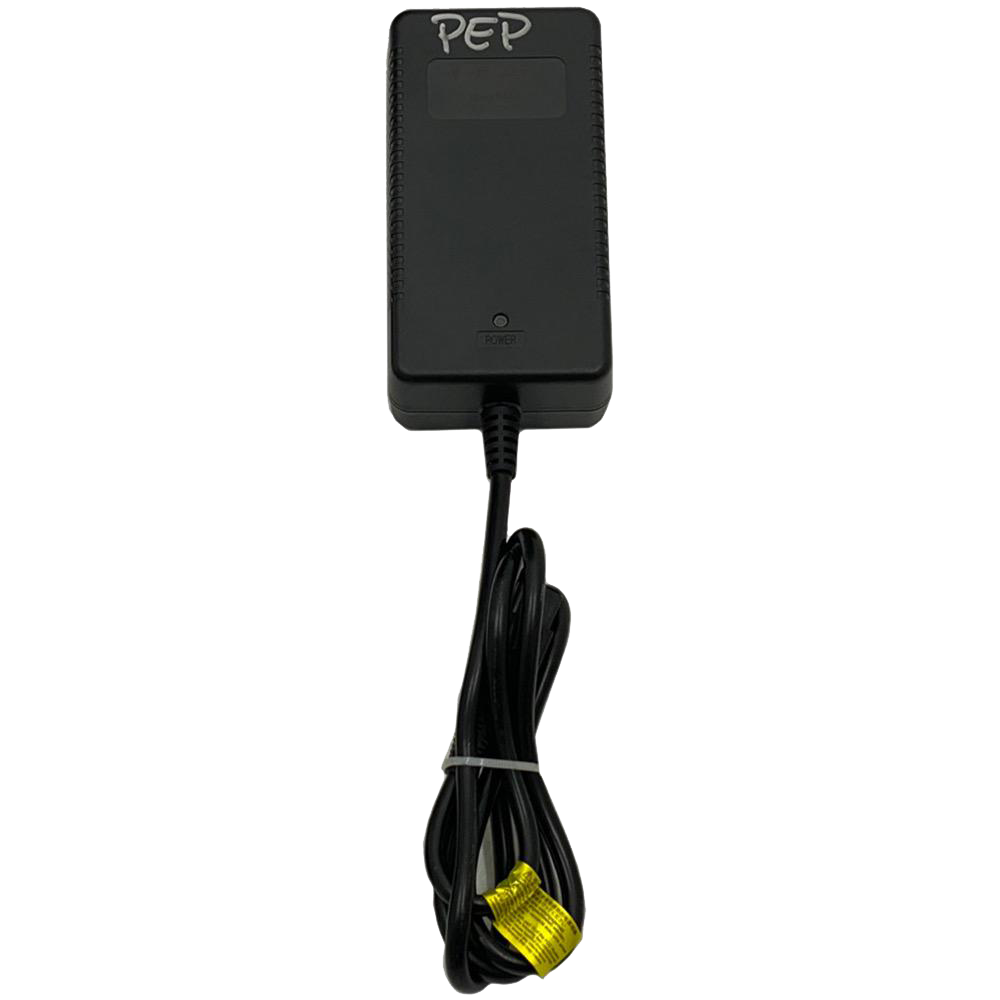

(1) AC Power Supply with IEC Cable

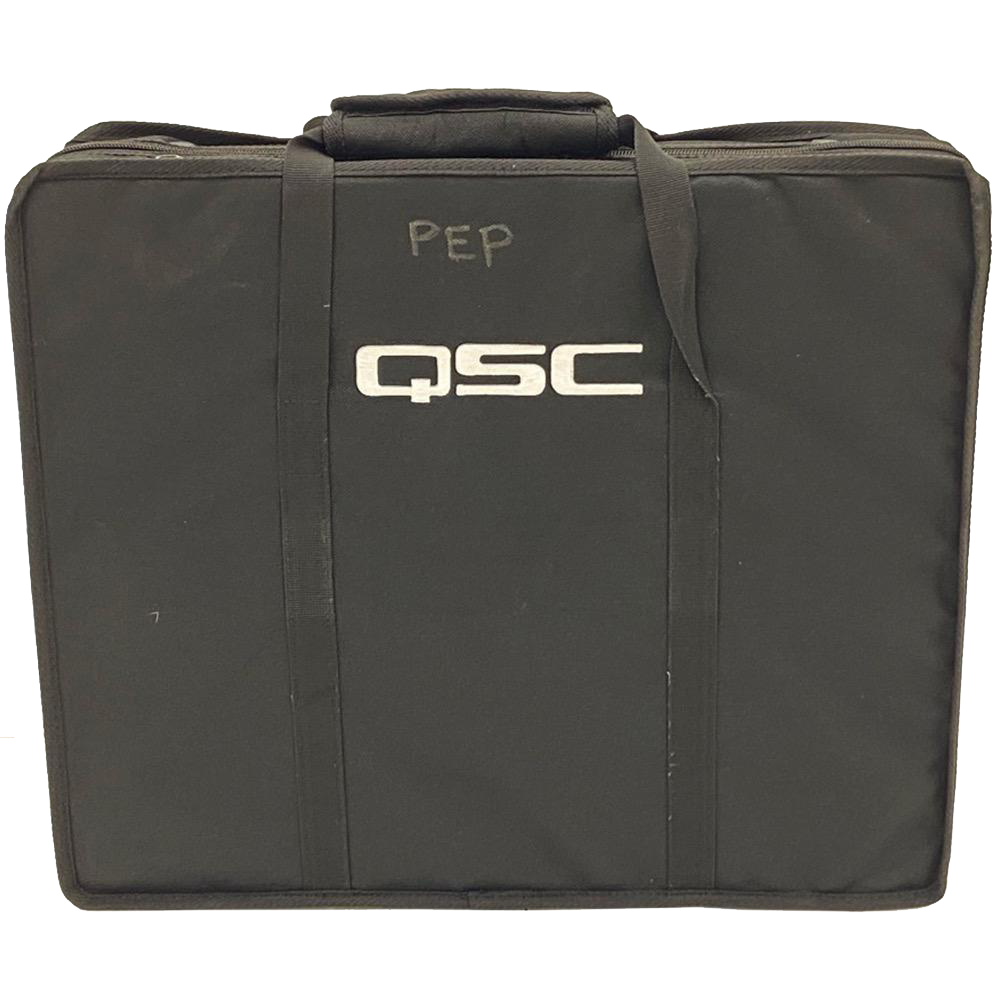

(1) Touchmix Carrying Case
(1) Quick Start Guide
(1) Warning Information Sheet
(1) Warranty Information
