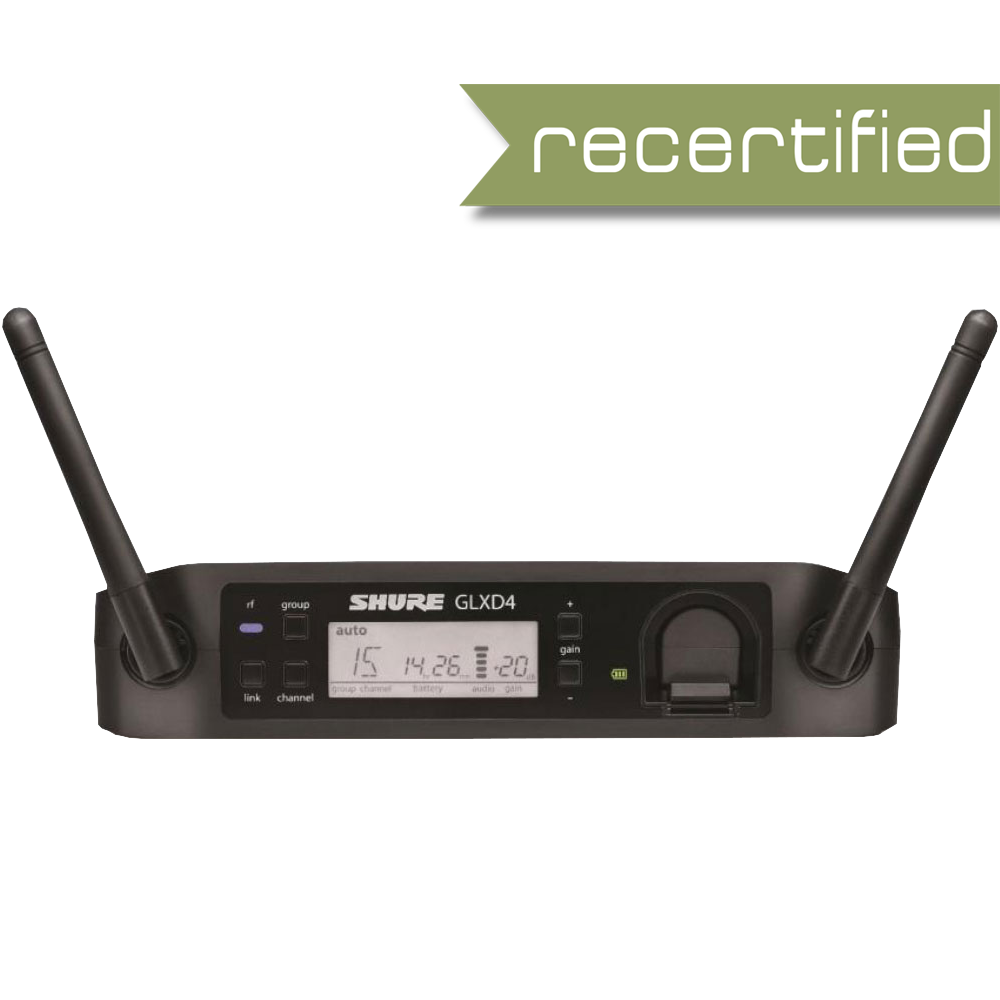

Shure GLXD4 Wireless Receiver
Shure GLXD4 Wireless Receiver
29%, only 0 left
Shure GLXD4 Wireless Receiver
Shure GLXD4 Wireless Receiver
Product SKU
    35178

Shure GLXD4 Wireless Receiver

$119.99

SEE PRODUCT IN STORE

PICK UP TODAY

recertifiedBYFP (1).png__PID:3dfb27ce-5af4-41e0-8bcb-81e313e4a56f
  • Used and Well Maintained
  • Performs Like New
  • 90 Day Guarantee

Have a question?

Need help finding something?

Talk to a PRO

855-772-2937

_EBP9032_SQ.jpeg__PID:828e756e-5126-4f82-9136-2bf92b17727c

Expertly tested refurbished and open box products

Backed by the BYFP satisfaction guarantee

Copy of Untitled Design (3).png__PID:0d4aaa6e-815d-4b5a-879b-7bd16634732b

Free Shipping

1.png__PID:3c5bc891-9c7e-4dda-94a6-30ba47708c69

Professionally Inspected

2.png__PID:5bc8919c-7ecd-4a14-a630-ba47708c69eb

Satisfaction Guaranteed

3.png__PID:c8919c7e-cdda-44a6-b0ba-47708c69eb73

Expert Support

DESCRIPTION

Single-channel wireless receiver with LINKFREQ™ Automatic Frequency Management and battery rechargeability.

The GLXD4 single-channel wireless receiver features revolutionary LINKFREQ™ Automatic Frequency Management in the 2.4 GHz frequency band and battery rechargeability. An integrated battery charging port allows you to charge a spare Shure lithium-ion battery while the system is in use.

Allows operation of up to four compatible systems in a typical setting, and up to eight systems under ideal conditions. For use with GLX-D® Digital Wireless Systems.

Note: When purchasing separate wireless components, ensure their frequency bands match for proper system operation.

FEATURES
    • High-resolution LCD screen status display
    • Real-time transmitter battery status displayed in hours and minutes (accurate within + / - 15 minutes)
    • Remote adjustable transmitter gain control
    • Two-color charge indicator LED - Green for Charged; Flashing Green for 90% charged; Red for Charging

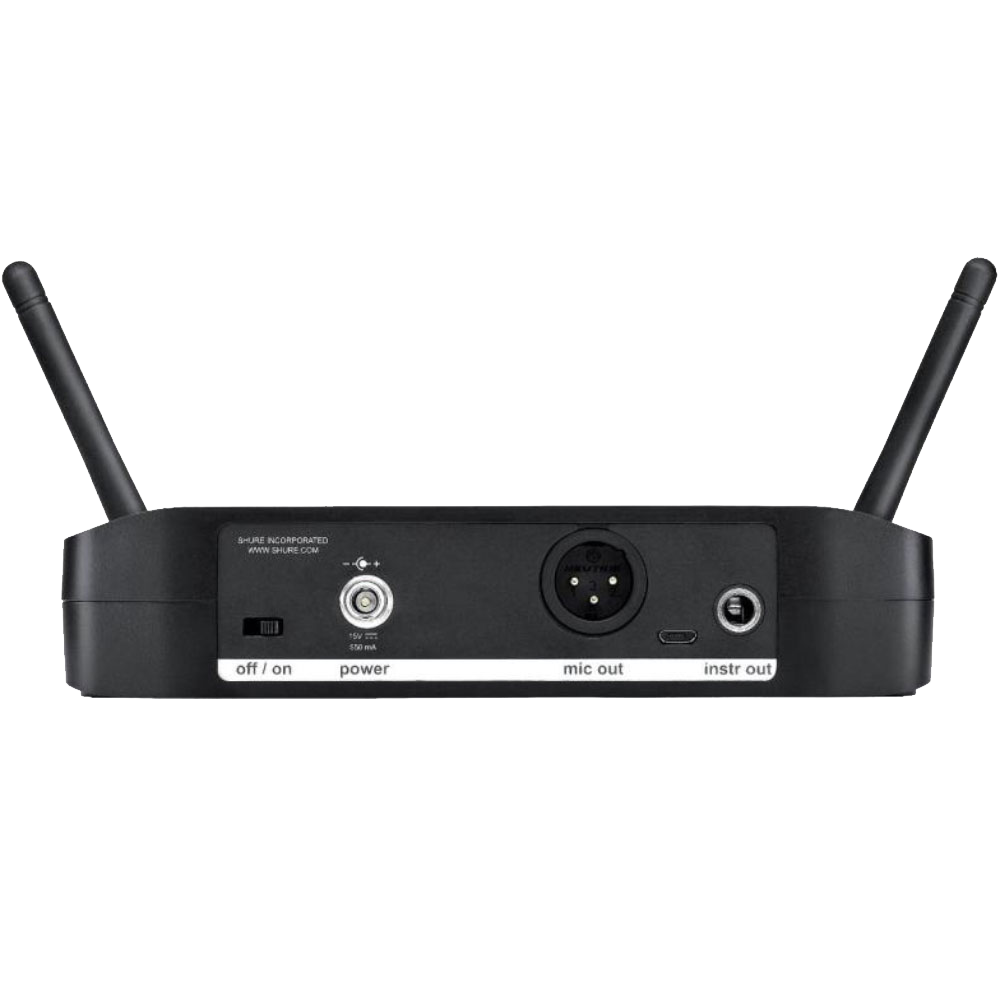

    • XLR and ¼" output connectors
    • Lightweight, durable construction
SPECIFICATIONS
    • Tuning Bandwidth: 2400– 2483. 5 MHz
    • Working Range: Indoors Up to 30 m (100 ft ) typical , Up to 60 m (200 ft ) maximum; Outdoors Up to 20 m (65 ft ) typical , Up to 50 m (165 ft) maximum
    • Transmit Mode: Frequency Hopping
    • Audio Frequency Response: 20 Hz – 20 kHz (Note: Dependent on microphone type)
    • Dynamic Range: 120 dB , A-weighted
    • RF Sensitivity: -88 dBm , typical
    • Dimensions (H x W x D): 40 x 183 x 117 mm (1. 6 x 7. 2 x 4. 6 in. )
    • Weight: 286 g (10. 1 oz. ) without batteries
    • Housing: Molded Plastic
    • Power Requirements: 14 to 18 V DC (Tip positive with respect to ring ), 550 mA
    • Spurious Rejection: > 35 dB , typical
    • Gain Adjustment Range: -20 to 40 dB in 1 dB steps
    • Phantom Power Protection: Yes
    • XLR Output: Impedance balanced
    • 6.35 mm (1/4") Output: Impedance balanced
    • XLR Output: 100 Ohm
    • 6.35 mm (1/4") Output: 100 Ohm (50 Ohm, Unbalanced )
    • XLR Connector (into 600 Ohm Load): +1 dBV
    • 6.35 mm (1/4") Connector (Into 3k Ohm Load ): +8. 5 dBV
    • XLR Output: 1=ground, 2=hot, 3=cold
    • 6.35 mm (1/4") Connector: Tip=audio, Ring=no audio, Sleeve=ground
    • Receiver Antenna Input Impedance: 50 Ohm
    • Antenna Type: ½ Wave Sleeve Dipole , non-removable
    • Maximum Input Level: -20 dBm
CONTENTS
    (1) Shure GLXD4 Wireless Receiver
    (1) Power Supply
    (1) Carrying Case
    (1) Operator's Instructions
