Product SKU
    34923

ADJ WMX1 Mk2

$724.99

PICK UP TODAY

recertified+.png__PID:7672a0bd-1cf7-4ba8-9841-5171b10f1ebf
  • Like New Condition
  • Original Packaging
  • Full Factory Warranty

Have a question?

Need help finding something?

Talk to a PRO

855-772-2937

_EBP9032_SQ.jpeg__PID:828e756e-5126-4f82-9136-2bf92b17727c

Expertly tested refurbished and open box products

Backed by the BYFP satisfaction guarantee

Copy of Untitled Design (3).png__PID:0d4aaa6e-815d-4b5a-879b-7bd16634732b

Free Shipping

1.png__PID:3c5bc891-9c7e-4dda-94a6-30ba47708c69

Professionally Inspected

2.png__PID:5bc8919c-7ecd-4a14-a630-ba47708c69eb

Satisfaction Guaranteed

3.png__PID:c8919c7e-cdda-44a6-b0ba-47708c69eb73

Expert Support

DESCRIPTION

The ADJ WMX1 Mk2 is a powerful and compact standalone DMX controller. Designed for creating high-impact light shows on the fly without a computer, it features an intuitive workflow, powerful internal FX engine, and tactile controls that make it easy for anyone to take control of a DMX lighting rig comprised of multiple fixture types. WMX1 MK2 upgrades include larger encoder caps, MIDI triggering, and an added USB-A socket for MIDI controller or memory stick.

FEATURES
    • Calibrate and RGB, White, Amber, UV mixing with automatic fixed color wheel translation
    • Automatic matching of similar gobos across different fixture types
    • Timed release of flash and preset buttons
    • Fixture FLIP function, for reversing beam order
    • Fixture SPLIT function, for splitting up multi-FX bars
    • Lock full controller, or lock editing with a password
    • Project & fixture backup with WTOOLS app
    • Offline 3D visualization with Easy View & WTOOLS over USB*
    • Auto-recovery of active project (no manual saving needed)
    • Import different fixture setups into the same project
    • Starts in under 2 seconds. Starts sending DMX in under 1 second
    • Factory firmware startup recovery mode for times of crisis
SPECIFICATIONS
    • Operation: Standalone (no computer required)
    • Compatibility: Works with any DMX device
    • DMX Universes: Standard unit includes 2 DMX universes; up to 2 additional universes available as add-ons
    • Fixture Capacity: Supports up to 680 fixtures and beams
    • Fixture Types: Supports up to 50 fixture types
    • Fixture Features: Supports up to 5,000 fixture features (color, gobo, etc.)
    • Fixture Groups: Supports up to 8 fixture groups
    • Projects: Supports up to 6 projects
    • Fixture Library: Includes access to 15,000+ fixtures
    • Onboard Fixtures: Stores 3,500+ fixtures on the controller
    • Setup Functions: Allows DMX address, fixture order, and group setup
    • Additional Function: Can be used as a DMX splitter with DMX universe mapping
    • Color FX Module: Includes 8 effect types with 16 definable colors
    • Move FX Module: Includes 8 effect types
    • Beam FX Module: Includes 8 effect types
    • Flash Buttons: Includes 6 buttons for Special FX, Strobe, Blinder, Speed, Blackout, and Smoke
    • Color Palette: Offers 10 user-definable colors per group with gradient control
    • Position Palette: Offers 5 user-definable positions per group with fade and fanning
    • Gobo Palette: Offers 5 user-definable gobos per group
    • Live Edit Buttons: Includes 20 namable buttons with flash triggering mode and Park function
    • Presets: Supports 100 namable presets with hold and fade timing
    • Preset Playback: Supports cue list playback for all presets or per page of 20
    • Dimming Control: Provides group and master dimming with encoder acceleration
    • Group Controls: Includes FLASH, FULL, and Blackout
    • Pan/Tilt Control: Supports 16-bit Pan/Tilt resolution
    • LED Bar Control: Supports multi-beam LED bar fixtures
    • Music Sync: Supports FX pulse sync via microphone or line-in
    • BPM Sync: Supports Ableton Link, OS2L, and BPM Tap
    • Effect Parameters: Controls Speed, Phase, Order, Size, Fade, Fan, and Flick
    • Move FX Control: Allows live control of FX registration point
    • Global FX Control: Includes global FX speed and freeze control
    • DMX Mapping: Supports DMX IN mapping with group dimmer and output patching*
    • Controller Sync: Supports WLINK syncing with another WMX1 MK2 controller
    • Fixture Builder: Allows custom fixture creation
    • Calibration Tool: Limits movement range of moving fixtures
    • Positioning Grid: Provides X-Y touch-controlled positioning
    • Color Picker: Provides RGBW touch-controlled color selection
    • Sequencer: Includes an 8-step real-time sequencer for beam and move FX
    • DMX Monitoring: Displays live DMX levels with override and channel testing
    • Beam Editor: Overrides minimum and maximum values used in FX generation

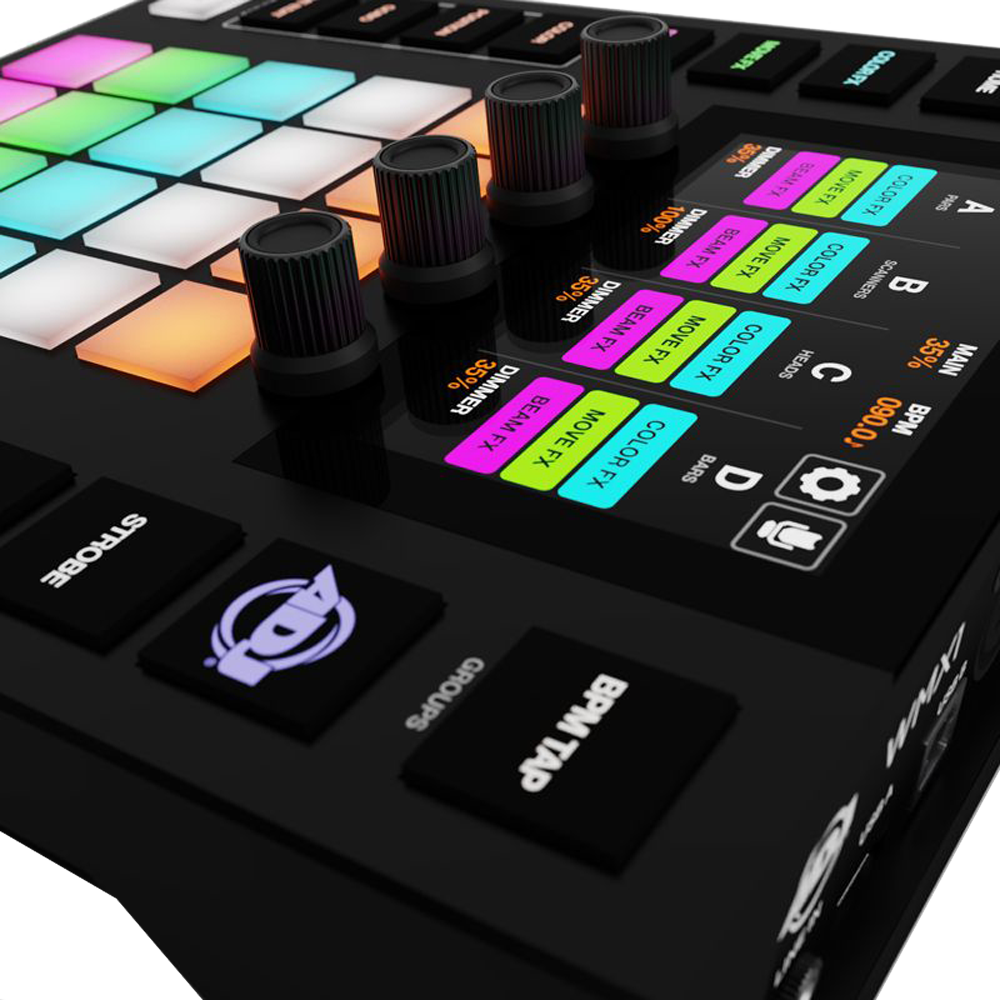

    • Screen Type: 4.3-inch color TFT with tinted glass
    • Touch Interface: Capacitive touch control
    • Construction: Full-body alloy design
    • Operation: Incremental push encoders with acceleration
    • Button Count: 37 silicone buttons
    • Finish: Matte oil finish
    • Backlighting: LED color backlit
    • CPU: 220 MHz ARM-core processor
    • Memory: 8 MB RAM
    • Storage: 16 MB Flash
    • Music Sync: Supports music-synchronized FX
    • Detection Circuit: Analog audio peak detection
    • Microphone: Built-in microphone with auto-gain
    • Audio Input: 3.5 mm jack

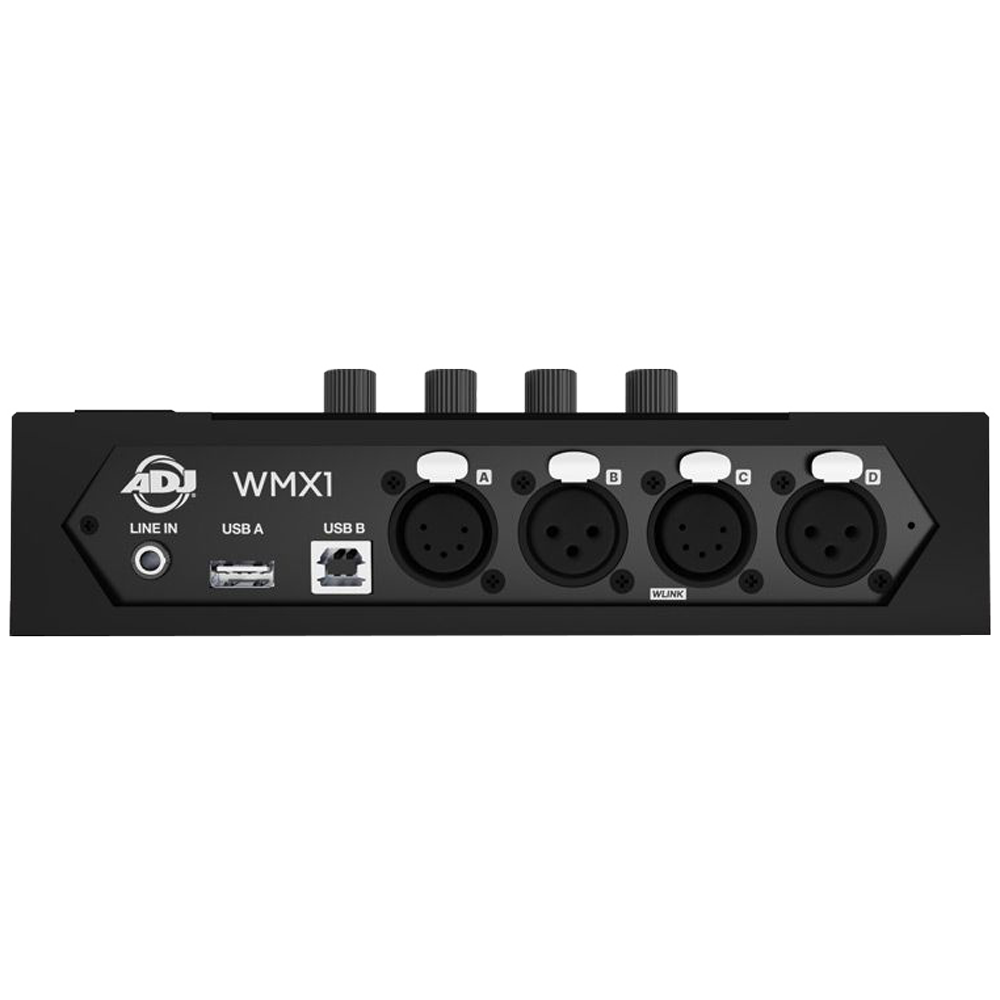

    • DMX Outputs: 2 × 3-pin DMX OUT XLR
    • DMX Output: 1 × 5-pin DMX OUT XLR
    • DMX I/O: 1 × 5-pin DMX IN/OUT XLR with WLINK
    • Power Source: USB powered
    • Software Sync: Syncs with Ableton Link and OS2L via computer
    • MIDI Support: Links with MIDI faders and MIDI clock
    • Backup Function: Backs up projects and fixtures to USB memory stick
    • Material: ABS plastic enclosure
    • Base Plate: Powder-coated steel with 100 mm VESA mount (M4, 6 mm max)
    • Reinforcement: Powder-coated steel reinforced back plate
    • Dimensions (L × W × H): 195 × 220 × 62 mm (7.68 × 8.66 × 2.44 in)
    • Weight: 1,070 g (2.36 lbs)

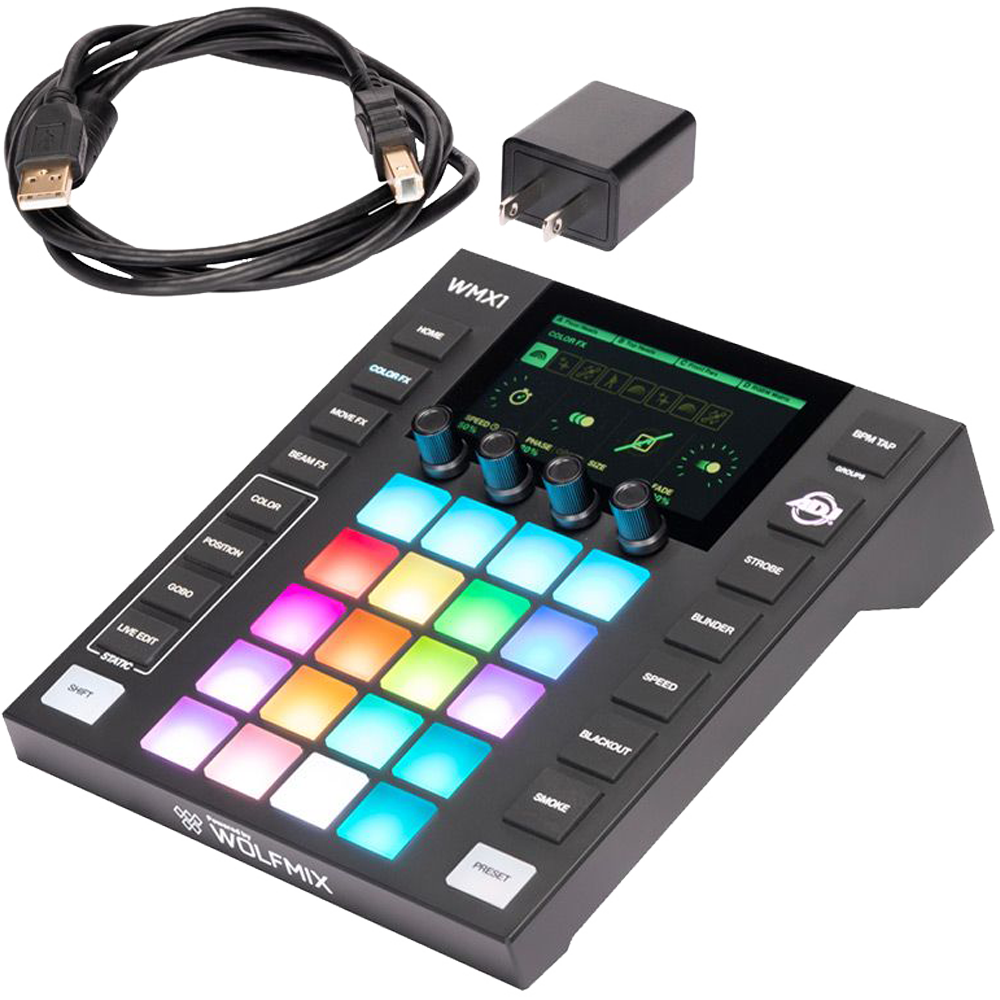

CONTENTS
    (1) ADJ WMX1 Mk2
    (1) User Manual
