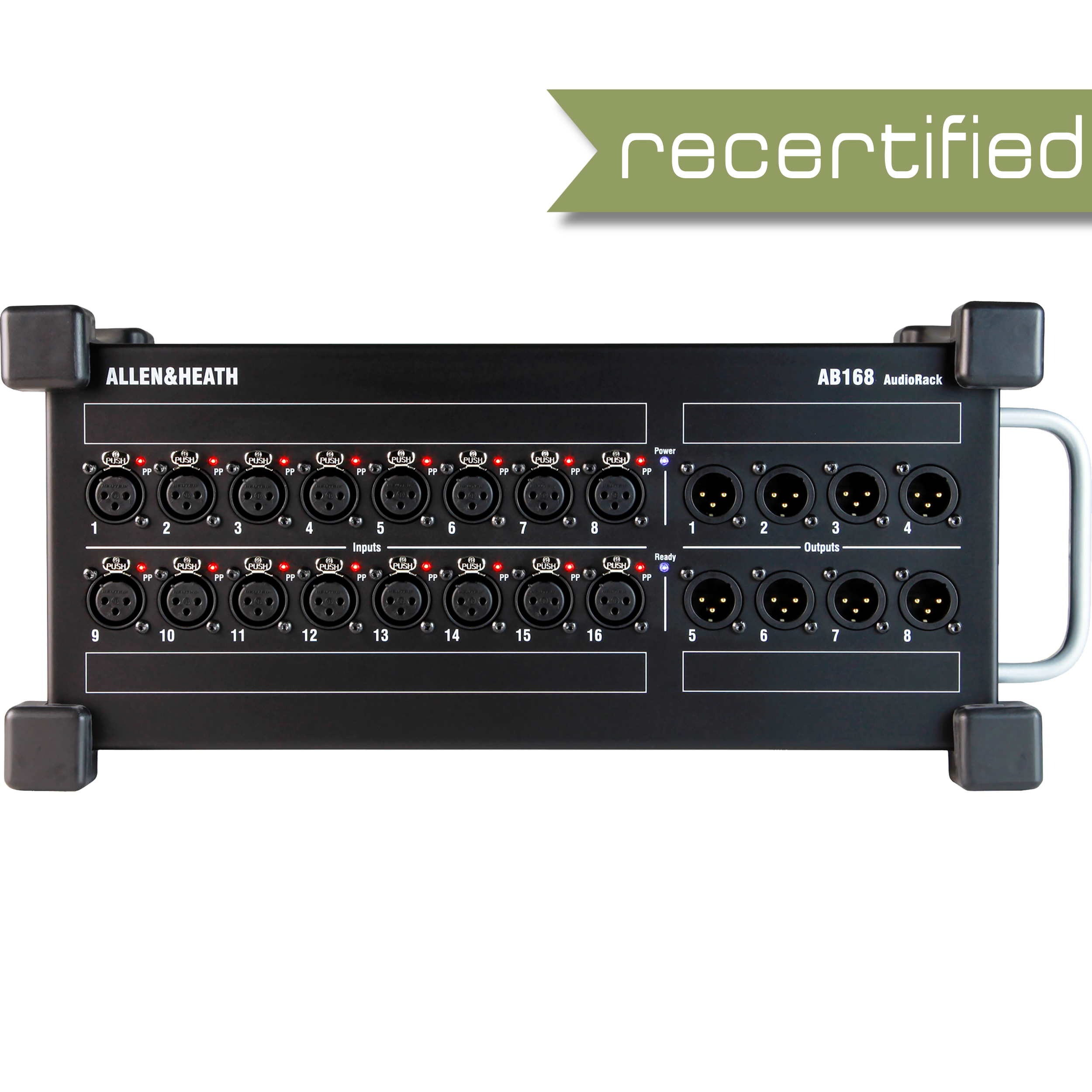

Allen & Heath AB168 Stagebox
Allen & Heath AB168 Stagebox
Allen & Heath AB168 Stagebox
Allen & Heath AB168 Stagebox
19%, only 0 left
Allen & Heath AB168 Stagebox
Allen & Heath AB168 Stagebox
Allen & Heath AB168 Stagebox
Allen & Heath AB168 Stagebox
Product SKU
    27499

Allen & Heath AB168 Stagebox

$1,199.99

PICK UP TODAY

recertified+.png__PID:7672a0bd-1cf7-4ba8-9841-5171b10f1ebf
  • Like New Condition
  • Original Packaging
  • Full Factory Warranty

Have a question?

Need help finding something?

Talk to a PRO

855-772-2937

_EBP9032_SQ.jpeg__PID:828e756e-5126-4f82-9136-2bf92b17727c

Expertly tested refurbished and open box products

Backed by the BYFP satisfaction guarantee

Copy of Untitled Design (3).png__PID:0d4aaa6e-815d-4b5a-879b-7bd16634732b

Free Shipping

1.png__PID:3c5bc891-9c7e-4dda-94a6-30ba47708c69

Professionally Inspected

2.png__PID:5bc8919c-7ecd-4a14-a630-ba47708c69eb

Satisfaction Guaranteed

3.png__PID:c8919c7e-cdda-44a6-b0ba-47708c69eb73

Expert Support

DESCRIPTION

Versatile Connectivity: The AB168 provides versatile audio connectivity, featuring 16 high-quality XLR inputs and 8 XLR outputs. It allows for seamless integration into a wide range of audio setups, making it suitable for live events, concerts, and studio environments.

Remote Stagebox: Designed for flexibility, the AB168 acts as a remote stagebox, allowing you to place it at a convenient location on stage while running a single Cat5e cable back to your mixing console. This simplifies setup and reduces cable clutter.

Impressive Audio Quality: The AB168 is built to deliver top-notch audio quality, with pristine preamps and robust build quality that ensures reliable performance.

FEATURES
    • 16 Mic Preamps on XLR
    • Compatible with GLD and Qu
    • Phantom Power LED per Inpu
    • 8 XLR Line Outs
    • dSNAKE Connection with locking Ethercon port
    • Additional locking Ethercon port for daisy chaining / ME personal mixing system
    • Rubber bumpers
    • Carry handle
    • Optional rack mount kit available
SPECIFICATIONS
    • XLR Mic/Line Inputs: Balanced
    • Mic/Line Preamp: Fully recallable
    • Input Sensitivity: -60 to +15dBu
    • Analogue Gain: +5 to +60dB, 1dB steps
    • Pad: -20dB
    • Maximum Input Level: +32dBu
    • Input Impedance: >4kO (Pad out), >10kO (Pad in)
    • Mic/Line Channel Noise: 20-20kHz, Direct Out @ unbalanced out
    • Mic EIN: -127dB with 150? source
    • Unity Gain (Pad In): -90dBu
    • Low Gain (5dB, Pad Out): -93dBu
    • Mid Gain (30dB, Pad Out): -89dBu
    • Mic/Line Channel THD+N 2: 20-20kHz, Direct Out @ unbalanced out
    • Unity Gain (Pad In): 0.005% -86dBu @ 1kHz, 0dBu output
    • Low gain (5dB, Pad out): 0.003% -89dBu @ 1kHz, 0dBu output
    • Mid gain (30dB, Pad out): 0.004% -88dBu @ 1kHz, 0dBu output
    • XLR Outputs: Balanced, Relay protected
    • Output Impedance: <75O
    • Nominal Output: +4dBu = 0dB meter reading
    • Maximum Output Level: +22dBu
    • Residual Output Noise: -91dBu (muted, 20-20kHz)
    • Operating Temperature: 0 deg C to 35 deg C (32 deg F to 95 deg F)
    • Mains Power: 100-240V, 50/60 Hz, 20W max
CONTENTS
    (1) Allen & Heath AB168 Audiorack
    (1) IEC US Power Cord
    (1) Operator's Instructions
