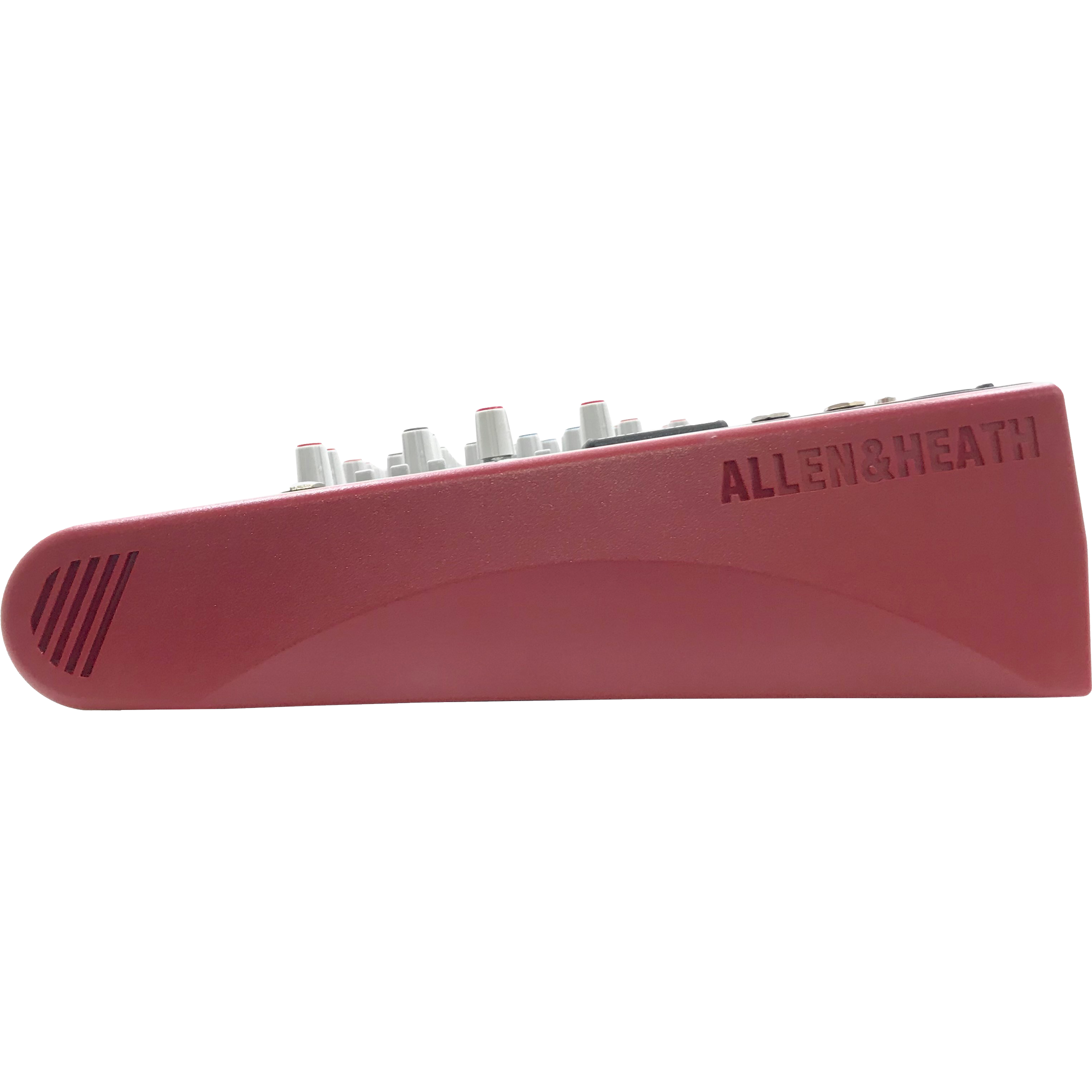

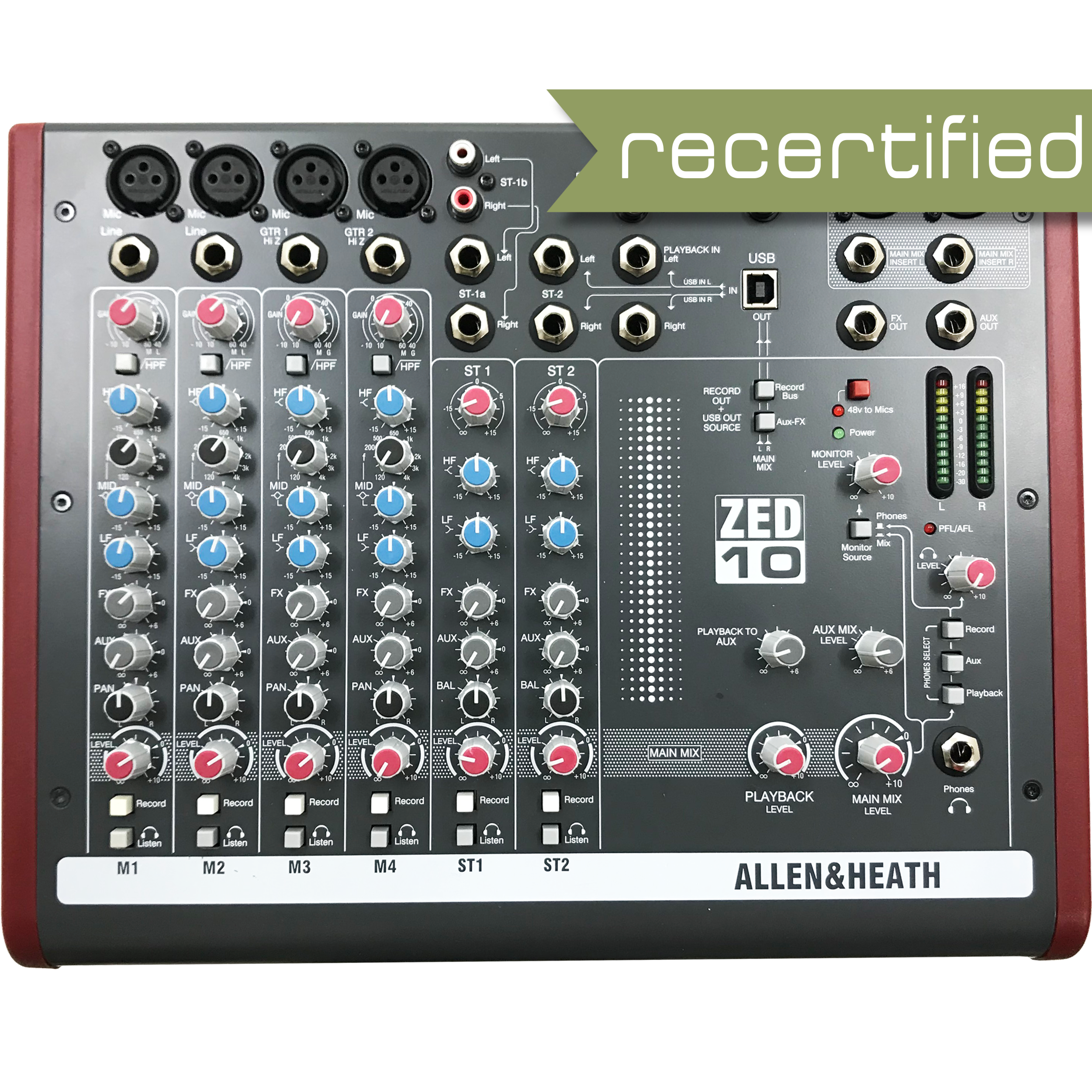

Allen & Heath ZED-10 Mixer
Allen & Heath ZED-10 Mixer
Allen & Heath ZED-10 Mixer
Allen & Heath ZED-10 Mixer
19%, only 0 left
Allen & Heath ZED-10 Mixer
Allen & Heath ZED-10 Mixer
Allen & Heath ZED-10 Mixer
Allen & Heath ZED-10 Mixer
Product SKU
    27555

Allen & Heath ZED-10 Mixer

$219.99

PICK UP TODAY

recertified+.png__PID:7672a0bd-1cf7-4ba8-9841-5171b10f1ebf
  • Like New Condition
  • Original Packaging
  • Full Factory Warranty

Have a question?

Need help finding something?

Talk to a PRO

855-772-2937

_EBP9032_SQ.jpeg__PID:828e756e-5126-4f82-9136-2bf92b17727c

Expertly tested refurbished and open box products

Backed by the BYFP satisfaction guarantee

Copy of Untitled Design (3).png__PID:0d4aaa6e-815d-4b5a-879b-7bd16634732b

Free Shipping

1.png__PID:3c5bc891-9c7e-4dda-94a6-30ba47708c69

Professionally Inspected

2.png__PID:5bc8919c-7ecd-4a14-a630-ba47708c69eb

Satisfaction Guaranteed

3.png__PID:c8919c7e-cdda-44a6-b0ba-47708c69eb73

Expert Support

DESCRIPTION



ZED-10 is an amazing little desk for small band mixing. It is ultra portable for carrying to the gig, and can be used for recording live or in the studio. It comes with configurable USB audio in/out making it easy to capture stereo recordings

Guitars can be plugged in directly to the mixer using the specially designed high-impedance inputs, while the mixer has two stereo inputs for MP3/CD players or keyboards.

Equipped with professional XLR stereo outputs and a flexible monitoring section with headphone and speaker feed outputs.

USB audio flexibility
Getting audio to and from a computer easily is now a common requirement for live sound and music production. The way this has been implemented on ZED is super-flexible and super-easy! No longer do you need to fiddle around the back of your PC to get to the soundcard inputs, only to find that the levels are all wrong and noisy. Just plug in a USB lead to your ZED, select the USB routing on the mixer and the device on your computer and that's it! CD quality audio to and from your PC or Mac. Switches and connection through jack socket terminals provide different send/return configurations:-



FEATURES
    • 4 mic/line inputs, 2 with Class A FET high impedance inputs
    • Neutrik mic XLR
    • Neutrik 1/4 inch jacks
    • 3 band EQ with MusiQ
    • 2 auxes
    • Sound image pan
    • Illuminated PFL indicator
    • Stereo returns & playback
    • All inputs with level control
    • 12 bar meters
    • Responsive 3-band, swept mid EQ with MusiQ
    • 2 stereo sources with MP3 player compatibility
    • Separate 2-track record outputs
    • Stereo playback input for 2-track replay
    • XLR main stereo outputs with inserts
    • Comprehensive monitoring
    • Configurable USB stereo audio in/out
    • Stereo monitor outs
    • 48V microphone phantom power
    • DI level switching for sub mixing
SPECIFICATIONS
    • Type: Analog
    • Channels: 14
    • Inputs - Mic Preamps: 6 x XLR (CH 1-6)
    • Inputs - Line: 6 x 1/4" (CH 1-6), 8 x 1/4" (CH 7-14 Stereo)
    • Inputs - Other: No Other Inputs
    • Outputs - Main: 2 x XLR (Main), 1 x 1/4" (Mono Out)
    • Outputs - Direct: No Direct Outs
    • Outputs - Other: 2 x RCA (Alt), 2 x RCA (Rec)
    • Headphones: 1 x 1/4", 1 x 1/8"
    • Send/Return I/O: 4 x 1/4", 2 x RCA (ST RTN), 2 x RCA (2TRK RTN)
    • Phantom Power: Yes (CH 1-6)
    • EQ Bands: 3-band, Sweepable Mid (CH 1-6), 2-band (CH 7-14 Stereo)
    • Aux Sends: 2 x Pre, 2 x Post (All Channels)
    • Busses/Groups: Alt
    • Faders: 12 x 100mm
    • Channel Inserts: No Channel Inserts
    • Effects: No Effects
    • Talkback: No Talkback
    • Computer Connectivity: 1 x USB
    • Rackmountable: Yes (Optional)
    • Height: 3.86"
    • Depth: 18.3"
    • Width: 15.2"
    • Weight: 14.3 lbs.
CONTENTS
    • (1) Allen & Heath ZED 10 Mixing Console
    • (1) IEC US Power Cord
    • (1) Operator's Instructions
