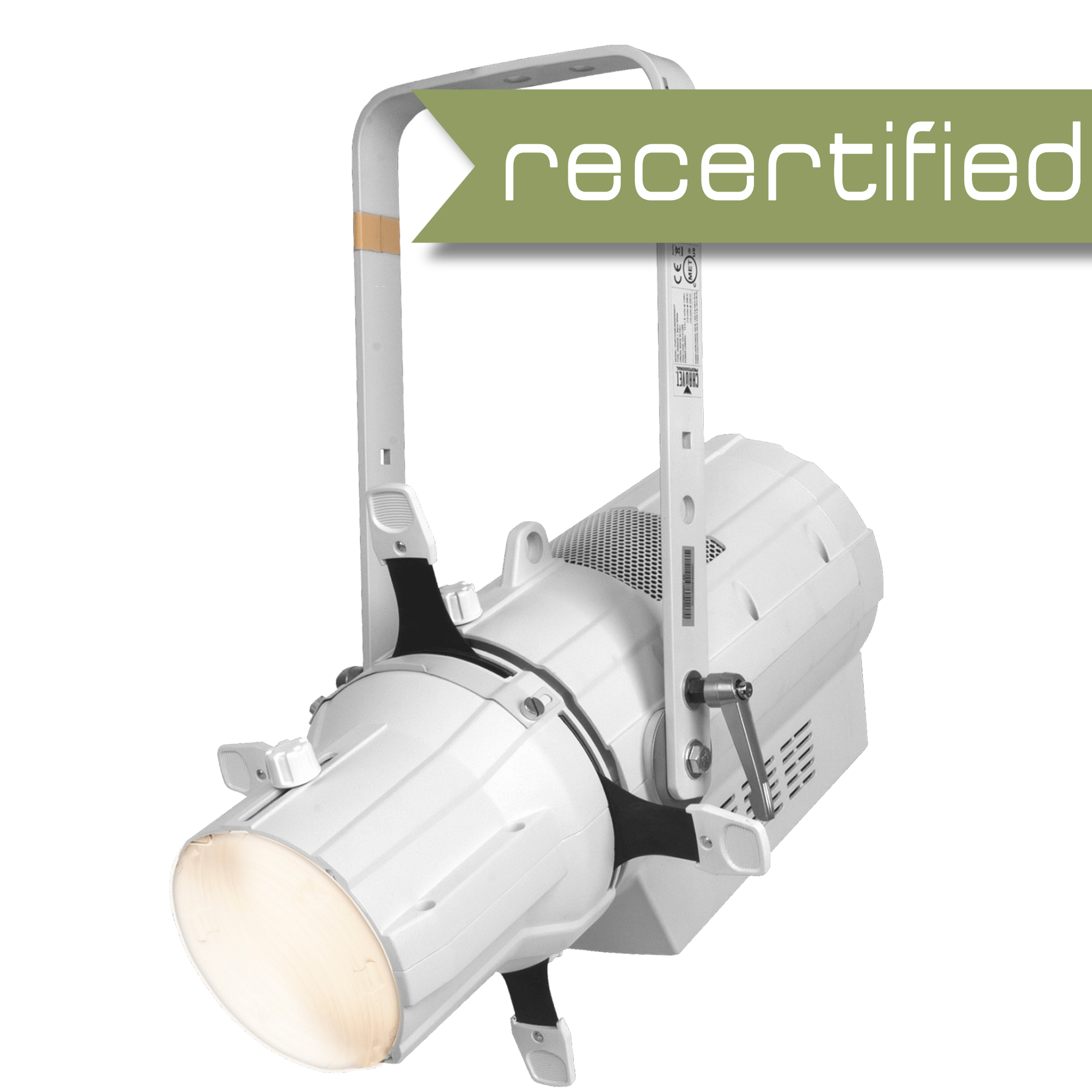

Chauvet Pro E-260WW Ellipsoidal Body White Housing
19%, only 0 left
Chauvet Pro E-260WW Ellipsoidal Body White Housing
Product SKU
    23755

Chauvet Pro E-260WW Ellipsoidal Body White Housing

$1,300.00

PICK UP TODAY

recertified+.png__PID:7672a0bd-1cf7-4ba8-9841-5171b10f1ebf
  • Like New Condition
  • Original Packaging
  • Full Factory Warranty

Have a question?

Need help finding something?

Talk to a PRO

855-772-2937

_EBP9032_SQ.jpeg__PID:828e756e-5126-4f82-9136-2bf92b17727c

Expertly tested refurbished and open box products

Backed by the BYFP satisfaction guarantee

Copy of Untitled Design (3).png__PID:0d4aaa6e-815d-4b5a-879b-7bd16634732b

Free Shipping

1.png__PID:3c5bc891-9c7e-4dda-94a6-30ba47708c69

Professionally Inspected

2.png__PID:5bc8919c-7ecd-4a14-a630-ba47708c69eb

Satisfaction Guaranteed

3.png__PID:c8919c7e-cdda-44a6-b0ba-47708c69eb73

Expert Support

DESCRIPTION

Ovation E-260WW is powered by a single-source LED that exceeds the output of a 750 W tungsten light source. This warm white ERS-style fixture boasts extremely smooth dimming down to the very bottom of the curve as well as a flat and even field of light for superior gobo projection. Control options like selectable PWM, RDM, and selectable dimming curves round out this virtually silent ellipsoidal.

FEATURES
    • Warm white ERS style fixture with output exceeding a tungsten 750w source
    • Ultra smooth 16-bit dimming, and 8-bit dimming curves to complement any lighting scheme
    • Flat, even field of light for superior gobo projection
    • RDM (Remote Device Management) for added flexibility
    • Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
SPECIFICATIONS
    • Light Source: 1 LED (WW) 202 W, (3.6 A), 3149 K, 50,000 hours life expectancy.
    • Color Temperature (At Full): 3149 K
    • CRI: 91
    • Dimming Modes: 4
    • Illuminance (w/19° Lens): 9,256 lux @ 5 m
    • Illuminance (w/26° Lens): 6,910 lux @ 5 m
    • Illuminance (w/36° Lens): 4,053 lux @ 5 m
    • Illuminance (w/50° Lens): 1,703 lux @ 5 m
    • Illuminance (w/15°–30° Lens) (Narrow): 12,430 lux @ 5 m
    • Illuminance (w/15°–30° Lens) (Wide): 5,339 lux @ 5 m
    • Illuminance (w/25°–50° Lens) (Narrow): 4,997 lux @ 5 m
    • Illuminance (w/25°–50° Lens) (Wide): 3,295 lux @ 5 m
    • Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 25,000 Hz
    • Dimmer: Electronic
    • Shutter/Strobe: Electronic
    • Zoom: Manual
    • Strobe Rate: 0 to 27 Hz
    • Dim Modes: 4
    • Built-in Automated Programs: Yes
    • Dimensions (Fixture Only): 19.49 x 11.22 x 19.17 in (495 x 285 x 487 mm)
    • Weight (Fixture Only): 15.4 lb (7 kg)
    • Exterior Color: White
    • Gobo Size (Optional): “A” = 94 mm (outside), 79 mm (image), 2.5 mm (max. thickness)
    • Gobo Size (Optional): “B” = 94 mm (outside), 69 mm (image), 2.5 mm (max. thickness)
    • Power Connection: Edison (Local) plug to Neutrik powerCON
    • Power Input: Neutrik powerCON
    • Power Output: Neutrik powerCON
    • Data Connectors: 3- and 5-pin XLR
    • Cable Length (Power): 5 ft (1.5 m)
    • Control Protocol: DMX
    • DMX Channels: 1, 2, 3 or 6
    • Modes/Personalities: 4 personalities (1, 2, 3, 6)
    • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
    • Power Linking: 8 units @ 120 V; 13 units @ 208 V; 14 units @ 230 V
    • Power and Current: 209 W, 1.655 A @ 120 V, 60 Hz
    • Power and Current: 206 W, 1.026 A @ 208 V, 60 Hz
    • Power and Current: 204 W, 0.925 A @ 230 V, 50 Hz
    • Certifications / Qualifications: CE, MET
    • IP Rating: IP20, dry location
CONTENTS
    (1) Chauvet Pro E-260WW Ellipsoidal Body White Housing
    (1) Neutrik® PowerCON® Power Cord
