DESCRIPTION

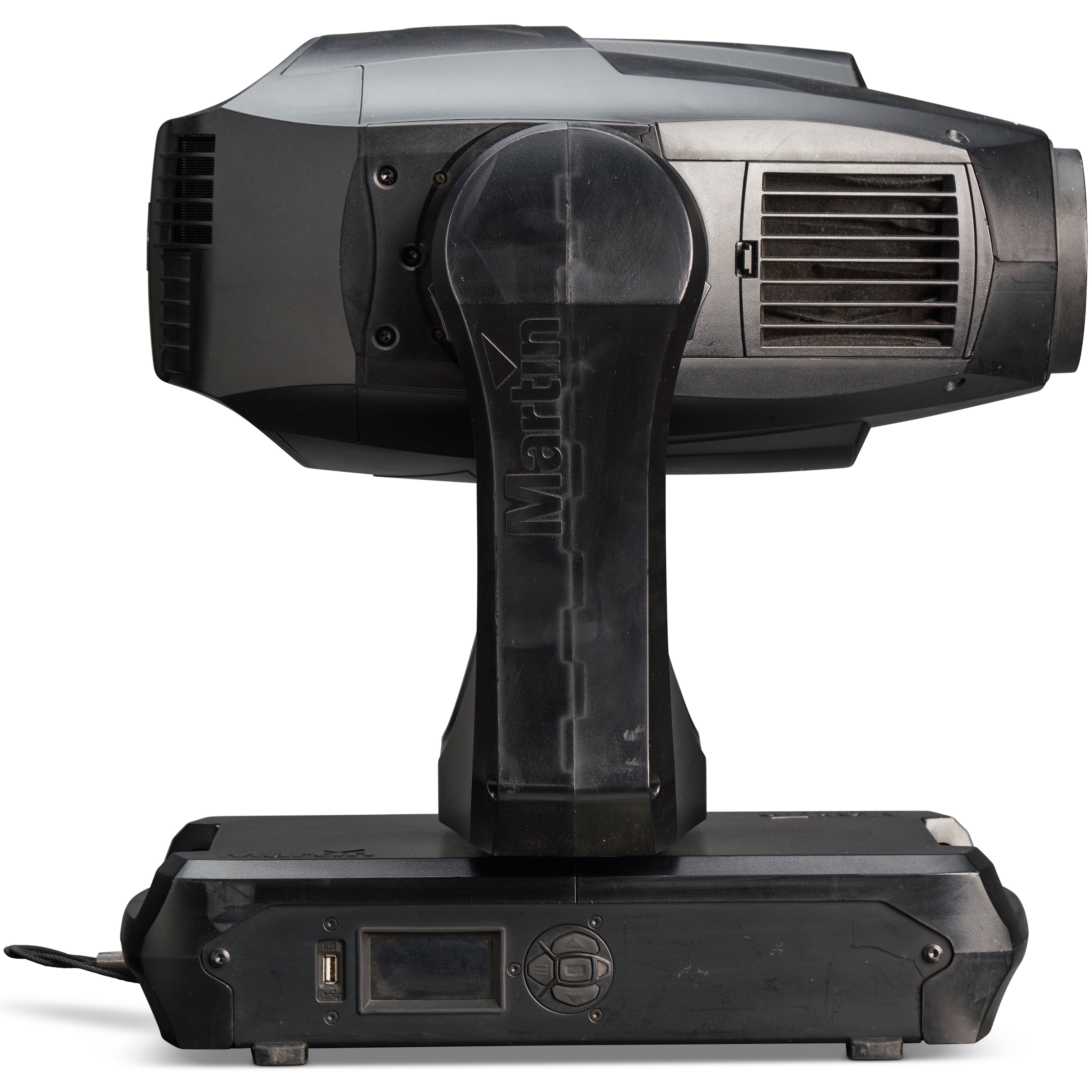

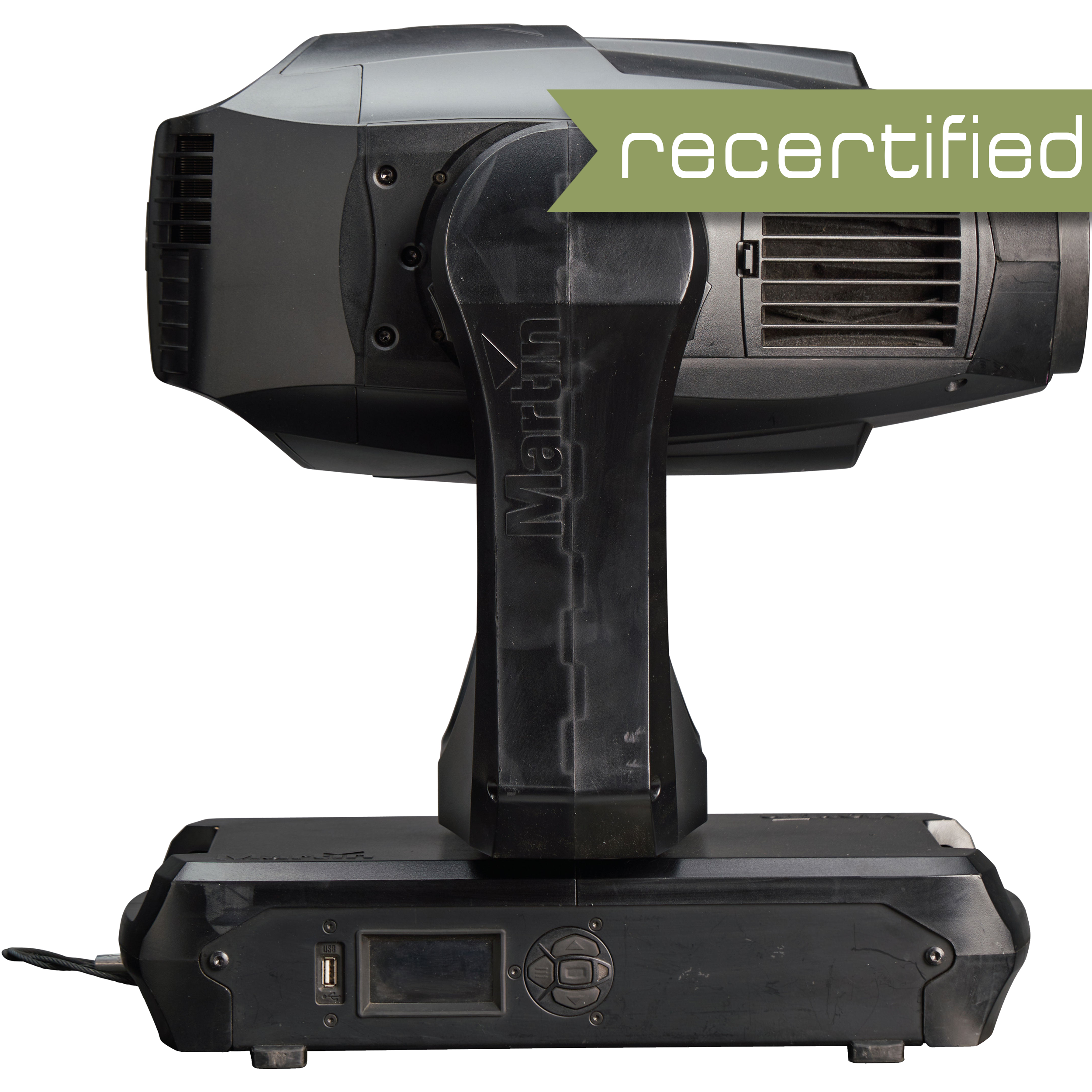

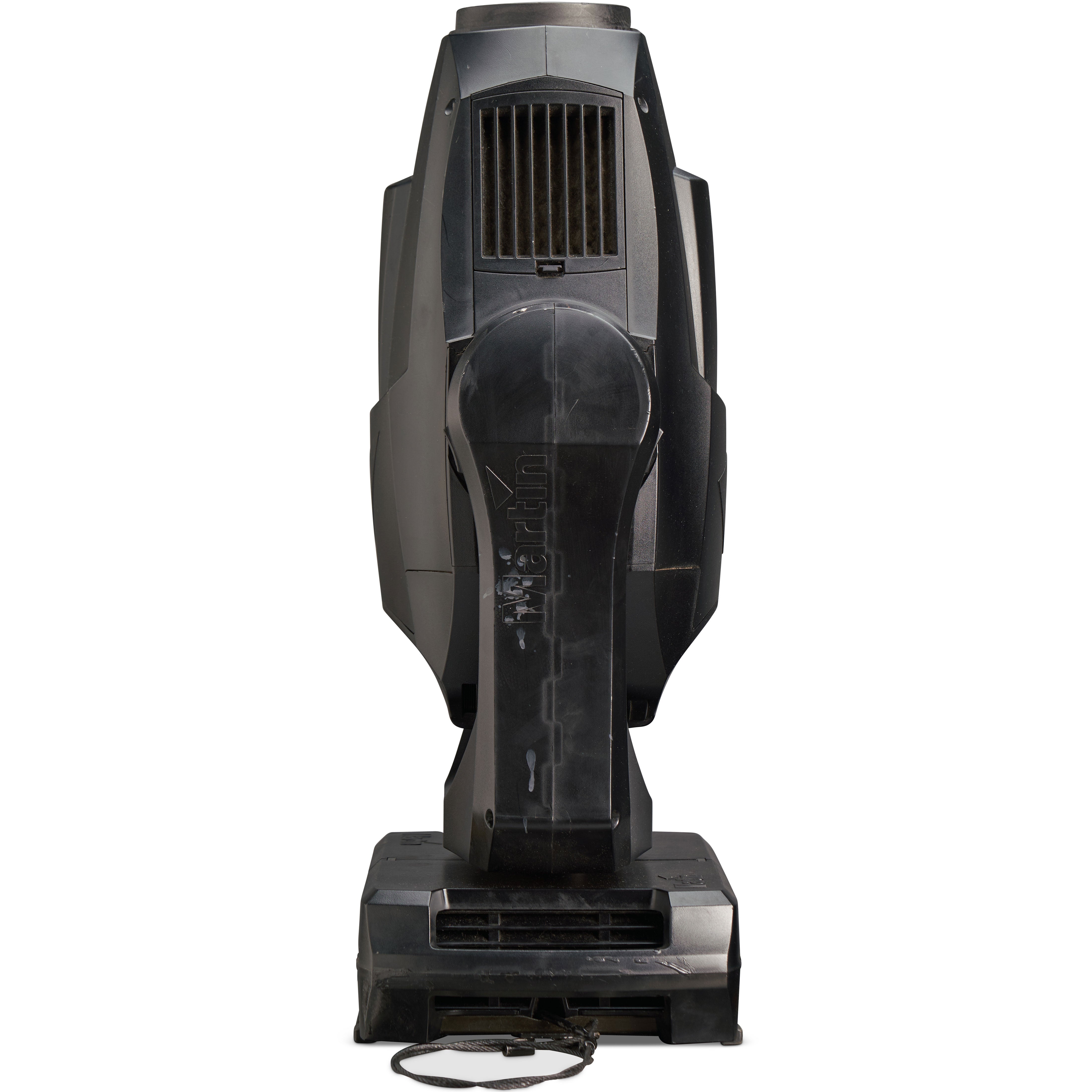

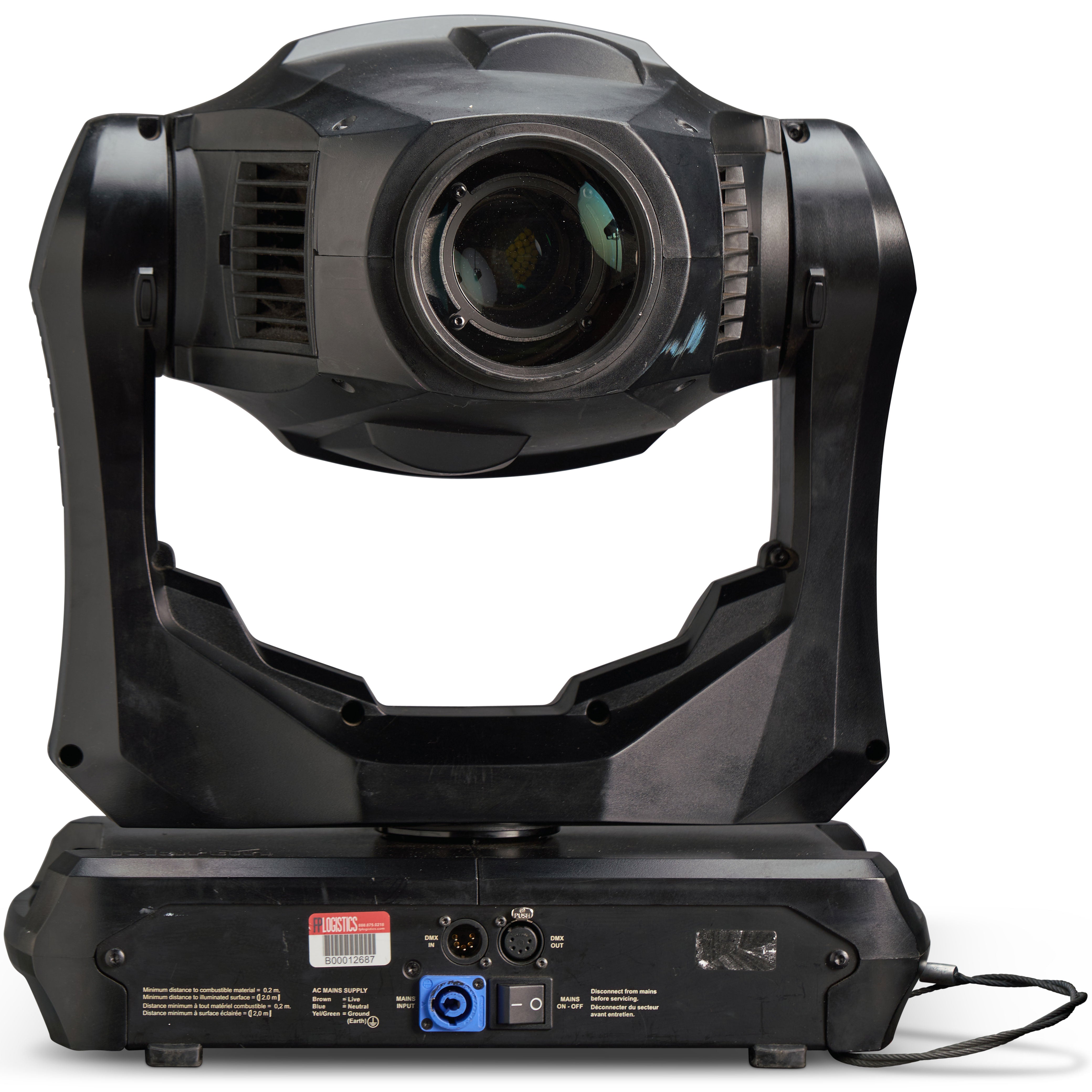

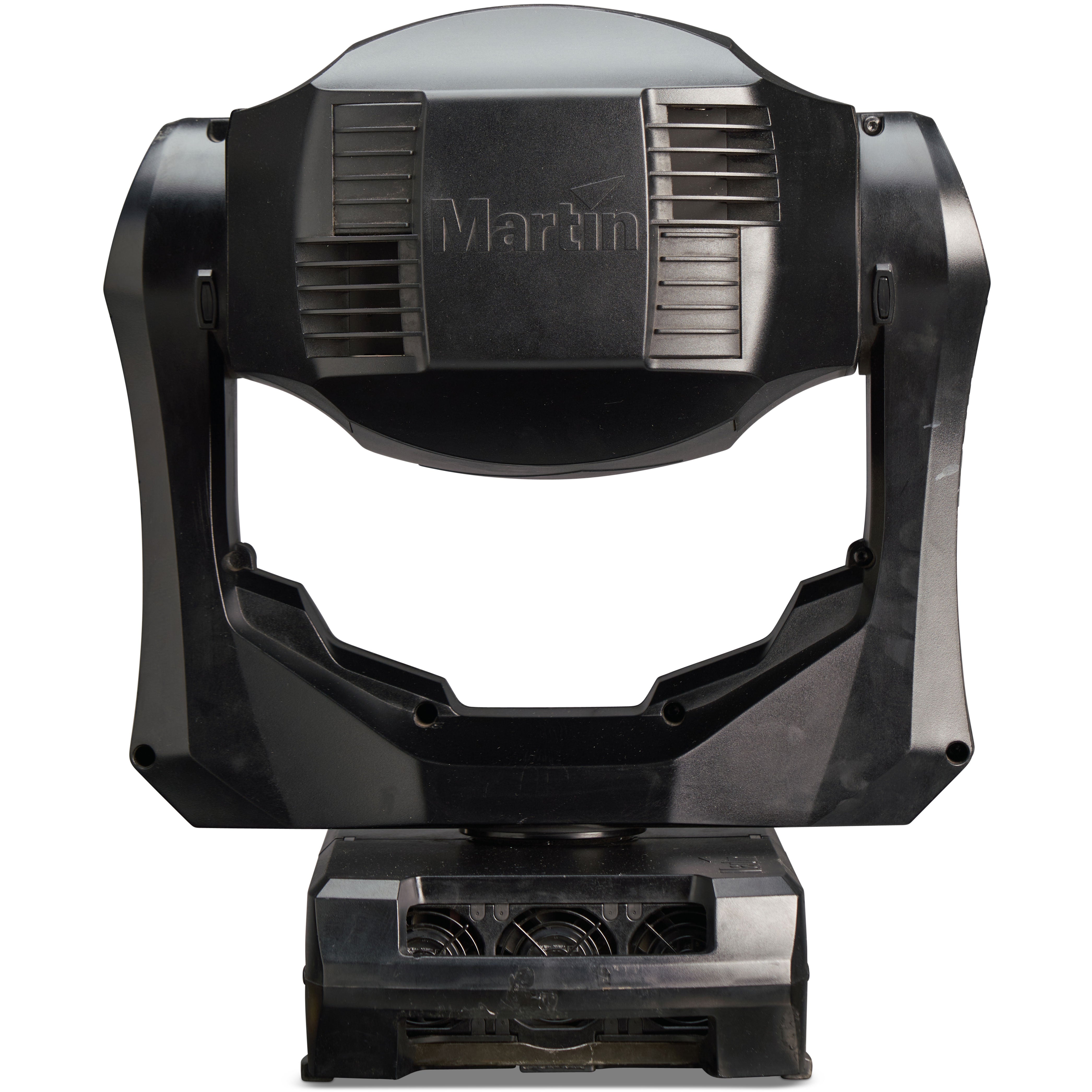

This versatile moving head luminaire has seen minimal use and is in excellent condition, ready to elevate your lighting design with its precision and performance. The Martin Quantum Profile offers a wide range of features, including crisp gobos, vibrant colors, and smooth pan and tilt movements, making it an ideal choice for concerts, theaters, and special events. Don't miss this opportunity to own a high-quality lighting fixture at a fraction of the cost of a new one. Whether you're a seasoned professional or a budding enthusiast, the Martin Quantum Profile will bring your lighting visions to life with style and finesse.
FEATURES
-
• First real alternative to a 700/800 watt HID fixture
• Flat field, crisp image, high contrast
• Full feature set including CMY color mixing and 1:3 zoom
• Very low weight and compact design
• Super high-speed movements and effects
• Consistent photometric performance via latest LED technology
SPECIFICATIONS
-
• Color mixing: CMY, independently variable 0 - 100%
• Color wheel: 6 color filters plus open
• Rotating gobo wheel: 6 interchangeable gobos plus open, wheel rotation, gobo rotation, indexing and shake
• Static gobo wheel: 10 gobos plus open, wheel indexing, rotation and shake
• Beam effects: Rotating three-facet prism
• Zoom: 12° - 36° (1:3)
• Pan and tilt speed: Adjustable via onboard control panel and DMX
• Focus: Motorized, with zoom-focus tracking
• Iris: 0 - 100%, pulse effects
• Shutter effect: Electronic, with variable speed regular and random strobe
• Electronic dimming: Four dimming curve options
• Pan: 540°
• Tilt: 268°
• Control system: DMX
• RDM: Implemented
• Control resolution: 8-bit, with 16-bit control of dimming, gobo indexing, zoom, focus, pan and tilt
• DMX channels: 19/27
• Setting and addressing: Control panel with backlit graphic display
• DMX compliance: USITT DMX512-A
• RDM compliance: ANSI/ESTA E1.20
• Transceiver: RS-485
• Fixture software update: Direct usi...n locks
• Location: Indoor use only, must be fastened to surface or structure
• Orientation: Any
• Minimum distance to combustible materials: 0.2 m
• Minimum distance to illuminated surfaces: 2.0 m
• AC power input: Neutrik PowerCon
• DMX and RDM data in/out: 5-pin locking XLR
• AC power: 120-240 V nominal, 50/60 Hz
• Power supply unit: Auto-ranging electronic switch mode
• Maximum total power consumption: 750 W
• Typical half-cycle RMS inrush current: 10.3 A
• Typical power consumption, all effects static, zer: Approx. 50 W
• Maximum total power consumption: 750 W
• Typical half-cycle RMS inrush current: 10.3 A
• Typical Power and Current 120 V, 60 Hz: 4.8 A, 576 W, PF 0.999
• Cooling: Forced air (temperature-regulated, low noise, user-definable levels)
• Maximum ambient temperature (Ta max.): 40° C
• Minimum ambient temperature (Ta min.): 5° C
• Length: 452 mm
• Width (across yoke): 431 mm
• Height (head straight up): 642 mm
• Height (maximum): 648 mm
• Weight: 23.2 kg (51.1 lbs.)
CONTENTS
-
(1) Martin MAC Quantum Profile LED Moving Head Light
(2) Martin Omega Brackets with 1/4 Turn Fasteners
(1) Operator's Instructions
