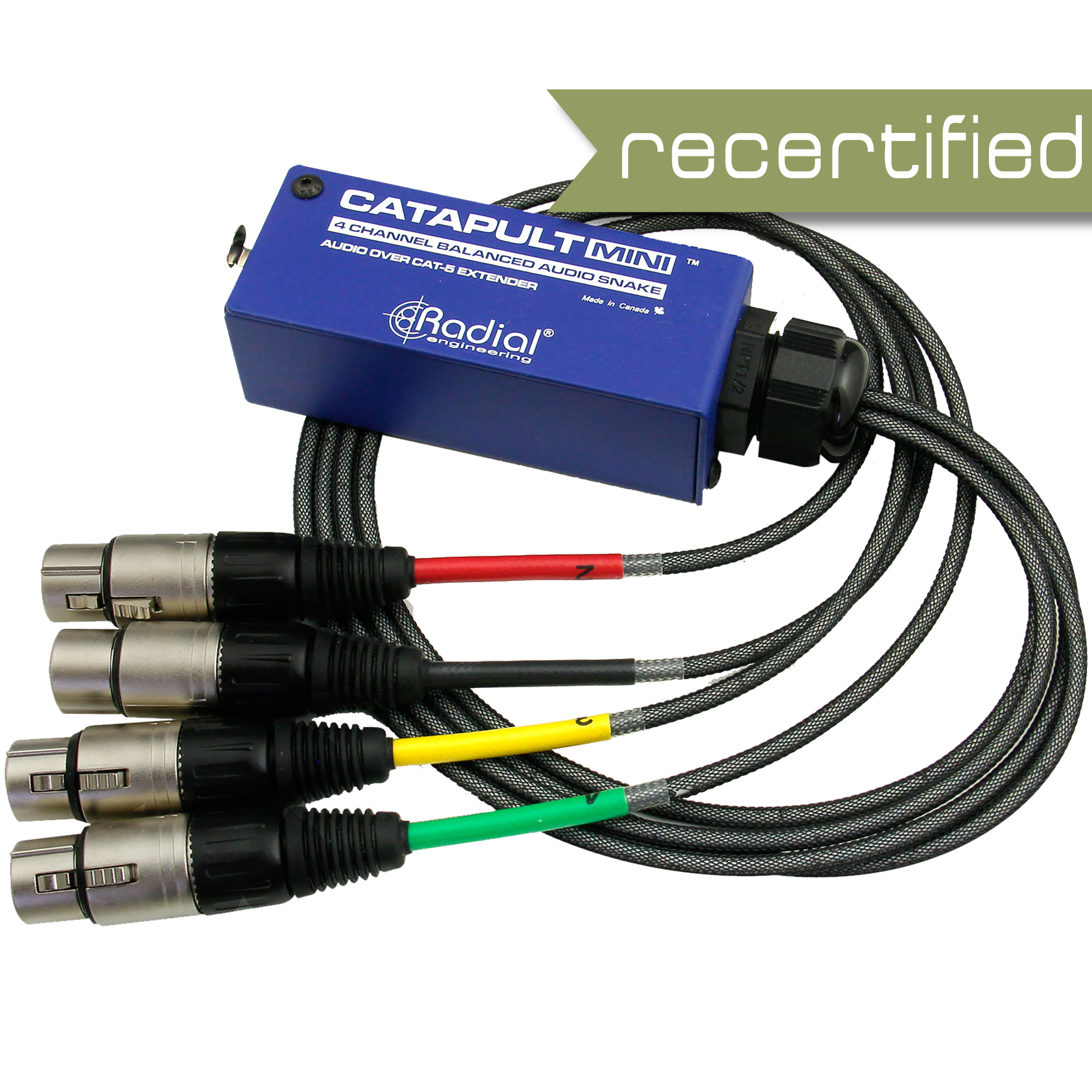

Radial Catapult Mini TX 4-Channel Cat 5 Audio Snake with Female XLRs
19%, only 0 left
Radial Catapult Mini TX 4-Channel Cat 5 Audio Snake with Female XLRs
Product SKU
    34724

Radial Catapult Mini TX 4-Channel Cat 5 Audio Snake with Female XLRs

$99.99

PICK UP TODAY

recertified+.png__PID:7672a0bd-1cf7-4ba8-9841-5171b10f1ebf
  • Like New Condition
  • Original Packaging
  • Full Factory Warranty

Have a question?

Need help finding something?

Talk to a PRO

855-772-2937

_EBP9032_SQ.jpeg__PID:828e756e-5126-4f82-9136-2bf92b17727c

Expertly tested refurbished and open box products

Backed by the BYFP satisfaction guarantee

Copy of Untitled Design (3).png__PID:0d4aaa6e-815d-4b5a-879b-7bd16634732b

Free Shipping

1.png__PID:3c5bc891-9c7e-4dda-94a6-30ba47708c69

Professionally Inspected

2.png__PID:5bc8919c-7ecd-4a14-a630-ba47708c69eb

Satisfaction Guaranteed

3.png__PID:c8919c7e-cdda-44a6-b0ba-47708c69eb73

Expert Support

DESCRIPTION

The Radial Catapult Mini TX 4-Channel Cat 5 Audio Snake with Female XLRs is a compact, professional-grade analog audio transmitter designed to send up to four channels of balanced audio over a single shielded Cat5/Cat6 cable, significantly reducing stage clutter and setup time. Built with Radial’s renowned rugged steel construction, the Catapult Mini TX features four female XLR inputs that easily integrate with microphones, DI boxes, or line-level sources, making it ideal for live sound, broadcast, and studio environments. Utilizing standard Ethernet cabling and compatible with Catapult RX receivers, it delivers reliable, low-noise signal transmission over long distances without the need for digital conversion, preserving audio integrity while offering a lightweight, road-ready solution for modern audio routing needs.

FEATURES
    • Connect to balanced mic or line level sources
    • RJ45 Output sends analog audio over Cat 5 or Cat 6 Ethernet cable
    • Color-coded heat shrink labels helps you identify channels at a glance
    • 16 gauge steel chassis to handle any touring environment.
    • Durable powder coat protects your Catapult Mini looking good for years
SPECIFICATIONS
    • Audio circuit type: Passive splitter
    • Frequency response: 7Hz ~ 20KHz
    • Dynamic range: 140dB
    • Total harmonic distortion: 0.0005% @ 1kHz
    • Common Mode Rejection Ratio: >103dB
    • Maximum Input: +35dBu
    • Features: Ground lift
    • Connectors: XLR, TRS, RJ45 (model dependant)
    • Construction: 16-gauge steel chassis & outer shell
    • Size: 4.125" x 1.56" x 1.31"
    • Weight: 0.85 lb
    • Power: Passive, no power required
    • Conditions: For use in dry locations only between 5°C and 40°C
    • Warranty: Radial 3-year, transferable
CONTENTS
    (1) Radial Catapult Mini TX 4-Channel Cat 5 Audio Snake with Female XLRs
    (1) User Manual
