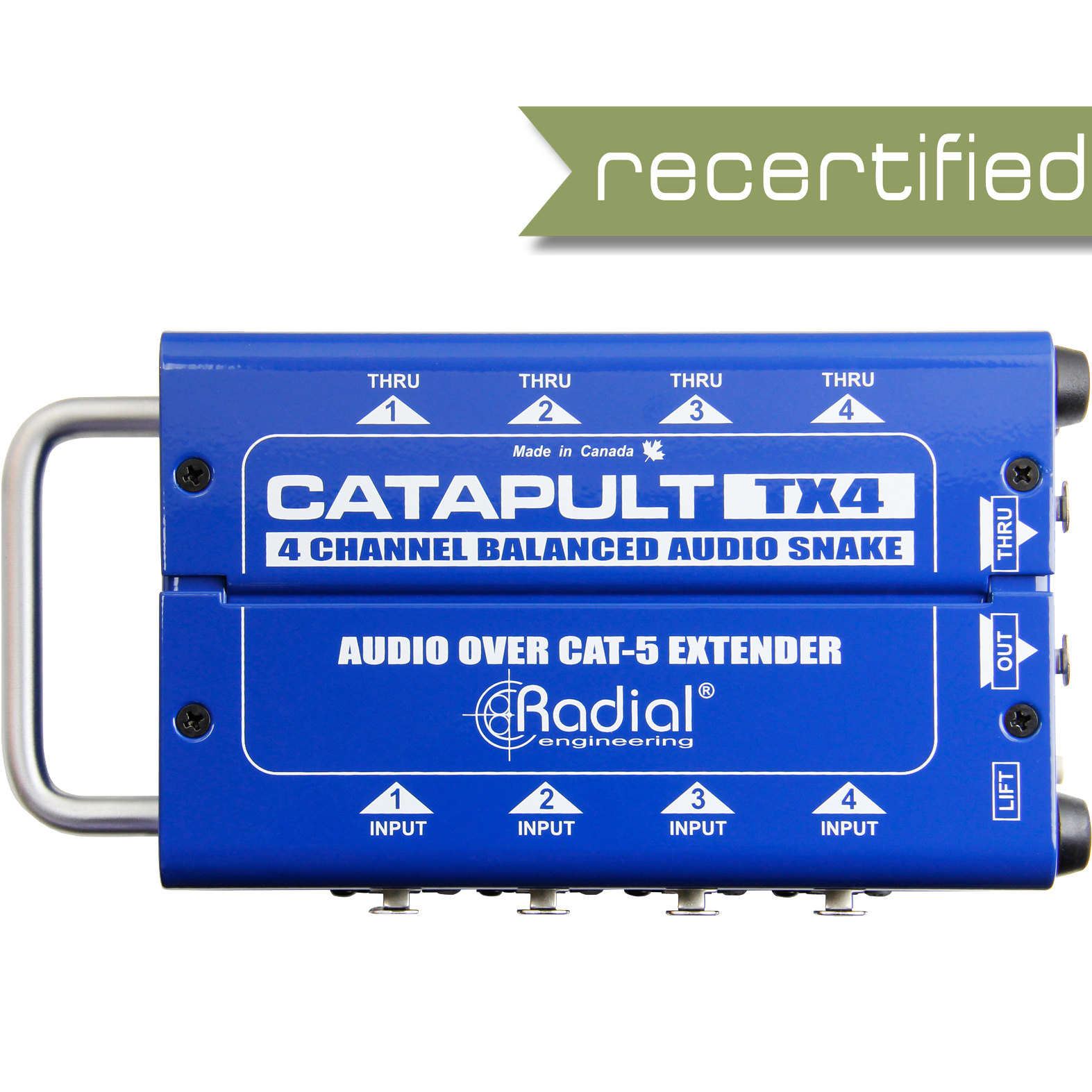

Radial Catapult TX4-Channel Cat 5 Analog Snake
19%, only 0 left
Radial Catapult TX4-Channel Cat 5 Analog Snake
Product SKU
    34879

Radial Catapult TX4-Channel Cat 5 Analog Snake

$199.99

PICK UP TODAY

recertified+.png__PID:7672a0bd-1cf7-4ba8-9841-5171b10f1ebf
  • Like New Condition
  • Original Packaging
  • Full Factory Warranty

Have a question?

Need help finding something?

Talk to a PRO

855-772-2937

_EBP9032_SQ.jpeg__PID:828e756e-5126-4f82-9136-2bf92b17727c

Expertly tested refurbished and open box products

Backed by the BYFP satisfaction guarantee

Copy of Untitled Design (3).png__PID:0d4aaa6e-815d-4b5a-879b-7bd16634732b

Free Shipping

1.png__PID:3c5bc891-9c7e-4dda-94a6-30ba47708c69

Professionally Inspected

2.png__PID:5bc8919c-7ecd-4a14-a630-ba47708c69eb

Satisfaction Guaranteed

3.png__PID:c8919c7e-cdda-44a6-b0ba-47708c69eb73

Expert Support

DESCRIPTION

The Catapult TX4 and RX4 are four-channel audio snakes that allow you to send analog and AES digital audio signals over standard Cat 5 shielded twisted-pair cable. This allows for the use of existing Cat 5 or Cat 6 cable infrastructure to connect audio signals from one part of a building to another or to run sub-snakes over long distances with inexpensive and lightweight cable. The TX4 has four XLR-F inputs and four XLR-M outputs, while the RX4 has two sets of four XLR-M outputs. Both units feature an RJ45-type Ethercon input and thru-put and include ground lifts to help eliminate buzz and hum caused by ground loops. Their rugged design, exceptionally flat frequency response, and low noise make the TX4 and RX4 excellent options for transmitting analog or AES audio in critical situations.

FEATURES
    • Send four channels of analog audio over a single Cat 5/6 cable
    • Works with a building’s existing cable infrastructure
    • Choice of direct-wired or transformer isolated splits
    • Economical Cat 5/6 cable replaces bulky multi-channel audio snakes
SPECIFICATIONS
    • Audio circuit type: Passive splitter
    • Frequency response: 7Hz ~ 20KHz
    • Dynamic range: 140dB
    • Total harmonic distortion: 0.0005% @ 1kHz
    • Common Mode Rejection Ratio: >103dB
    • Maximum Input: +35dBu
    • Features: Ground lift
    • Connectors: XLR, RJ45
    • Construction: 14 gauge steel chassis & outer shell
    • Size: 8.25" x 4.25" x 2"
    • Weight: 2.6 lb
    • Power: Passive, no power required
    • Conditions: For use in dry locations only between 5°C and 40°C
    • Warranty: Radial 3-year, transferable
CONTENTS
    (1) Radial Catapult TX4-Channel Cat 5 Analog Snake
    (1) User Manual
