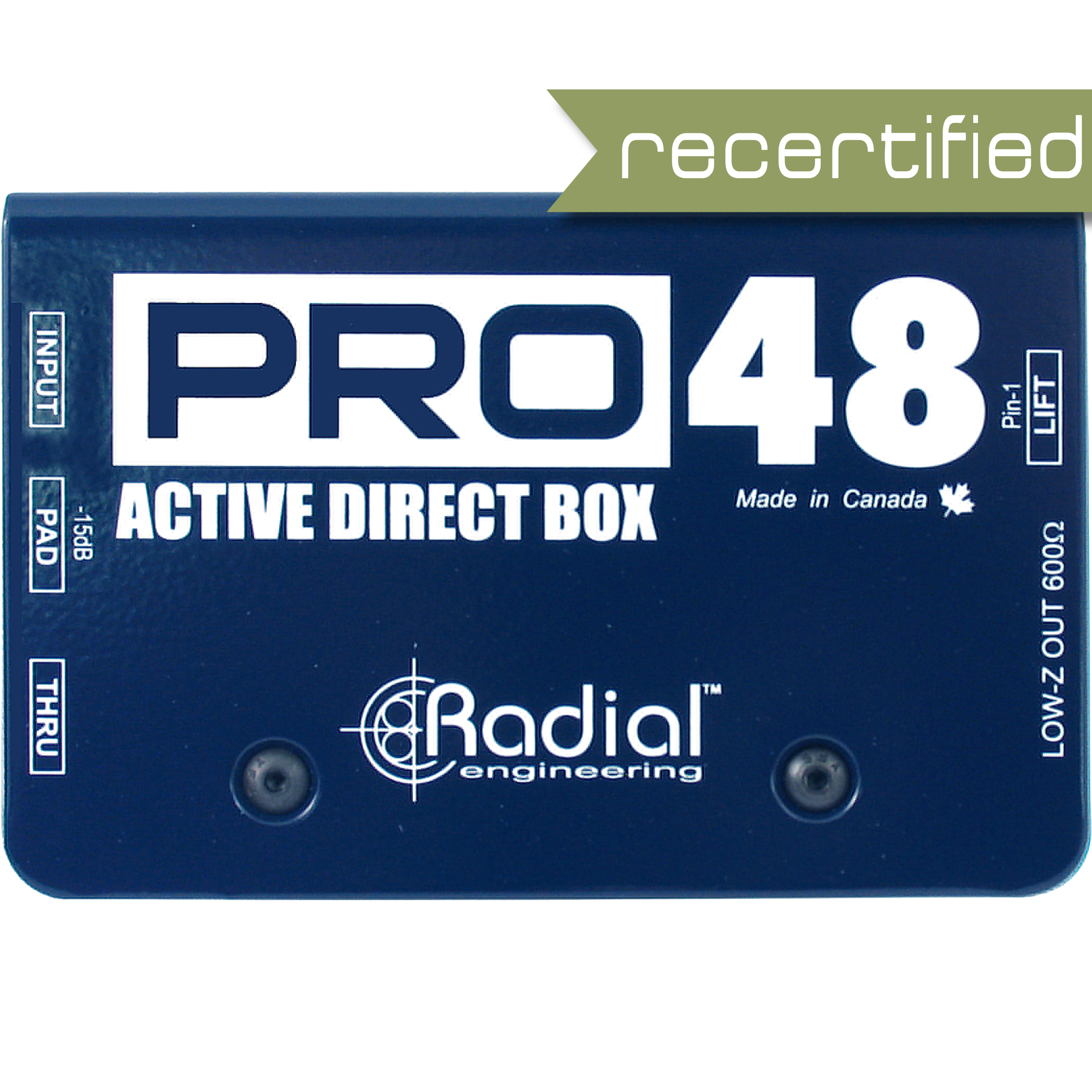

Radial Pro48 Direct Box
Radial Pro48 Direct Box
Radial Pro48 Direct Box
Radial Pro48 Direct Box
19%, only 0 left
Radial Pro48 Direct Box
Radial Pro48 Direct Box
Radial Pro48 Direct Box
Radial Pro48 Direct Box
Product SKU
    34696

Radial Pro48 Direct Box

$109.99

PICK UP TODAY

recertified+.png__PID:7672a0bd-1cf7-4ba8-9841-5171b10f1ebf
  • Like New Condition
  • Original Packaging
  • Full Factory Warranty

Have a question?

Need help finding something?

Talk to a PRO

855-772-2937

_EBP9032_SQ.jpeg__PID:828e756e-5126-4f82-9136-2bf92b17727c

Expertly tested refurbished and open box products

Backed by the BYFP satisfaction guarantee

Copy of Untitled Design (3).png__PID:0d4aaa6e-815d-4b5a-879b-7bd16634732b

Free Shipping

1.png__PID:3c5bc891-9c7e-4dda-94a6-30ba47708c69

Professionally Inspected

2.png__PID:5bc8919c-7ecd-4a14-a630-ba47708c69eb

Satisfaction Guaranteed

3.png__PID:c8919c7e-cdda-44a6-b0ba-47708c69eb73

Expert Support

DESCRIPTION

The Radial Pro48 is a high-performance 48V phantom-powered active direct box designed specifically for today's higher-output instruments.

The Pro48's innovative digital switching power supply significantly increases headroom and allows for less distortion while yielding a smooth, linear response extending from 20 Hz to well above 100 kHz, resulting in natural, uncolored signal transfer. This superior performance makes the Pro48 an ideal candidate for use with today's battery-powered active basses and acoustic guitars that tend to overload other direct boxes.

The compact Pro48 is built road-ready with 14-gauge steel in our unique book-end™ design that provides protective zones around the switches and connectors. The internal welded I-beam construction assures outside stress will not torque the PC board, thus assuring longer product life.

Exceptional sonic performance and great natural tone at an affordable price: the Radial Pro48 truly represents a breakthrough in value!

FEATURES
    • High-resolution active direct box
    • Increased dynamic range and headroom
    • 48V phantom powered with digital switching
    • Compact, rugged book-end design
    • Ideal for active guitars and basses
SPECIFICATIONS
    • Audio Circuit Type: Proprietary analog circuit with low-noise op-amp
    • Frequency Response: 20Hz ~ 20kHz (± 1.5 dB)
    • Dynamic Range: 99dB
    • Noise Floor: -82dB below 0dBu
    • Equivalent Input Noise: -86dBu
    • Maximum Input: +9dBu
    • Phase Deviation: +28º at 20Hz; +1º at 1kHz; -2º at 20kHz
    • Total Harmonic Distortion: 0.001% @ 0 dBu
    • Inter-modulation Distortion: 0.002% @ 0 dBu
    • Input Impedance: 220 kOhm (1/4" Input)
    • Output Impedance: 600 Ohm (XLR Output)
    • Input Pad: -15 dB
    • Ground Lift: Disconnects pin 1 at XLR output
    • XLR Configuration: AES Standard (Pin-2 Hot)
    • Power: 48V phantom - proprietary digital switching
    • Construction: 14 gauge steel chassis and outer shell, baked enamel finish
    • Size: 2.75" x 4.25" x 1.75" (70 x 108 x 45mm)
    • Weight: 1.2 lb (544 g)
CONTENTS
    (1) Radial Pro48 Direct Box
    (1) User Manual
