Product SKU
    34159

RCF HDL28A Line Array

$2,999.99

PICK UP TODAY

recertified+.png__PID:7672a0bd-1cf7-4ba8-9841-5171b10f1ebf
  • Like New Condition
  • Original Packaging
  • Full Factory Warranty

Have a question?

Need help finding something?

Talk to a PRO

855-772-2937

_EBP9032_SQ.jpeg__PID:828e756e-5126-4f82-9136-2bf92b17727c

Expertly tested refurbished and open box products

Backed by the BYFP satisfaction guarantee

Copy of Untitled Design (3).png__PID:0d4aaa6e-815d-4b5a-879b-7bd16634732b

Free Shipping

1.png__PID:3c5bc891-9c7e-4dda-94a6-30ba47708c69

Professionally Inspected

2.png__PID:5bc8919c-7ecd-4a14-a630-ba47708c69eb

Satisfaction Guaranteed

3.png__PID:c8919c7e-cdda-44a6-b0ba-47708c69eb73

Expert Support

DESCRIPTION

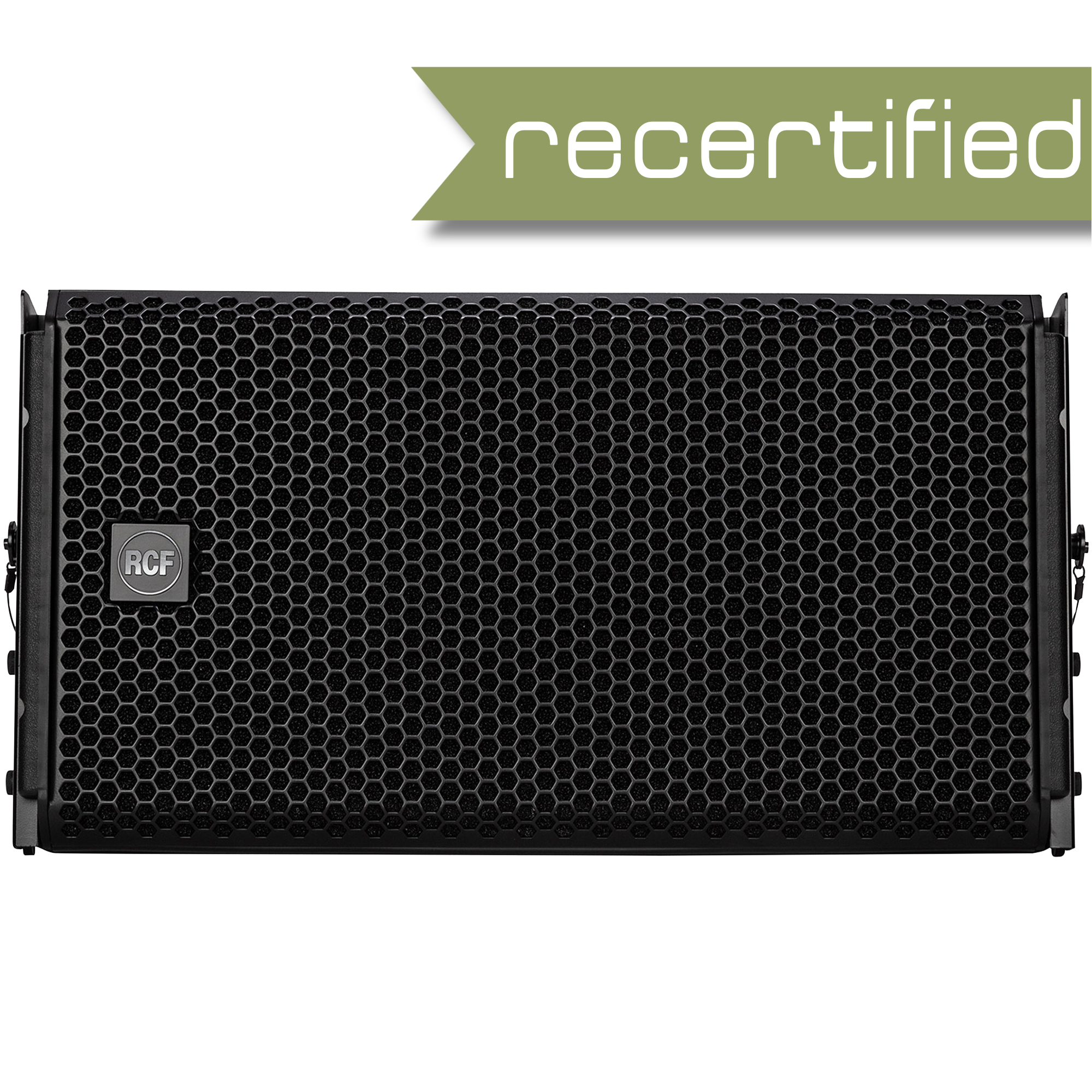

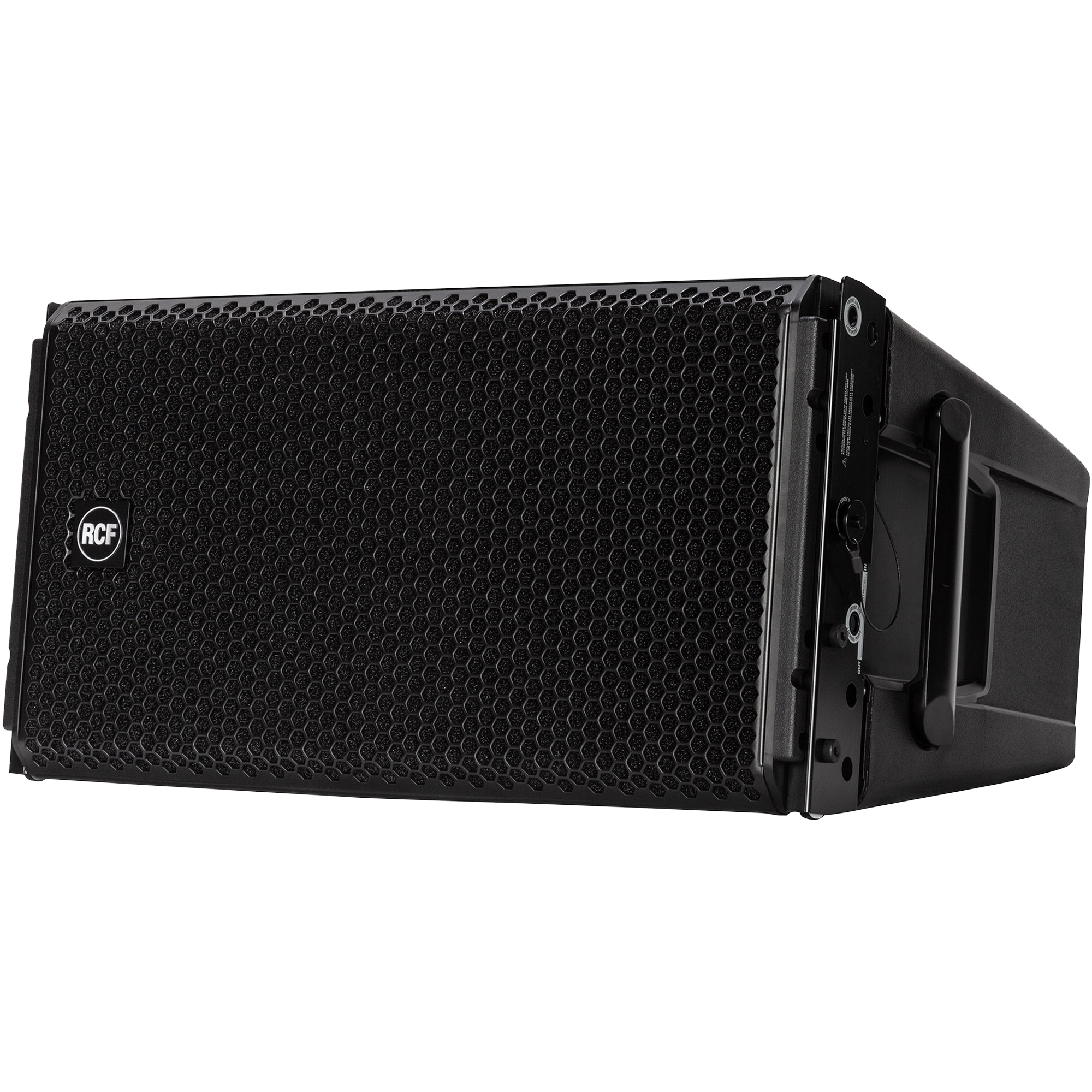

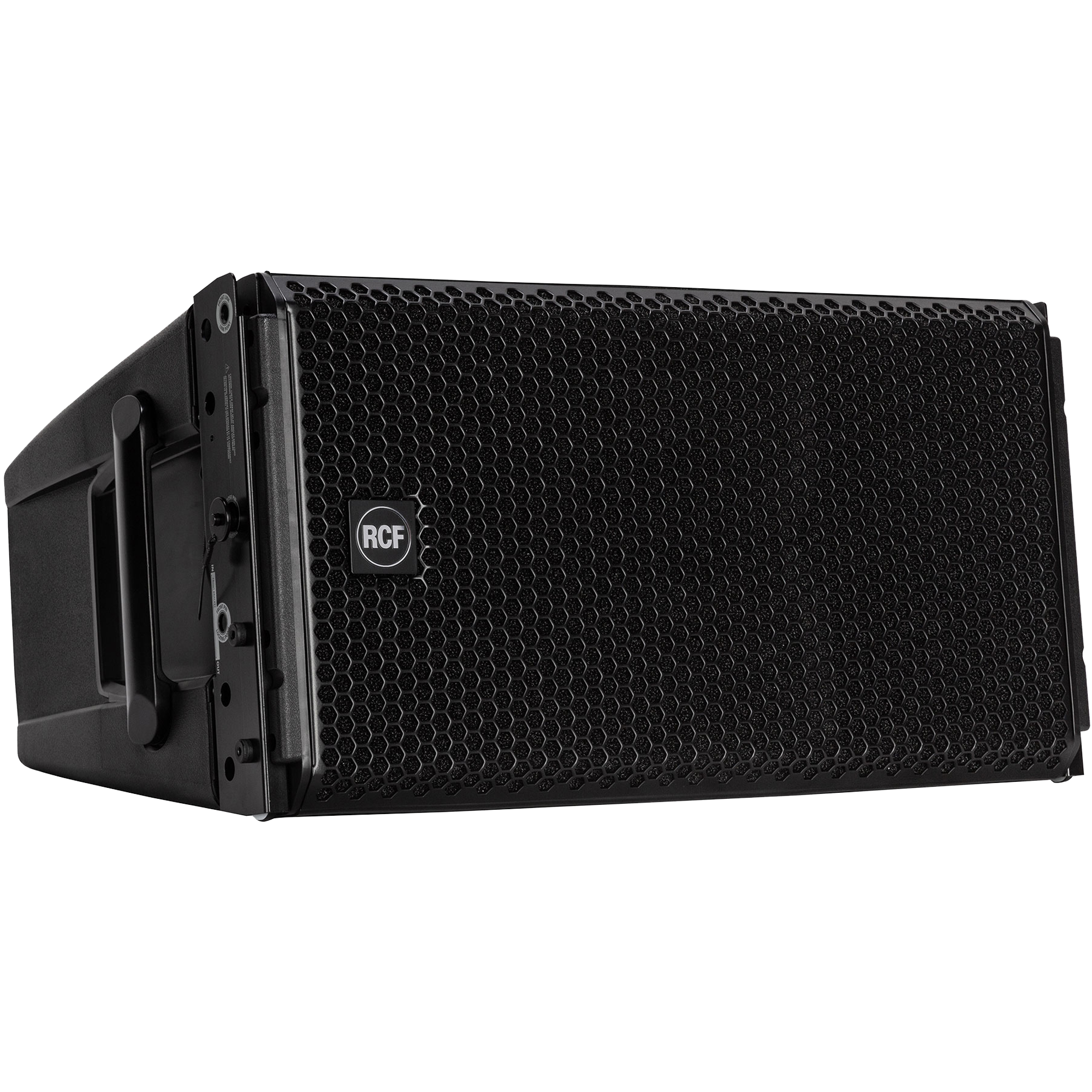

The RCF HDL 28-A is a compact bi-amped 2-way active touring system for a wide range of applications, both indoors and outdoors, with an emphasis on vocal intelligibility. It features two 8-inch woofers and an impressive 3-inch titanium compression driver. The time-coherent waveguide is the result of in-depth research and design. Following the HDL 30-A philosophy, the HDL 28-A shares the composite material cabinet, the zero-degree phase, and the ultra-linear amplitude response. The built-in 2200-watt class-D amplifier delivers excellent playback clarity and up to 135 decibels SPL max. The RCF HDL28-A features state-of-the-art RCF transducers with lightweight neodymium magnets. Considering its acoustical power, it has a remarkably low weight for easy handling and flying. The HDL 36-AS is the ideal flyable bass complement for the HDL 28-A array system.

FEATURES
    • 2200W Two Way Amplifier
    • 135 dB Max SPL
    • 48 kHz, 32 bit DSP processing
    • RDNet Networked Management

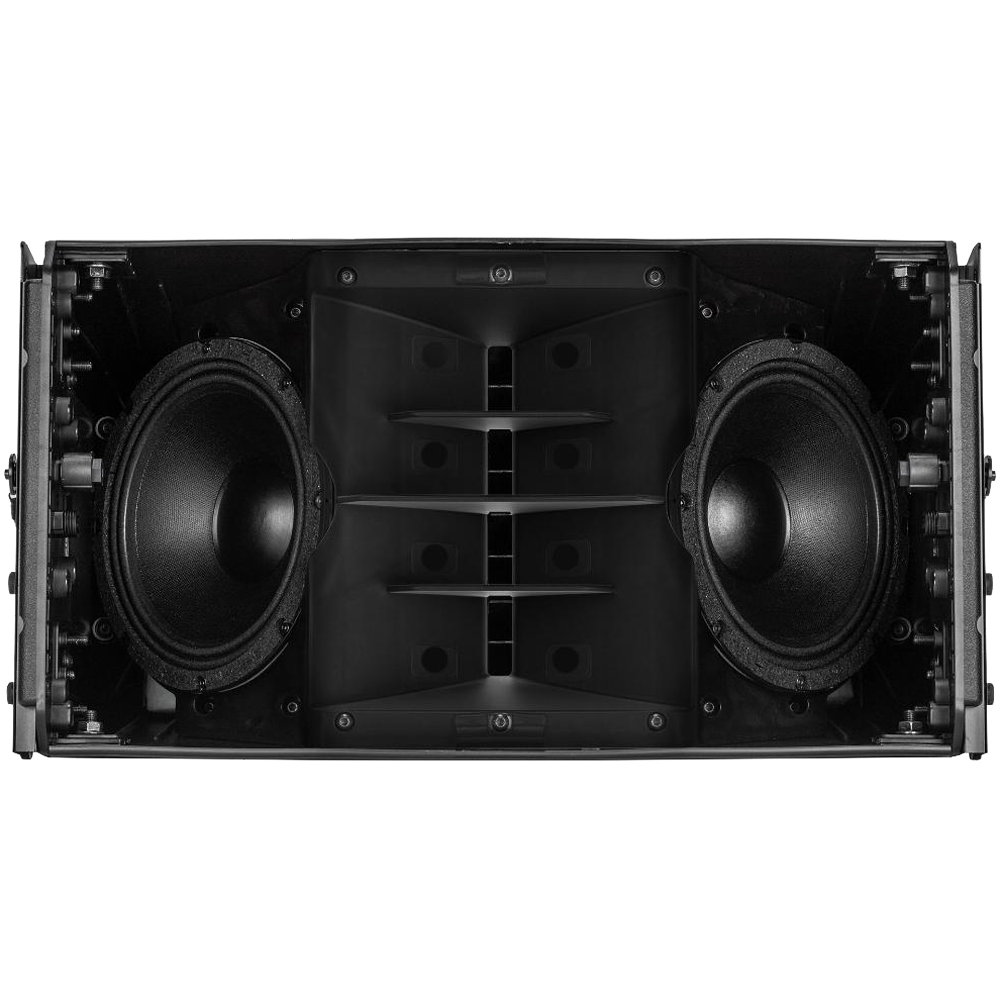

    • 2 x 8” Neodymium Woofers, 2.5” voice coil
    • 1.4” Titanium Compression Driver, 3.0” voice coil
    • Exclusive FiRPHASE technology on-board
    • 750 Hz Crossover Point
SPECIFICATIONS
    • Frequency Response: 50 Hz ÷ 20000 Hz
    • Max SPL @ 1m: 135 dB
    • Horizontal coverage angle: 100°
    • Vertical coverage angle: 15°
    • Compression Driver: 1 x 1.4'' neo, 3.0'' v.c
    • Woofer: 2 x 8'' neo, 2.5'' v.c
    • Input signal: bal/unbal
    • Input connectors: XLR, RDNet Ethercon
    • Output connectors: XLR, RDNet Ethercon
    • Input sensitivity: +4 dBu
    • Crossover Frequencies: 750 Hz
    • Protections: Thermal, RMS
    • Limiter: Soft Limiter
    • Controls: Preset, RDNet bypass
    • RDNet: Onboard
    • Total Power: 2200 W Peak, 1100 W RMS
    • High frequencies: 600 W Peak, 300 W RMS
    • Low frequencies: 1600 W Peak, 800 W RMS
    • Cooling: Forced
    • Connections: Powercon IN/OUT
    • Safety agency: CE compliant
    • Cabinet/Case Material: PP Composite
    • Hardware: Array fittings

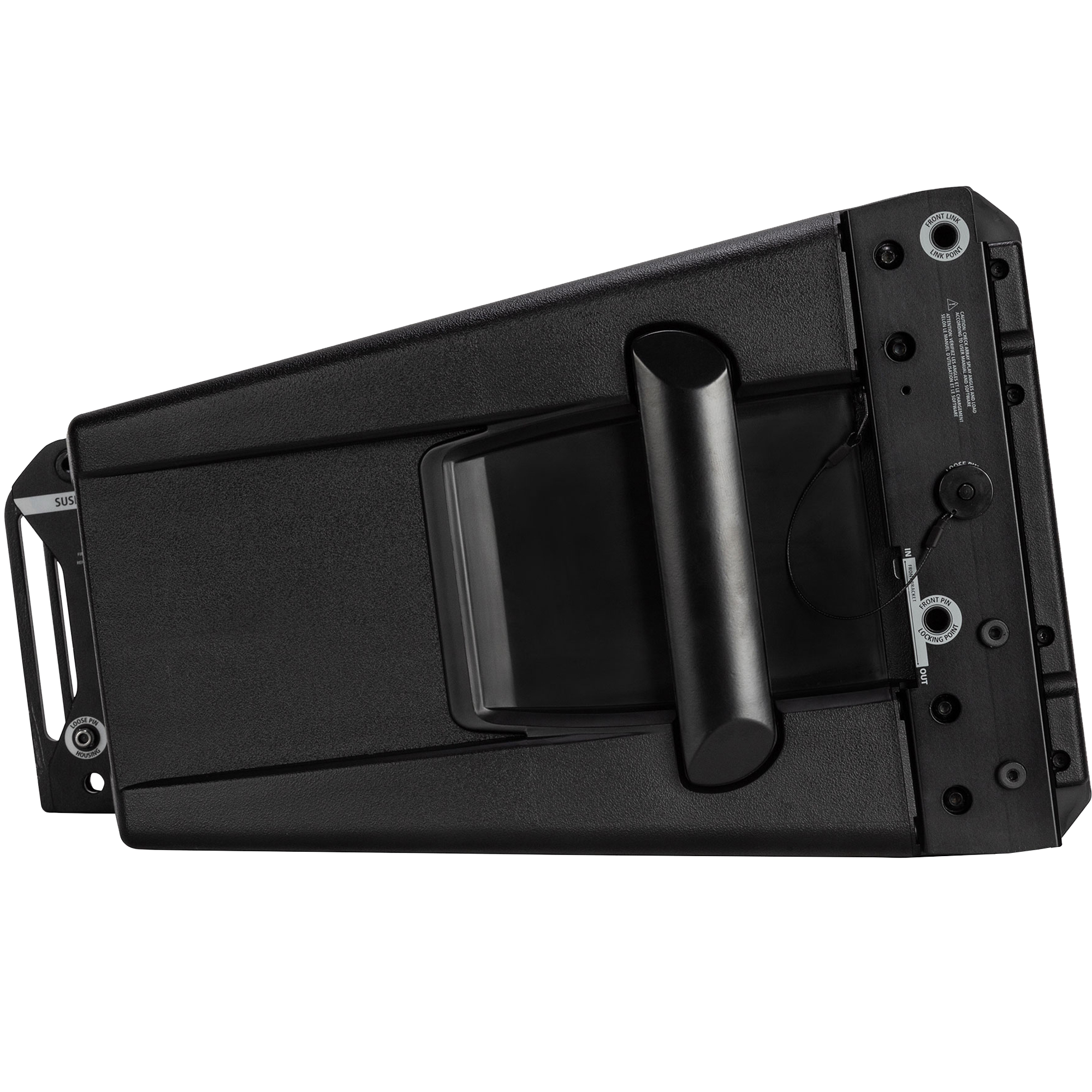

    • Handles: 2 Side
    • Grille: Steel
    • Color: Black
    • Height: 294 mm / 11.57 inches
    • Width: 569 mm / 22.4 inches
    • Depth: 491 mm / 19.33 inches
    • Weight: 20.6 kg / 45.42 lbs
    • Package Height: 375 mm / 14.76 inches
    • Package Width: 650 mm / 25.59 inches
    • Package Depth: 500 mm / 19.69 inches
    • Package Weight: 23.6 kg / 52.03 lbs
CONTENTS
    (1) RCF HDL28A
    (1) Operator's Instructions
