DESCRIPTION

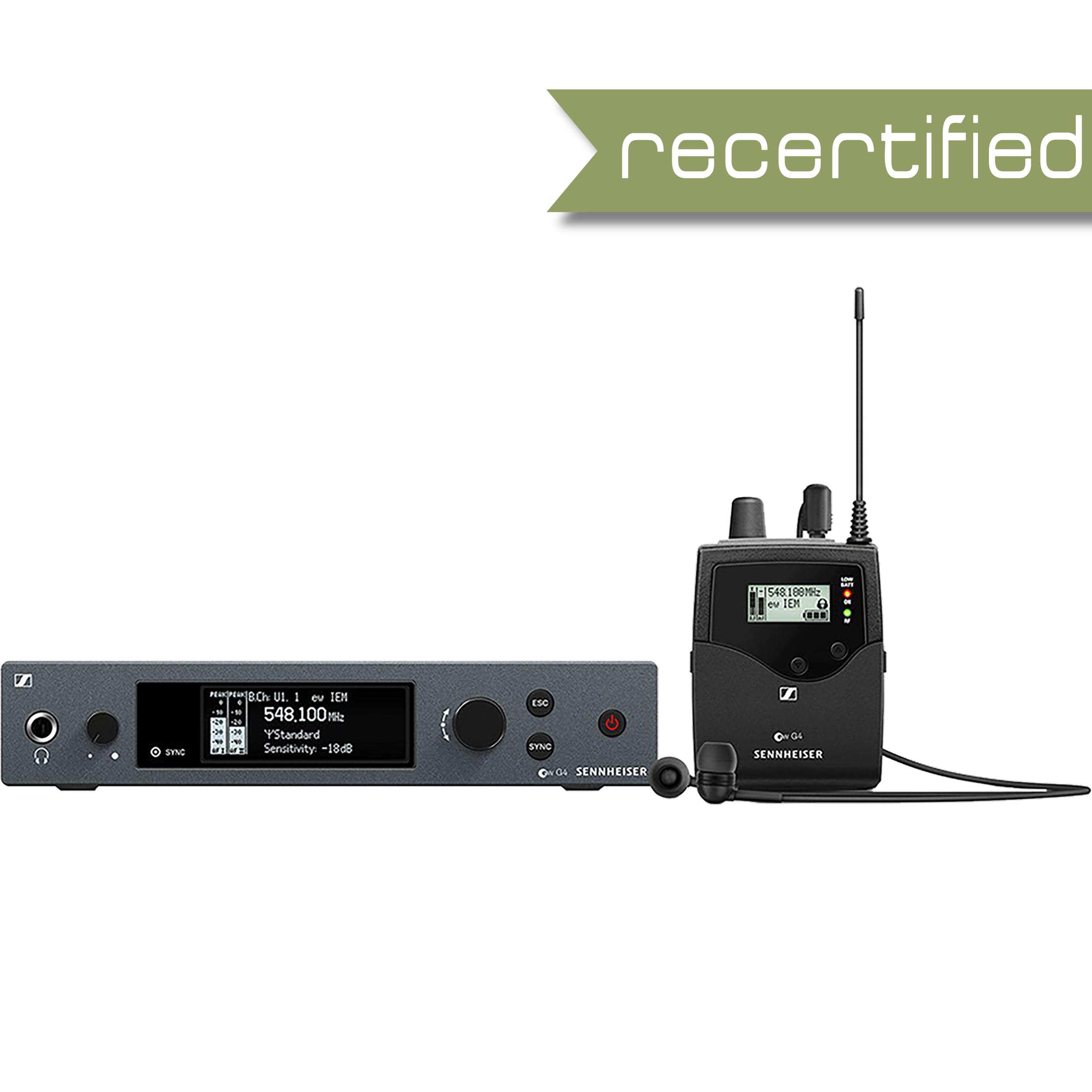

Full control over your performance – your direct link, everywhere, everyday. The G4 In-Ear Monitoring Sets make your gig an extraordinary experience – not just for your audience, but also for you. Robust bodypack receiver and reliable in-ear monitoring IE 4 headphones delivering clarity along the whole frequency spectrum for daily use on stage.
FEATURES
-
• Engineered for professional live sound: Rugged all-in-one wireless monitoring system for in-ear applications.
• Robust bodypack receiver and reliable in-ear monitoring IE 4 headphones delivering clarity along the whole frequency spectrum for daily use on stage
• Half-rack stereo transmitter in a full-metal housing with OLED display for full control
• Easy and flexible wireless synchronization between transmitter and receiver via infrared
• Compatible with Sennheiser WSM control software for flexible frequency allocation
• Up to 16 compatible channels
• Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
• Transmission Range: up to 100 meters / 300 feet
• High RF output power (up to 30 mW) depending on country regulations
SPECIFICATIONS
-
• Modulation: Wideband FM stereo (MPX pilot tone)
• Frequency range: A1: 470 - 516 MHz
• Transmitting frequencies: Max. 1680 frequencies, adjustable in 25 kHz steps; 20 frequency banks, each with up to 16 factory-preset channels, no intermo- dulation; 6 frequency banks with up to 16 programmable channels
• Switching bandwidth: up to 42 MHz
• Nominal/peak deviation: ±24 kHz / ±48 kHz
• MPX pilot tone (frequency/deviation): 19 kHz/±5 kHz
• Frequency stability: ±10 ppm
• Antenna output: BNC socket, 50 Ω
• RF Output Power (50 Ω): Switchable – Low: 10 mW (typ.), Standard: 30 mW (typ.), High: 50 mW (typ.)
• Compander system: Sennheiser HDX
• AF frequency response: 25 Hz to 15 kHz
• AF input BAL AF IN L (I) + MONO/ BAL AF IN R (II): 2x XLR-3/¼" (6.3 mm) jack combo socket, electronically balanced
• Max. input level: +22 dBu
• Total harmonic distortion (THD): <0.9 %
• Signal-to-noise ratio (at nominal load and peak de: >90 dB
• AF output LOOP OUT BAL L (I)/ LOOP OUT BAL R (II): ¼" (...(with HDX, peak deviation): < 4 µV, typ. 1.6 µV for 52 dBA rms S/N
• Adjacent channel selection: Typically = 65 dB
• Intermodulation attenuation: Typically = 70 dB
• Blocking: = 80 dB
• Squelch: 5 to 25 dBµV, adjustable in steps of 2 dB
• Pilot tone squelch: Can be switched off
• Compander system: Sennheiser HDX
• Signal-to-noise ratio (1 mV, peak deviation): approx. 90 dBA
• Total harmonic distortion (THD): = 0.9 %
• Output power at 2.4 V, 5 % THD, nominal deviation: 2 × 100 mW @ 32 Ω
• High Boost: +8 dB at 8 kHz
• Limiter: –18 dB to –6 dB, adjustable in steps of 6 dB, can be switched off
• Temperature range: -10 °C to +55 °C
• Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
• Nominal voltage: 3 V battery / 2.4 V rechargeable battery
• Current consumption: at nominal voltage: approx. 140 mA with transmitter switched off: = 25 µA
• Operating time: approx. 4 to 6 hours (depending on volume level)
• Dimensions: Approx. 82 x 64 x 24 mm
• Weight (incl. batteries): approx. 125 g
CONTENTS
-
(1) Sennheiser SR IEM G4 Stereo Transmitter
(1) Sennheiser EK IEM G4 Stereo Receiver
(1) Sennheiser IE 4 Earphones
(2) AA Batteries
(1) Rod Antenna
(1) GA 3 Rackmount Set
(1) Power Supply
(1) Operator's Instructions
