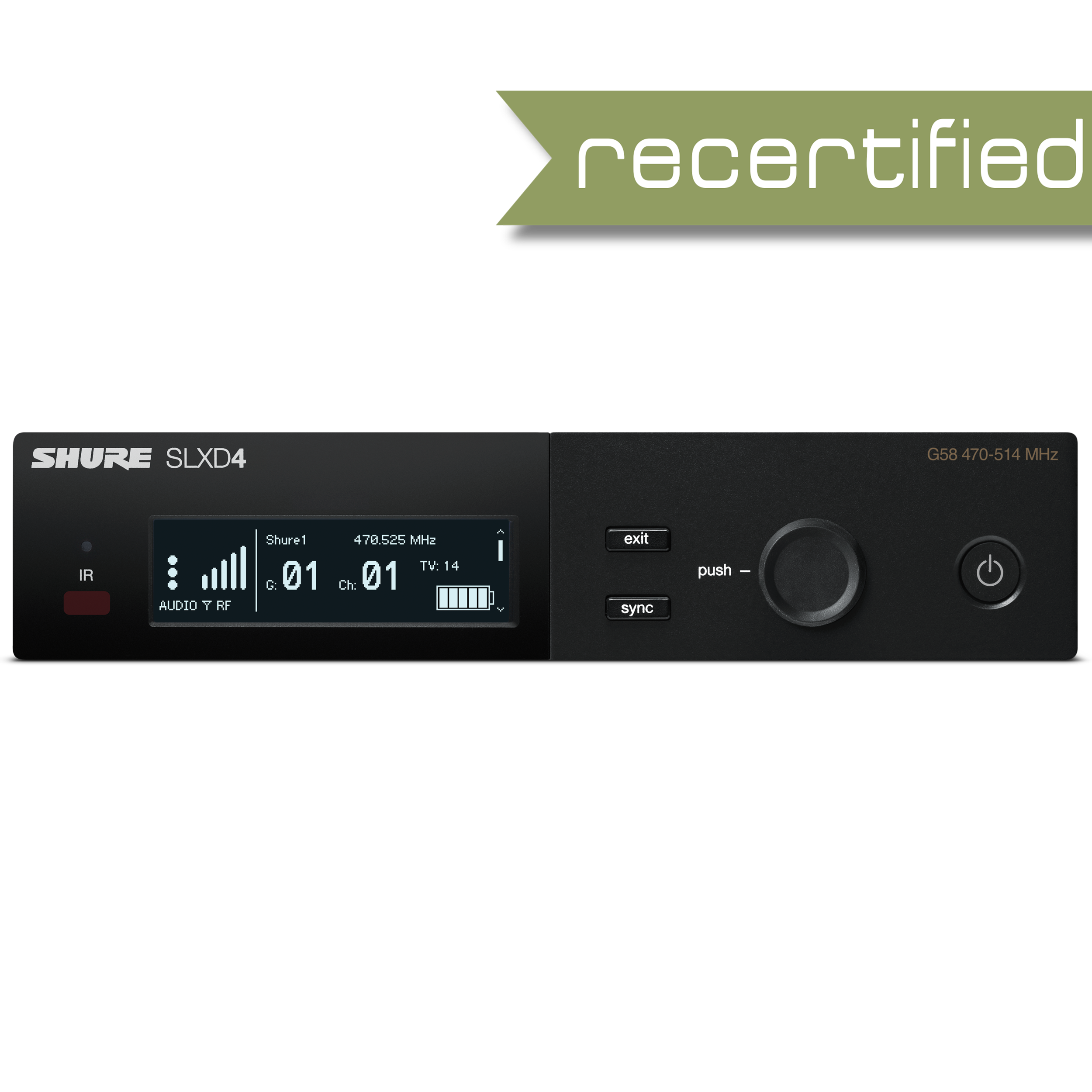

Shure SLXD Single Wireless Receiver
Shure SLXD Single Wireless Receiver
19%, only 0 left
Shure SLXD Single Wireless Receiver
Shure SLXD Single Wireless Receiver
Product SKU
    34863

Shure SLXD Single Wireless Receiver

$399.99

PICK UP TODAY

recertified+.png__PID:7672a0bd-1cf7-4ba8-9841-5171b10f1ebf
  • Like New Condition
  • Original Packaging
  • Full Factory Warranty

Have a question?

Need help finding something?

Talk to a PRO

855-772-2937

_EBP9032_SQ.jpeg__PID:828e756e-5126-4f82-9136-2bf92b17727c

Expertly tested refurbished and open box products

Backed by the BYFP satisfaction guarantee

Copy of Untitled Design (3).png__PID:0d4aaa6e-815d-4b5a-879b-7bd16634732b

Free Shipping

1.png__PID:3c5bc891-9c7e-4dda-94a6-30ba47708c69

Professionally Inspected

2.png__PID:5bc8919c-7ecd-4a14-a630-ba47708c69eb

Satisfaction Guaranteed

3.png__PID:c8919c7e-cdda-44a6-b0ba-47708c69eb73

Expert Support

DESCRIPTION

SLX-D® Digital Wireless delivers transparent, 24-bit digital audio and rock-solid RF performance with easy setup and rechargeability options in a suite of versatile wireless system configurations. Featuring industry-leading digital wireless technology and design, the SLXD4 easily syncs wireless transmitters. A variety of interchangeable microphone choices guarantees the right solution for a wide range of applications, from day-long presentations to nighttime performances.

FEATURES
    • Transparent 24-bit digital audio
    • Extended 20 Hz to 20 kHz frequency range (microphone dependent)
    • 120 dB dynamic range
    • Digital predictive switching diversity
    • 44 MHz tuning bandwidth (region dependent)
    • 32 available channels per frequency band (region dependent)
    • Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
    • Easy pairing of transmitters and receivers over IR scan and sync
    • Up to 8 hours from 2 AA batteries or optional Shure SB903 rechargeable battery
    • Interchangeable microphone capsules
    • Rugged metal construction
SPECIFICATIONS
    • RF Carrier Frequency Range: 470–937.5 MHz
    • Working Range: 100 m (328 ft)
    • RF Tuning Step Size: JB Band: 125 kHz; All Other Bands: 25 kHz
    • Image Rejection: >70 dB
    • RF Sensitivity: -97 dBm at 10-5 BER
    • Latency: 3.2 ms
    • Audio Frequency Response: 20 Hz–20 kHz (+1, -2 dB)
    • Audio Dynamic Range A-weighted, typical: 120 dB
    • Total Harmonic Distortion: <0.02%
    • System Audio Polarity: XLR: Positive pressure on microphone diaphragm produces positive voltage on pin 2 with respect to pin 3 of XLR output. TRS: Positive pressure on microphone diaphragm produces positive voltage on the tip of the 6.35 mm (1/4-inch) with respect to the ring of the 6.35 mm output.
    • Mic Offset Range: 0 to 21 dB (in 3 dB steps)
    • RF Input Spurious Rejection: >75 dB

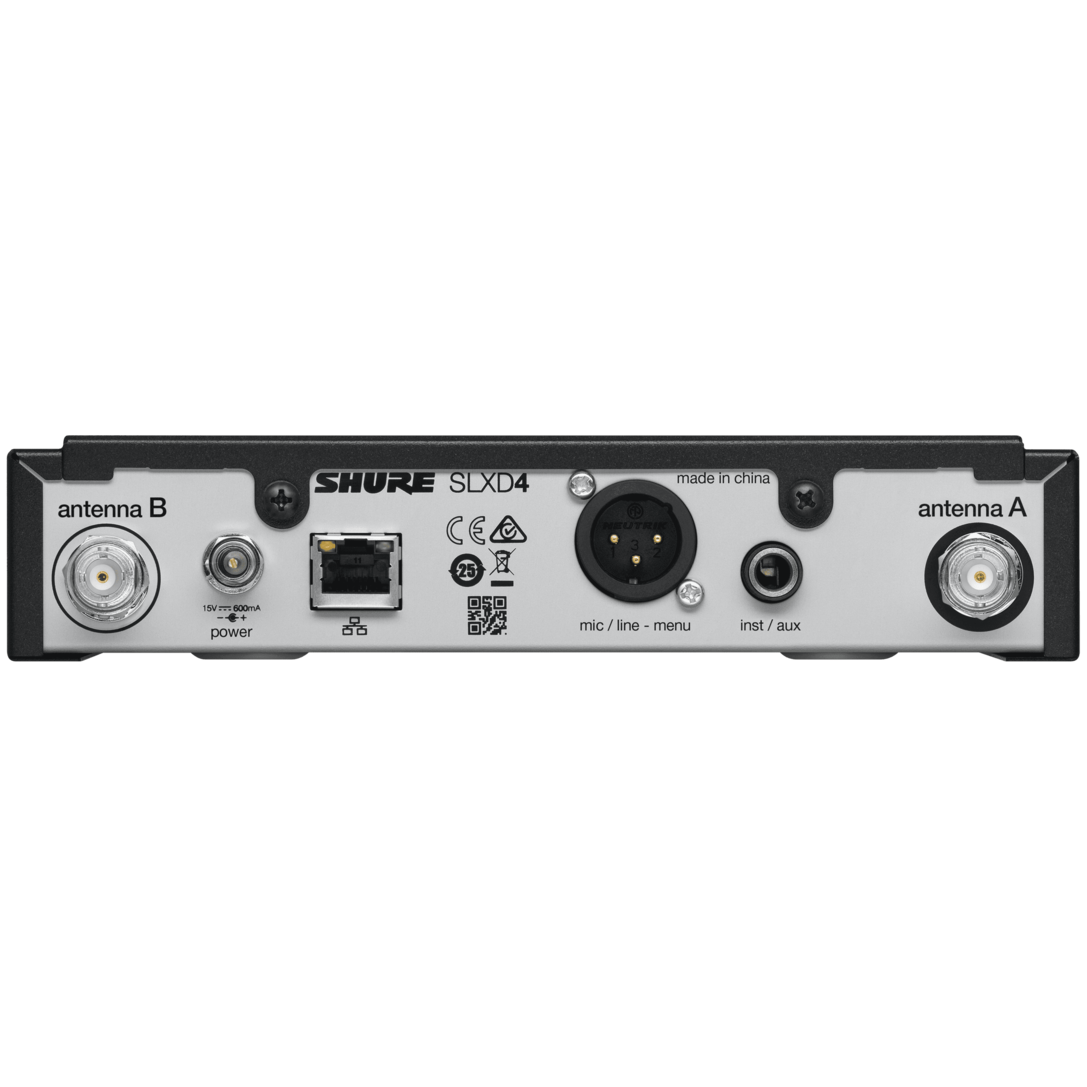

    • Connector Type: BNC
    • Impedance: 50 Ω
    • Audio Output Gain Adjustment Range: –18 to +42 dB in 1 dB steps
    • Configuration: 1/4" (6.35 mm): Balanced (Tip=audio +, Ring=audio –, Sleeve=ground) XLR: Balanced (1=ground, 2=audio +, 3=audio –)
    • Impedance: 1/4" (6.35 mm): 1.3 kΩ (670 Ω Unbalanced) XLR (line): 400 Ω (200 Ω Unbalanced) XLR (mic): 150 Ω
    • Full Scale Output: 1/4" (6.35 mm): +15 dBV differentially (+9 dBV single) XLR (LINE setting): +15 dBV XLR (MIC setting): –15 dBV
    • Mic/Line Switch: 30 dB pad
    • Phantom Power Protection: 1/4" (6.35 mm): Yes XLR: Yes
    • Network Interface: Single Port Ethernet 10/100 Mbps
    • Network Addressing Capability: DHCP or Manual IP address
    • Maximum Cable Length: 100 m (328 ft)
CONTENTS
    (1) Shure SLXD Single Wireless Receiver
    (1) User's Manual
    (1) Power Cable
