Shure GLX-D Wireless Lavalier Microphone System

Microphone

$549.00

1.png__PID:7af1a3fd-a98e-4384-a357-aae772061f43

FREE SHIPPING

2.png__PID:f1a3fda9-8e83-44e3-97aa-e772061f434b

EXPERT SUPPORT

Copy of Untitled Design.png__PID:a98e8384-e357-4ae7-b206-1f434b4f7c25

HASSLE FREE RETURNS

Have a question?

Need help finding something?

Talk to a PRO

855-772-2937

CHRISTIAN.png__PID:56b62e6c-9b7a-4608-a7da-0056a14b24c8

SCHEDULE A DEMO TODAY

Single-channel wireless receiver with LINKFREQ Automatic Frequency Management and battery rechargeability.
The GLXD4 single-channel wireless receiver features revolutionary LINKFREQ Automatic Frequency Management (2.4 GHz frequency band) and battery rechargeability. An integrated battery charge port can charge a spare Shure lithium-ion battery while the system is in use.

Allows operation of up to 4 compatible systems in a typical setting, and up to 8 maximum under ideal conditions. For use with GLX-D® Digital Wireless Systems.

GLXD1 features an ergonomic design and reversible belt clip to fit comfortably and snugly in various positions. For use with GLX-D® Digital Wireless Systems, GLXD1 offers up to 16 hours of continuous use with Shure lithium-ion rechargeable batteries.

Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.

Receiver

High-resolution LCD screen status display
Real-time transmitter battery status displayed in hours and minutes (accurate within + / - 15 minutes)
Remote adjustable transmitter gain control
Two-color charge indicator LED - Green for Charged; Flashing Green for 90% charged; Red for Charging
XLR and ¼" output connectors
Lightweight, durable construction

Transmitter

Automatically links with GLX-D wireless receivers for seamless frequency changing
Sophisticated design with rugged metal construction
Easily accessible on / off switch
Locking TQG connection for use with Shure lavalier, headset, earset, and instrument microphones and guitar cables

Tuning Bandwidth	2400– 2483. 5 MHz
Working Range	Indoors Up to 30 m (100 ft ) typical , Up to 60 m (200 ft ) maximum; Outdoors Up to 20 m (65 ft ) typical , Up to 50 m (165 ft) maximum
Transmit Mode	Frequency Hopping
Audio Frequency Response	20 Hz – 20 kHz (Note: Dependent on microphone type)
Dynamic Range	120 dB , A-weighted
RF Sensitivity	-88 dBm , typical
Dimensions (H x W x D)	40 x 183 x 117 mm (1. 6 x 7. 2 x 4. 6 in. )
Weight	286 g (10. 1 oz. ) without batteries
Housing	Molded Plastic
Power Requirements	14 to 18 V DC (Tip positive with respect to ring ), 550 mA
Spurious Rejection	> 35 dB , typical
Gain Adjustment Range	-20 to 40 dB in 1 dB steps
Phantom Power Protection	Yes
XLR Output	Impedance balanced
6.35 mm (1/4") Output	Impedance balanced
XLR Output	100 Ohm
6.35 mm (1/4") Output	100 Ohm (50 Ohm, Unbalanced )
XLR Connector (into 600 Ohm Load)	+1 dBV
6.35 mm (1/4") Connector (Into 3k Ohm Load )	+8. 5 dBV
XLR Output	1=ground, 2=hot, 3=cold
6.35 mm (1/4") Connector	Tip=audio, Ring=no audio, Sleeve=ground
Receiver Antenna Input Impedance	50 Ohm
Antenna Type	½ Wave Sleeve Dipole , non-removable
Maximum Input Level	-20 dBm

Transmitter

Battery Life	Up to 16 hours
Battery Requirements	Shure lithium-ion rechargeable batteries
Typical Operating Distance	Indoors: Up to 100 feet (30 m) typical, with a maximum of 200 feet (60 m) under ideal conditions. Outdoors: Up to 65 feet (20 m) typical, with a maximum of 165 feet (50 m) under ideal conditions.

(1) Shure GLXD4 Wireless Receiver
(1) Shure GLXD1 Bodypack Transmitter
(1) Lavalier Microphone
(1) SB902 Lithium Ion Rechargable Battery
(1) USB cable
(1) Power Supply
(1) Carrying Case
(1) Operator's Instructions

Microphone Options

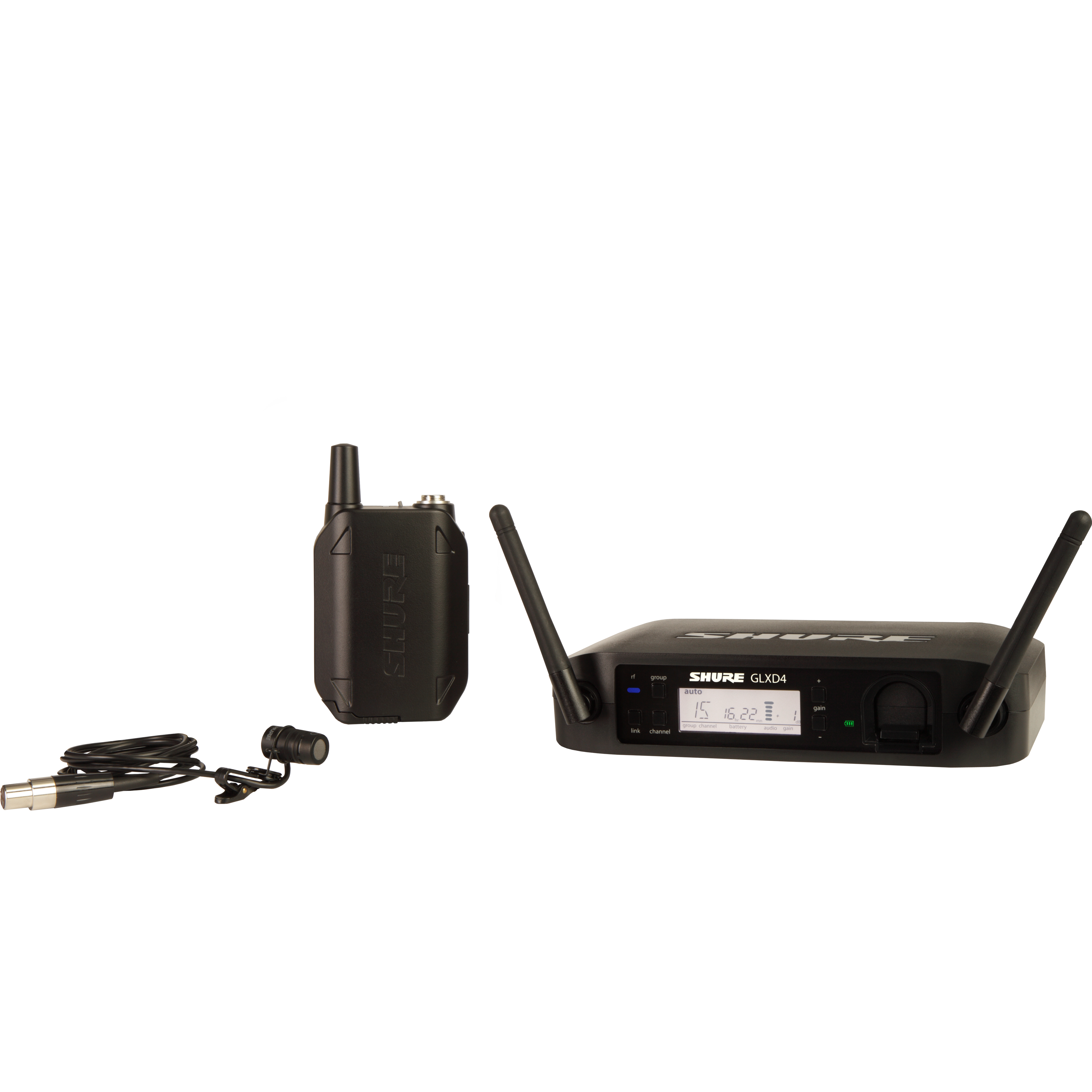

WL185

Recommended for general purpose sound reinforcement applications requiring good rejection of ambient noise, the WL185 is a cardioid lavalier microphone with a 130 degree pickup angle. It has a 1.2 meter (4 ft.) cable terminated with a miniature 4-pin mini connector. Included tie clip can be rotated in 90 degree intervals for placement flexibility. Use of windscreen highly recommended.

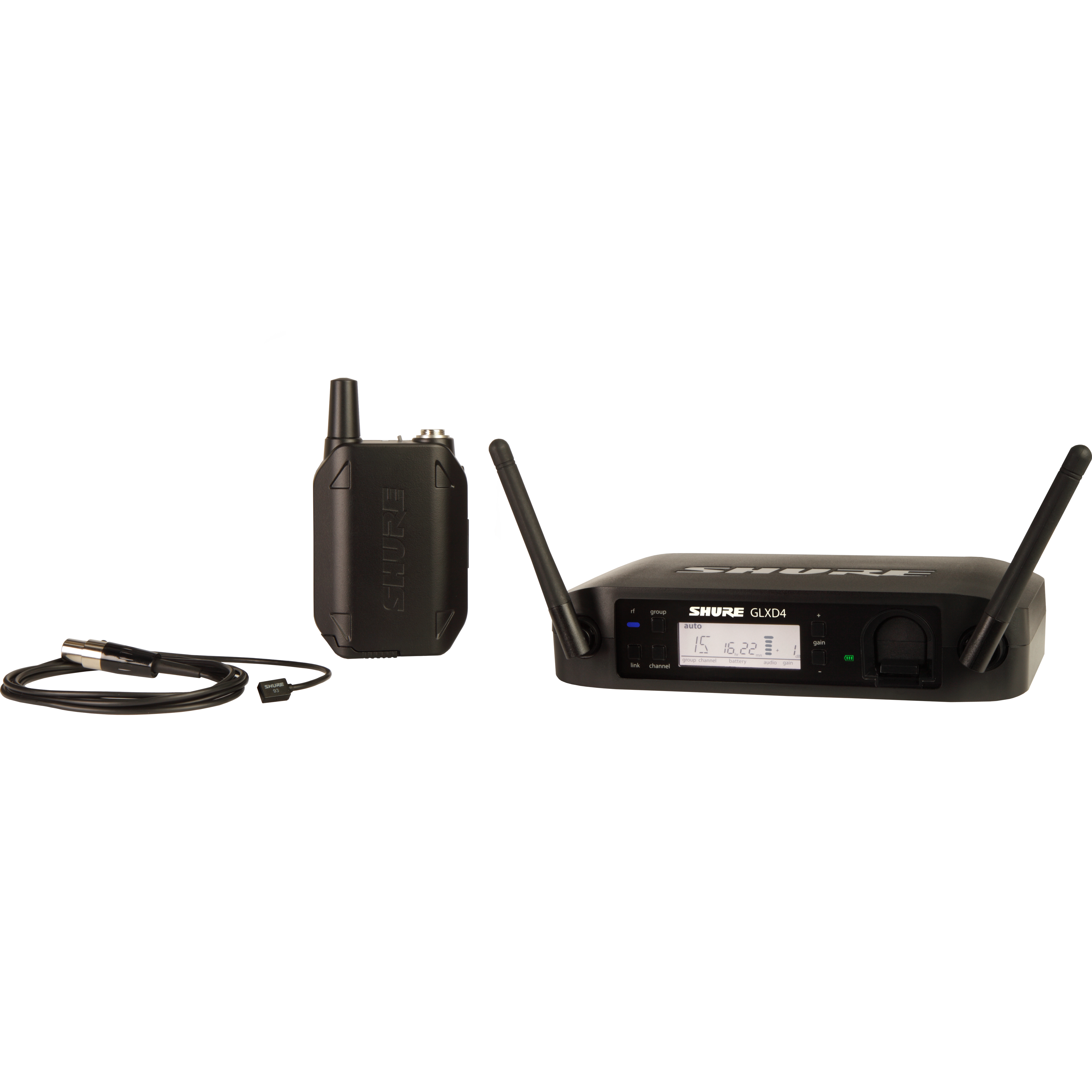

WL93

Most economical omnidirectional, subminiature, lavalier, condenser microphones designed for general speech applications where a visually unobtrusive microphone is desirable.

All WL93 models are supplied with a mounting block with attached tie bar, a sew-on mounting bracket, and an acoustic windscreen to minimize wind noise in outdoor applications.

All WL93 models include a cable terminated with a 4-pin mini connector which connects directly to a Shure wireless body-pack transmitter.
