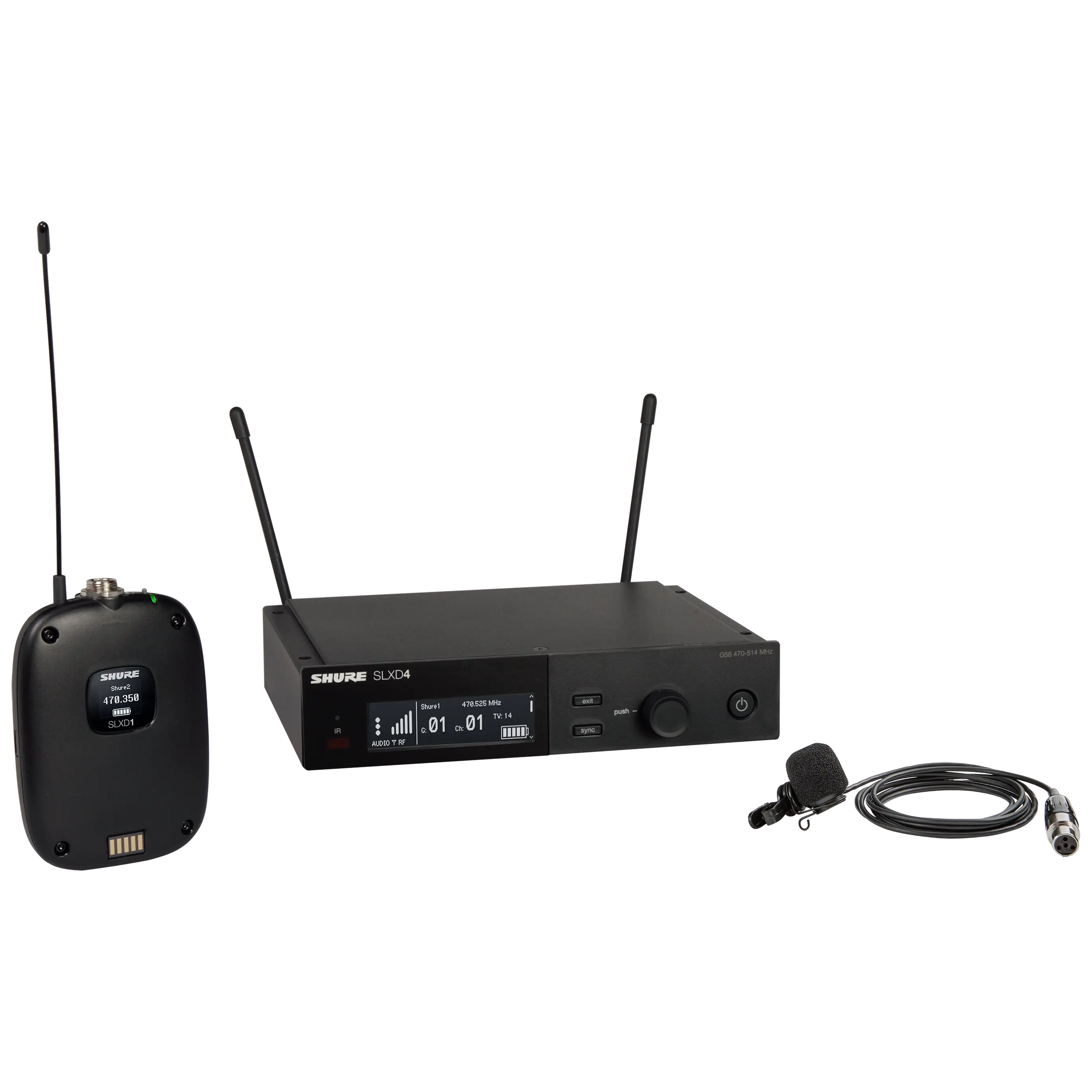

Shure SLXD14/85M Wireless Lavalier Microphone System
0%, only 8 left
Shure SLXD14/85M Wireless Lavalier Microphone System

Shure SLXD14/85M Wireless Lavalier Microphone System

    Product SKU # 34126
['{"currentVariantId":"44361483419816","currentType":"single_line_text_field","currentKey":"variation_sku","currentProps":{"badgeWidth":28,"badgeHeight":28,"showDate":true,"dateFormat":"%m-%d-%Y","showTime":true,"timeFormat":"%I:%M %p","showTimezone":true,"showUnit":true,"showMaxScale":true,"trueValText":"TRUE","falseValText":"FALSE","linkToUrl":true,"linkText":null}}',[{"variation_sku":"Product SKU # 34126"},{"id":53435956068520,"title":"G58 (470-514 MHz)","option1":"G58 (470-514 MHz)","option2":null,"option3":null,"sku":"34126","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Shure SLXD14\/85M Wireless Lavalier Microphone System - G58 (470-514 MHz)","public_title":"G58 (470-514 MHz)","options":["G58 (470-514 MHz)"],"price":86900,"weight":3743,"compare_at_price":null,"inventory_management":"shopify","barcode":"042406852159","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},], [{"variation_sku":"Product SKU # 29338"},{"id":53435956101288,"title":"H55 (514-558 MHz)","option1":"H55 (514-558 MHz)","option2":null,"option3":null,"sku":"29338","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Shure SLXD14\/85M Wireless Lavalier Microphone System - H55 (514-558 MHz)","public_title":"H55 (514-558 MHz)","options":["H55 (514-558 MHz)"],"price":86900,"weight":3232,"compare_at_price":null,"inventory_management":"shopify","barcode":"042406852180","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},], [{"variation_sku":"Product SKU # 34127"},{"id":53435956134056,"title":"J52 (558-616 MHz)","option1":"J52 (558-616 MHz)","option2":null,"option3":null,"sku":"34127","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Shure SLXD14\/85M Wireless Lavalier Microphone System - J52 (558-616 MHz)","public_title":"J52 (558-616 MHz)","options":["J52 (558-616 MHz)"],"price":86900,"weight":3232,"compare_at_price":null,"inventory_management":"shopify","barcode":"042406852210","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},], ]
$869.00
1.png__PID:7af1a3fd-a98e-4384-a357-aae772061f43
FREE SHIPPING
2.png__PID:f1a3fda9-8e83-44e3-97aa-e772061f434b

EXPERT SUPPORT

Copy of Untitled Design.png__PID:a98e8384-e357-4ae7-b206-1f434b4f7c25

HASSLE FREE RETURNS

Have a question?

Need help finding something?

Talk to a PRO

855-772-2937

CHRISTIAN.png__PID:56b62e6c-9b7a-4608-a7da-0056a14b24c8
SCHEDULE A DEMO TODAY
DESCRIPTION

The SLXD14/85M Wireless System delivers transparent, 24-bit digital audio and rock-solid RF performance for a wide range of applications, from day-long presentations to nighttime performances. Operate up to 32 compatible systems per 44 MHz band, with easy setup and optional rechargeability accessories for wireless excellence, wherever required. Ships with SLXD4 single-channel receiver, SLXD1 bodypack transmitters and WL185m Cardioid Lavalier Microphone with antenna and rackmount accessories and 2 AA batteries.

FEATURES
    • SLXD1
    • Transparent 24-bit digital audio
    • Extended 20 Hz to 20 kHz frequency range (microphone dependent)
    • 120 dB dynamic range
    • Digital predictive switching diversity
    • Operating range of 100 m (300 ft.)
    • 44 MHz tuning bandwidth (region dependent)
    • 32 available channels per frequency band (region dependent)
    • Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
    • Easy pairing of transmitters and receivers over IR scan and sync
    • Up to 8 hours from 2 AA batteries. Upgrade to the optional Shure SB903 Lithium-ion rechargeable battery to monitor battery charge status in hours and minutes, as well as battery life and health statistics.
    • Choice of instrument cable or lavalier, headworn and instrument microphones
    • Ergonomic and durable plastic construction
    • SLXD4
    • Transparent 24-bit digital audio
    • Extended 20 Hz to 20 kHz frequency range (microphone dependent)
    • 120 dB dynamic range
    • Digital predictive switching diversity
    • 44 MHz tuning bandwidth (region dependent)
    • 32 available channels per frequency band (region dependent)
    • Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
    • Easy pairing of transmitters and receivers over IR scan and sync
    • Up to 8 hours from 2 AA batteries or optional Shure SB903 rechargeable battery
    • Interchangeable microphone capsules
    • Rugged metal construction
    • WL 185m
    • Professional low-profile lavalier condenser microphones
    • Cardioid (WL185m)
    • 8 mm shorter than original WL18X series
    • Higher dynamic range with improved max SPL, self-noise, and general sound quality when compared to original WL18X series
    • Available in either black or white colors to suit various situations
    • Available in either TA4F or LEMO connector options
    • ips with lavalier, tie clip, snap-fit foam windscreen, and zippered storage bag

SPECIFICATIONS
    • SLXD1
    • Battery Type: Rechargeable Li-Ion or 1.5 V AA batteries
    • Housing: PC/ABS
    • AUDIO INPUT:
    • Connector: 4-Pin male mini connector (TA4M)
    • Configuration: Unbalanced
    • Impedance: 1 MO
    • Maximum Input Level: 8.2 dBV
    • Vpp) Preamplifier Equivalent Input Noise (EIN): –118 dBV
    • RF OUTPUT:
    • Antenna Type: 1/4 Wave
    • Occupied Bandwidth: <200 kHz
    • Modulation Type: Shure Propietary Digital
    • Power: 1 mW/10 mW
    • SLXD4
    • RF:
    • RF Carrier Frequency Range: 470–937.5 MHz
    • Working Range: 100 m (328 ft)
    • RF Tuning Step Size: JB Band: 125 kHz; All Other Bands: 25 kHz
    • Image Rejection: >70 dB
    • RF Sensitivity: -97 dBm at 10-5 BER
    • Audio:
    • Latency: 3.2 ms
    • Audio Frequency Response: 20 Hz–20 kHz (+1, -2 dB)
    • Audio Dynamic Range A-weighted, typical: 120 dB
    • Total Harmonic Distortion: <0.02%
    • System Audio Polarity: XLR: Positive pressure on microphone diaphragm produces positive voltage on pin 2 with respect to pin 3 of XLR output. TRS: Positive pressure on microphone diaphragm produces positive voltage on the tip of the 6.35 mm (1/4-inch) with respect to the ring of the 6.35 mm output.
    • Mic Offset Range: 0 to 21 dB (in 3 dB steps)
    • RF Input:
    • Spurious Rejection: >75 dB
    • Connector Type: BNC
    • Impedance: 50 O
    • Audio Output:
    • Gain Adjustment Range: –18 to +42 dB in 1 dB steps
    • Configuration: 1/4" (6.35 mm): Balanced (Tip=audio +, Ring=audio –, Sleeve=ground) XLR: Balanced (1=ground, 2=audio +, 3=audio –)
    • Impedance: 1/4" (6.35 mm): 1.3 kO (670 O Unbalanced) XLR (line): 400 O (200 O Unbalanced) XLR (mic): 150 O
    • Full Scale Output: 1/4" (6.35 mm): +15 dBV differentially (+9 dBV single) XLR (LINE setting): +15 dBV XLR (MIC setting): –15 dBV
    • Mic/Line Switch: 30 dB pad
    • Phantom Power Protection: 1/4" (6.35 mm): Yes XLR: Yes
    • Networking:
    • Network Interface: Single Port Ethernet 10/100 Mbps
    • Network Addressing Capability: DHCP or Manual IP address
    • Maximum Cable Length: 100 m (328 ft)
    • WL 185m
    • Microphone Capsule: Condenser
    • Polar Pattern: Cardioid
    • Frequency Response: 70 Hz – 20 kHz
    • Sensitivity 1 Pa = 94 dB SPL: -43.0 dBV/Pa (TA4F) -37.0 dBV/Pa (LEMO)
    • Self-Noise A-Weighted, Equivalent Acoustical: 20 dB SPL (TA4F) 19.5 dB SPL (LEMO)
    • Signal-to-Noise Ratio (Using RPM400 Preamp): 74.0 dB (TA4F) 74.5 dB (LEMO)
    • Maximum SPL (1% THD): 140.5 dB SPL (TA4F) 134 dB SPL (LEMO)
    • Dynamic Range: 120.5 DB (TA4F) 114.5 dB (LEMO)
    • Microphone Current Draw: 140-240 µA
    • Bias Voltage Recommended Operating Voltage: 5 VDC Bias
    • Polarity: Positive pressure produces positive voltage on pin 3 with respect to pin 1
    • Housing: Aluminum Alloy
    • Cable Diameter: 2.2 mm
    • Cable Length: 48.5” (1.23 m)
    • Net Weight w/Cable: 20.0 g (.71 oz)
    • Capsule Dimensions (L x D): 13.55 mm x 12.74 mm
CONTENTS
    (1) Shure SLXD4 Single-Channel Receiver
    (1) Shure SLXD1 Bodypack Transmitter
    (1) Shure WL185 Lavalier Microphone
    (1) Rackmount Accessories
    (2) AA Batteries
