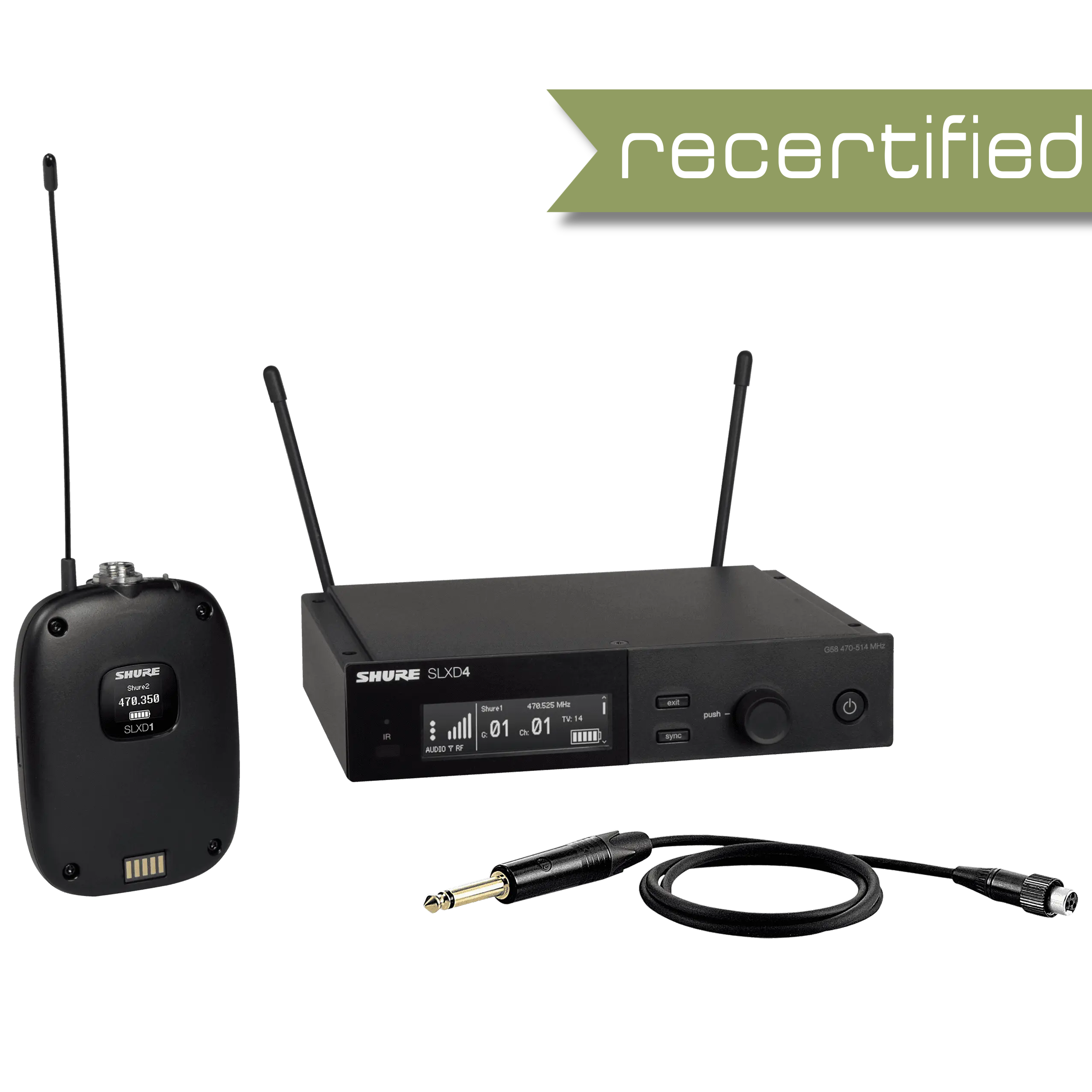

Shure SLXD14-G58 Wireless Guitar System
19%, only 0 left
Shure SLXD14-G58 Wireless Guitar System
Product SKU
    31740

Shure SLXD14-G58 Wireless Guitar System

$549.99

PICK UP TODAY

recertified+.png__PID:7672a0bd-1cf7-4ba8-9841-5171b10f1ebf
  • Like New Condition
  • Original Packaging
  • Full Factory Warranty

Have a question?

Need help finding something?

Talk to a PRO

855-772-2937

_EBP9032_SQ.jpeg__PID:828e756e-5126-4f82-9136-2bf92b17727c

Expertly tested refurbished and open box products

Backed by the BYFP satisfaction guarantee

Copy of Untitled Design (3).png__PID:0d4aaa6e-815d-4b5a-879b-7bd16634732b

Free Shipping

1.png__PID:3c5bc891-9c7e-4dda-94a6-30ba47708c69

Professionally Inspected

2.png__PID:5bc8919c-7ecd-4a14-a630-ba47708c69eb

Satisfaction Guaranteed

3.png__PID:c8919c7e-cdda-44a6-b0ba-47708c69eb73

Expert Support

DESCRIPTION

The Shure SLXD14 Wireless Guitar System is a professional-grade digital wireless solution designed for guitarists, bassists, and other stringed instrument players seeking reliable performance and pristine audio quality on stage or in the studio. Operating in the UHF band with Shure’s SLX-D digital technology, it delivers crystal-clear 24-bit audio with an extended frequency response, ensuring every nuance of your playing is accurately captured. The system includes the rugged SLXD1 bodypack transmitter, a WA305 premium instrument cable for secure and noise-free connection to your instrument, and the SLXD4 single-channel digital receiver with an easy-to-read LCD screen, intuitive menu navigation, and versatile connectivity options. With up to 120 dB dynamic range, low latency, and the ability to operate over 32 channels per frequency band, the SLXD14 provides rock-solid RF stability and up to 8 hours of continuous use on two AA batteries or optional rechargeable packs, making it an ideal choice for touring musicians, worship teams, and professional live performances.

FEATURES
    • Transparent 24-bit digital audio
    • Extended 20 Hz to 20 kHz frequency range (microphone dependent)
    • 120 dB dynamic range
    • Digital predictive switching diversity
    • 44 MHz tuning bandwidth (region dependent)
    • 32 available channels per frequency band (region dependent)
    • Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
    • Easy pairing of transmitters and receivers over IR scan and sync
    • Up to 8 hours from 2 AA batteries or optional Shure SB903 rechargeable battery
    • Interchangeable microphone capsules
    • Rugged metal construction
SPECIFICATIONS
    • RF:
    • RF Carrier Frequency Range: 470–937.5 MHz
    • Working Range: 100 m (328 ft)
    • RF Tuning Step Size: JB Band: 125 kHz; All Other Bands: 25 kHz
    • Image Rejection: >70 dB
    • RF Sensitivity: -97 dBm at 10-5 BER
    • Audio:
    • Latency: 3.2 ms
    • Audio Frequency Response: 20 Hz–20 kHz (+1, -2 dB)
    • Audio Dynamic Range A-weighted, typical: 120 dB
    • Total Harmonic Distortion: <0.02%
    • System Audio Polarity: XLR: Positive pressure on microphone diaphragm produces positive voltage on pin 2 with respect to pin 3 of XLR output. TRS: Positive pressure on microphone diaphragm produces positive voltage on the tip of the 6.35 mm (1/4-inch) with respect to the ring of the 6.35 mm output.
    • Mic Offset Range: 0 to 21 dB (in 3 dB steps)
    • RF Input:
    • Spurious Rejection: >75 dB
    • Connector Type: BNC
    • Impedance: 50 O
    • Audio Output:
    • Gain Adjustment Range: –18 to +42 dB in 1 dB steps
    • Configuration: 1/4" (6.35 mm): Balanced (Tip=audio +, Ring=audio –, Sleeve=ground) XLR: Balanced (1=ground, 2=audio +, 3=audio –)
    • Impedance: 1/4" (6.35 mm): 1.3 kO (670 O Unbalanced) XLR (line): 400 O (200 O Unbalanced) XLR (mic): 150 O
    • Full Scale Output: 1/4" (6.35 mm): +15 dBV differentially (+9 dBV single) XLR (LINE setting): +15 dBV XLR (MIC setting): –15 dBV
    • Mic/Line Switch: 30 dB pad
    • Phantom Power Protection: 1/4" (6.35 mm): Yes XLR: Yes
    • Networking:
    • Network Interface: Single Port Ethernet 10/100 Mbps
    • Network Addressing Capability: DHCP or Manual IP address
    • Maximum Cable Length: 100 m (328 ft)
CONTENTS
    (1) Shure SLXD4 Single-Channel Receiver
    (1) Shure SLXD1 Bodypack Transmitter
    (1) Shure WA305 Premium Guitar/Bass Cable
    (1) Rackmount Accessories
    (2) AA Batteries
