Shure SLXD24/K8B Wireless Handheld Microphone System
0%, only 8 left
Shure SLXD24/K8B Wireless Handheld Microphone System

Shure SLXD24/K8B Wireless Handheld Microphone System

    Product SKU # 32483
['{"currentVariantId":"44361483419816","currentType":"single_line_text_field","currentKey":"variation_sku","currentProps":{"badgeWidth":28,"badgeHeight":28,"showDate":true,"dateFormat":"%m-%d-%Y","showTime":true,"timeFormat":"%I:%M %p","showTimezone":true,"showUnit":true,"showMaxScale":true,"trueValText":"TRUE","falseValText":"FALSE","linkToUrl":true,"linkText":null}}',[{"variation_sku":"Product SKU # 32483"},{"id":53494586474664,"title":"G58 (470-514 MHz)","option1":"G58 (470-514 MHz)","option2":null,"option3":null,"sku":"32483","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Shure SLXD24\/K8B Wireless Handheld Microphone System - G58 (470-514 MHz)","public_title":"G58 (470-514 MHz)","options":["G58 (470-514 MHz)"],"price":117900,"weight":3431,"compare_at_price":null,"inventory_management":"shopify","barcode":"042406558822","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},], [{"variation_sku":"Product SKU # 29758"},{"id":53494586507432,"title":"H55 (514-558 MHz)","option1":"H55 (514-558 MHz)","option2":null,"option3":null,"sku":"29758","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Shure SLXD24\/K8B Wireless Handheld Microphone System - H55 (514-558 MHz)","public_title":"H55 (514-558 MHz)","options":["H55 (514-558 MHz)"],"price":117900,"weight":3431,"compare_at_price":null,"inventory_management":"shopify","barcode":"042406558815","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},], [{"variation_sku":"Product SKU # 34136"},{"id":53494586540200,"title":"J52 (558-616 MHz)","option1":"J52 (558-616 MHz)","option2":null,"option3":null,"sku":"34136","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Shure SLXD24\/K8B Wireless Handheld Microphone System - J52 (558-616 MHz)","public_title":"J52 (558-616 MHz)","options":["J52 (558-616 MHz)"],"price":117900,"weight":3431,"compare_at_price":null,"inventory_management":"shopify","barcode":"042406558808","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},], ]
$1,179.00
1.png__PID:7af1a3fd-a98e-4384-a357-aae772061f43
FREE SHIPPING
2.png__PID:f1a3fda9-8e83-44e3-97aa-e772061f434b

EXPERT SUPPORT

Copy of Untitled Design.png__PID:a98e8384-e357-4ae7-b206-1f434b4f7c25

HASSLE FREE RETURNS

Have a question?

Need help finding something?

Talk to a PRO

855-772-2937

CHRISTIAN.png__PID:56b62e6c-9b7a-4608-a7da-0056a14b24c8
SCHEDULE A DEMO TODAY
DESCRIPTION

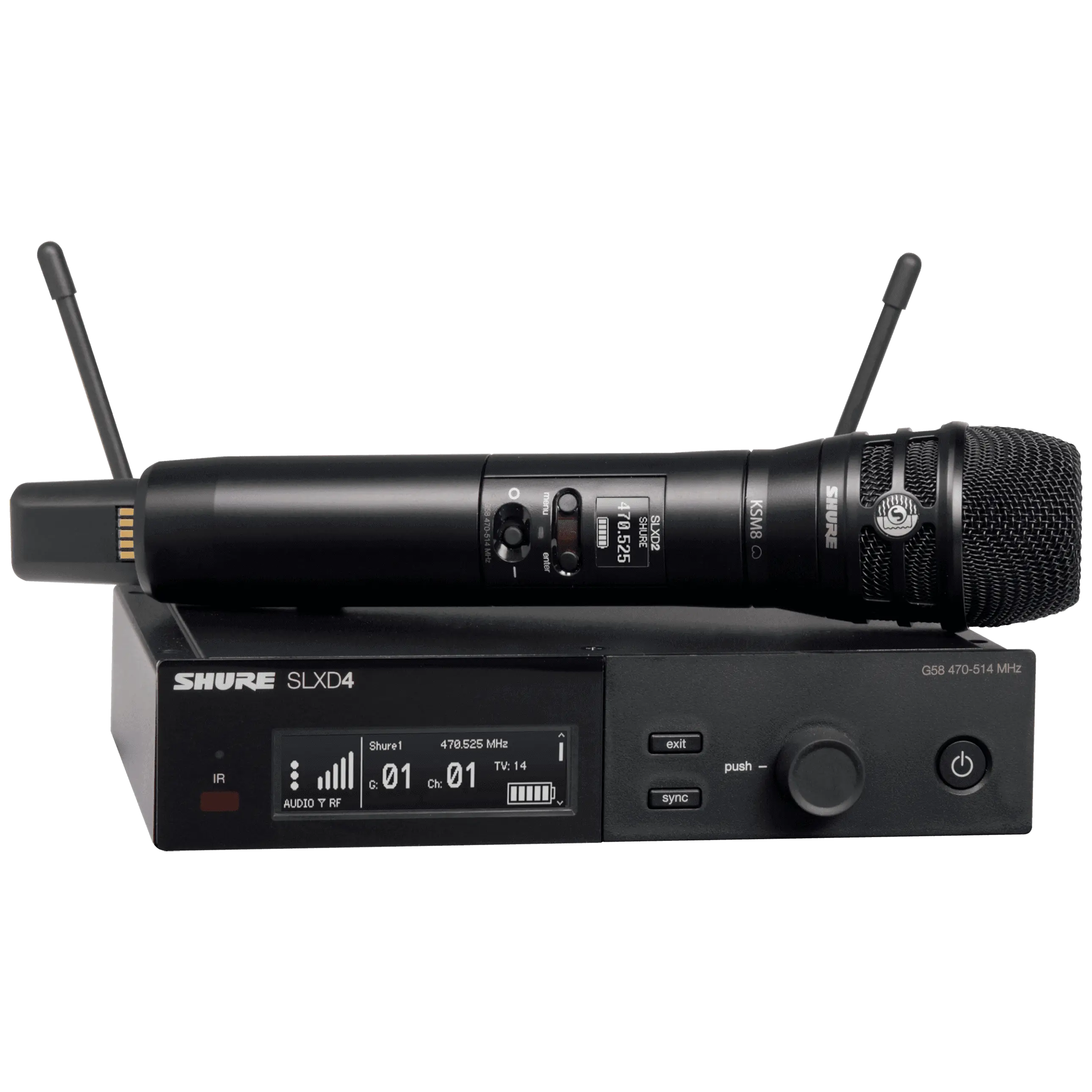

The SLXD24/K8B Wireless System delivers transparent, 24-bit digital audio and rock-solid RF performance for a wide range of applications, from day-long presentations to nighttime performances. Operate up to 32 compatible systems per 44 MHz band, with easy setup and optional rechargeability accessories for wireless excellence, wherever required. Ships with SLXD4 single-channel receiver and SLXD2/K8B handheld transmitters with antenna and rackmount accessories and 2 AA batteries.

FEATURES
    • SLXD2/K8
    • Transparent 24-bit digital audio
    • Extended 20 Hz to 20 kHz frequency range (microphone dependent)
    • 120 dB dynamic range
    • Digital predictive switching diversity
    • 44 MHz tuning bandwidth (region dependent)
    • 32 available channels per frequency band (region dependent)
    • Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz bandv
    • Easy pairing of transmitters and receivers over scan and IR sync
    • Up to 8 hours from 2 AA batteries or optional Shure SB903 rechargeable battery
    • Interchangeable microphone capsules
    • Rugged metal construction
    • SLXD4
    • Transparent 24-bit digital audio
    • Extended 20 Hz to 20 kHz frequency range (microphone dependent)
    • 120 dB dynamic range
    • Digital predictive switching diversity
    • 44 MHz tuning bandwidth (region dependent)
    • 32 available channels per frequency band (region dependent)
    • Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
    • Easy pairing of transmitters and receivers over IR scan and sync
    • Up to 8 hours from 2 AA batteries or optional Shure SB903 rechargeable battery
    • Interchangeable microphone capsules
    • Rugged metal construction
SPECIFICATIONS
    • SLXD2/K8
    • Battery Type: Rechargeable Li-Ion or 1.5 V AA batteries
    • Dimensions: (Dia. × L) 1.46 × 6.93 in (37.1 × 176 mm)
    • Weight: 5.2 oz. (147 g)
    • Housing: Aluminum
    • AUDIO INPUT:
    • Configuration: Unbalanced
    • Maximum Input Level: 8.2 dBV (2.57 Vrms, 7.27 Vpp) Note: Dependent on Microphone Type
    • RF OUTPUT:
    • Antenna Type: Integrated Single-Band Helical
    • Occupied Bandwidth: <200 kHz
    • Modulation Type: Shure Propietary Digital
    • Power: 1 mW/10 mW Varies by region. See Frequency Range and Output Power Table.
    • SLXD4
    • RF:
    • RF Carrier Frequency Range: 470–937.5 MHz
    • Working Range: 100 m (328 ft)
    • RF Tuning Step Size: JB Band: 125 kHz; All Other Bands: 25 kHz
    • Image Rejection: >70 dB
    • RF Sensitivity: -97 dBm at 10-5 BER
    • Audio:
    • Latency: 3.2 ms
    • Audio Frequency Response: 20 Hz–20 kHz (+1, -2 dB)
    • Audio Dynamic Range A-weighted, typical: 120 dB
    • Total Harmonic Distortion: <0.02%
    • System Audio Polarity: XLR: Positive pressure on microphone diaphragm produces positive voltage on pin 2 with respect to pin 3 of XLR output. TRS: Positive pressure on microphone diaphragm produces positive voltage on the tip of the 6.35 mm (1/4-inch) with respect to the ring of the 6.35 mm output.
    • Mic Offset Range: 0 to 21 dB (in 3 dB steps)
    • RF Input:
    • Spurious Rejection: >75 dB
    • Connector Type: BNC
    • Impedance: 50 O
    • Audio Output:
    • Gain Adjustment Range: –18 to +42 dB in 1 dB steps
    • Configuration: 1/4" (6.35 mm): Balanced (Tip=audio +, Ring=audio –, Sleeve=ground) XLR: Balanced (1=ground, 2=audio +, 3=audio –)
    • Impedance: 1/4" (6.35 mm): 1.3 kO (670 O Unbalanced) XLR (line): 400 O (200 O Unbalanced) XLR (mic): 150 O
    • Full Scale Output: 1/4" (6.35 mm): +15 dBV differentially (+9 dBV single) XLR (LINE setting): +15 dBV XLR (MIC setting): –15 dBV
    • Mic/Line Switch: 30 dB pad
    • Phantom Power Protection: 1/4" (6.35 mm): Yes XLR: Yes
    • Networking:
    • Network Interface: Single Port Ethernet 10/100 Mbps
    • Network Addressing Capability: DHCP or Manual IP address
    • Maximum Cable Length: 100 m (328 ft)
CONTENTS
    • (1) Shure SLXD4 Single-Channel Receiver
    • (1) Shure SLXD2/K8B Handheld Transmitter
    • (1) Rackmount Accessories
    • (2) AA Batteries
