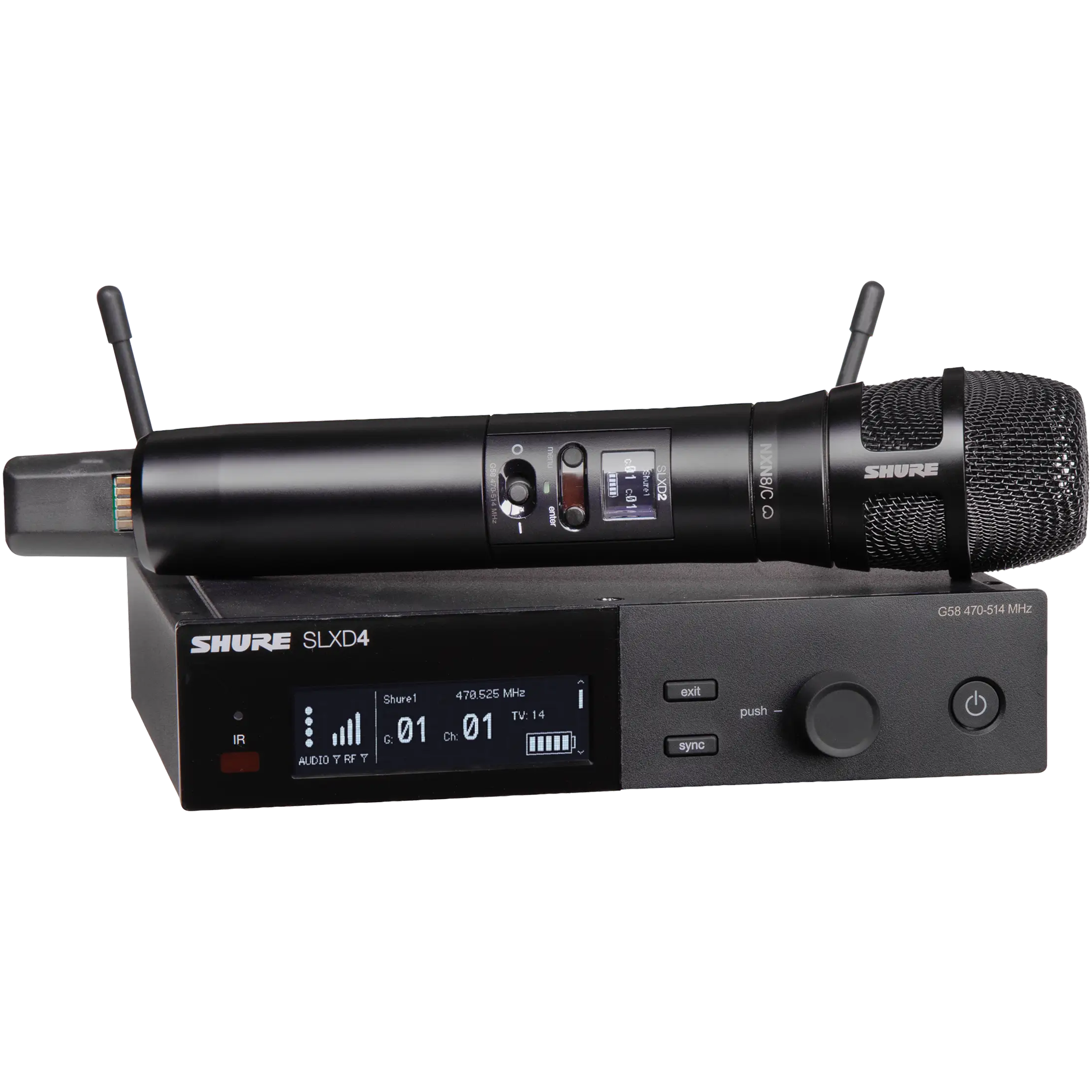

Shure SLXD24/N8CB Wireless Handheld Microphone System
0%, only 8 left
Shure SLXD24/N8CB Wireless Handheld Microphone System

Shure SLXD24/N8CB Wireless Handheld Microphone System

    Product SKU # 34137
['{"currentVariantId":"44361483419816","currentType":"single_line_text_field","currentKey":"variation_sku","currentProps":{"badgeWidth":28,"badgeHeight":28,"showDate":true,"dateFormat":"%m-%d-%Y","showTime":true,"timeFormat":"%I:%M %p","showTimezone":true,"showUnit":true,"showMaxScale":true,"trueValText":"TRUE","falseValText":"FALSE","linkToUrl":true,"linkText":null}}',[{"variation_sku":"Product SKU # 34137"},{"id":53495029530792,"title":"G58 (470-514 MHz)","option1":"G58 (470-514 MHz)","option2":null,"option3":null,"sku":"34137","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Shure SLXD24\/N8CB Wireless Handheld Microphone System - G58 (470-514 MHz)","public_title":"G58 (470-514 MHz)","options":["G58 (470-514 MHz)"],"price":98900,"weight":8137,"compare_at_price":null,"inventory_management":"shopify","barcode":"042406837835","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},], [{"variation_sku":"Product SKU # 34138"},{"id":53495029563560,"title":"H55 (514-558 MHz)","option1":"H55 (514-558 MHz)","option2":null,"option3":null,"sku":"34138","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Shure SLXD24\/N8CB Wireless Handheld Microphone System - H55 (514-558 MHz)","public_title":"H55 (514-558 MHz)","options":["H55 (514-558 MHz)"],"price":98900,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":"042406837866","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},], [{"variation_sku":"Product SKU # 34139"},{"id":53495029596328,"title":"J52 (558-616 MHz)","option1":"J52 (558-616 MHz)","option2":null,"option3":null,"sku":"34139","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Shure SLXD24\/N8CB Wireless Handheld Microphone System - J52 (558-616 MHz)","public_title":"J52 (558-616 MHz)","options":["J52 (558-616 MHz)"],"price":98900,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":"042406837897","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},], ]
$989.00
1.png__PID:7af1a3fd-a98e-4384-a357-aae772061f43
FREE SHIPPING
2.png__PID:f1a3fda9-8e83-44e3-97aa-e772061f434b

EXPERT SUPPORT

Copy of Untitled Design.png__PID:a98e8384-e357-4ae7-b206-1f434b4f7c25

HASSLE FREE RETURNS

Have a question?

Need help finding something?

Talk to a PRO

855-772-2937

CHRISTIAN.png__PID:56b62e6c-9b7a-4608-a7da-0056a14b24c8
SCHEDULE A DEMO TODAY
DESCRIPTION

The SLXD24/N8CB Wireless System delivers transparent, 24-bit digital audio and rock-solid RF performance for a wide range of applications, from day-long presentations to nighttime performances. Operate up to 32 compatible systems per 44 MHz band, with easy setup and optional rechargeability accessories for wireless excellence, wherever required. Ships with SLXD4 single-channel receiver and SLXD2/N8CB handheld transmitters, including the Nexadyne™ 8/C wireless capsule, with antenna and rackmount accessories and 2 AA batteries.

FEATURES
    • SLXD2/N8C
    • AES 256-bit encryption for applications for which secure transmission is needed
    • Proprietary Shure Gain Ranging optimizes the system’s dynamic range for any input source, eliminating the need for transmitter gain adjustments
    • Optional Shure SB900B lithium-ion rechargeable battery pack provides over 12 hours of battery life, precision metering in hours and minutes, and zero memory effect
    • External charging contacts for docked charging (with the SBC200 Dual Docking Charger)
    • Transmitter Mute Mode repurposes the On/Off switch into a mute switch, enabling audio muting while preserving RF channel presence
    • Backlit LCD with easy to navigate menu and controls
    • Rugged metal construction
    • Frequency and power lockout
    • The ULXD2/N8 Handheld Wireless Microphone Transmitter works with ULX-D Wireless Systems, and features the Nexadyne™ 8/C cardioid dynamic microphone with Revonic™ Transducer Technology.
    • SLXD4
    • Transparent 24-bit digital audio
    • Extended 20 Hz to 20 kHz frequency range (microphone dependent)
    • 120 dB dynamic range
    • Digital predictive switching diversity
    • 44 MHz tuning bandwidth (region dependent)
    • 32 available channels per frequency band (region dependent)
    • Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
    • Easy pairing of transmitters and receivers over IR scan and sync
    • Up to 8 hours from 2 AA batteries or optional Shure SB903 rechargeable battery
    • Interchangeable microphone capsules
    • Rugged metal construction
SPECIFICATIONS
    • SLXD2/N8C
    • Type: Dynamic (moving coil)
    • Polar Pattern: Cardioid
    • Frequency Response: 50 to 20,000 Hz
    • Output Impedance: 300 O
    • Sensitivity Open circuit voltage @1 kHz, typical: –54.0 dBV/Pa (2.00 mV) 1 Pa = 94 dB SPL
    • Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
    • Weight: 9.10 oz (258 g)
    • Connector: Three-pin professional audio (XLR), male
    • Housing: Die-cast aluminum with black paint
    • Capsule: Nexadyne 8/C Cardioid Dynamic Wireless Capsule for Shure Handheld Transmitters (Black)
    • SLXD 4
    • RF:
    • RF Carrier Frequency Range: 470–937.5 MHz
    • Working Range: 100 m (328 ft)
    • RF Tuning Step Size: JB Band: 125 kHz; All Other Bands: 25 kHz
    • Image Rejection: >70 dB
    • RF Sensitivity: -97 dBm at 10-5 BER
    • Audio:
    • Latency: 3.2 ms
    • Audio Frequency Response: 20 Hz–20 kHz (+1, -2 dB)
    • Audio Dynamic Range A-weighted, typical: 120 dB
    • Total Harmonic Distortion: <0.02%
    • System Audio Polarity: XLR: Positive pressure on microphone diaphragm produces positive voltage on pin 2 with respect to pin 3 of XLR output. TRS: Positive pressure on microphone diaphragm produces positive voltage on the tip of the 6.35 mm (1/4-inch) with respect to the ring of the 6.35 mm output.
    • Mic Offset Range: 0 to 21 dB (in 3 dB steps)
    • RF Input:
    • Spurious Rejection: >75 dB
    • Connector Type: BNC
    • Impedance: 50 O
    • Audio Output:
    • Gain Adjustment Range: –18 to +42 dB in 1 dB steps
    • Configuration: 1/4" (6.35 mm): Balanced (Tip=audio +, Ring=audio –, Sleeve=ground) XLR: Balanced (1=ground, 2=audio +, 3=audio –)
    • Impedance: 1/4" (6.35 mm): 1.3 kO (670 O Unbalanced) XLR (line): 400 O (200 O Unbalanced) XLR (mic): 150 O
    • Full Scale Output: 1/4" (6.35 mm): +15 dBV differentially (+9 dBV single) XLR (LINE setting): +15 dBV XLR (MIC setting): –15 dBV
    • Mic/Line Switch: 30 dB pad
    • Phantom Power Protection: 1/4" (6.35 mm): Yes XLR: Yes
    • Networking:
    • Network Interface: Single Port Ethernet 10/100 Mbps
    • Network Addressing Capability: DHCP or Manual IP address
    • Maximum Cable Length: 100 m (328 ft)
CONTENTS
    • (1) Shure SLXD4 Single-Channel Receiver
    • (1) Shure SLXD2/B58 Handheld Transmitter
    • (1) Rackmount Accessories
    • (2) AA Batteries
