Product SKU
    34363

ADJ Vizi Pix Z19

Product Short Title
    19×30W RGBL Pixel Wash Moving Head
$1,579.99

PICK UP TODAY

Quick & Complimentary Shipping

1.png__PID:7af1a3fd-a98e-4384-a357-aae772061f43

FREE SHIPPING

2.png__PID:f1a3fda9-8e83-44e3-97aa-e772061f434b

EXPERT SUPPORT

Copy of Untitled Design.png__PID:a98e8384-e357-4ae7-b206-1f434b4f7c25

HASSLE FREE RETURNS

Have a question?

Need help finding something?

Talk to a PRO

855-772-2937

_EBP8997_SQ_1.png__PID:e7077992-36de-44a6-a734-ae2d97143238

Related Products

BYFP ipCase for 12x PGA57/58 Wired Microphones
BYFP ipCase for 12x PGA57/58 Wired Microphones
BYFP ipCase for 12x PGA57/58 Wired Microphones
BYFP ipCase for 12x PGA57/58 Wired Microphones
BYFP ipCase for 12x PGA57/58 Wired Microphones
BYFP ipCase for 12x PGA57/58 Wired Microphones
BYFP ipCase for 12x PGA57/58 Wired Microphones
BYFP ipCase for 12x PGA57/58 Wired Microphones
BYFP ipCase for 12x PGA57/58 Wired Microphones
BYFP ipCase for 12x PGA57/58 Wired Microphones

BYFP ipCase for 12x PGA57/58 Wired Microphones

$149.99
BYFP ipCase for Shure SM7B Broadcast Pack
BYFP ipCase for Shure SM7B Broadcast Pack
BYFP ipCase for Shure SM7B Broadcast Pack
BYFP ipCase for Shure SM7B Broadcast Pack
BYFP ipCase for Shure SM7B Broadcast Pack
BYFP ipCase for Shure SM7B Broadcast Pack
BYFP ipCase for Shure SM7B Broadcast Pack
BYFP ipCase for Shure SM7B Broadcast Pack
BYFP ipCase for Shure SM7B Broadcast Pack
BYFP ipCase for Shure SM7B Broadcast Pack
BYFP ipCase for Shure SM7B Broadcast Pack
BYFP ipCase for Shure SM7B Broadcast Pack

BYFP ipCase for Shure SM7B Broadcast Pack

$349.99
BYFP ipCase for Beta 52A and Beta 91A Drum Microphones
BYFP ipCase for Beta 52A and Beta 91A Drum Microphones
BYFP ipCase for Beta 52A and Beta 91A Drum Microphones
BYFP ipCase for Beta 52A and Beta 91A Drum Microphones
BYFP ipCase for Beta 52A and Beta 91A Drum Microphones
BYFP ipCase for Beta 52A and Beta 91A Drum Microphones
BYFP ipCase for Beta 52A and Beta 91A Drum Microphones
BYFP ipCase for Beta 52A and Beta 91A Drum Microphones
BYFP ipCase for Beta 52A and Beta 91A Drum Microphones
BYFP ipCase for Beta 52A and Beta 91A Drum Microphones
BYFP ipCase for Beta 52A and Beta 91A Drum Microphones
BYFP ipCase for Beta 52A and Beta 91A Drum Microphones
BYFP ipCase for Beta 52A and Beta 91A Drum Microphones
BYFP ipCase for Beta 52A and Beta 91A Drum Microphones

BYFP ipCase for Beta 52A and Beta 91A Drum Microphones

$199.99
BYFP ipCase for Shure BETA 98AMP/C 3-Pack
BYFP ipCase for Shure BETA 98AMP/C 3-Pack
BYFP ipCase for Shure BETA 98AMP/C 3-Pack
BYFP ipCase for Shure BETA 98AMP/C 3-Pack
BYFP ipCase for Shure BETA 98AMP/C 3-Pack
BYFP ipCase for Shure BETA 98AMP/C 3-Pack
BYFP ipCase for Shure BETA 98AMP/C 3-Pack
BYFP ipCase for Shure BETA 98AMP/C 3-Pack
BYFP ipCase for Shure BETA 98AMP/C 3-Pack
BYFP ipCase for Shure BETA 98AMP/C 3-Pack
BYFP ipCase for Shure BETA 98AMP/C 3-Pack
BYFP ipCase for Shure BETA 98AMP/C 3-Pack
BYFP ipCase for Shure BETA 98AMP/C 3-Pack
BYFP ipCase for Shure BETA 98AMP/C 3-Pack

BYFP ipCase for Shure BETA 98AMP/C 3-Pack

$169.99

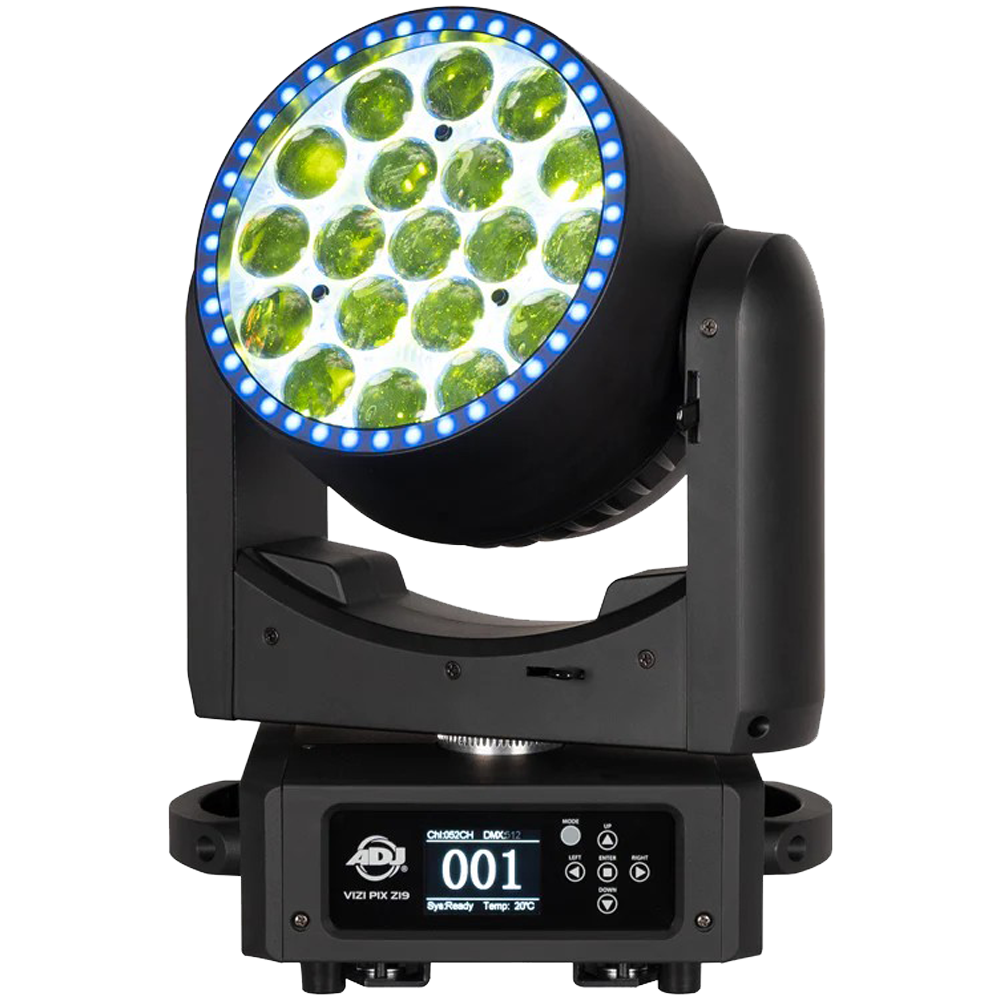

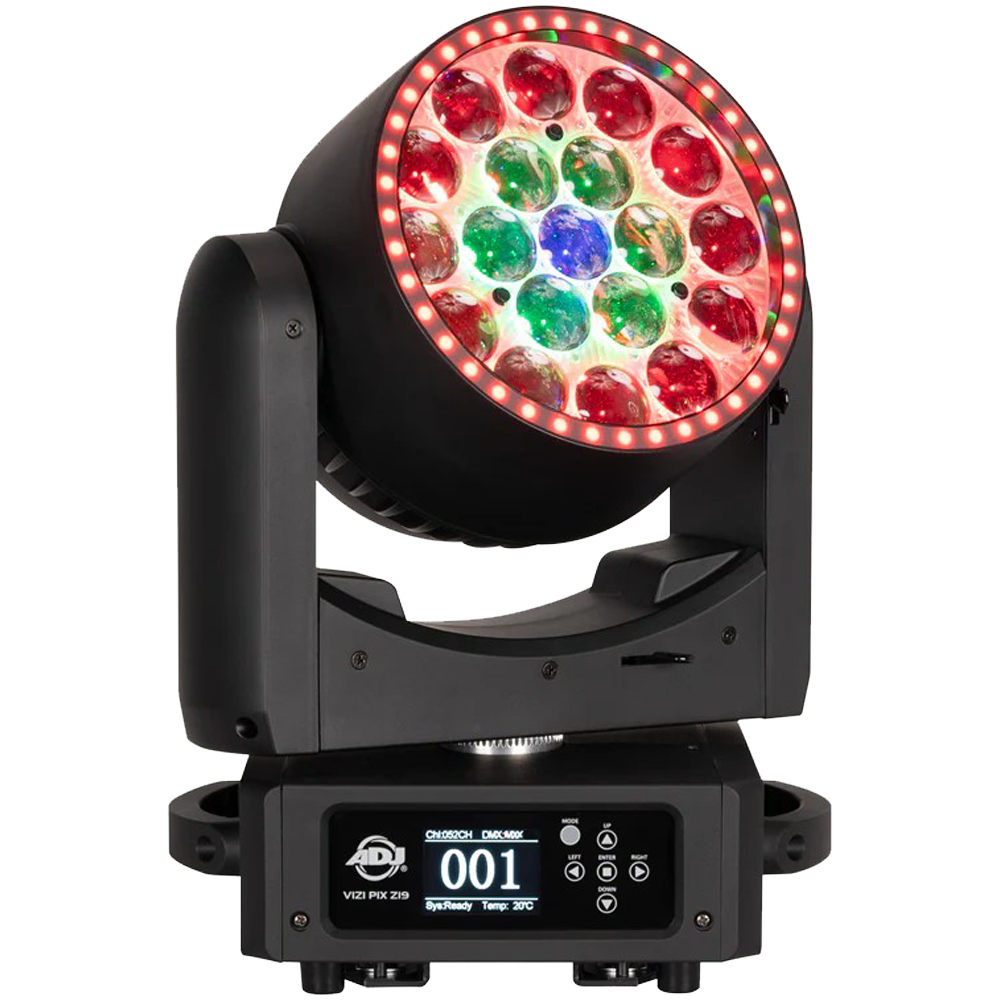

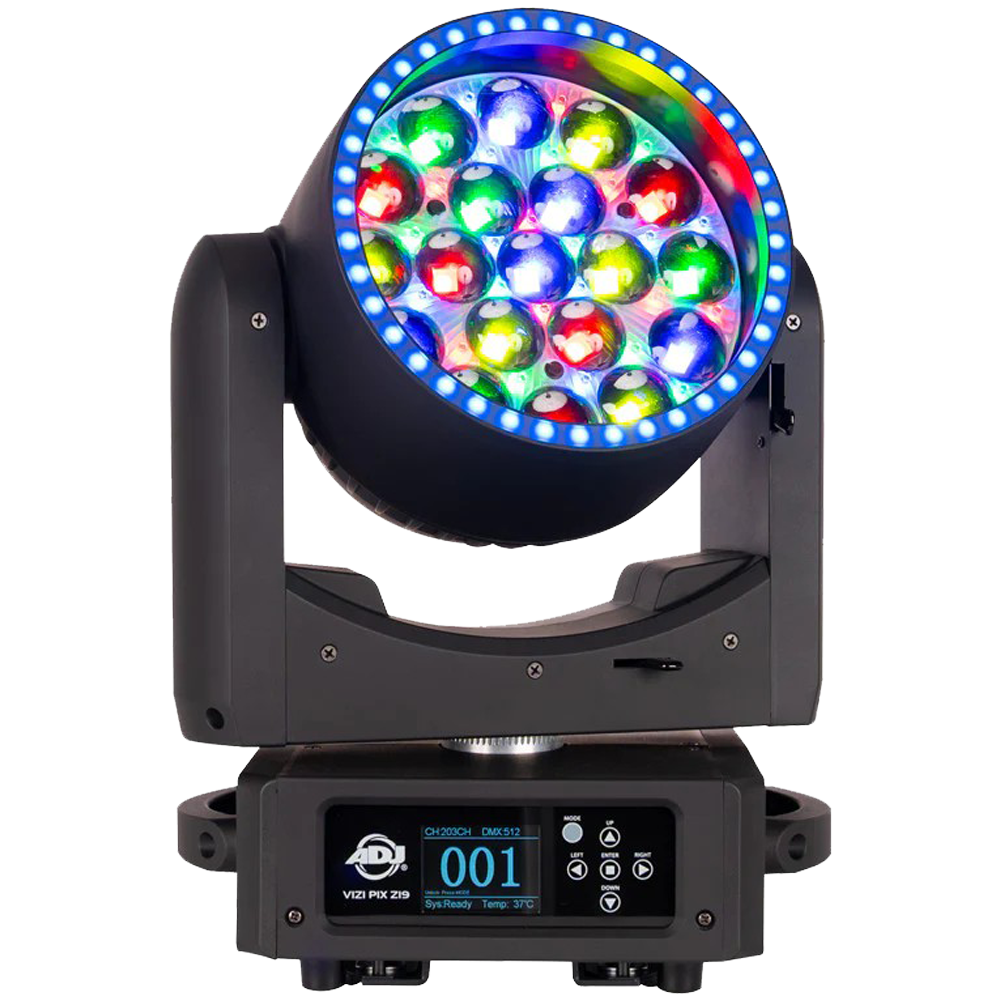

Vizi Pix Z19 is a high-performance moving head wash fixture engineered to deliver vibrant color effects and captivating visuals for professional stages and live events.

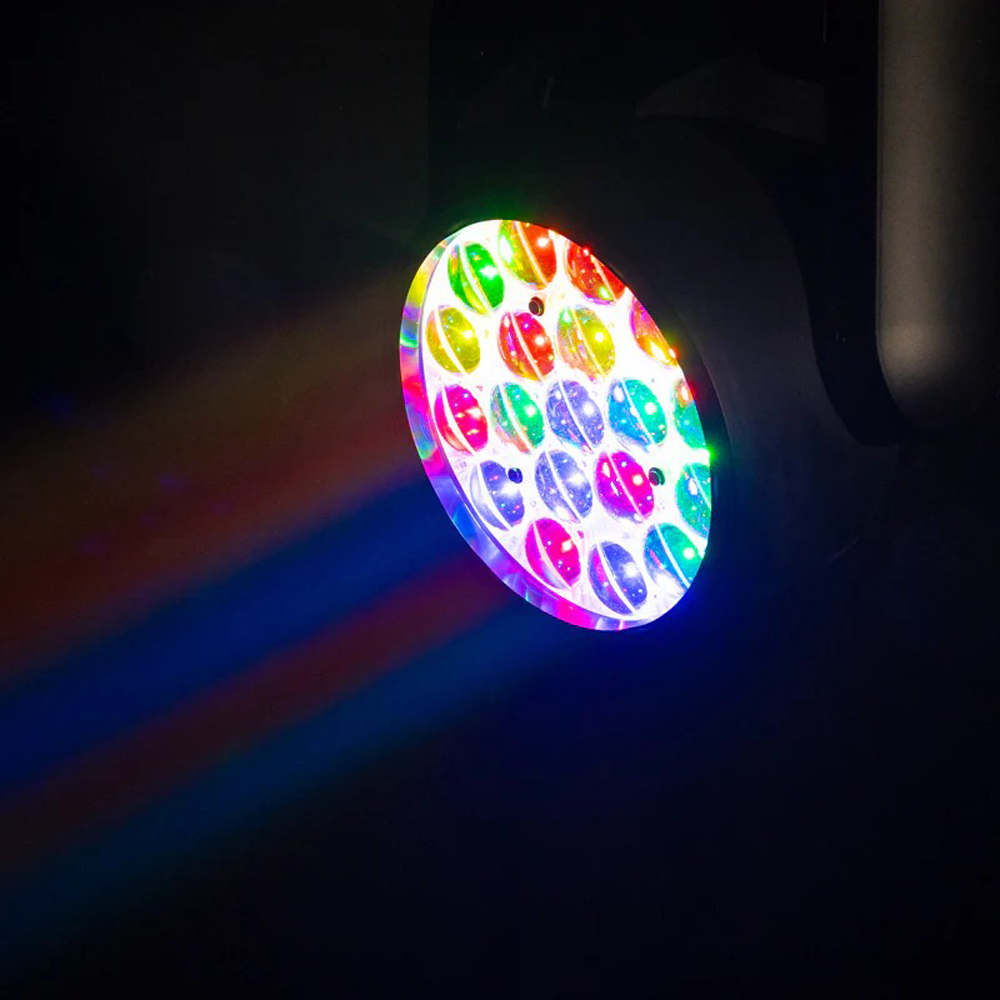

Equipped with nineteen 30-Watt RGBL LEDs, the fixture offers advanced virtual CMY color mixing, a wide motorized zoom range, and smooth electronic dimming, making it ideal for crafting everything from precise beams to expansive washes. Its dynamic design is enhanced by 30 RGB background LEDs and a 40-light RGB LED ring. Its foreground and background LEDs are fully pixel-mappable for complex patterns and dazzling effects. Built-in pixel effect programs and color macros further expand its creative possibilities.

Control options include DMX, Artnet, sACN, RDM, and the Aria X2 wireless system for seamless integration and over-the-air updates. Adjustable dim curves, selectable LED refresh rates, and a white color temperature range from 2,700K to 10,000K ensure flexibility across diverse environments, from live performances to broadcast studios.

With robust pan/tilt locks, durable Seetronic power and data connections, and a lightweight, low-maintenance build, the Vizi Pix Z19 is the ultimate tool for creating striking, professional-grade lighting displays with unmatched precision and versatility.

FEATURES
    • Moving Light Pixel Wash with Effects
    • Individual Pixel Control (Foreground & Background LEDs)

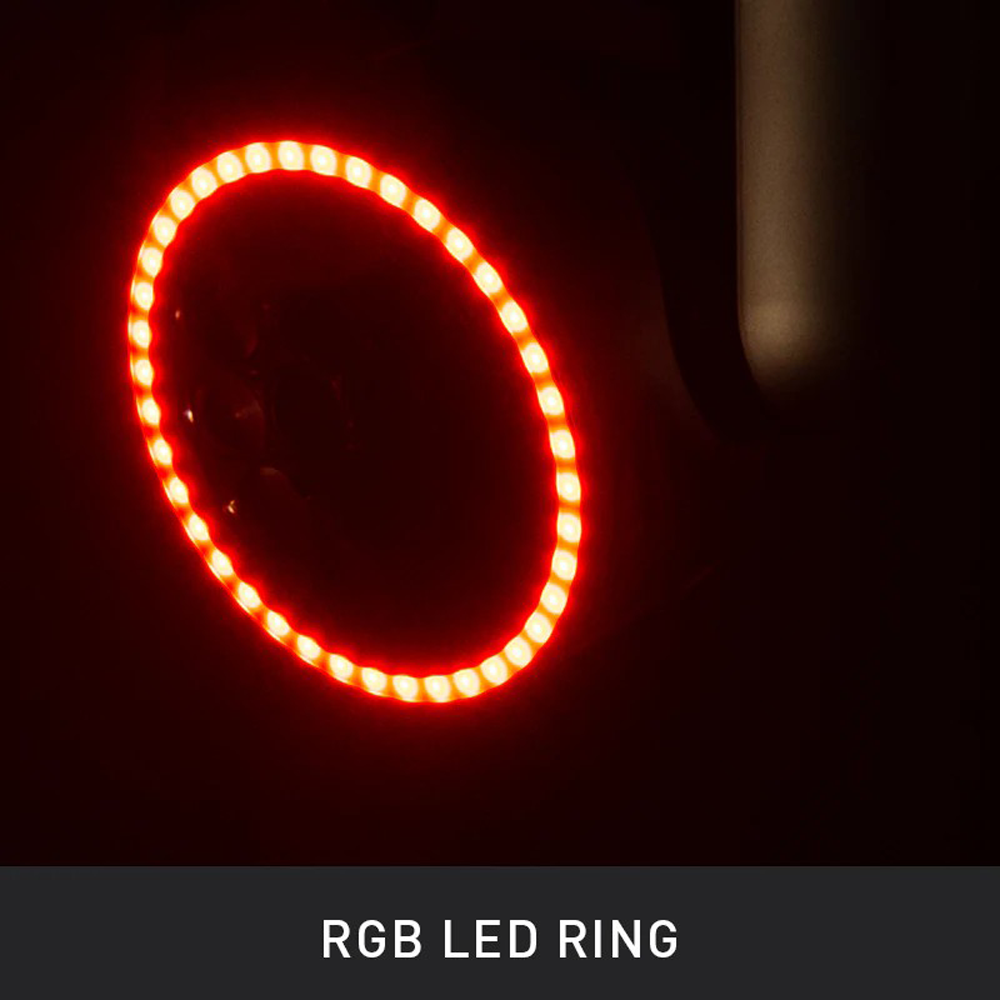

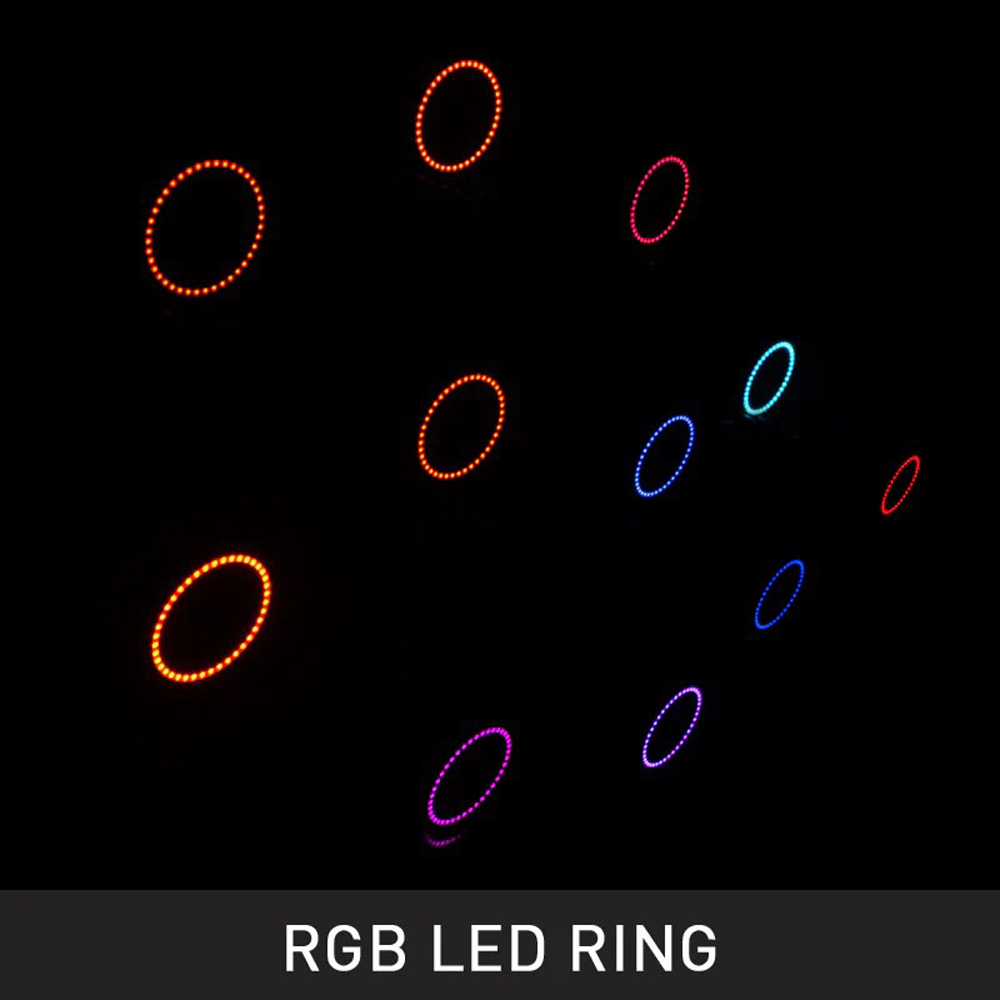

    • RGB LED Ring
    • Built-In Pixel Effect Programs
    • Aria X2 Wireless Management System
    • Electronic Strobe / Dimmer
    • Pan/Tilt: 630/540 x 270

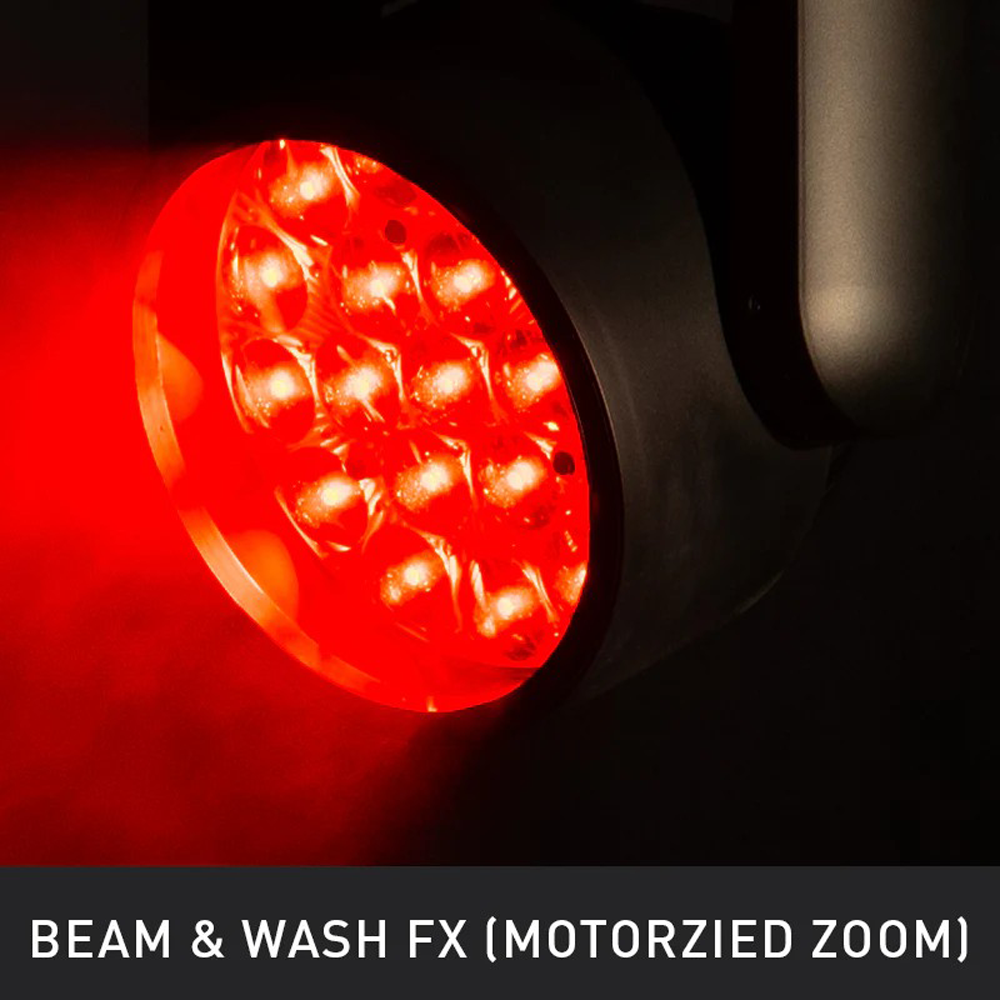

    • Motorized Zoom
    • Color Calibrated Pixels so units match from batch to batch
    • Virtual CMY DMX Control Modes
    • Virtual Foreground and Background Color Wheel Control
    • Selectable LED Refresh Rates (900 Hz~25K Hz)
    • Selectable Dim Modes: Standard, Stage, TV, Arch., Theatre, Stage 2 and user settable Dim Speed (0.1S~10S)
    • 4 Dim Curves: Square, Linear, Inv. Square and S. Curve
    • 0-100% smooth dimming
    • Fan Cooled
SPECIFICATIONS
    • Optical (Foreground LEDs): 19x 30W RGBL (4-IN-1)
    • Average LED Life: 30,000 Hour
    • CRI: 86
    • Lux: 15,000 (Zoomed In to 7° @ 5 meters)
    • Beam Angle: 7° to 42°
    • Field Angle: 9° to 60°

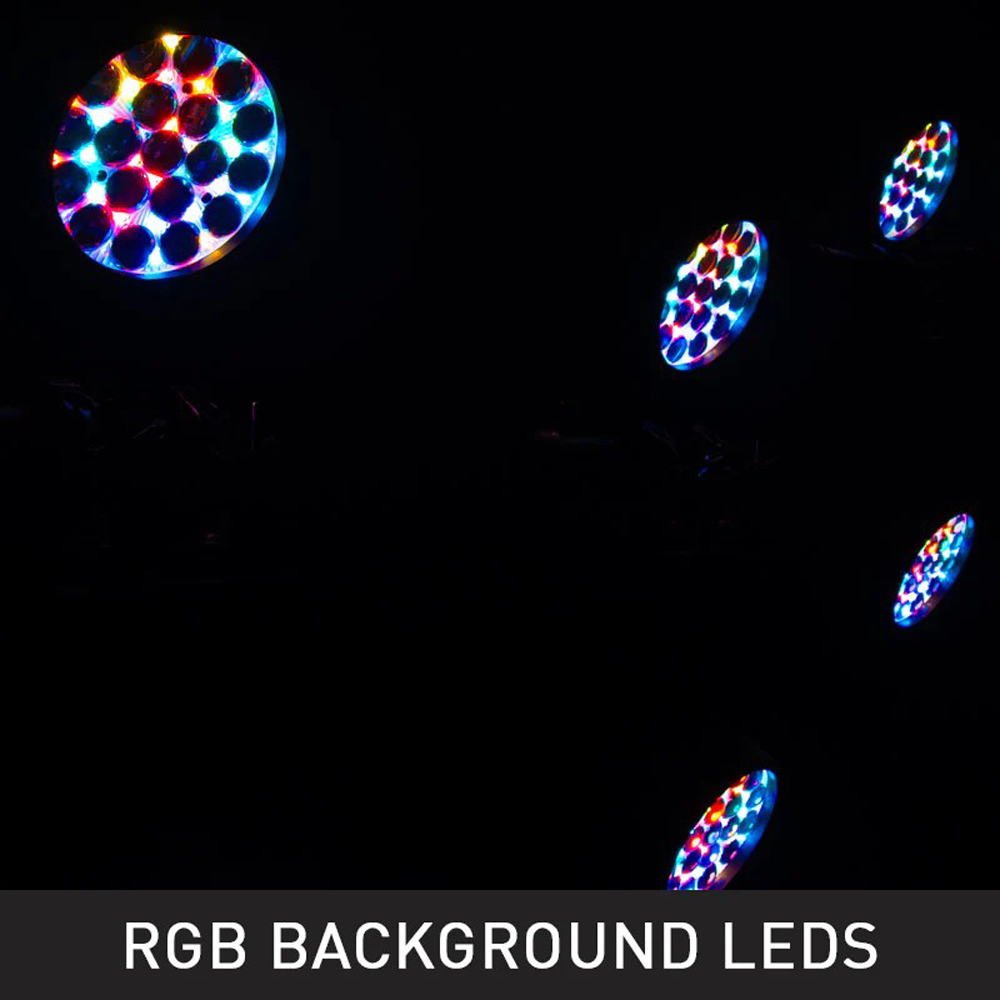

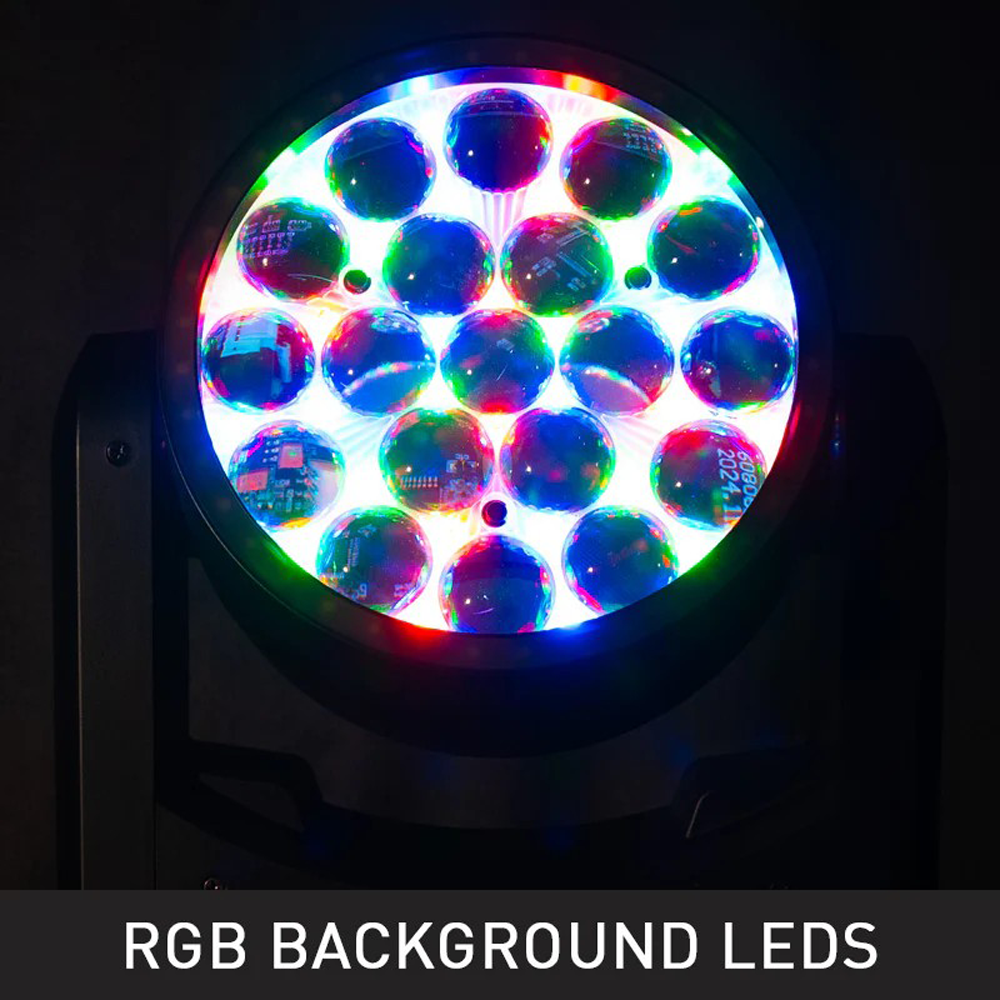

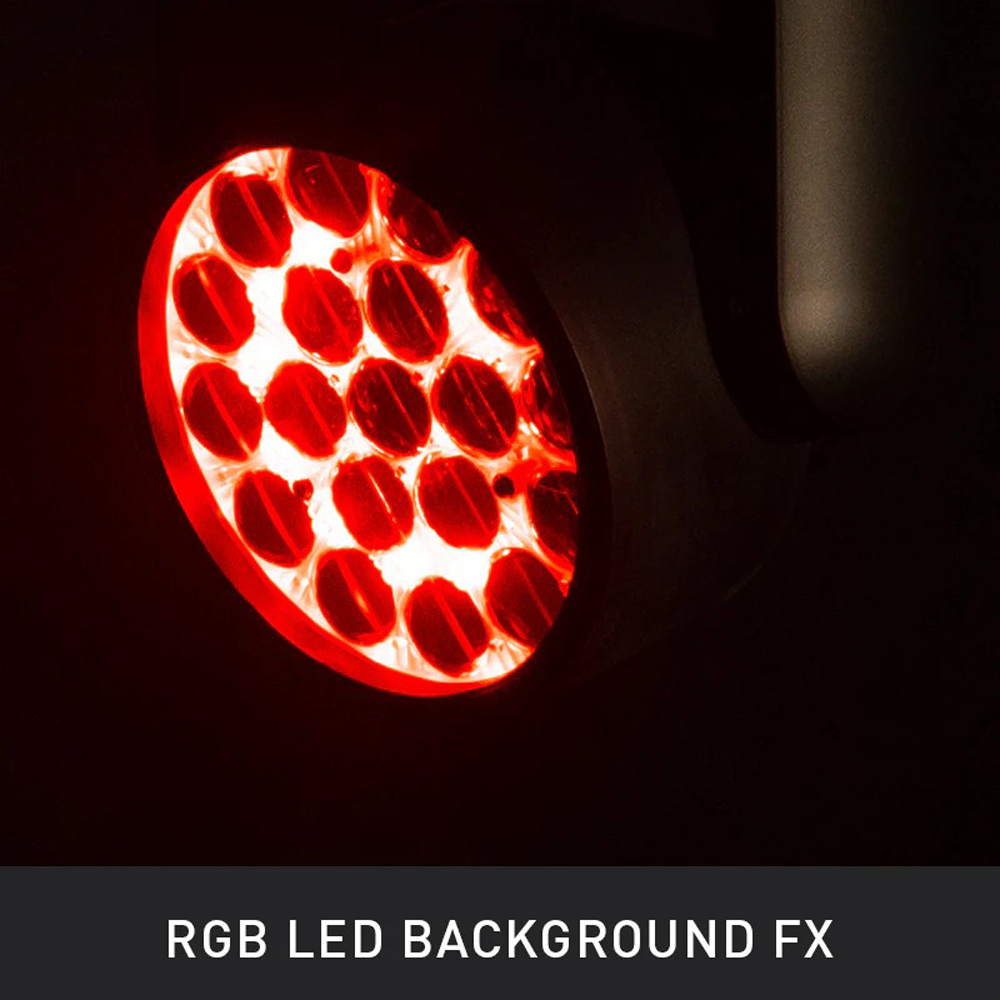

    • Optical (Background LEDs): 30x 0.5W SMD RGB
    • Average LED Life: 50,000 Hour
    • Optical (Ring LEDs): 40x 0.5W SMD RGB
    • Average LED Life: 50,000 Hour
    • RGBL LEDs: 19x (Red, Green, Blue and Lime)
    • RGB LEDs: 70x (Red, Green and Blue)
    • DMX Control Modes: Virtual CMY
    • Color Wheel Control: Virtual Foreground and Background
    • Built-In Color Macros: Yes
    • Linear White Color Temperature Control: 2,700K ~ 10,000K
    • Color Temperature Presets: 2,700, 3,000, 3,200, 4,000, 4,500, 5,000, 5,600, 6,500, 8,000 and 10,000K
    • Foreground LED Effects: 19x 30W RGBL (4-IN-1), Fully pixel mappable
    • Background LED Effects: 30x 0.5W RGB, Fully pixel mappable
    • Ring LED Effects: 40x 0.5W RGB, three channel control
    • Strobe & Pulse Effects: Variable (0.5Hz to 33Hz)
    • Zoom: Motorized (7° to 42°)

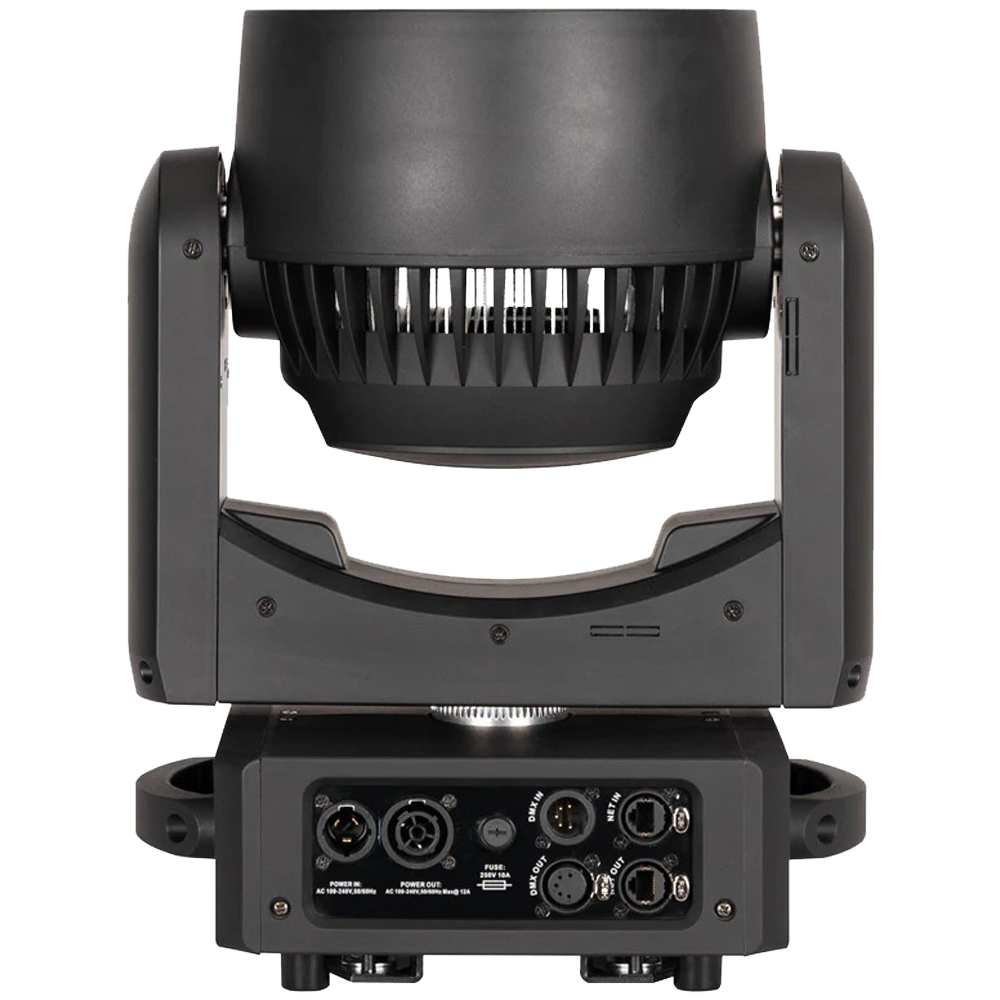

    • Power Connections: Seetronic, IP65 locking power In & Thru
    • DMX Connections: Seetronic, IP20 5-pin In & Out
    • Network Ports: 2x IP20, RJ45
    • Wireless System: Aria X2
    • DMX Protocol: DMX-512
    • Control: Remote Device Management
    • Artnet: Supported
    • sACN: Supported
    • DMX Control Modes: 32 / 43 / M1 58 / M2 58 / 203 / 123 & 133 channels
    • Built-In Effect Pixel Programs: With Speed and Fade Control
    • Communication Network: Wired Digital
    • Pan: 630 or 540 degrees
    • Tilt: 270 degrees
    • Fine Pan & Tilt: 16-Bit
    • Pan & Tilt Locks: Yes
    • Voltage: Multi-voltage operation, 230, 50Hz Only
    • Max Power Consumption: 730W (6.64 Amps) @ 120V, 690W (3.04 Amps) @ 230V
    • Dimensions (L x W x H): 9.0”L x 12.0”W x 15.5”H (230 x 304 x 394 mm)
    • Center-to-Center Spacing: 13.8" (351 mm)
    • Weight: 22.6 lbs (10.1 kg)
    • Approvals: cETLus: Control # 5028947, CE Certified and FCC
    • IP Rating: IP20
CONTENTS
    • (1) ADJ Vizi Pix Z19
    • (2) Omega Brackets
    • (1) 2M, IP65-Rated Locking Power Cable
