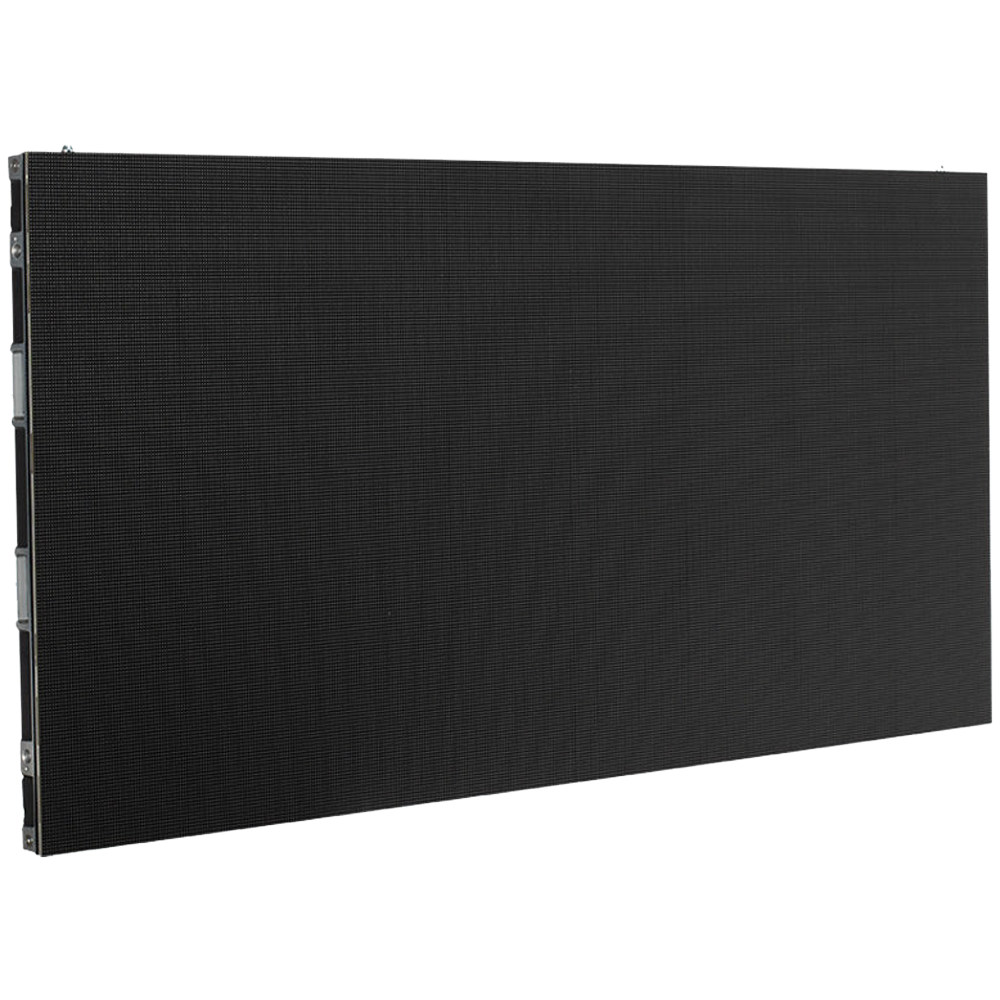

Discover the cutting-edge ADJ WMS2 LED Video Panel—a pinnacle in high-resolution display technology designed for seamless integration into a diverse array of projects.

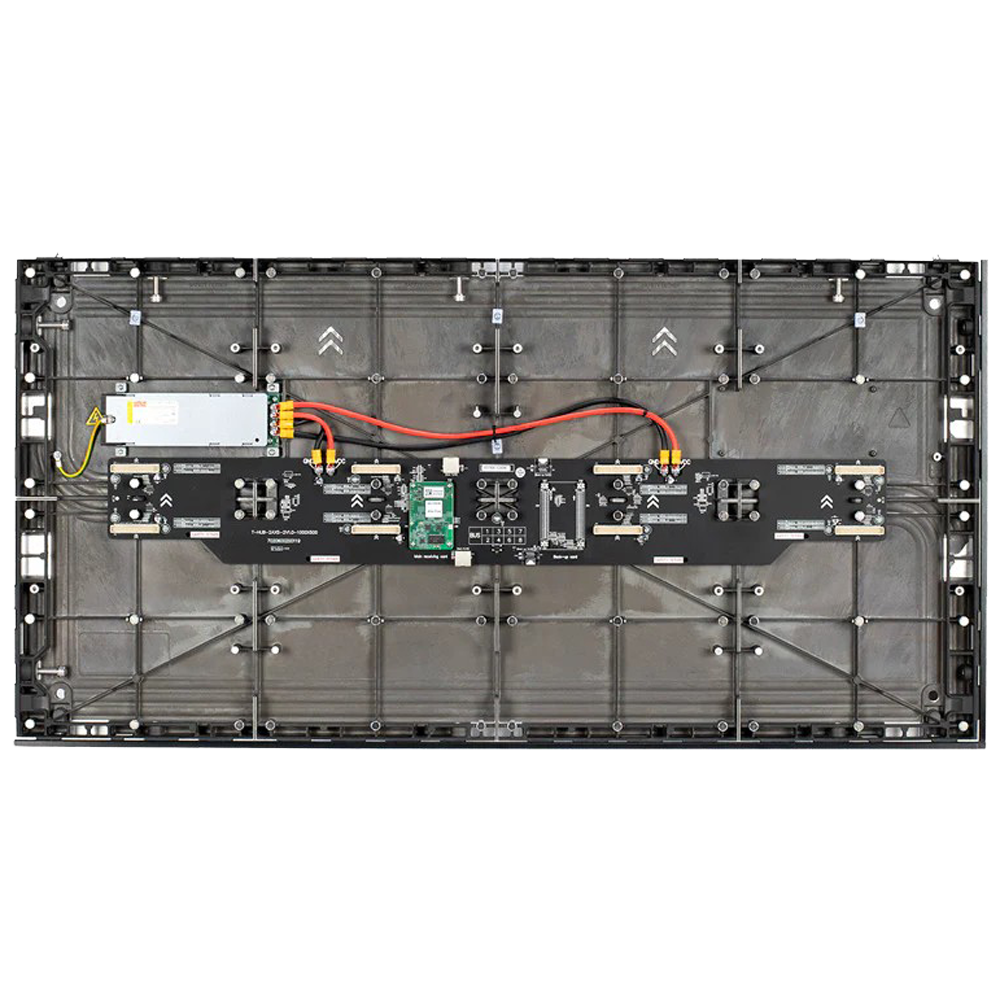

Perfectly suited for integration applications, including shop window displays, museums, boardrooms, digital signage, and entertainment venues, this video panel is a versatile solution for immersive visual experiences. A Novastar A8s-N receiving card is built-in, allowing the WMS2 to be displayed horizontally or vertically when wall mounting.

Boasting a pixel pitch of 2.6 mm and a pixel density of 147,456/m², the WMS2 guarantees exceptional definition, even at close viewing distances. The RGB SMD1515 color-mixing LEDs produce a vibrant spectrum, supported by a brightness of 800 NITS. With a wide viewing angle of 160 degrees (horizontal) by 140 degrees (vertical) and a rapid refresh rate of 3840 Hz, this video panel ensures a captivating and smooth visual performance.

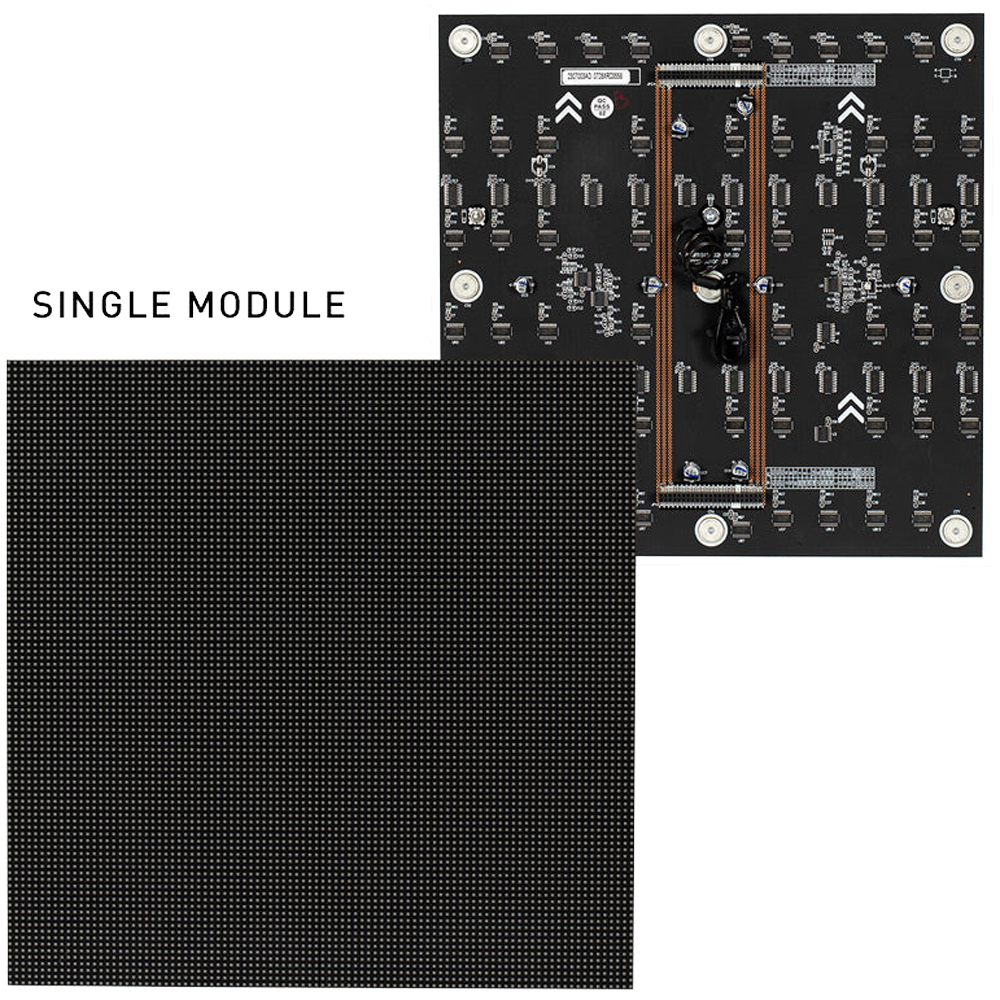

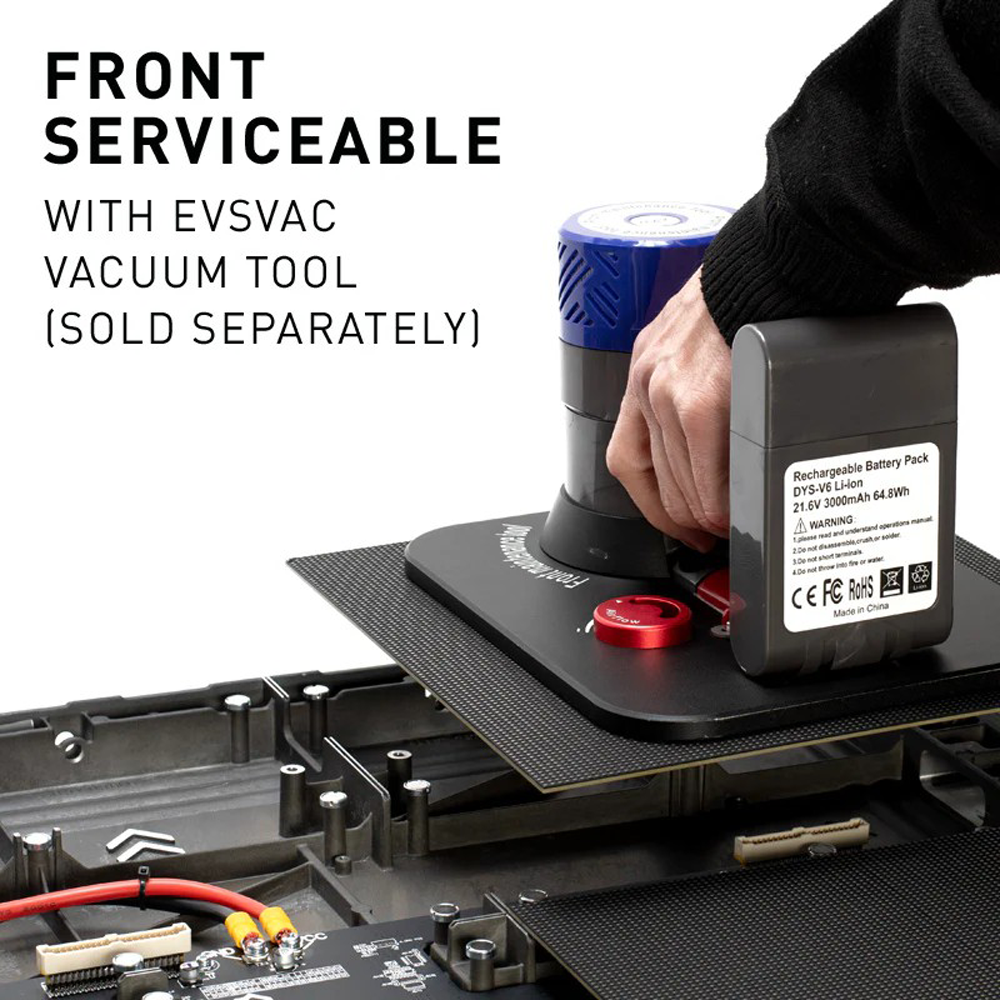

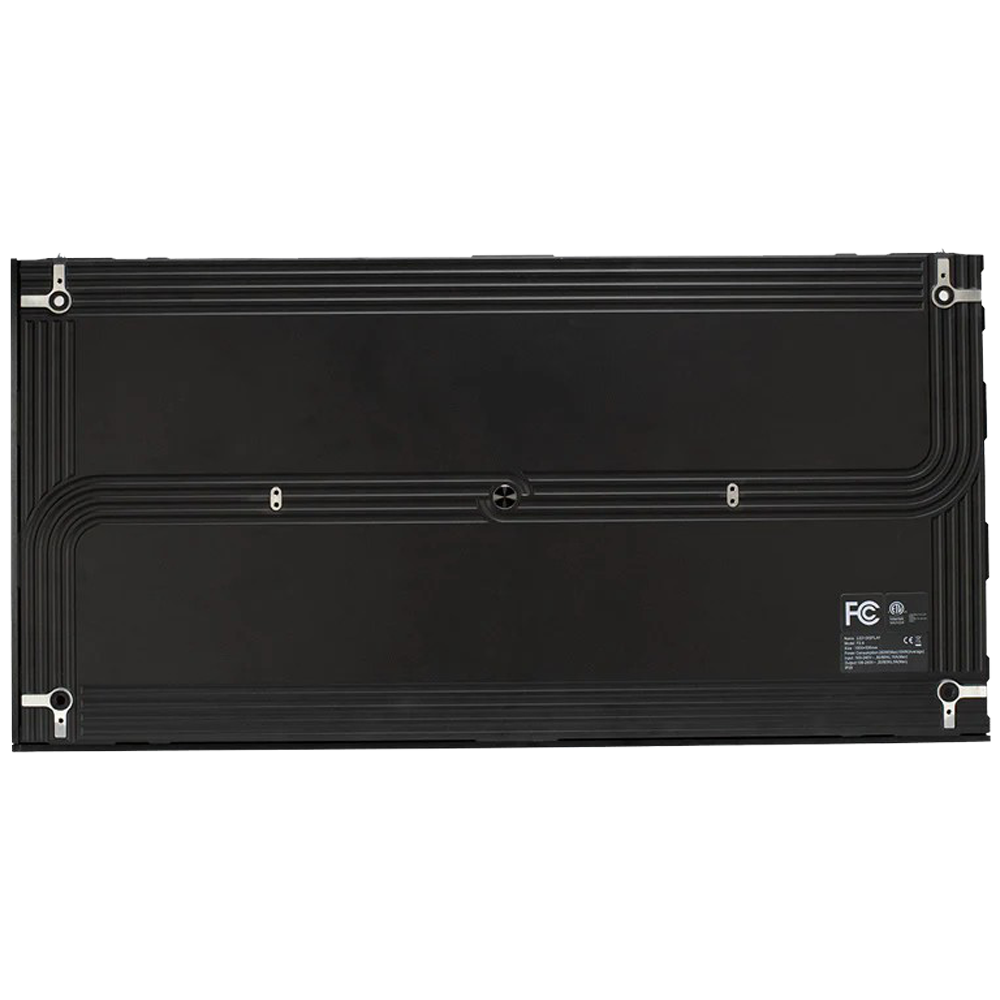

Measuring 39.3” x 19.9” (1000 mm x 500 mm), the WMS2 consists of eight individual modules, each with 96 x 96 pixels, offering flexibility in arrangement. Each panel’s overall resolution is 384 x 192 pixels (horizontally) or 192 x 384 (vertically). The panel’s frame assembly features a secure locking mechanism, allowing for the seamless joining of adjacent panels. Installation is simplified with mounting points for direct wall installation. The front-serviceable design enables easy module replacement, ensuring uninterrupted operation.

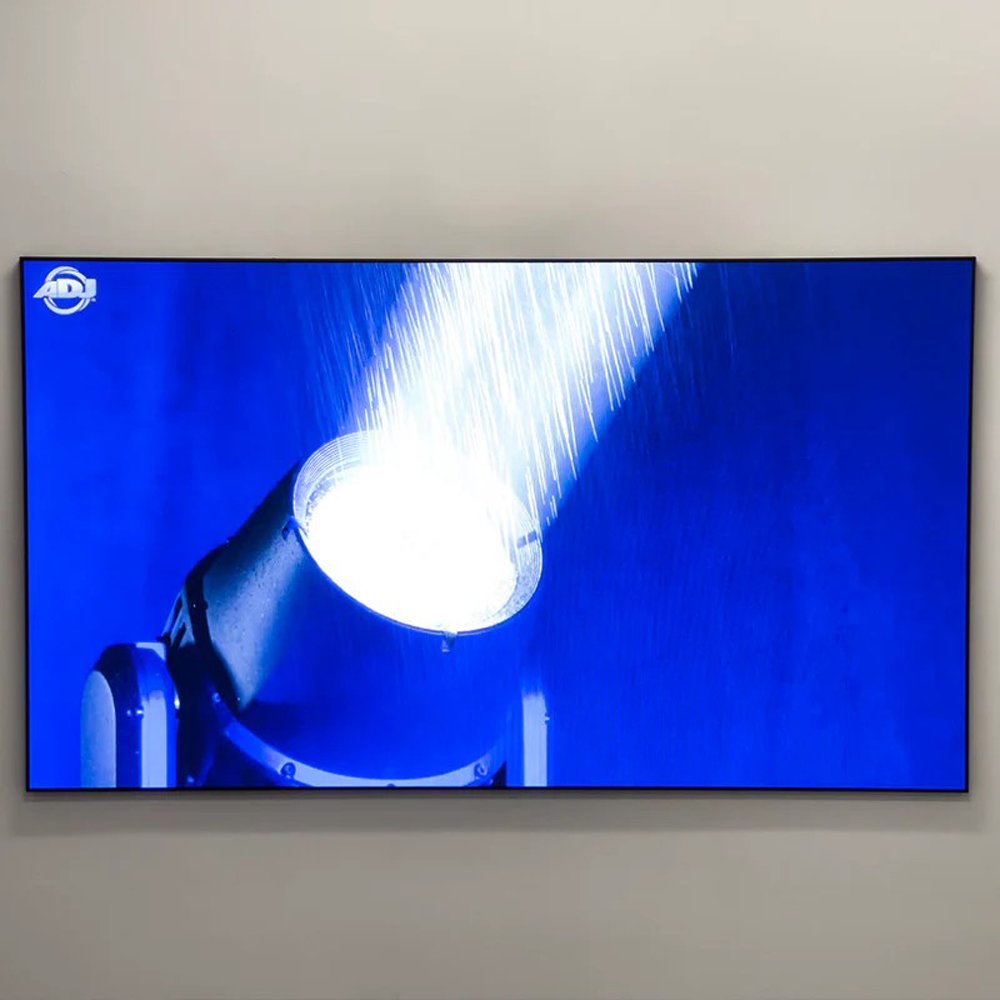

With a slim 1.3” (33 mm) thickness and a weight of 21 lbs. (9.5 kgs.), the WMS2 is a lightweight and compact solution. Its versatility extends to wall-mounting, hanging, or stacking, both horizontally and vertically, catering to various installation preferences. Join the LED video panel revolution with ADJ’s crystal clear and incredibly vibrant WMS2.
