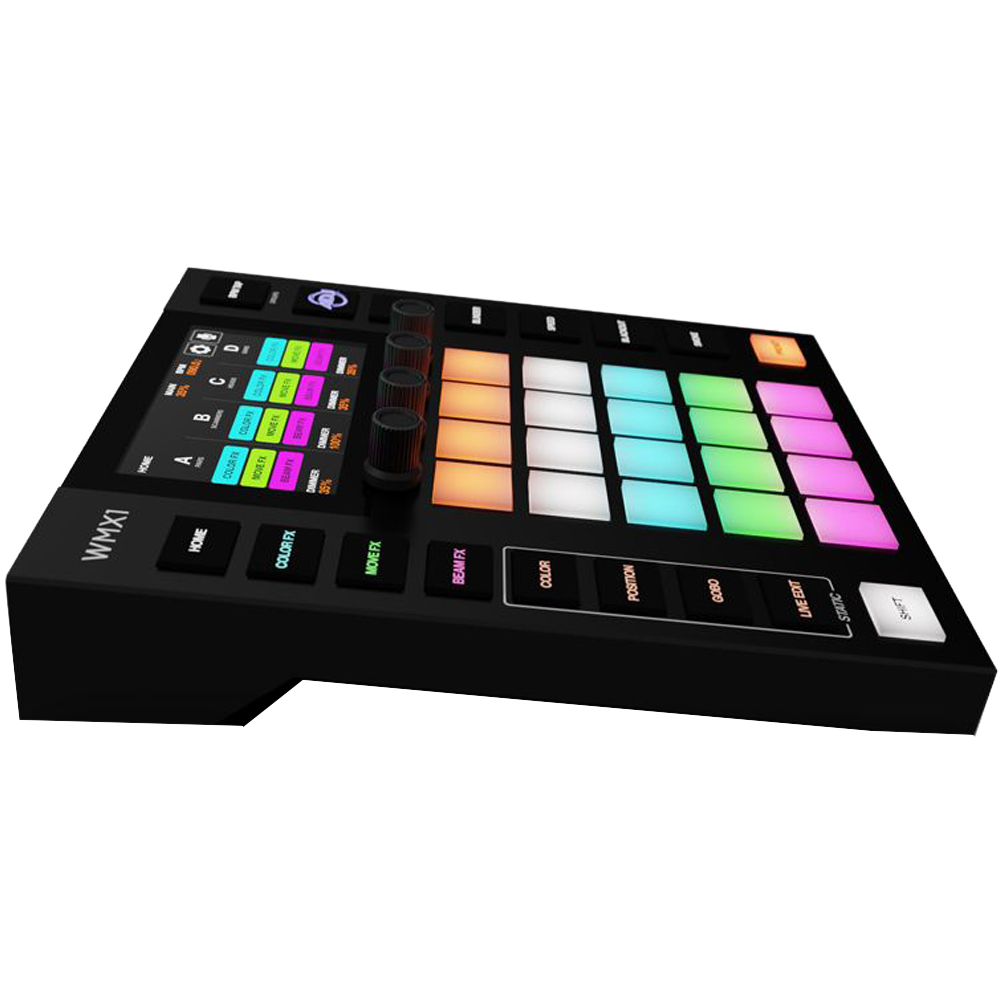

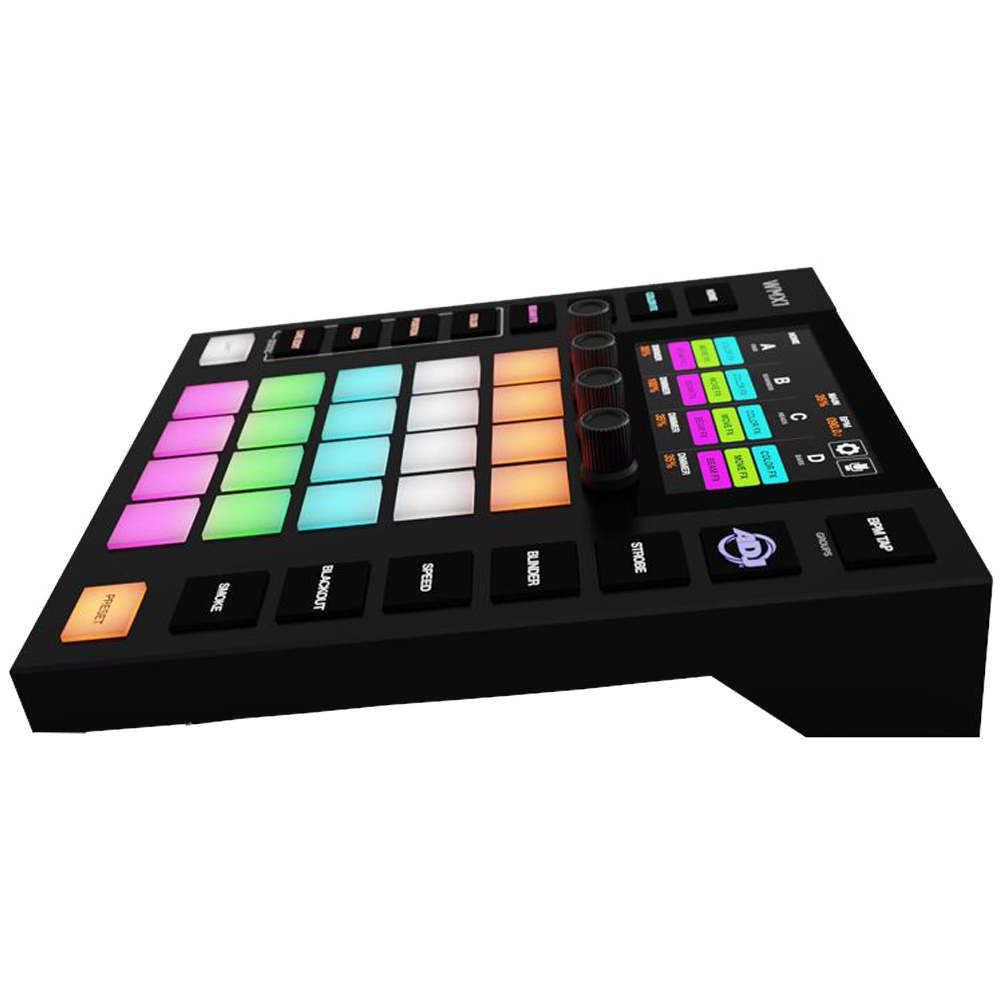

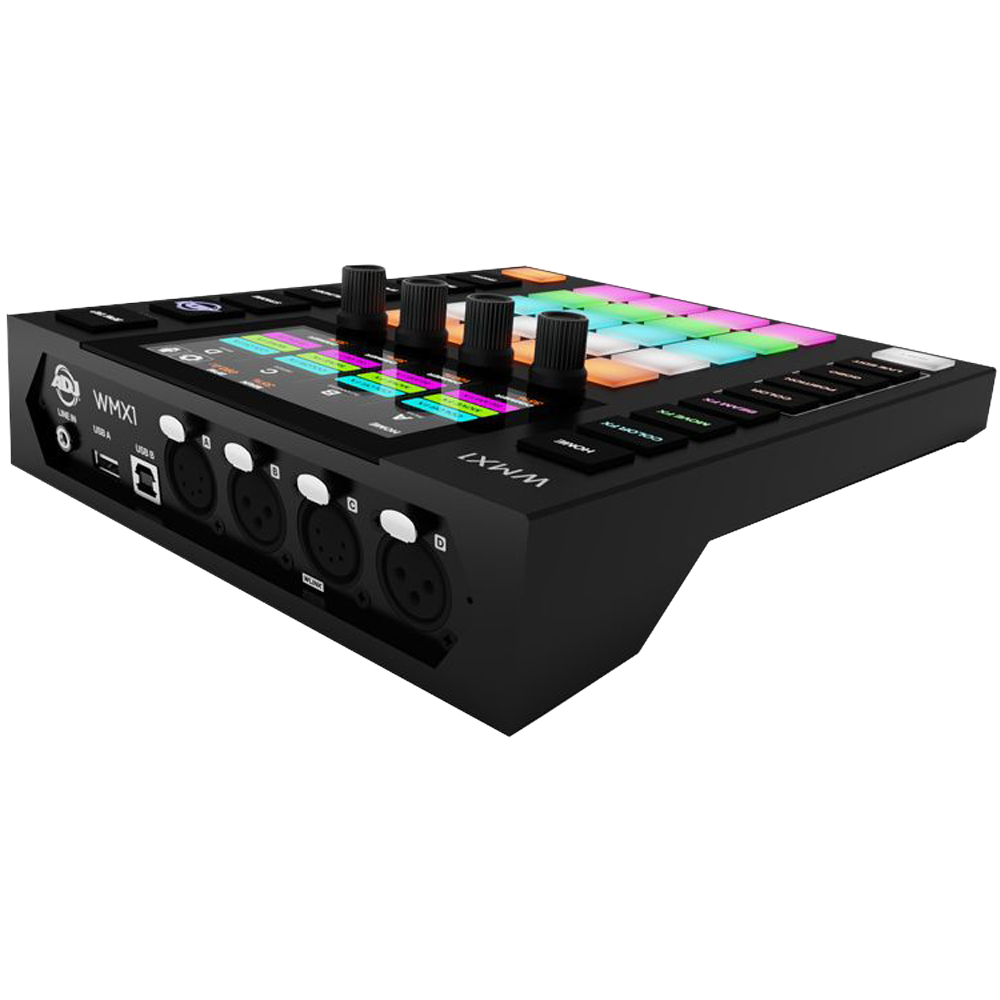

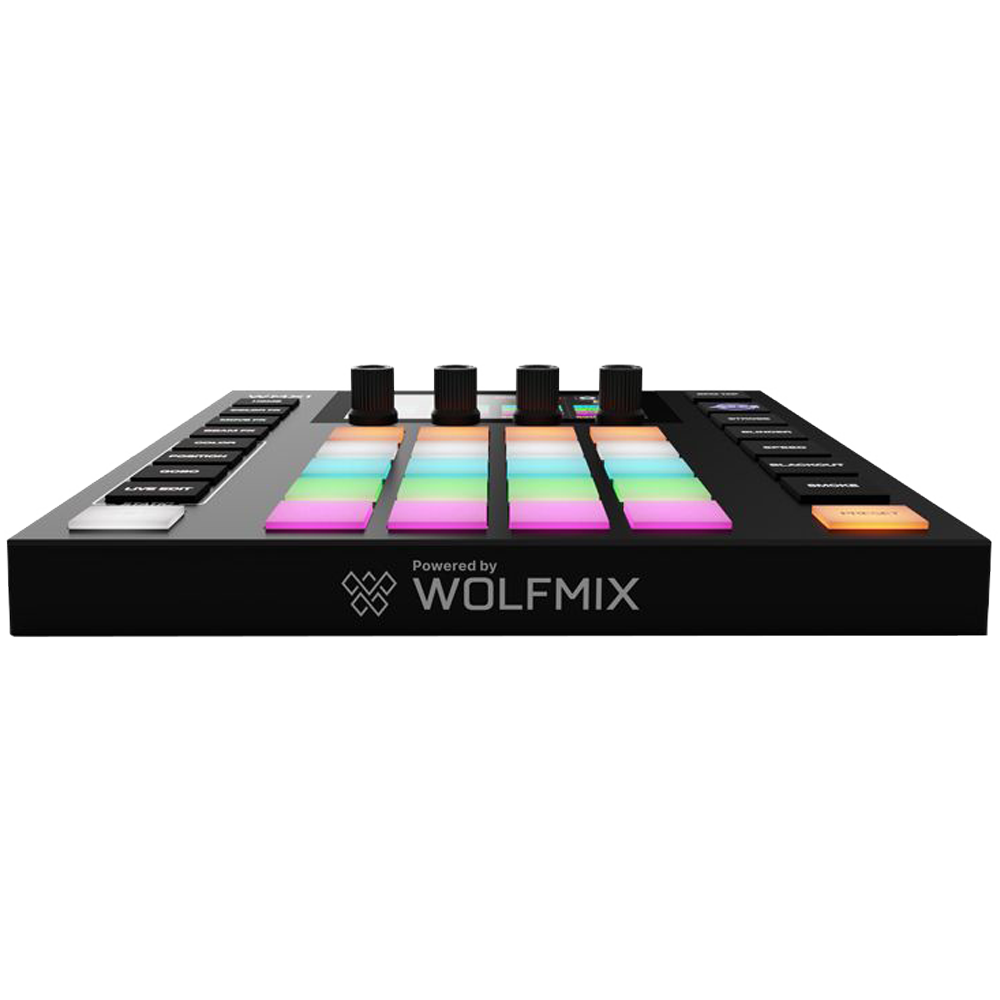

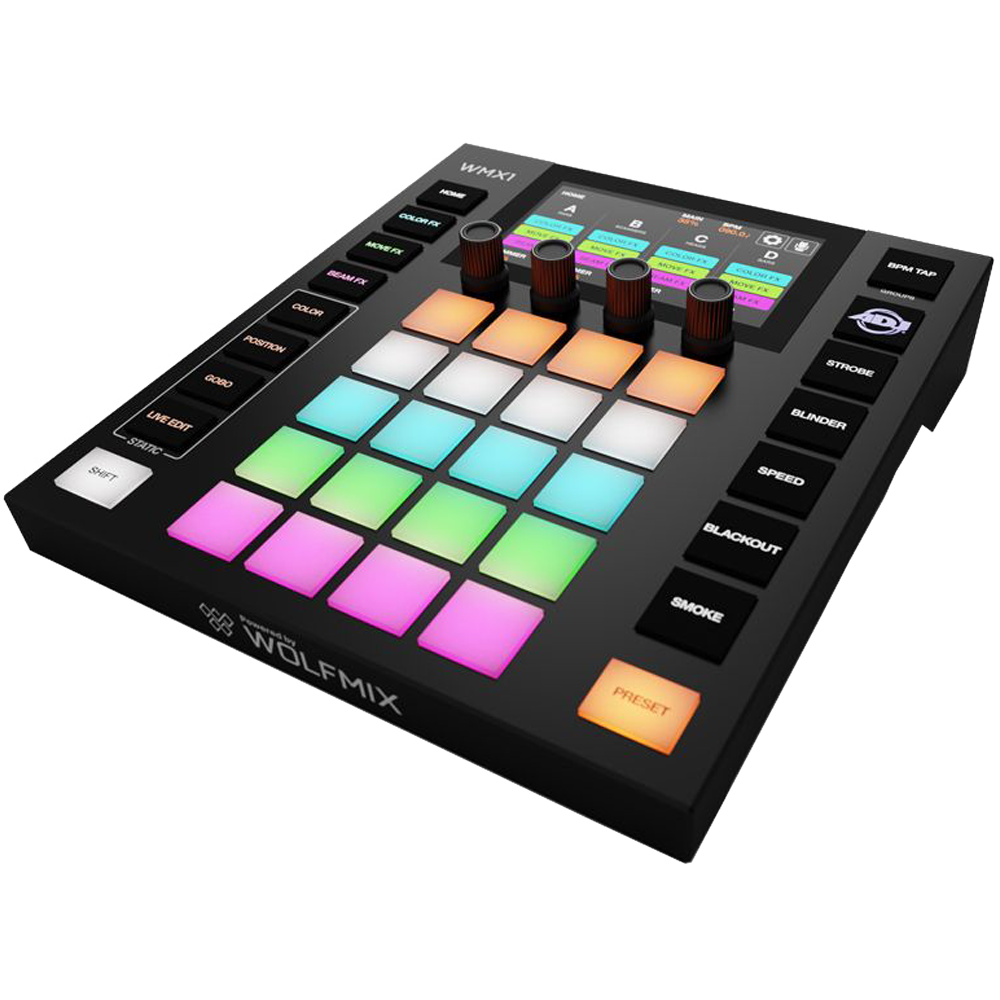

The ADJ WMX1 Mk2 is a powerful and compact standalone DMX controller. Designed for creating high-impact light shows on the fly without a computer, it features an intuitive workflow, powerful internal FX engine, and tactile controls that make it easy for anyone to take control of a DMX lighting rig comprised of multiple fixture types. WMX1 MK2 upgrades include larger encoder caps, MIDI triggering, and an added USB-A socket for MIDI controller or memory stick.
FEATURES
-
• Calibrate and RGB, White, Amber, UV mixing with automatic fixed color wheel translation
• Automatic matching of similar gobos across different fixture types
• Timed release of flash and preset buttons
• Fixture FLIP function, for reversing beam order
• Fixture SPLIT function, for splitting up multi-FX bars
• Lock full controller, or lock editing with a password
• Project & fixture backup with WTOOLS app
• Offline 3D visualization with Easy View & WTOOLS over USB*
• Auto-recovery of active project (no manual saving needed)
• Import different fixture setups into the same project
• Starts in under 2 seconds. Starts sending DMX in under 1 second
• Factory firmware startup recovery mode for times of crisis
SPECIFICATIONS
-
• Operation: Standalone (no computer required)
• Compatibility: Works with any DMX device
• DMX Universes: Standard unit includes 2 DMX universes; up to 2 additional universes available as add-ons
• Fixture Capacity: Supports up to 680 fixtures and beams
• Fixture Types: Supports up to 50 fixture types
• Fixture Features: Supports up to 5,000 fixture features (color, gobo, etc.)
• Fixture Groups: Supports up to 8 fixture groups
• Projects: Supports up to 6 projects
• Fixture Library: Includes access to 15,000+ fixtures
• Onboard Fixtures: Stores 3,500+ fixtures on the controller
• Setup Functions: Allows DMX address, fixture order, and group setup
• Additional Function: Can be used as a DMX splitter with DMX universe mapping
• Color FX Module: Includes 8 effect types with 16 definable colors
• Move FX Module: Includes 8 effect types
• Beam FX Module: Includes 8 effect types
• Flash Buttons: Includes 6 buttons for Special FX, Strobe, Blinder, Speed, Blackout, and Smoke
• Color Palette: Offers 10 user-definable colors per group with gradient control
• Position Palette: Offers 5 user-definable positions per group with fade and fanning
• Gobo Palette: Offers 5 user-definable gobos per group
• Live Edit Buttons: Includes 20 namable buttons with flash triggering mode and Park function
• Presets: Supports 100 namable presets with hold and fade timing
• Preset Playback: Supports cue list playback for all presets or per page of 20
• Dimming Control: Provides group and master dimming with encoder acceleration
• Group Controls: Includes FLASH, FULL, and Blackout
• Pan/Tilt Control: Supports 16-bit Pan/Tilt resolution
• LED Bar Control: Supports multi-beam LED bar fixtures
• Music Sync: Supports FX pulse sync via microphone or line-in
• BPM Sync: Supports Ableton Link, OS2L, and BPM Tap
• Effect Parameters: Controls Speed, Phase, Order, Size, Fade, Fan, and Flick
• Move FX Control: Allows live control of FX registration point
• Global FX Control: Includes global FX speed and freeze control
• DMX Mapping: Supports DMX IN mapping with group dimmer and output patching*
• Controller Sync: Supports WLINK syncing with another WMX1 MK2 controller
• Fixture Builder: Allows custom fixture creation
• Calibration Tool: Limits movement range of moving fixtures
• Positioning Grid: Provides X-Y touch-controlled positioning
• Color Picker: Provides RGBW touch-controlled color selection
• Sequencer: Includes an 8-step real-time sequencer for beam and move FX
• DMX Monitoring: Displays live DMX levels with override and channel testing
• Beam Editor: Overrides minimum and maximum values used in FX generation
• Screen Type: 4.3-inch color TFT with tinted glass
• Touch Interface: Capacitive touch control
• Construction: Full-body alloy design
• Operation: Incremental push encoders with acceleration
• Button Count: 37 silicone buttons
• Finish: Matte oil finish
• Backlighting: LED color backlit
• CPU: 220 MHz ARM-core processor
• Memory: 8 MB RAM
• Storage: 16 MB Flash
• Music Sync: Supports music-synchronized FX
• Detection Circuit: Analog audio peak detection
• Microphone: Built-in microphone with auto-gain
• Audio Input: 3.5 mm jack

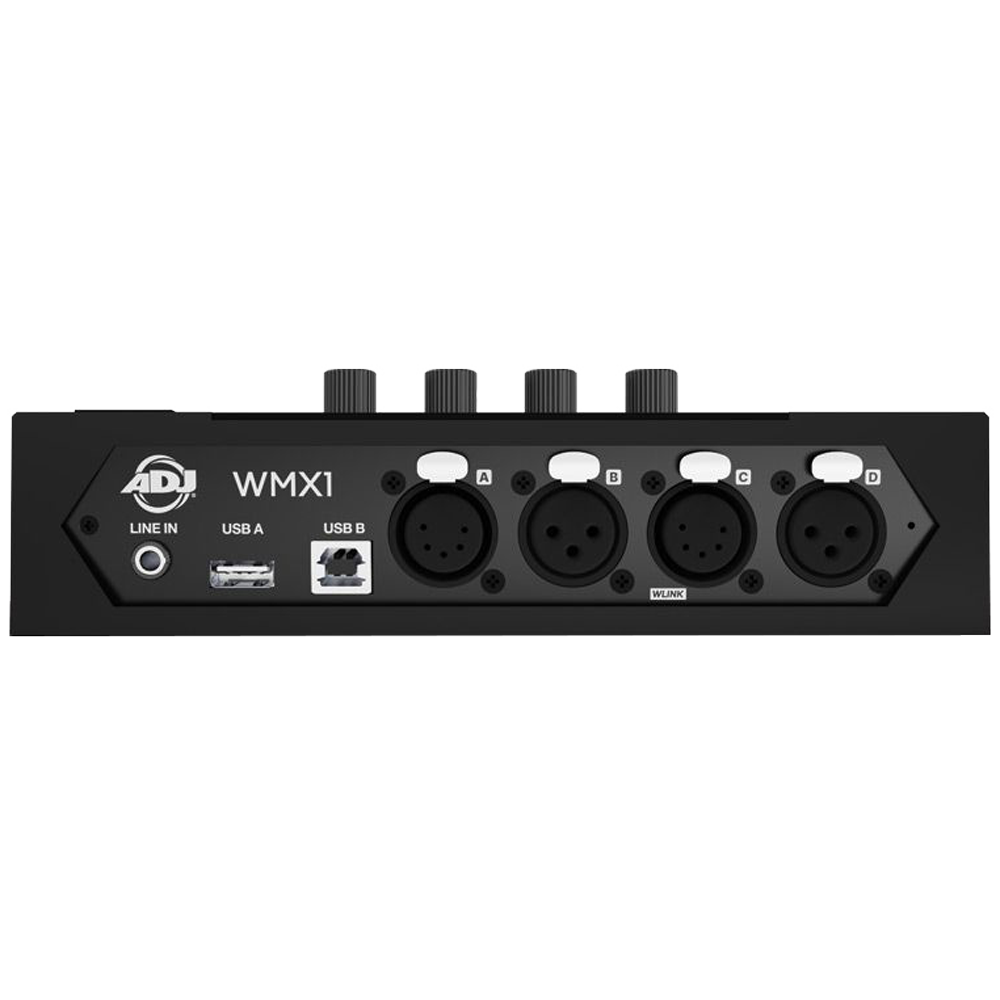

• DMX Outputs: 2 × 3-pin DMX OUT XLR
• DMX Output: 1 × 5-pin DMX OUT XLR
• DMX I/O: 1 × 5-pin DMX IN/OUT XLR with WLINK
• Power Source: USB powered
• Software Sync: Syncs with Ableton Link and OS2L via computer
• MIDI Support: Links with MIDI faders and MIDI clock
• Backup Function: Backs up projects and fixtures to USB memory stick
• Material: ABS plastic enclosure
• Base Plate: Powder-coated steel with 100 mm VESA mount (M4, 6 mm max)
• Reinforcement: Powder-coated steel reinforced back plate
• Dimensions (L × W × H): 195 × 220 × 62 mm (7.68 × 8.66 × 2.44 in)
• Weight: 1,070 g (2.36 lbs)

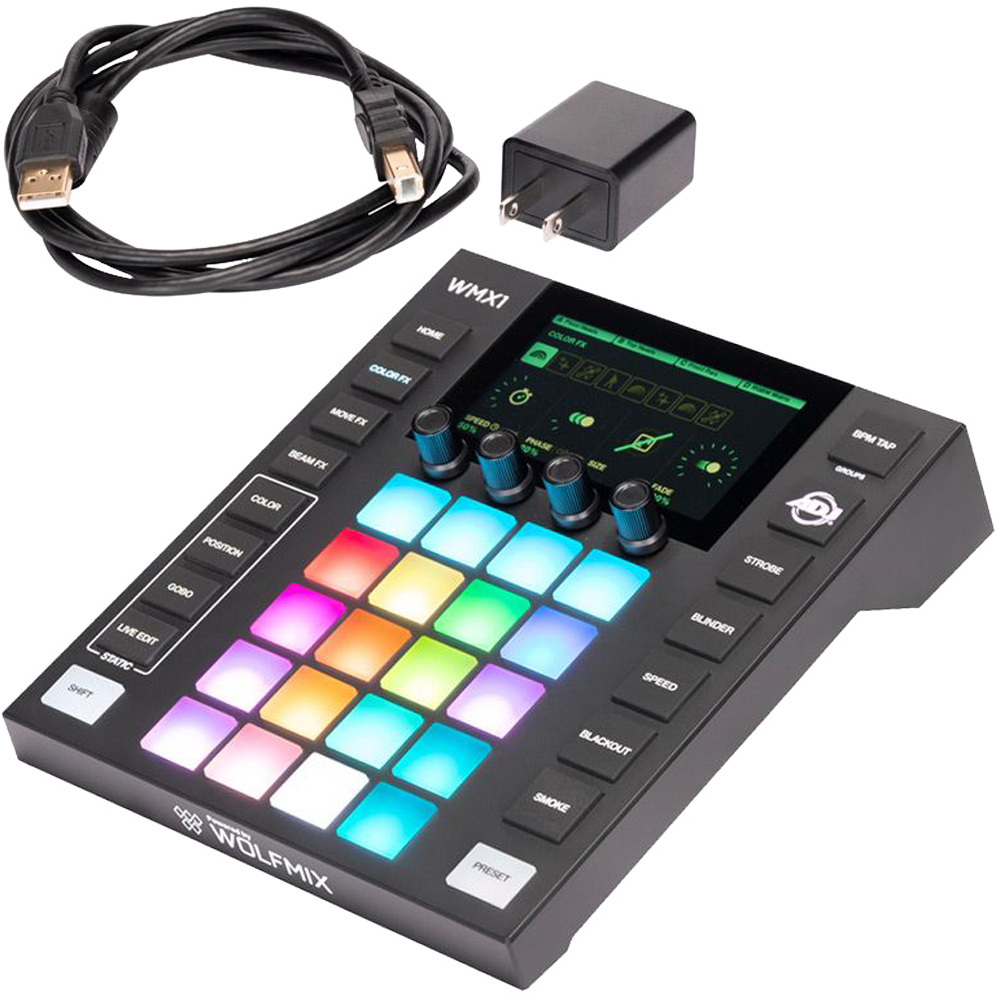

CONTENTS
-
(1) ADJ WMX1 Mk2
(1) User Manual
