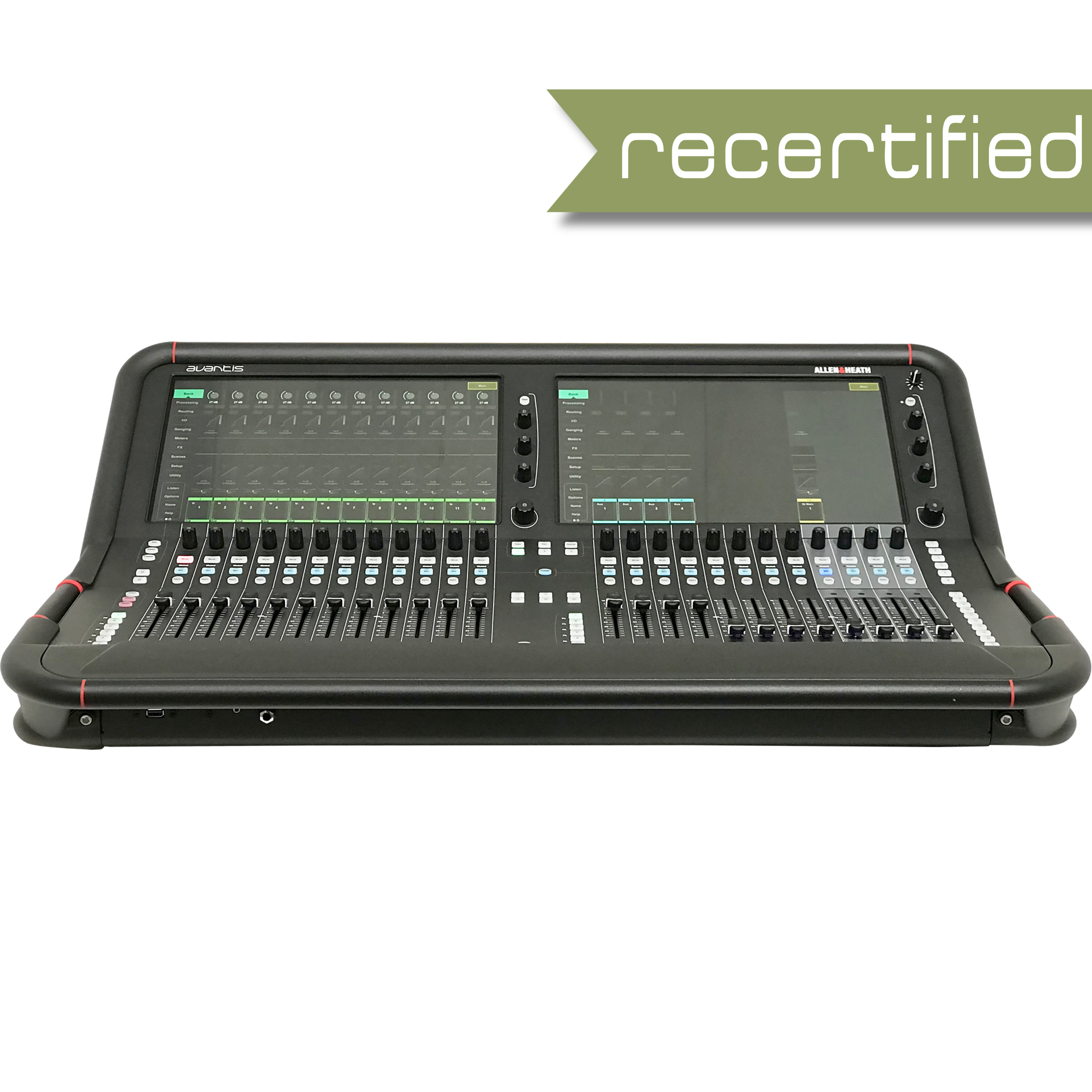

Allen & Heath Avantis Mixer With dPack
19%, only 0 left
Allen & Heath Avantis Mixer With dPack
Product SKU
    29669

Allen & Heath Avantis Mixer With dPack

$12,299.99

PICK UP TODAY

recertified+.png__PID:7672a0bd-1cf7-4ba8-9841-5171b10f1ebf
  • Like New Condition
  • Original Packaging
  • Full Factory Warranty

Have a question?

Need help finding something?

Talk to a PRO

855-772-2937

_EBP9032_SQ.jpeg__PID:828e756e-5126-4f82-9136-2bf92b17727c

Expertly tested refurbished and open box products

Backed by the BYFP satisfaction guarantee

Copy of Untitled Design (3).png__PID:0d4aaa6e-815d-4b5a-879b-7bd16634732b

Free Shipping

1.png__PID:3c5bc891-9c7e-4dda-94a6-30ba47708c69

Professionally Inspected

2.png__PID:5bc8919c-7ecd-4a14-a630-ba47708c69eb

Satisfaction Guaranteed

3.png__PID:c8919c7e-cdda-44a6-b0ba-47708c69eb73

Expert Support

DESCRIPTION

With a massive 206 square inches of screen space operating at a crisp 1080p Full HD resolution, Continuity UI allows you to see and instantly interact with more of what matters, enabling a seamless connection between the physical controls and the displays.

The faders react on touch to immediately highlight the active channels for instant visual feedback.

The channel rotaries let you work gains or pans, then at the touch of a button, dynamically fold the display to show EQ or compressor parameters across the whole bank.

Each screen also features a FastGrab tab on the right-hand side, giving you split-second access to assignable key parameters like aux sends, EQ, compressor and FX on the currently selected or specific channel. The whole system is set up to dynamically surface the information you need at any moment and put control right at your fingertips.

Avantis is not just another dull grey box mixer with plastic sides. Part-inspired by the tubular exo skeletons of the latest generation of superbikes, those sleek curves are all metal - super tough - but lightweight.

Because every part of Avantis was designed in pursuit of performance and reliability, we subjected it to some of the most rigorous testing we’ve ever embarked upon. And it took it all.

Allen & Heath has a well-earned reputation for crafting FX emulations that rival the very best third party plug-ins, but with none of the associated hassle.

With a passion bordering on obsession, we’ve created a suite of FX inspired by some of the most revered outboard equipment, including pristine reverbs, detailed delays, and wonderful classic modulation effects.

Best of all, we offer our 12 FX slots with no compromises. Each effect takes up just one of the 12 slots, and each of the 12 FX slots has a dedicated stereo return - so you don’t need to waste your input channels.



  • 96kHz/ 64 channel / 42 bus digital mixer
  • Fully configurable mix BUS architecture
  • XCVI CORE - 0.7ms latency / PHase coherent
  • Dual Full HD touchscreens with Continuity UI
  • EVERYTHING I/O - Huge range of remote expanders
Mic/Line XLR Inputs Balanced XLR, +48V phantom power M
Mic/Line Preamp Fully recallable
Input Sensitivity -60 to +15dBu
Analogue Gain +5 to +60dB, 1dB steps
Pad -20dB Active PAD
Maximum Input Level +30dBu (PAD in)
Input Impedance >4kO (Pad out), >10kO (Pad in)
Mic EIN -127dB with 150O source
Phantom Power Indication Per socket, internal or external phantom power sensing, triggered at +24V
Digital Inputs AES3 2 Ch XLR, 2.5Vpp balanced terminated 110O; SRC range 24 bit, 32k - 192kHz, with bypass option
Analogue XLR Outputs Balanced, Relay protected
Output Impedance <75O
Nominal Output +4dBu = 0dB meter reading
Maximum Output Level +22dBu
Residual Output Noise -95dBu (muted, 22-22kHz)
Digital Outputs AES3 2 Ch XLR, 2.5Vpp balanced terminated 110O
(1) Allen & Heath Avantis 64 channel / 42 bus / 96kHz Digital Mixer
(1) User's Manual
(1) Power Supply
FEATURES
    • 96kHz/ 64 channel / 42 bus digital mixer
    • Fully configurable mix BUS architecture
    • XCVI CORE - 0.7ms latency / PHase coherent
    • Dual Full HD touchscreens with Continuity UI
    • EVERYTHING I/O - Huge range of remote expanders
SPECIFICATIONS
    • Mic/Line XLR Inputs: Balanced XLR, +48V phantom power M
    • Mic/Line Preamp: Fully recallable
    • Input Sensitivity: -60 to +15dBu
    • Analogue Gain: +5 to +60dB, 1dB steps
    • Pad: -20dB Active PAD
    • Maximum Input Level: +30dBu (PAD in)
    • Input Impedance: >4kO (Pad out), >10kO (Pad in)
    • Mic EIN: -127dB with 150O source
    • Phantom Power Indication: Per socket, internal or external phantom power sensing, triggered at +24V
    • Digital Inputs: AES3 2 Ch XLR, 2.5Vpp balanced terminated 110O; SRC range 24 bit, 32k - 192kHz, with bypass option
    • Analogue XLR Outputs: Balanced, Relay protected
    • Output Impedance: <75O
    • Nominal Output: +4dBu = 0dB meter reading
    • Maximum Output Level: +22dBu
    • Residual Output Noise: -95dBu (muted, 22-22kHz)
    • Digital Outputs: AES3 2 Ch XLR, 2.5Vpp balanced terminated 110O
CONTENTS
    (1) Allen & Heath Avantis 64 channel / 42 bus / 96kHz Digital Mixer
    (1) dPack Processing Upgrade
    (1) User's Manual
    (1) Power Supply
