dLive is a distributed digital mixing system providing a uniquely flexible solution for any live sound
application. It separates the mix engine from the control surface, putting the audio and processing where it
is needed, and offering a host of control and audio networking possibilities. Refer to the Allen & Heath
website to find out more about dLive.
The MixRack is the heart of any dLive system. It houses the XCVI processing core complete with audio I/O,
control and audio networking ports. The Surface is effectively a network controller for the MixRack, with the
addition of built-in audio I/O and audio networking ports. DX Expanders can be added to the system for
extra I/O.
Features
• Fully assignable layout
• Single or twin 12” capacitive touchscreen
• Gesture control – pinch, swipe, drag ‘n drop
• Configurable widget areas for Scenes, meters, FX and more
• 19 assignable SoftKeys (26 on S3000, S5000, S7000)
• Engineer’s Wedge and IEM fader strips
• Comprehensive multipoint metering
• Daylight visibility
• USB stereo recording and playback
Specifications
Mic/Line XLR Inputs: Balanced XLR, +48V phantom power
Mic/Line Preamp: Fully recallable
Input Sensitivity: -60 to +15dBu
Analogue Gain: +5 to +60dB, 1dB steps
Pad: -20dB Active PAD
Maximum Input Level: +30dBu (PAD in)
Input Impedance: >4kO (Pad out), >10kO (Pad in)
Mic EIN: -127dB with 150 source
Phantom Power Indication: Per socket, internal or external phantom power sensing, triggered at 24V
Analogue XLR Outputs: Balanced, Relay protected
Output Impedance: <75O
Nominal Output: +4dBu = 0dB meter reading
Maximum Output Level: +22dBu
Residual Output Noise: -92dBu (muted, 20-20kHz)
Dynamic Range: 110dB
System Signal to Noise: -92dB
Frequency Response: 20Hz - 30kHz +0/-0.8dB
THD+N (analogue in to out): 0.0015% @ +16dBu output, 1kHz 0dB gain
Headroom: +18dB
Internal Operating Level: 0dBu
dBFS Alignment: +18dBu = 0dBFS (+22dBu at XLR output
Meter Calibration: 0dB meter = -18dBFS (+4dBu at XLR out)
Meter Peak Indication: -3dBFS (+19dBu at XLR out)
Sampling Rate: 96kHz +/- 20 PPM
ADC and DAC: 24-bit Delta-Sigma
Dimensions (LxWxH): 41.7" x 34.3" x 18.9"
Weight: 82.7 lbs
Power: 100-240V AC, 50-60Hz, 175W max
Contents

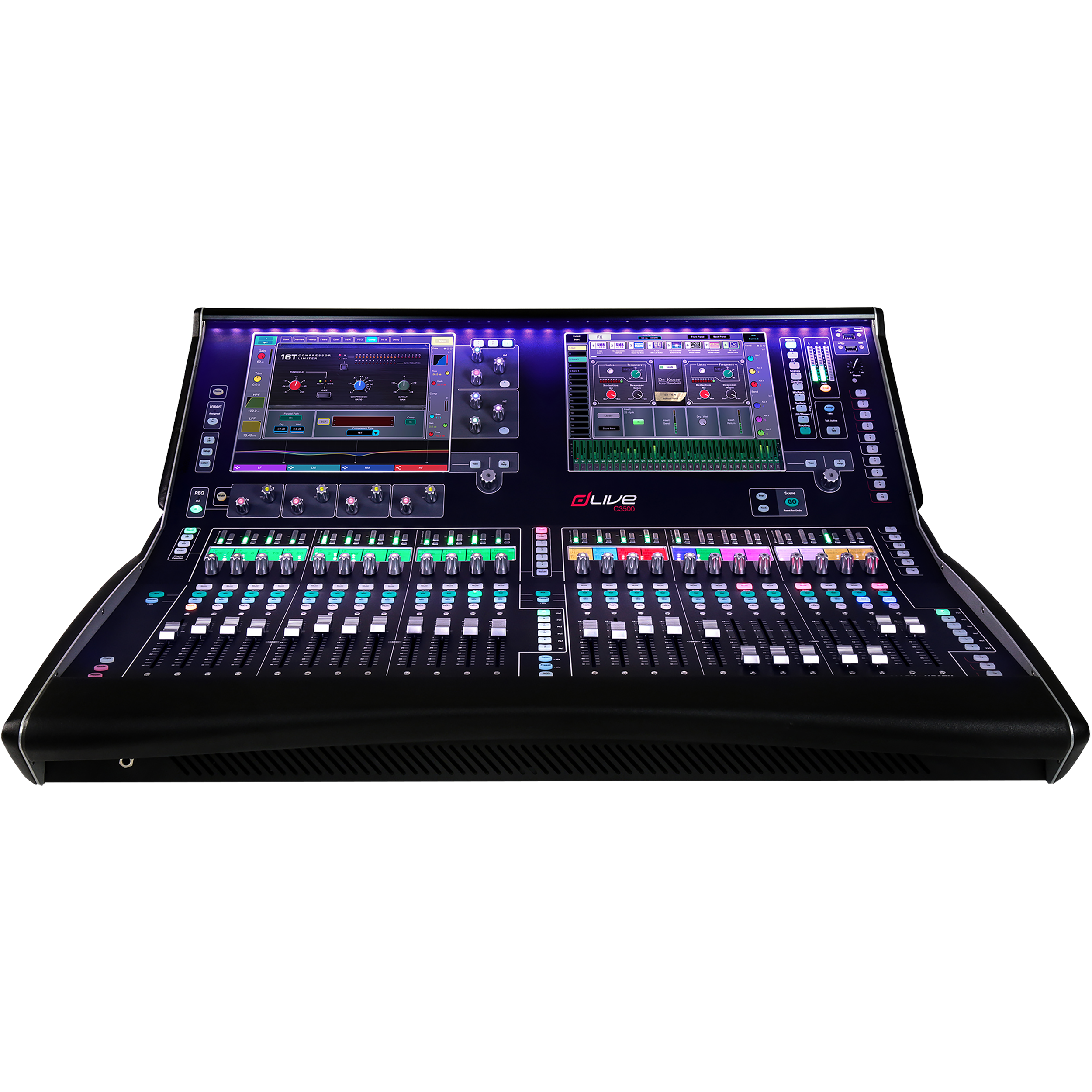

(1) Allen & Heath dLive C3500
(1) Getting Started Guide AP10826
(1) Safety Sheet
(1) IEC mains lead
(1) Dust cover
