The Allen & Heath dLive CDM32-RUFX is a robust and high-performance mix rack designed for professional audio environments. It features 32 input channels and 16 outputs, delivering pristine audio quality with 96kHz/24-bit conversion and ultra-low latency. The CDM32-RUFX is equipped with DEEP processing and FX emulations, providing powerful onboard effects and dynamic processing. With its modular architecture, it seamlessly integrates with dLive surfaces and controllers, allowing for flexible and scalable configurations. Additionally, it offers a variety of networking options, including Dante, Waves, and MADI, making it an ideal choice for live sound, broadcast, and recording applications.

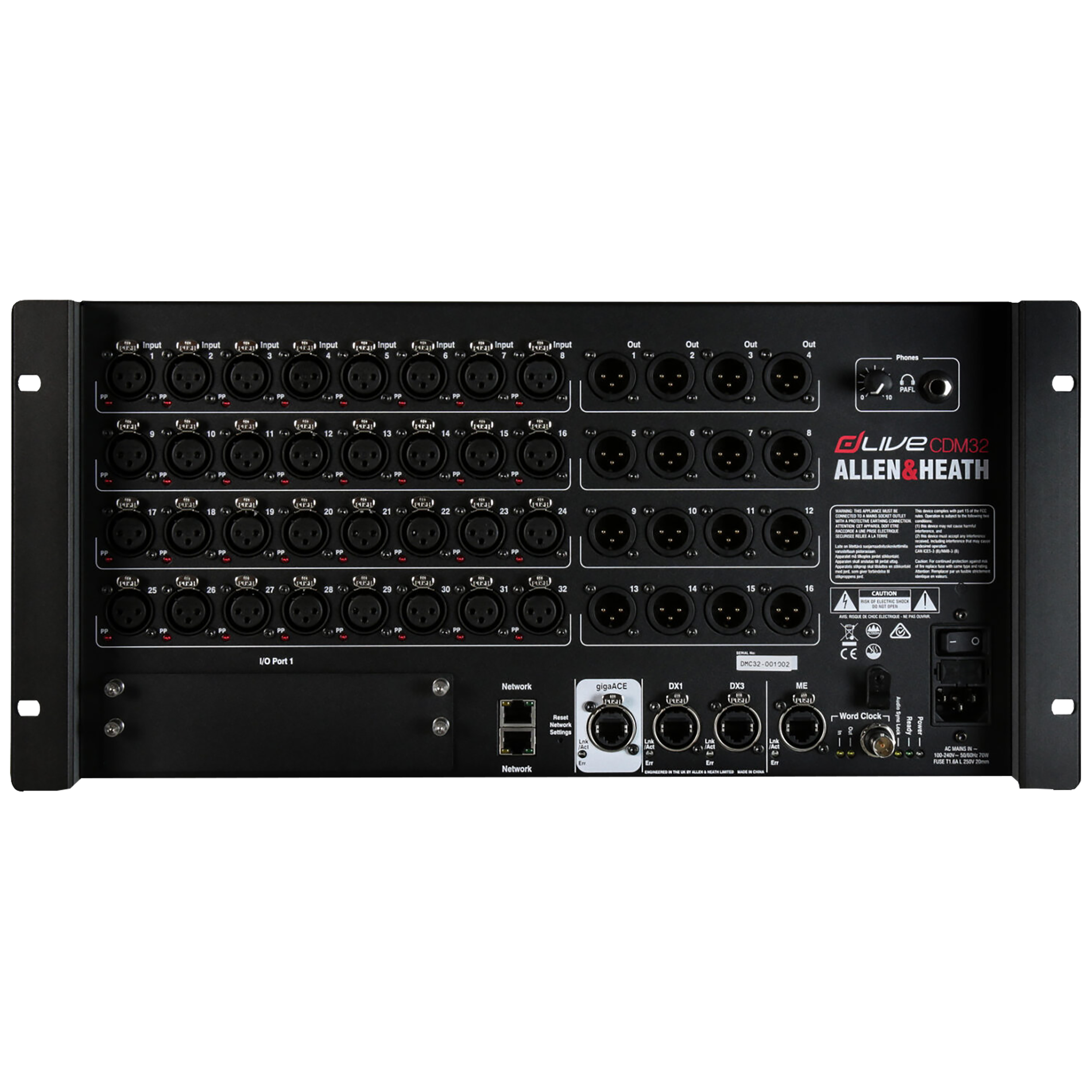

• 32 mic/line inputs, 16 line outputs
• XCVI 160x64 FPGA core
• 128 Input Channels with full processing
• 64 Mix Outputs with full processing
• Configurable 64 bus architecture (group, FX, aux, matrix, mains)
• 16 RackExtra FX with dedicated stereo returns
• Automatic Mic Mixer (AMM) up to 4 zones, 64 ch
• DEEP processing – powerful embedded plugins including GEQ and compressor modelling
• 24 DCAs
• Built-in signal generator, RTA and spectrogram
• New preamp design for extra transparency
• Unique Active PAD circuit for consistent performance with any source

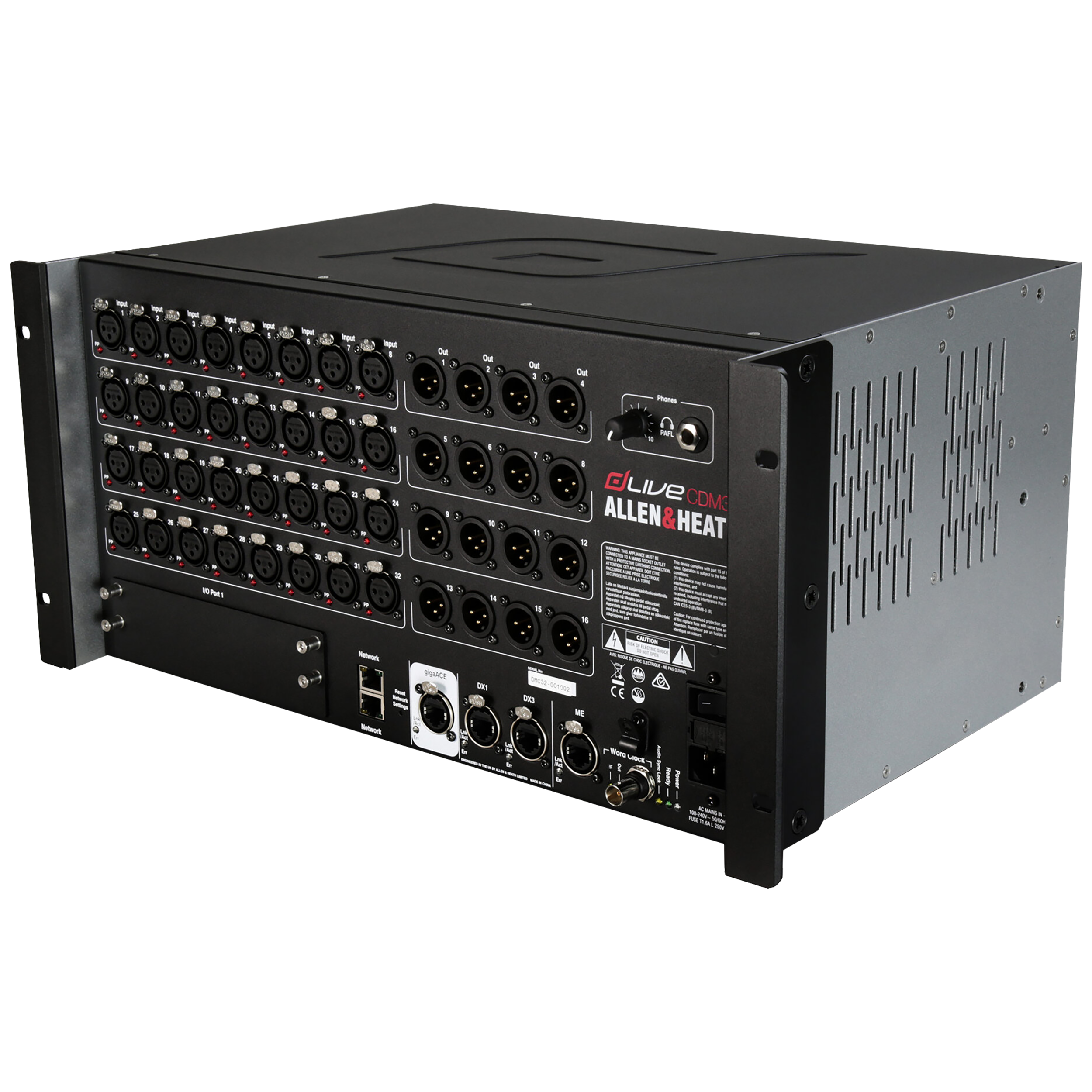

• Connection hub

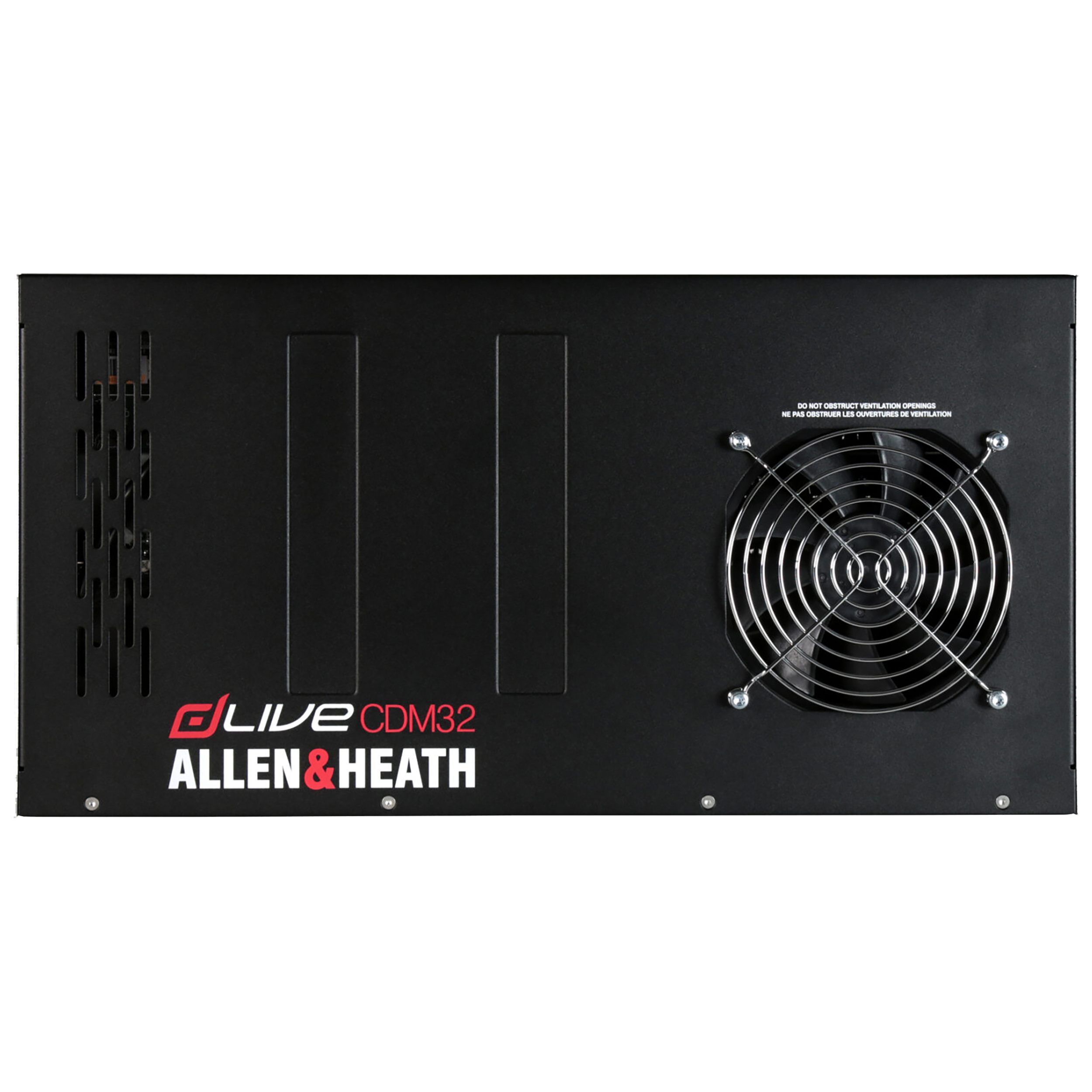

• Flush front panel with ultra-quiet fan
• Reversible rack ears design
• Mic/Line XLR Inputs: Balanced XLR, +48V phantom power
• Mic/Line Preamp: Fully recallable
• Input Sensitivity: -60 to +15dBu
• Analogue Gain: +5 to +60dB, 1dB steps
• Pad: -20dB Active PAD
• Maximum Input Level: +30dBu (PAD in)
• Input Impedance: >4kO (Pad out), >10kO (Pad in)
• Mic EIN: -127dB with 150 source
• Phantom Power Indication: Per socket, internal or external phantom power sensing, triggered at 24V
• Analogue XLR Outputs: Balanced, Relay protected
• Output Impedance: <75O
• Nominal Output: +4dBu = 0dB meter reading
• Maximum Output Level: +22dBu
• Residual Output Noise: -92dBu (muted, 20-20kHz)
• Dynamic Range: 110dB
• System Signal to Noise: -92dB
• Frequency Response: 20Hz - 30kHz +0/-0.8dB
• THD+N (analogue in to out): 0.0015% @ +16dBu output, 1kHz 0dB gain
• Headroom: +18dB
• Internal Operating Level: 0dBu
• dBFS Alignment: +18dBu = 0dBFS (+22dBu at XLR output
• Meter Calibration: 0dB meter = -18dBFS (+4dBu at XLR out)
• Meter Peak Indication: -3dBFS (+19dBu at XLR out)
• Sampling Rate: 96kHz +/- 20 PPM
• ADC and DAC: 24-bit Delta-Sigma
• Dimensions (LxWxH): 19" x 12.2" x 14"
• Weight: 29.7 lbs
• Power: 100-240V AC, 50-60Hz, 175W max
(1) Allen & Heath dLive CDM32 RackUltra FX
(1) Getting Started Guide
(1) Safety Sheet
(1) IEC mains lead
