Product SKU
    35012

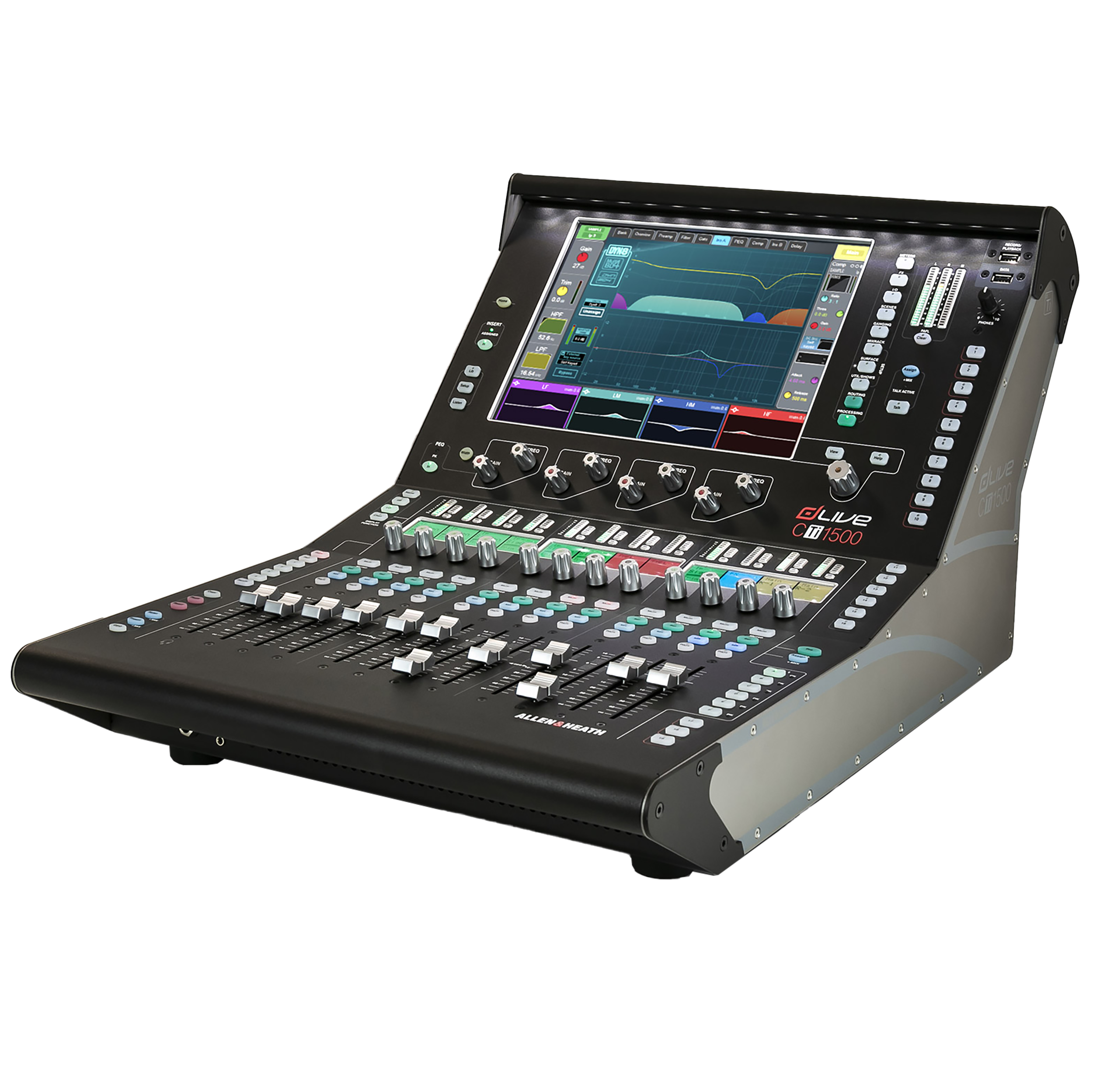

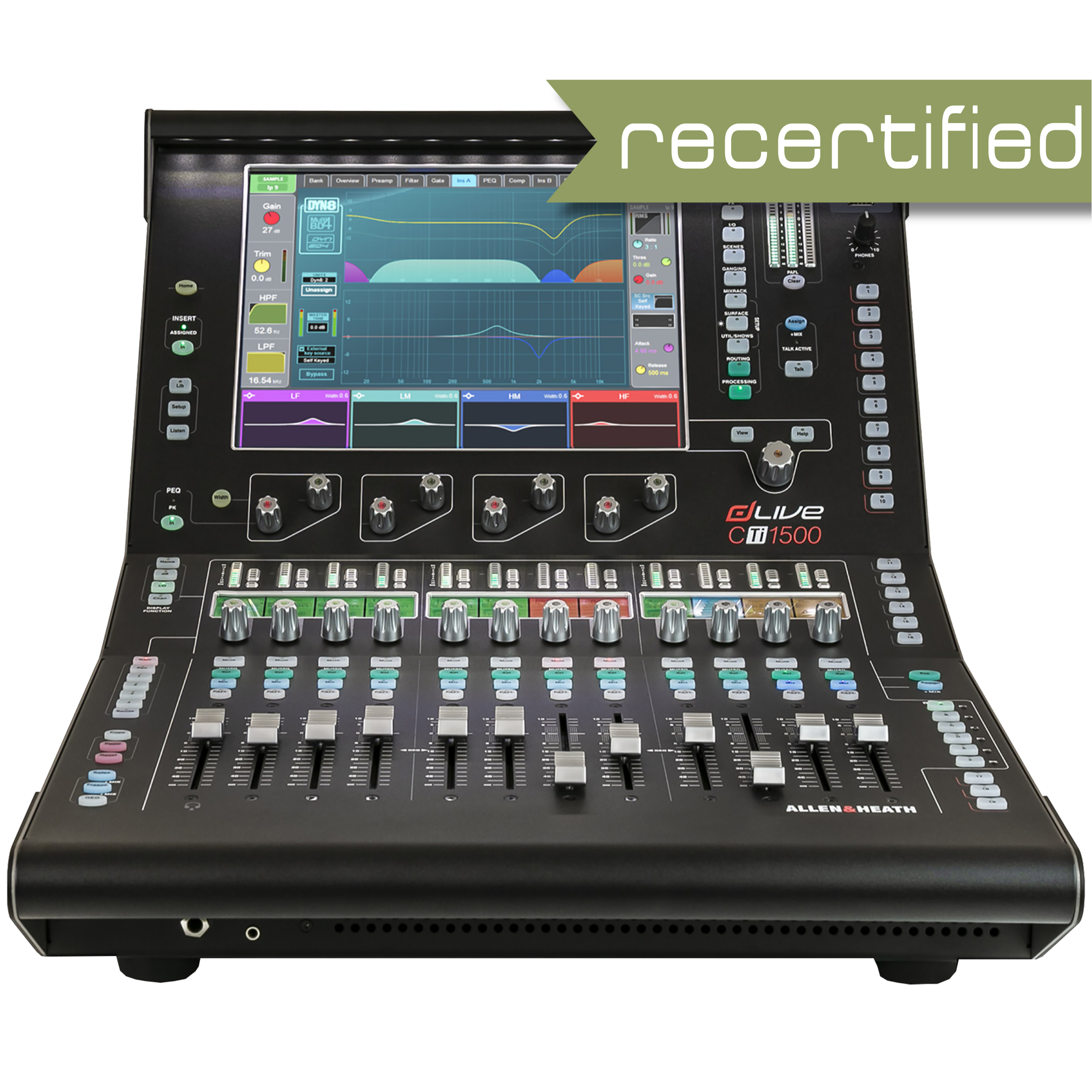

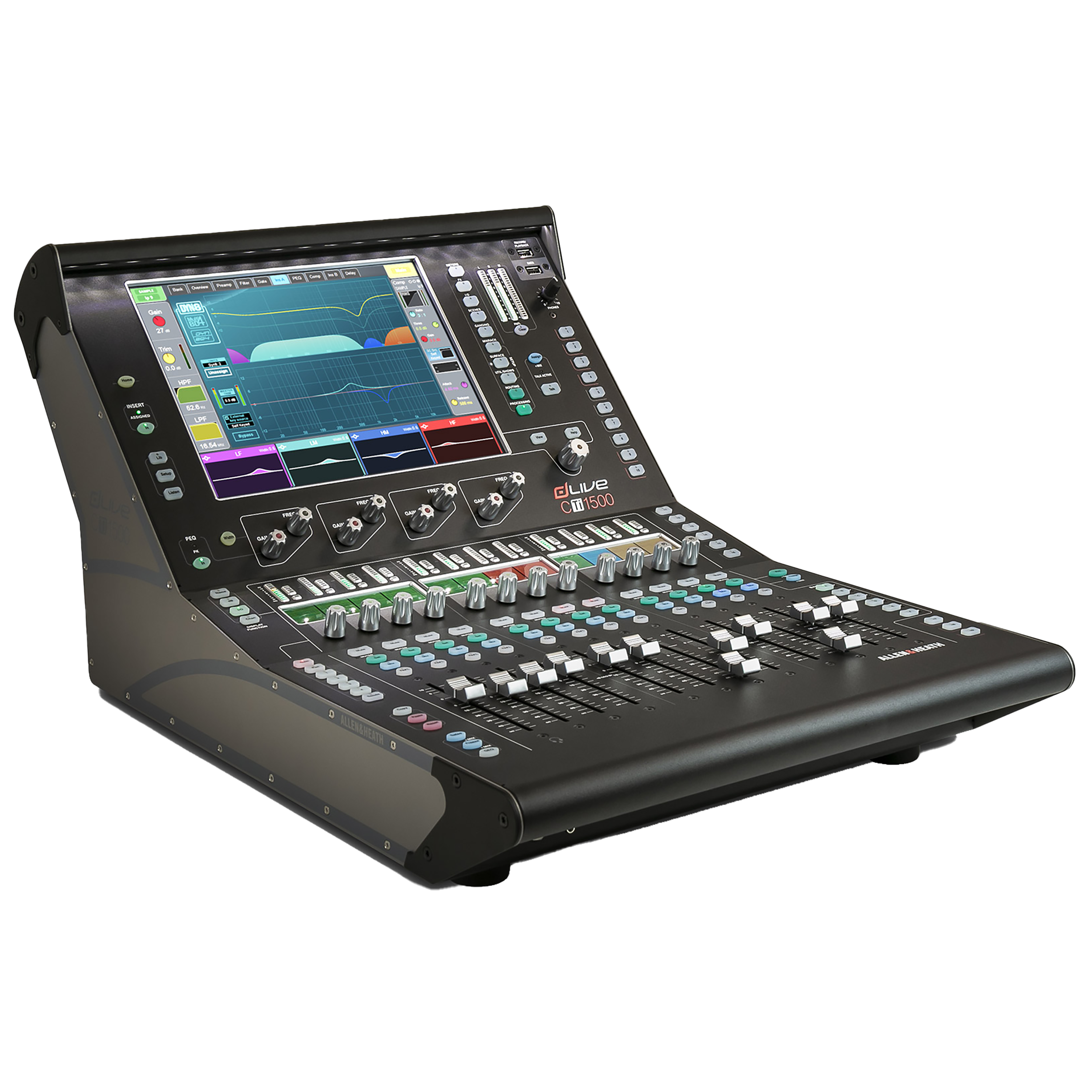

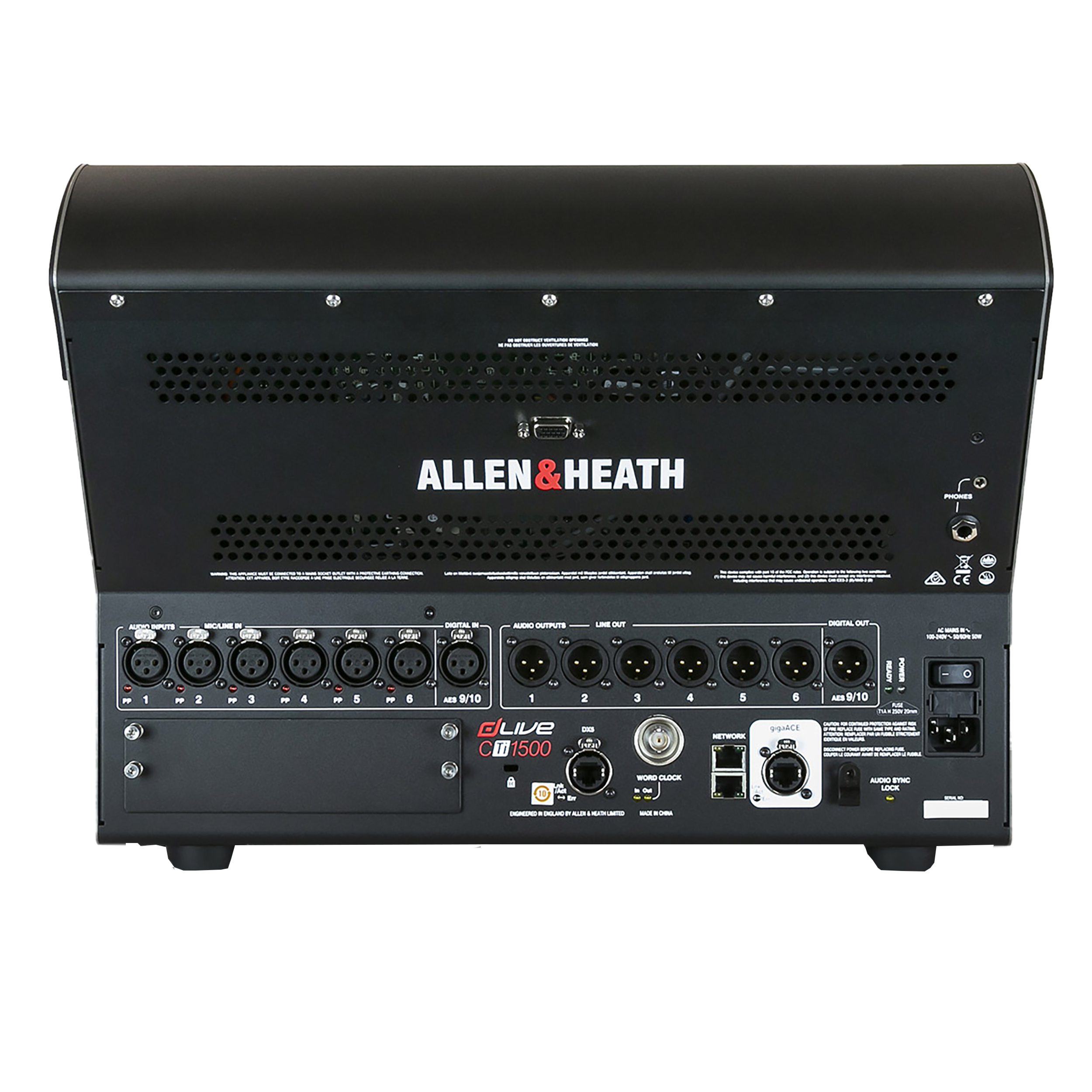

Allen & Heath dLive CTi1500 Mixing Surface

$11,499.99

PICK UP TODAY

recertified+.png__PID:7672a0bd-1cf7-4ba8-9841-5171b10f1ebf
  • Like New Condition
  • Original Packaging
  • Full Factory Warranty

Have a question?

Need help finding something?

Talk to a PRO

855-772-2937

_EBP9032_SQ.jpeg__PID:828e756e-5126-4f82-9136-2bf92b17727c

Expertly tested refurbished and open box products

Backed by the BYFP satisfaction guarantee

Copy of Untitled Design (3).png__PID:0d4aaa6e-815d-4b5a-879b-7bd16634732b

Free Shipping

1.png__PID:3c5bc891-9c7e-4dda-94a6-30ba47708c69

Professionally Inspected

2.png__PID:5bc8919c-7ecd-4a14-a630-ba47708c69eb

Satisfaction Guaranteed

3.png__PID:c8919c7e-cdda-44a6-b0ba-47708c69eb73

Expert Support

DESCRIPTION

dLive is a distributed digital mixing system providing a uniquely flexible solution for any live sound application. It separates the mix engine from the control surface, putting the audio and processing where it is needed and offering a host of control and audio networking possibilities. Refer to the Allen & Heath website to find out more about dLive. The MixRack is the heart of any dLive system. It houses the XCVI processing core complete with audio I/O, control, and audio networking ports. The Surface is effectively a network controller for the MixRack, with the addition of built-in audio I/O and audio networking ports. DX Expanders can be added to the system for extra I/O.

FEATURES
    • Fully assignable layout
    • Single or twin 12” capacitive touchscreen
    • Gesture control – pinch, swipe, drag ‘n drop
    • Configurable widget areas for Scenes, meters, FX and more
    • 19 assignable SoftKeys (26 on S3000, S5000, S7000)
    • Engineer’s Wedge and IEM fader strips
    • Comprehensive multipoint metering
    • Daylight visibility
    • USB stereo recording and playback
SPECIFICATIONS
    • Mic/Line XLR Inputs: Balanced XLR, +48V phantom power
    • Mic/Line Preamp: Fully recallable
    • Input Sensitivity: -60 to +15dBu
    • Analogue Gain: +5 to +60dB, 1dB steps
    • Pad: -20dB Active PAD
    • Maximum Input Level: +30dBu (PAD in)
    • Input Impedance: >4kΩ (Pad out), >10kΩ (Pad in)
    • Mic EIN: -127dB with 150 source
    • Phantom Power Indication: Per socket, internal or external phantom power sensing, triggered at 24V
    • Analogue XLR Outputs: Balanced, Relay protected
    • Output Impedance: <75 Ω
    • Nominal Output: +4dBu = 0dB meter reading
    • Maximum Output Level: +22dBu
    • Residual Output Noise: -92dBu (muted, 20-20kHz)
    • Dynamic Range: 110dB
    • System Signal to Noise: -92dB
    • Frequency Response: 20Hz - 30kHz +0/-0.8dB
    • THD+N (analogue in to out): 0.0015% @ +16dBu output, 1kHz 0dB gain
    • Headroom: +18dB
    • Internal Operating Level: 0dBu
    • dBFS Alignment: +18dBu = 0dBFS (+22dBu at XLR output
    • Meter Calibration: 0dB meter = -18dBFS (+4dBu at XLR out)
    • Meter Peak Indication: -3dBFS (+19dBu at XLR out)
    • Sampling Rate: 96kHz +/- 20 PPM
    • ADC and DAC: 24-bit Delta-Sigma
    • Dimensions (LxWxH): 17.4" x 25.4" x 13.27"
    • Weight: 25.4 lbs
    • Power: 100-240V AC, 50-60Hz, 175W max
CONTENTS
    (1) Allen & Heath dLive CTi1500 Mixing Surface
    (1) CAT5 Cable (2m)
    (1) Getting Started Guide AP12150
    (1) Safety Sheet
    (1) IEC Mains Lead
