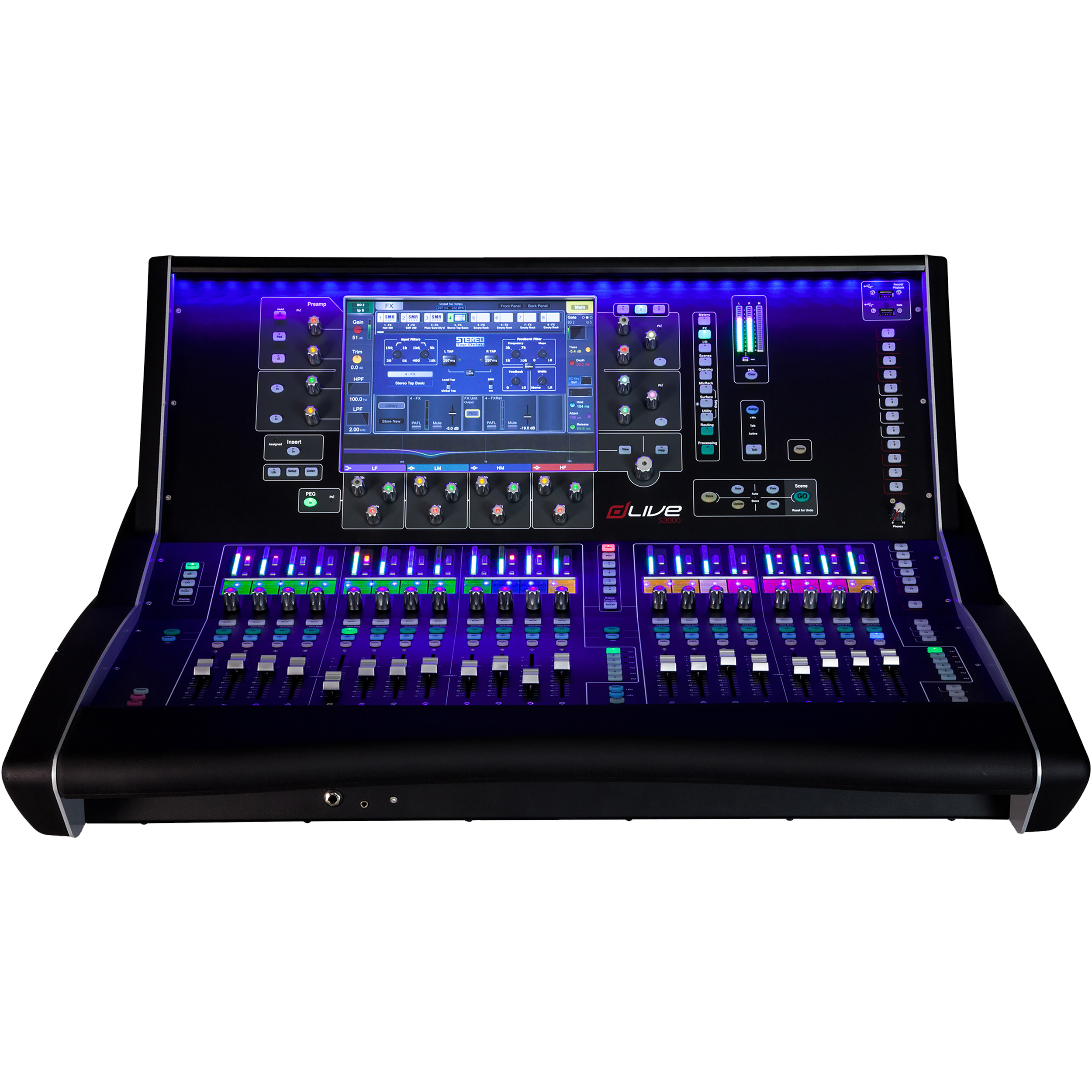

The Allen & Heath dLive S3000 Surface is a powerful and versatile digital mixing console designed for professional live sound applications. It features 20 motorized faders across two layers, offering seamless control over a variety of inputs and outputs. The 12-inch capacitive touchscreen provides an intuitive interface for quick access to all essential functions, including EQ, effects, and routing. With its rugged, tour-ready construction, the S3000 is built to withstand the rigors of live performance. It integrates seamlessly with the dLive MixRack, providing up to 128 input channels and 64 configurable buses, making it suitable for large-scale events and complex audio setups. Advanced processing capabilities, such as DEEP processing, give users high-quality emulations of classic gear, while the extensive I/O options, including USB recording and playback, ensure maximum flexibility for any audio environment.
• Fully assignable layout
• Harmony UI – integrated screen and ‘wrap-around’ controls
• Single or twin 12” capacitive touchscreen
• Gesture control – pinch, swipe, drag ‘n drop
• Configurable widget areas for Scenes, meters, FX and more
• 3 pages of assignable rotaries per screen
• 26 assignable SoftKeys
• Engineer’s Wedge and IEM fader strips
• Comprehensive multipoint metering
• Daylight visibility
• USB stereo recording and playback
• Dual redundant, hot swappable power supply
• Inputs:
• Mic/Line XLR Inputs: Balanced XLR, +48V phantom power
• Mic/Line Preamp: Fully recallable
• Input Sensitivity: -60 to +15dBu
• Analogue Gain: +5 to +60dB, 1 dB steps
• Pad: -20dB active PAd
• Maximum Input Level: +30dBu (PAD in)
• Input Impedance: >4kOhms (Pad out), >10kOhms (Pad in)
• Mic ein: -127dB with 150Ohms source
• Phantom Power Indication: Per socket, internal or external phantom power sensing, triggered at 24V
• System:
• Dynamic Range: 110dB
• System Signal to Noise: -92dB
• Frequency Response: 20Hz - 30kHz +0/-0.8dB
• THD+N (Analogue In to Out): 0.0015% @ +16dBu output, 1kHz 0dB gain
• Headroom: +18dB
• Internal Operating Level: 0dBu
• dBFS Alignment: +18dBu = 0dBFS (+22dBu at XLR output)
• Meter Calibration: 0dB meter = -18dBFS (+4dBu at XLR out)
• Digital Inputs:
• Meter Indication: -3dBFS (+19dBu at XLR out)
• Outputs:
• Analogue XLR Outputs: Balanced, Relay Protected
• Output Impedance: <75 Ohms
• Nominal Output: +4dBu = 0dB meter reading
• Maximum Output Level: +22dBu
• Residual Output Noise: -92dBu (muted, 20-20kHz)
• Residual Output Noise: -90dBu (muted, 20-40kHz)
• Latency: 0.7ms (MixRack XLR in to XLR out, Input to Mix)
• Latency: + 5 samples, Surface to Mixrack (GigaACE hop)
• Latency: + 8 samples, DX32 to Mixrack (DX hop)
• Digital Outputs: AES3 2 Ch XLR, 2.5Vpp balanced terminated 110 Ohms
(1) Allen & Heath dLive S3000 Surface
(1) Getting Started Guide AP9899
(1) Safety Sheet
(1) IEC Mains Lead
(1) Dust Cover
