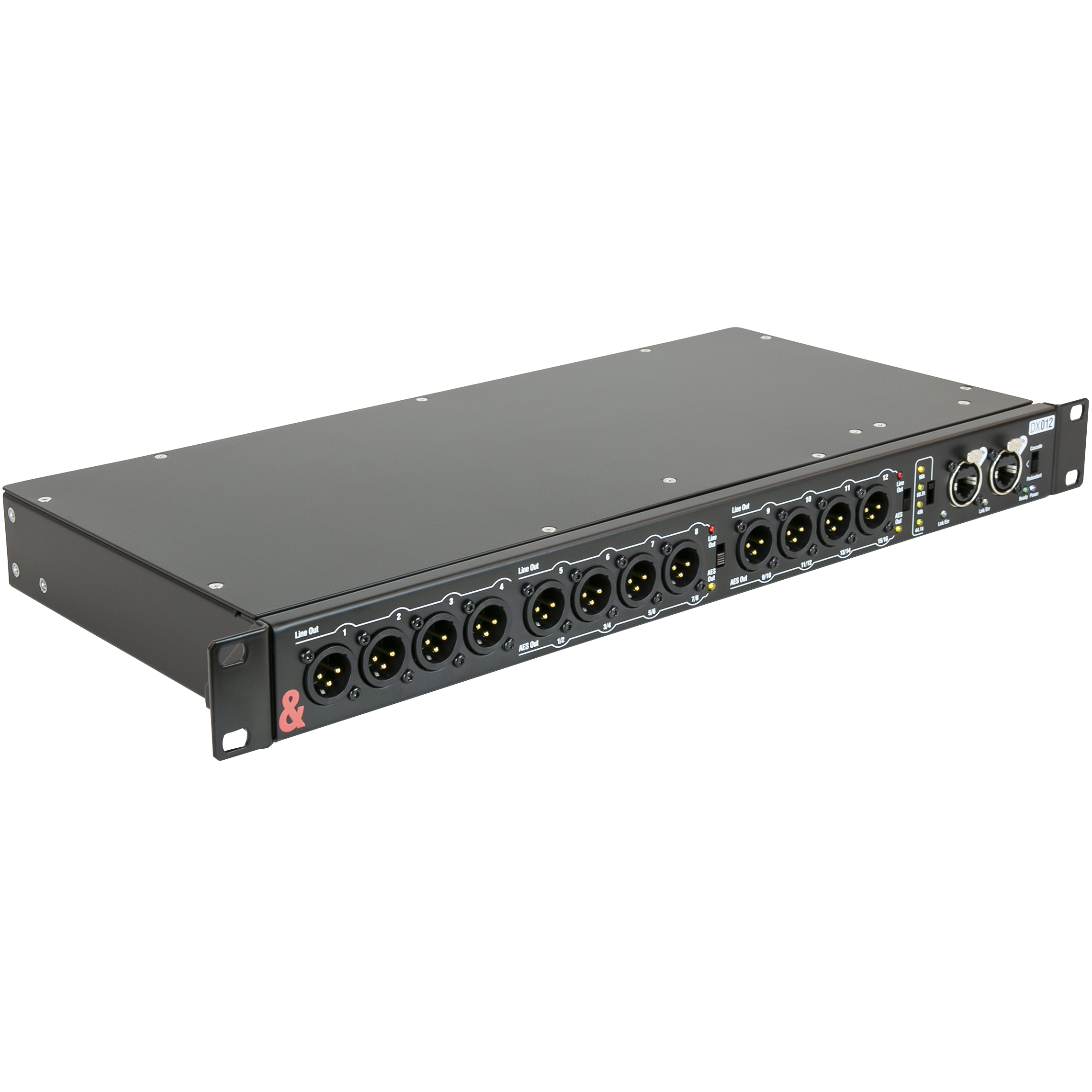

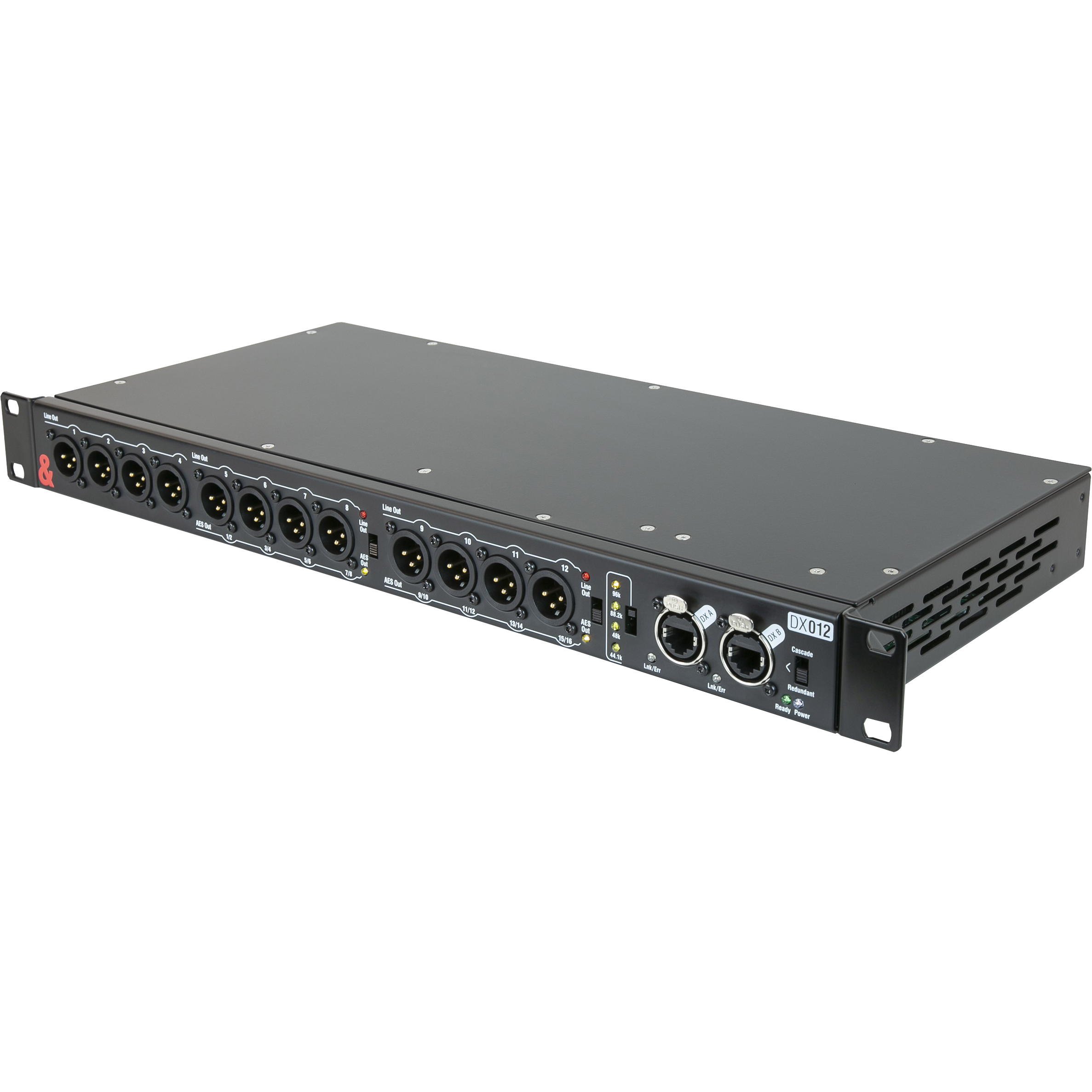

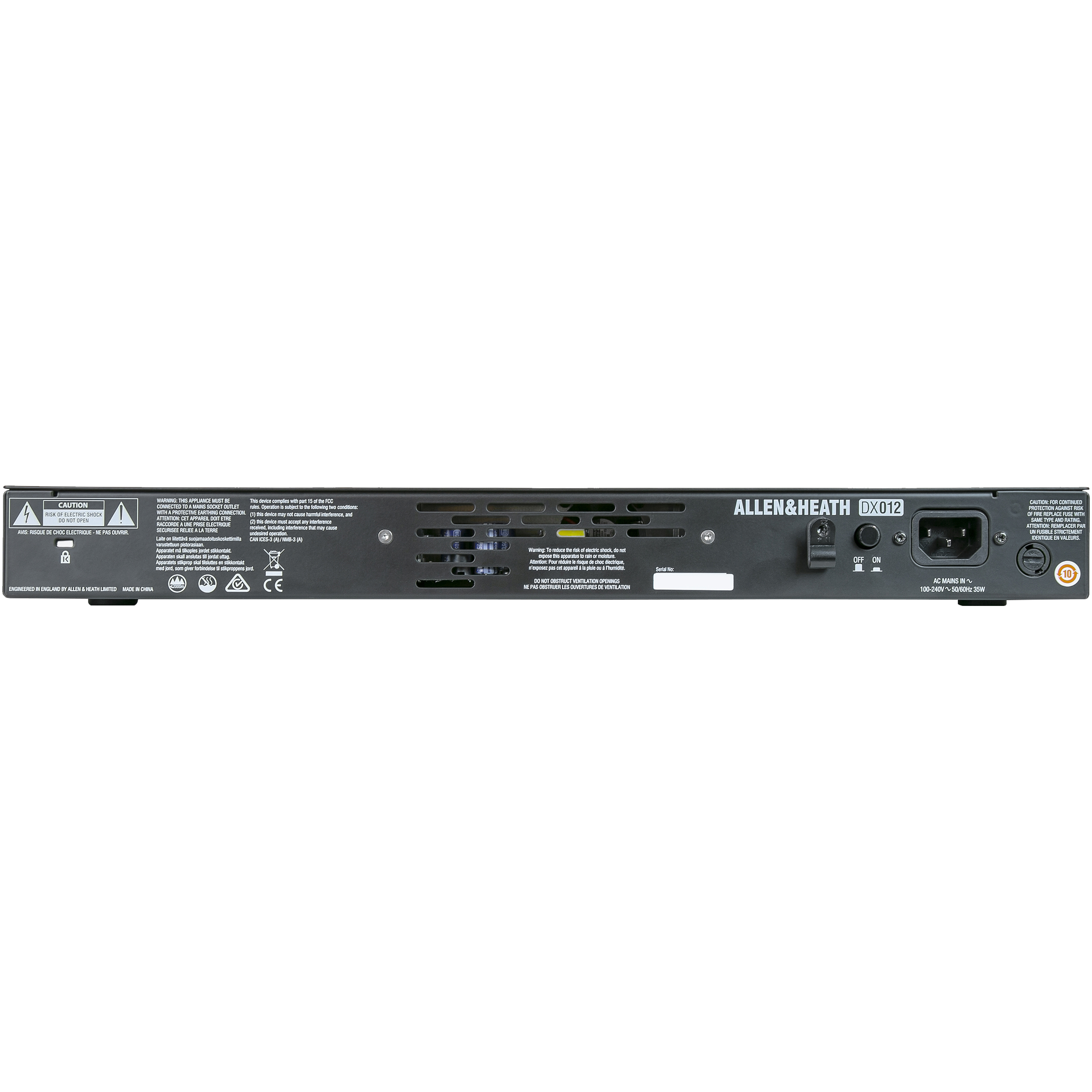

Allen & Heath DX-012 Expander

SCHEDULE A DEMO TODAY

Related Products

BYFP ipCase for 12x PGA57/58 Wired Microphones

BYFP ipCase for 12x PGA57/58 Wired Microphones

$149.99

BYFP ipCase for Shure SM7B Broadcast Pack

BYFP ipCase for Shure SM7B Broadcast Pack

$349.99

BYFP ipCase for Beta 52A and Beta 91A Drum Microphone

BYFP ipCase for Beta 52A and Beta 91A Drum Microphone

$179.99

BYFP ipCase for Shure BETA 98AMP/C 3-Pack

BYFP ipCase for Shure BETA 98AMP/C 3-Pack

$169.99

Need to get more out of your system? DX012 provides remote output expansion for SQ, Avantis and dLive mixers, and for the AHM-64 audio matrix processor.

Perfect for feeding IEM systems and amplifier racks, DX012 offers both analogue and AES digital output options in a compact 1U form factor.

The DX012 connects via a single Cat5e cable to the dLive Surface, dLive MixRack, AHM-64 mattrix processor, Avantis mixer, SQ mixer or upstream DX expander via a secure EtherCon port.

A second locking EtherCon port is provided for redundant connection to compatible hardware, or for daisy-chaining to a downstream DX expander for additional remote I/O.

FEATURES

• Compatible with SQ, Avantis and dLive systems
• Cascade mode allows daisy-chaining of up to 2 DX Expanders on each DX port
• Redundant DX connection to compatible hardware
• Rack-mounted (1u) or shelf/floor operation
• Plug and Play – no IP addressing required
• Compatible with CAT5e (or higher) cables of up to 100m
• Locking EtherCon ports

SPECIFICATIONS

Digital Outputs: AES3 2 Ch XLR, 2.5V balanced, terminated 110Ohms
Sample Rate: 44.1kHz, 48kHz, 88.2kHz, 96kHz
Analogue XLR Outputs: Balanced, Relay protected
Output Impedance: <60O
Nominal Output: +4dBu = 0dB meter reading
Maximum Output Level: +22dBu
Residual Output Noise: -95dBu (22Hz-22kHz)
THD+N: -98dB (0dBu, 1kHz)
Operating Temperature Range: 0°C to 40°C (32°F to 104°F)
Mains Voltage Operating Range: 100-240V AC, 50/60Hz
Mains Power Consumption: 35W max

CONTENTS

(1) Allen & Heath DX012 DX Expander
