DESCRIPTION

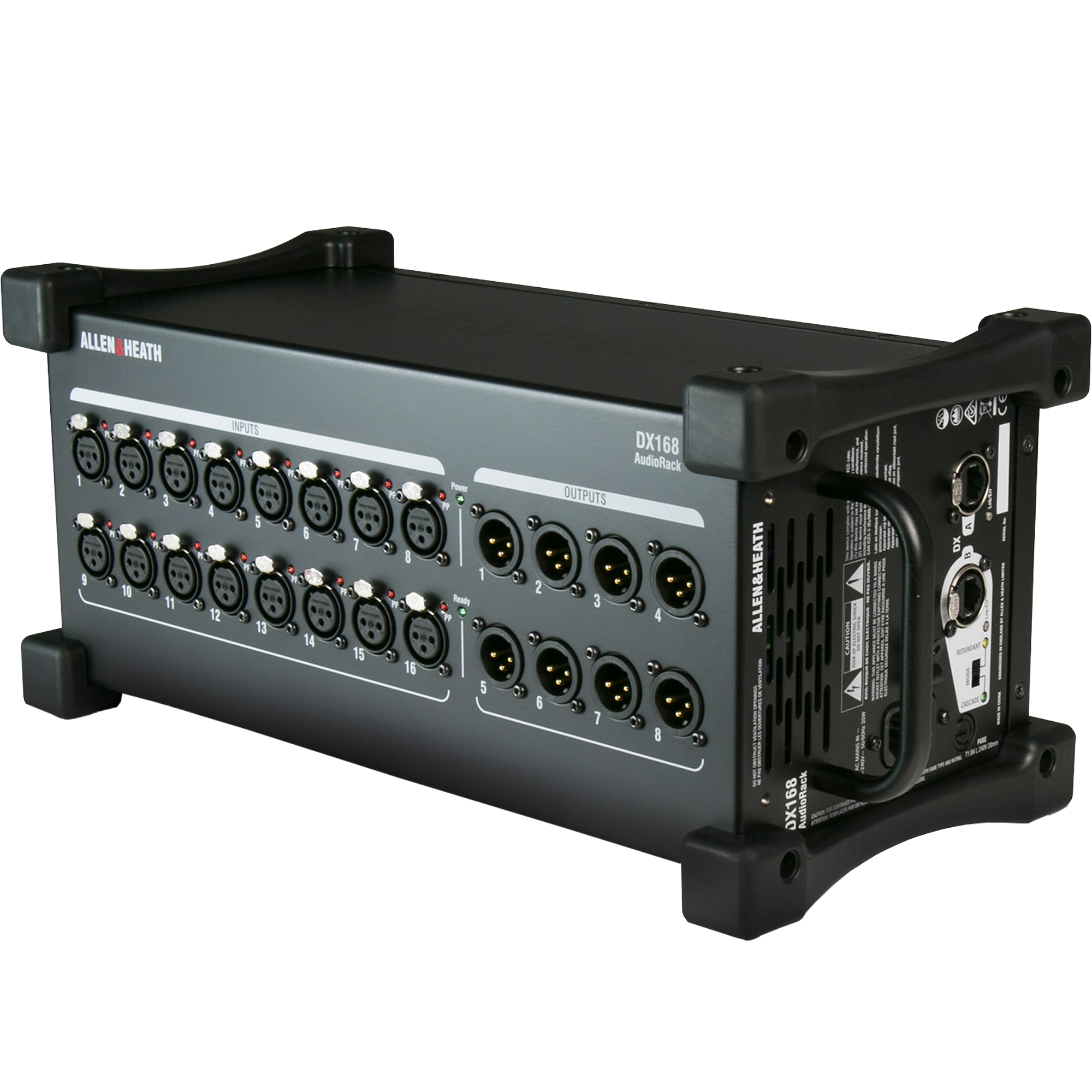

The DX168 is a rugged, portable expander for adding remote I/O to a dLive S Class or dLive C Class system.

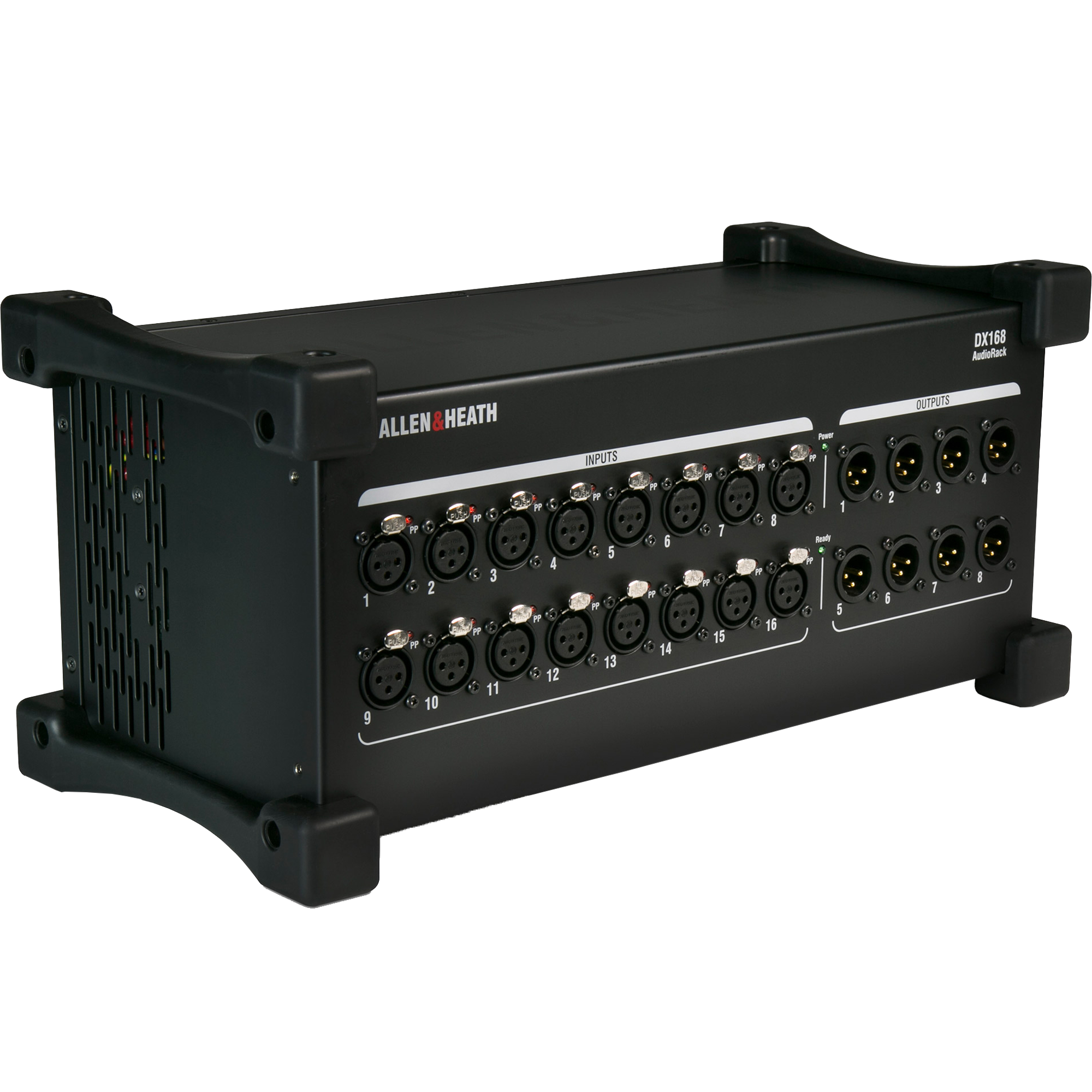

Each DX168 features 16 mic preamps with independent Phantom Power LED indicators, plus 8 XLR line outs. Up to 6 DX168 units can be connected to a dLive system – 4 via the MixRack and 2 via the Surface – allowing up to 96 remote inputs and 48 remote outputs in addition to those provided by the MixRack and Surface.

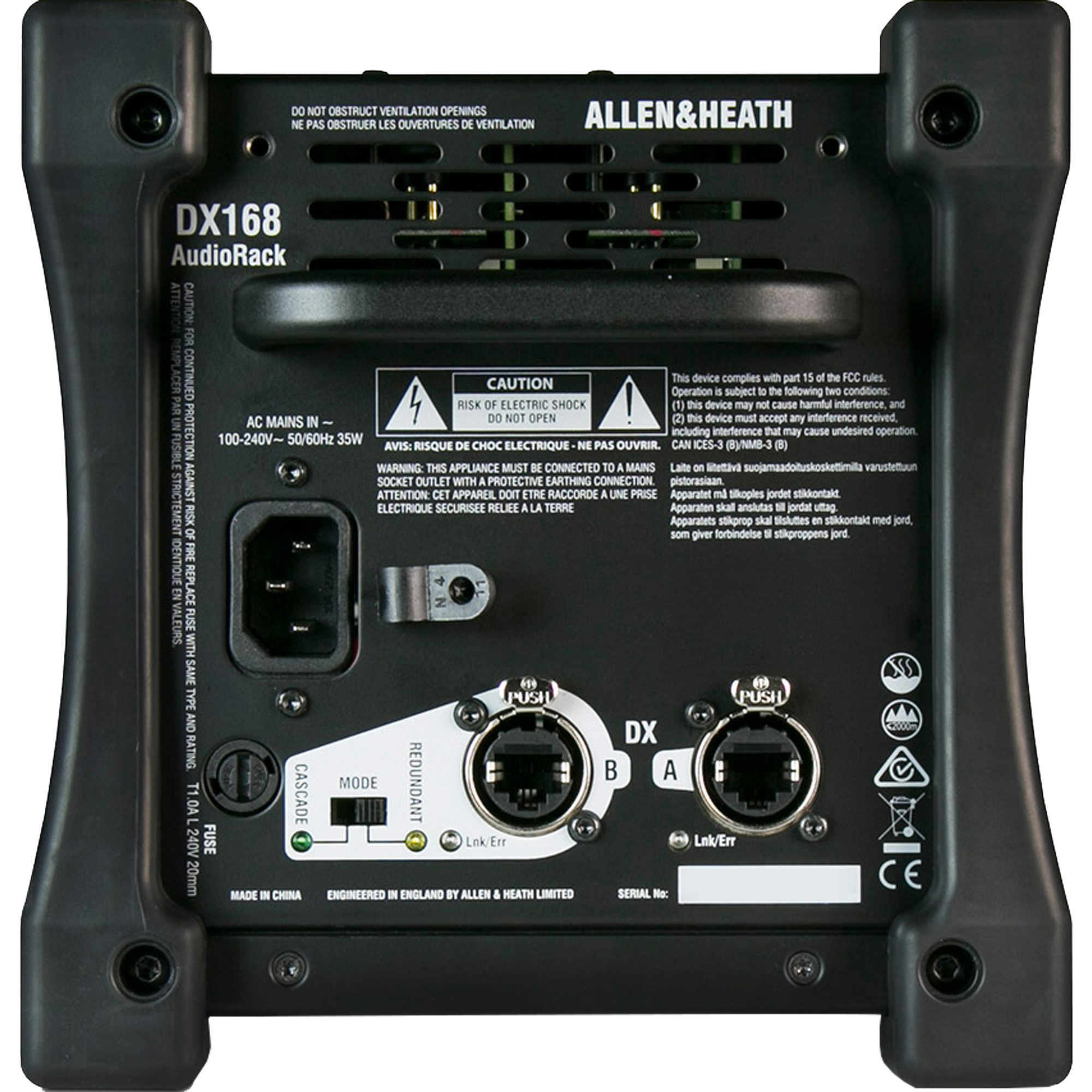

The DX168 connects via a single Cat5e cable to the dLive Surface, MixRack or upstream DX168 via a secure EtherCon port. A second locking EtherCon port is provided for redundant connection to compatible hardware, or for daisy-chaining to a downstream DX168 for additional remote I/O.



FEATURES
    • 16 Mic preamps on XLR with phantom power status LED's
    • 8 XLR Line Outs
    • Up to 6 DX168 Units can be added to dLive system for 96 inputs / 48 outputs
    • Cascade mode allows daisy-chaining of 2 DX168 expanders for additional I/O
    • Redundant DC connection to dLive S class hardware
    • plug and play - no IP addressing required
SPECIFICATIONS
    • Input Sensitivity: -60 to +15dBu
    • Analogue Gain: +5 to +60dB, 1dB steps
    • Pad: -20dB Active PAD
    • Maximum Input Level: +30dBu (PAD in)
    • Input Impedance: >4kO (Pad out), >10kO (Pad in)
    • Mic EIN: -127dB with 150? source
    • Unity Gain (Pad in): -90dBu
    • Low Gain (30dB, Pad in): -90dBu
    • Mid Gain (30dB, Pad out): -90dBu
    • Output Impedance: <75O
    • Nominal Output: +4dBu = 0dB meter reading
    • Maximum Output Level: +22dBu
    • Residual Output Level: -92dBu (muted, 20-20kHz)
    • Mains Power: 100-240V, 50/60 Hz, 20W max
CONTENTS
    (1) Allen & Heath DX168
