Product SKU
    35011

Allen & Heath QU-24C Mixer

$1,749.99

PICK UP TODAY

recertified+.png__PID:7672a0bd-1cf7-4ba8-9841-5171b10f1ebf
  • Like New Condition
  • Original Packaging
  • Full Factory Warranty

Have a question?

Need help finding something?

Talk to a PRO

855-772-2937

_EBP9032_SQ.jpeg__PID:828e756e-5126-4f82-9136-2bf92b17727c

Expertly tested refurbished and open box products

Backed by the BYFP satisfaction guarantee

Copy of Untitled Design (3).png__PID:0d4aaa6e-815d-4b5a-879b-7bd16634732b

Free Shipping

1.png__PID:3c5bc891-9c7e-4dda-94a6-30ba47708c69

Professionally Inspected

2.png__PID:5bc8919c-7ecd-4a14-a630-ba47708c69eb

Satisfaction Guaranteed

3.png__PID:c8919c7e-cdda-44a6-b0ba-47708c69eb73

Expert Support

DESCRIPTION

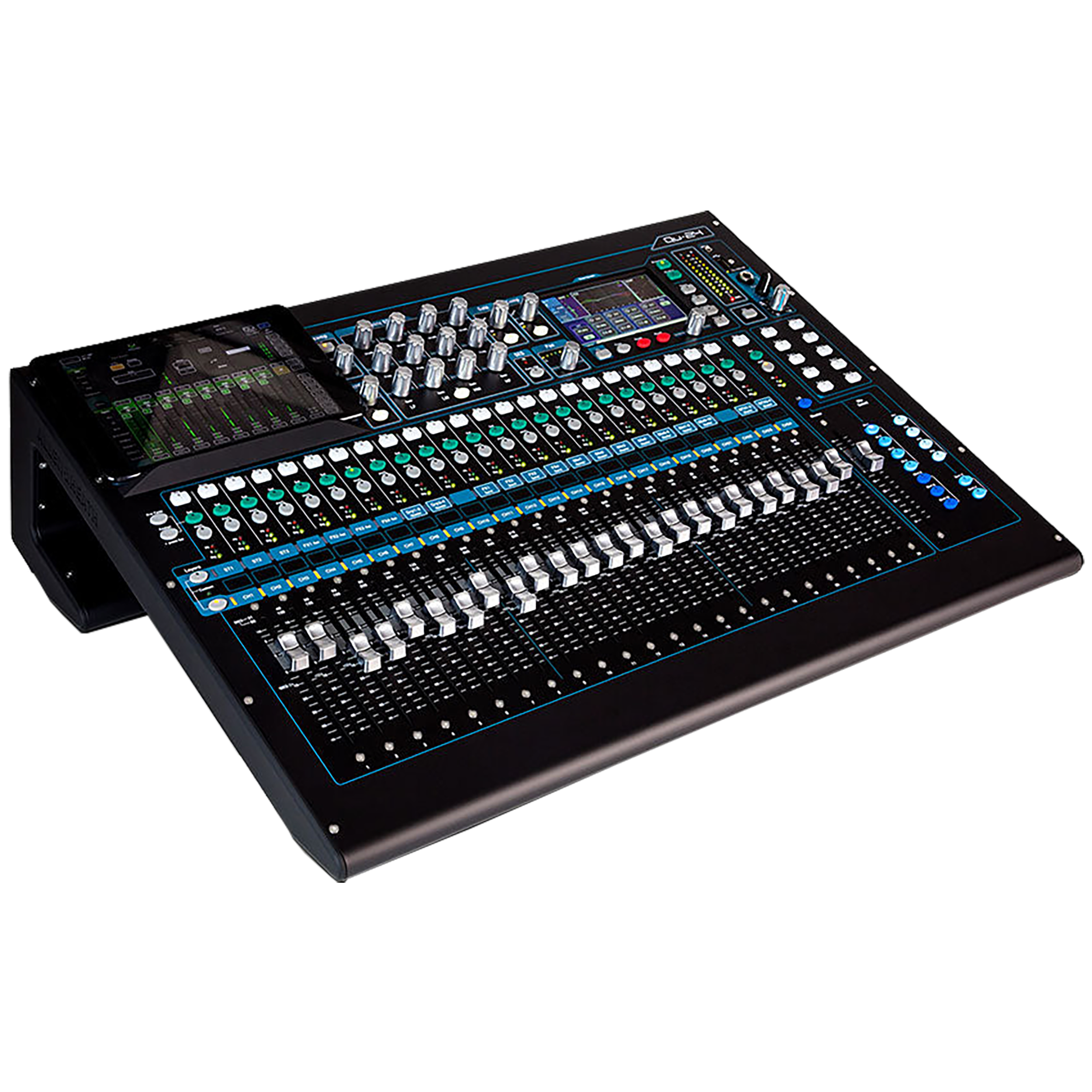

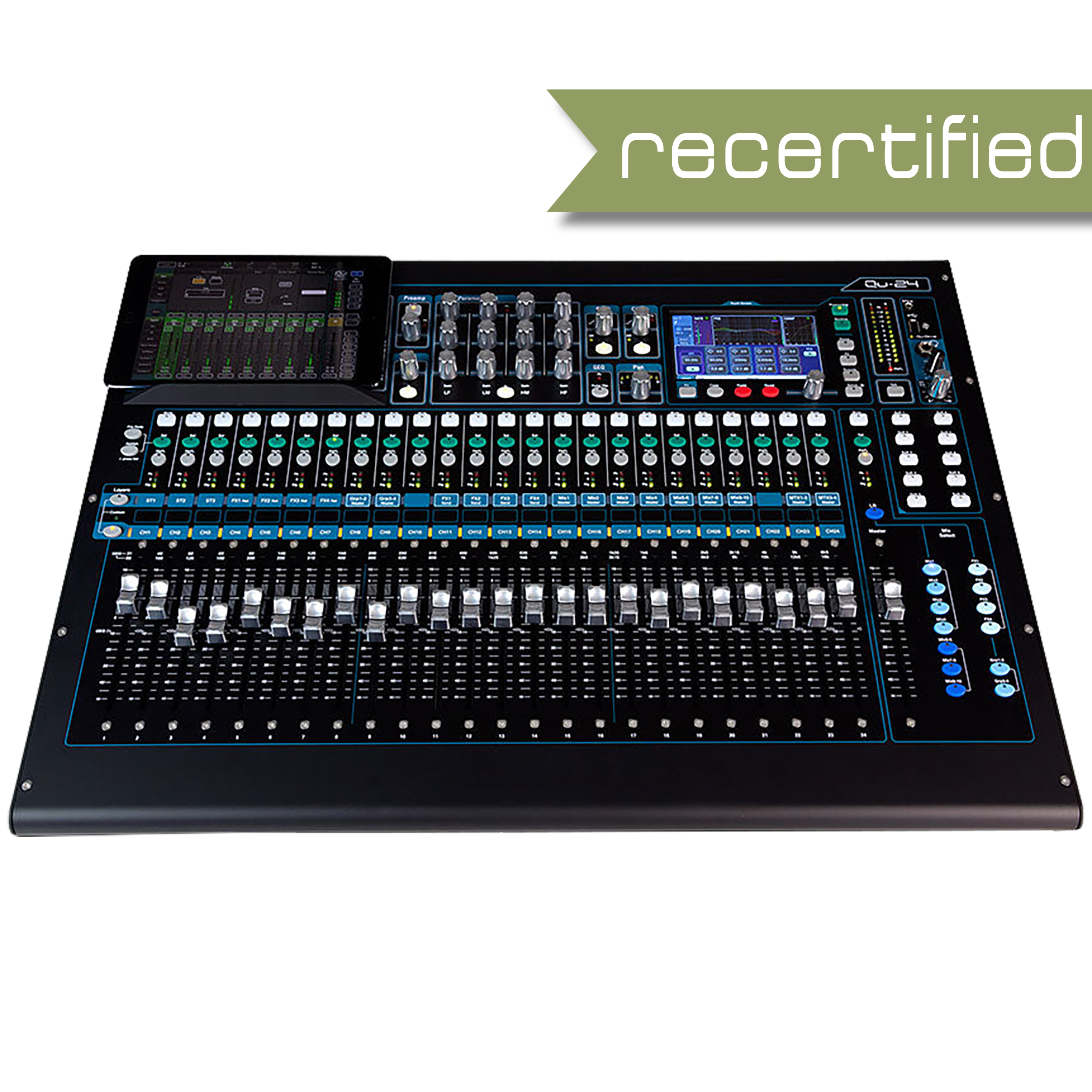

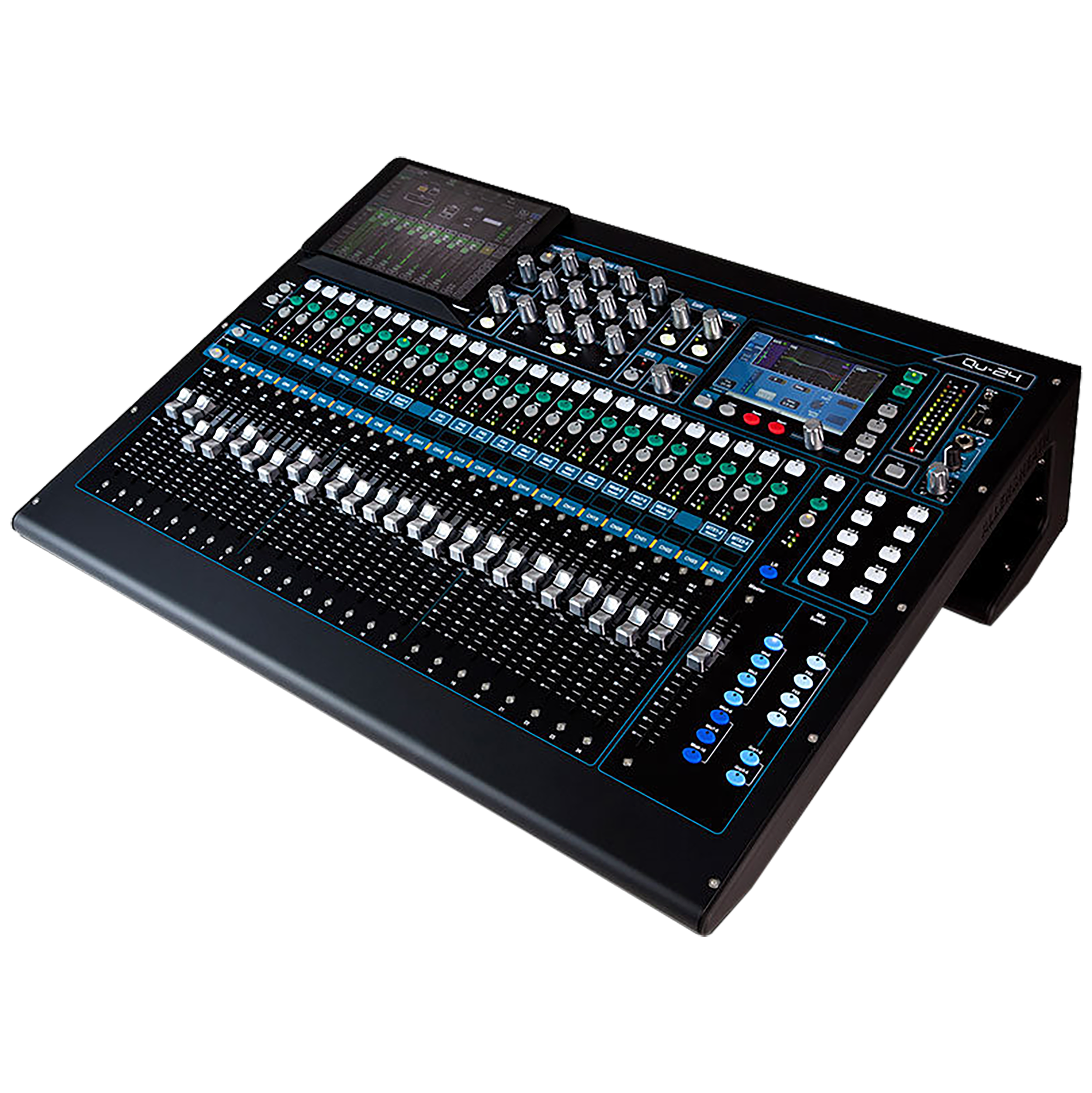

The Allen & Heath QU-24C is a robust, 24-channel digital mixer designed for professional live sound, recording, and broadcasting environments. With a sleek and intuitive interface, it features 24 premium mic preamps, a 7-inch touchscreen for easy navigation, and motorized faders for seamless control. The QU-24C boasts a 32x30 USB audio interface for direct multitrack recording and playback, while its Qu-Drive allows for stereo and multitrack recording directly to a USB drive. It also supports remote control via the Qu-Pad app, making it ideal for both front-of-house and studio applications. The mixer is housed in a durable, lightweight metal chassis, ensuring reliability and portability for any audio professional.

FEATURES
    • 24 mono Mic/Line channels
    • 3 stereo Line channels
    • 32 sources to the mix
    • 12 mixes (4 mono, 3 stereo, LR)
    • 4 FX with 4 FX send buses
    • 10 assignable SoftKeys
    • 4 Mute Groups
    • 32 out, 30 in USB streaming
    • 2 stereo Groups
    • 2 stereo Matrix
    • Extra stereo outputs -- AES digital, Alt • Out, 2TRK out
    • Talkback mic input
    • dSNAKE for remote audio using an AR2412 or AR84 AudioRack
    • AnaLOGIQ™ total recall analogue preamps
    • Effects ported from the flagship iLive console
    • Dedicated stereo FX return channels
    • Master strip for quick access to mix levels and processing
    • Input channel linking for stereo sources
    • Input processing -- Preamp, HPF, Gate, PEQ, Compressor, Delay
    • Output processing -- PEQ, Graphic EQ, • Compressor, Delay
    • 800x480 pixel colour touch screen for quick control
    • Motorised faders for sends on faders, GEQ fader flip and mix recall
    • Quick copy and reset of settings and scenes
    • 100 Scene memories
    • Scene Recall Filter and channel Safes
    • Channel processing User Libraries
    • Qu-Drive for stereo and 18-track recording/playback to USB hard drive
    • USB streaming to/from an Apple® Mac computer (PC not supported)
    • MIDI DAW Control driver for Mac (converts to HUI or Mackie Control)
    • USB transfer of Scenes, Libraries, Shows
    • User assignable Custom Layer
    • Qu-Pad wireless remote app for iPad
    • Compatible with the Allen & Heath ME personal mixing system
    • User Permissions to restrict operator access (Not available in V1.3)
SPECIFICATIONS

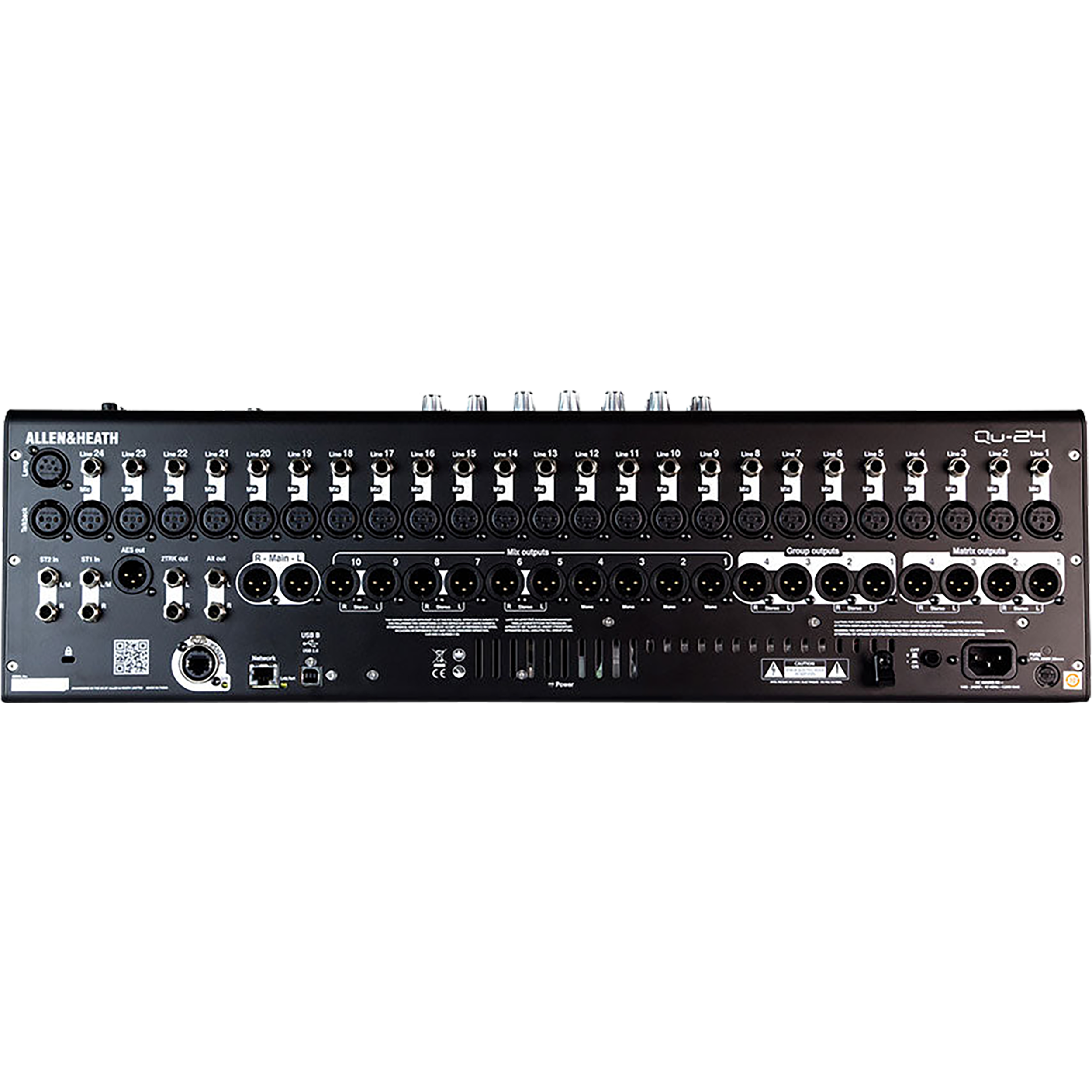

    • Mic/Line 1-24: Balanced, XLR and 1/4" TRS jack, fully recallable
    • Mic Input Sensitivity (XLR / TRS): -60 to +10dBu / -50 to +20dBu
    • Mic Analogue Gain: -10 to +60dB, 1dB steps
    • Mic Maximum Input Level (XLR / TRS): +19dBu / +29dBu
    • Mic Input Impedance (XLR / TRS): >5kOhms / >10 kOhms
    • Mic THD+N, Unity gain 0 dB: 0.0005% -89 dBu (20-20kHz, Direct Out @0dBu 1kHz)
    • Mic THD+N, Mid gain +30dB: 0.001% -83dBu (20-20kHz, Direct Out @0dBu 1kHz)
    • ST1, ST2 connector: Balanced, 1/4" TRS jack, half normalled
    • ST3 connector: Unbalanced, 3.5mm Mini Jack
    • Stereo Input Sensitivity (ST1, ST2 / ST3): Nominal +4dBu / 0dBu
    • Stereo Trim: +/-24dB
    • Stereo Maximum Input Level (ST1,ST2 / ST3): +22dBu / +18dBu
    • Stereo Input Impedance: >7kOhms
    • Mix1-10 and LR Out, Grp1-4, MTX1-4: Balanced, XLR
    • Output Impedance: <75Ohms
    • Nominal Output: +4dBu = 0dB meter reading
    • Maximum Output Level: +22dBu
    • Residual Output Noise: -91 dBu (muted, 20-20kHz)
    • Stereo Alt Out & 2Trk Out: Balanced, 1/4" TRS jack
    • Source (Alt Output / 2Trk Output): Patchable / LR post-fade
    • Output Impedance: <75Ohms
    • Nominal Output: +4dBu = 0dB meter reading
    • Maximum Output Level: +22dBu
    • Residual Output Noise: -91 dBu (muted, 20-20kHz)
    • AES Digital Output: 2 channel, 48kHz sampling rate, XLR. 2.5Vpp balanced terminated 110Ohms
    • dSNAKE Inputs: Remote source for CH1-24, ST1, ST2, ST3
    • dSNAKE Outputs: Remote outputs for Mix1-10, LR. Compatible with AudioRacks AR2412, AR84. Commpatible with ME personal mixing system
    • System: Measured balanced XLR in to XLR out, 0dB gain, 0dBu input
    • Dynamic Range: 112 dB
    • Frequency Response: +0/-0.5dB 20Hz to 20kHz
    • Headroom: +18dB
    • Internal Operating Level: 0dBu
    • dBFS Alignment: +18dBu = 0dBFS (+22dBu at XLR output)
    • Meter Calibration: 0dB meter = -18dBFS (+4dBu at XLR out)
    • Meter Signal indication: -48dBFS (-26dBu at XLR out)
    • Meter Peak indication: -3dBFS (+19dBu at XLR out), multi-point sensing
    • Meter Type: Fast (peak) response
    • Sampling Rate: 48kHz +/-100PPM
    • ADC, DAC: 24-bit Delta-Sigma
    • Latency: 1.2 ms (local XLR in to XLR out). 0.7 ms (local XLR in to AES out)
    • Operating Temperature Range: 0 deg C to 35 deg C (32 deg F to 95 deg F)
    • Mains Power: 100-240V AC, 50/60Hz, 82W max (Qu-16), 120W
    • USB Audio Qu-Drive: USB A
    • USB Audio Device: Use a USB hard drive (not a USB key)
    • USB Audio Stereo Record: 2 channel, WAV, 48kHz, 24-bit, patchable
    • USB Audio Stereo Playback: 2 channel, WAV, 44.1 or 48kHz, 16 or 24-bit, to ST3
    • Multitrack Record: 18 channel, WAV, 48kHz, 24-bit, patchable
    • Multitrack Playback: 18 channel, WAV, 48kHz, 24-bit
    • USB Audio Streaming: USB B, Core Audio compliant
    • Send (upstream): 24/32 channel, WAV, 48kHz, 24-bit
    • Return (downstream): 22/30 channel, WAV, 48kHz, 24-bit
    • Faders: 100mm motorized
    • Touch Screen: 5" TFT, 800x480 resolution
    • SoftKeys: 10
    • Mute Groups: 4
    • Network: TCP/IP Ethernet for MIDI and iPad app
    • Input Processing ST1, ST2: Local, dSNAKE, or USB
    • Input Processing ST3: Local, dSNAKE, or USB
    • Input Processing USB Global Source: Qu-Drive or USB B Streaming
    • Input Stereo Linking: Odd/even input pairs
    • Input Parameters linked: EQ, dynamics, insert, delay, assignments, sends
    • Input Link options: Preamp, polarity, sidechains, fader/mute, pan
    • Input Polarity: Normal/Reverse
    • Input High Pass Filter: 12dB/octave 20Hz -- 2kHz
    • Input Insert: Assign FX into Input channels
    • Input Delay: Up to 85ms
    • Input Gate: Self key Sidechain
    • Input Threshold / Depth: -72dBu to +18dBu / 0 to 60dB
    • Input Attack / Hold / Release: 50us to 300ms / 10ms to 5s / 10ms to 1s
    • Input PEQ: 4-Band fully parametric, 20-20kHz, +/-15dB
    • Input Band 1: Selectable LF Shelving (Baxandall), Bell
    • Input Band 2, Band 3: Bell
    • Input Band 4: Selectable HF Shelving (Baxandall), Bell
    • Input Bell Width: Non-constant Q, variable, 1.5 to 1/9th octave
    • Input Compressor: Self key Sidechain
    • Input Threshold / Ratio: -46dBu to 18dBu / 1:1 to infinity
    • Input Attack / Release: 300us -- 300ms / 100ms - 2s
    • Input Knee: Soft/Hard
    • Input Types: Peak Manual, RMS Manual, SlowOpto, PunchBag
    • Input Channel Direct Out to USB: Follow Fader, follow Mute (global options)
    • Input Source select (global): Post-Preamp, Pre-EQ, Post-EQ, Post-Delay
    • Mix Insert: Assign FX into Mix channels
    • Mix Delay: Up to 170ms
    • Mix GEQ: Constant 1/3 oct, 28 bands 31Hz-16kHz, +/-12dB Gain
    • Mix PEQ: 4-Band fully parametric, 20-20kHz, +/-15dB
    • Mix Band 1: Selectable LF Shelving (Baxandall), Bell
    • Mix Band 2, Band 3: Bell
    • Mix Band 4: Selectable HF Shelving (Baxandall), Bell
    • Mix Bell Width: Non-constant Q, variable, 1.5 to 1/9th octave
    • Mix Compressor: Self key Sidechain
    • Mix Threshold / Ratio: -46dBu to 18dBu / 1:1 to infinity
    • Mix Attack / Release: 300us -- 300ms / 100ms - 2s
    • Mix Knee: Soft/Hard
    • Mix Types: Peak Manual, RMS Manual, SlowOpto, PunchBag
    • Internal FX: 4x RackFX engine, Send>Return or Inserted
    • FX Types: Reverbs, Delays, Gated Reverb, ADT, Chorus, Symphonic Chorus, Phaser, Flanger
    • 4 dedicated Stereo FX returns: Fader, Pan, Mute, Routing to Mix/LR, 4-Band PEQ
    • PAFL: PFL or stereo in-place AFL, 0 to -24dB Trim, 85ms Delay
    • Talkback: Assignable to any mix, 12dB/oct HPF
    • Signal Generator: Assignable to any mix, Sine / White/Pink/Bandpass Noise
    • RTA: 31-Bands 1/3 octave 20-20kHz, follows PAFL source
    • Dimensions Desk mounted: 632 x 500 x 186 mm (24.9" x 19.7" x 7.4")
    • Dimensions Packed in shipping box: 670 x 790 x 350 mm (26.4" x 31.1" x 13.8")
    • Unpacked weight: 14 kg (31 lbs)
    • Packed weight: 18 kg (40 lbs)
CONTENTS
    (1) Allen & Heath QU-24C Mixer
    (1) US IEC Power Cord
    (1) Safety Sheets
    (1) Operator's Instructions
