DESCRIPTION

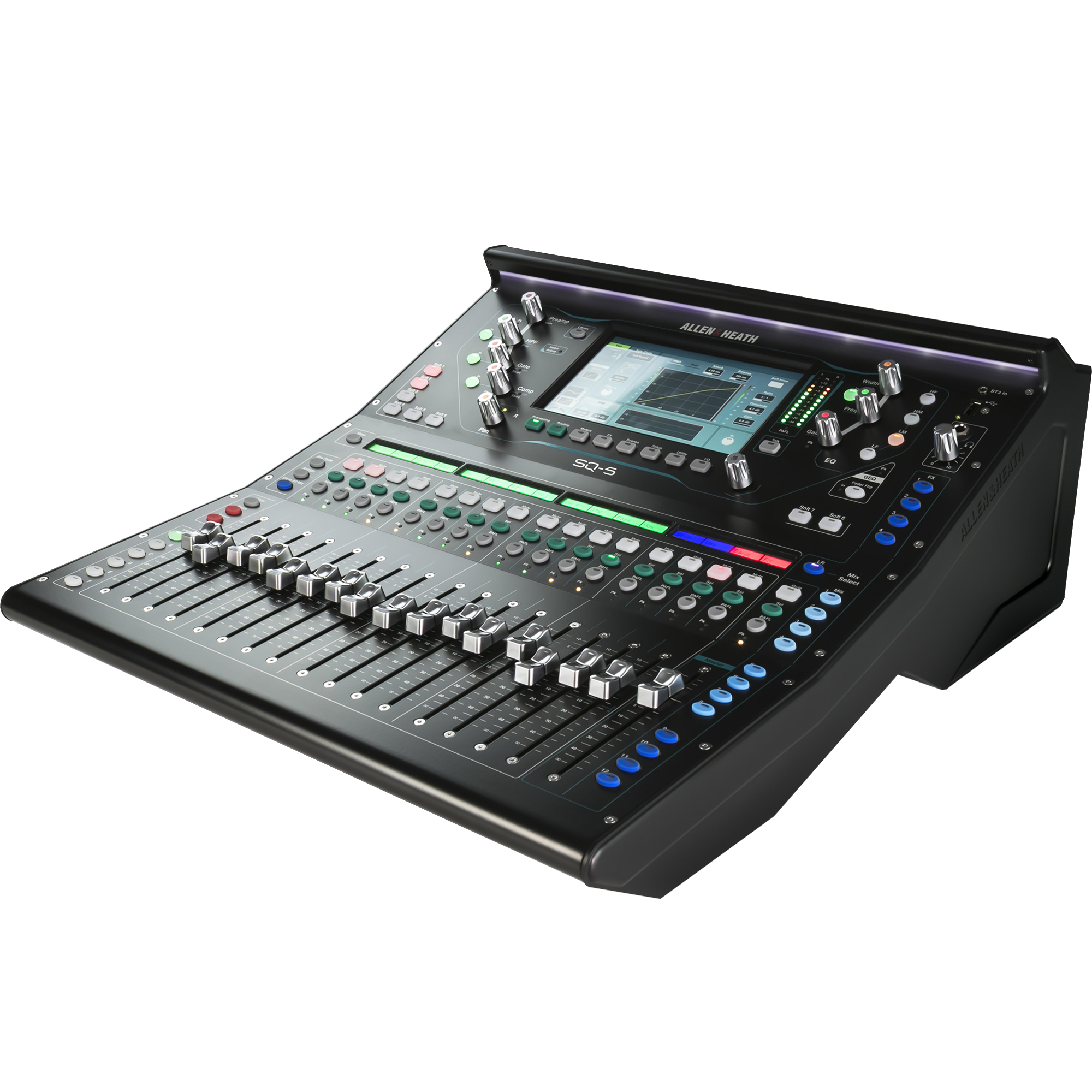

The Allen & Heath SQ-5 Mixer is a high-performance digital console designed for live sound engineers who demand versatility and superior audio quality. This compact yet powerful mixer features 48 input channels, 36 buses, and Allen & Heath's acclaimed 96kHz XCVI core, delivering ultra-low latency and pristine sound. The SQ-5 boasts a vibrant 7-inch touchscreen for intuitive navigation, 8 assignable soft keys, and motorized faders for seamless control. With a robust metal chassis and an ergonomic layout, this mixer is built for both portability and durability. Additionally, the open-box SQ-5 offers all these features at a reduced price, having been inspected and verified to ensure it meets Allen & Heath's high standards. Ideal for small to mid-sized venues, touring, and broadcast applications, the SQ-5 is a reliable choice for any professional audio setup.
FEATURES
    • 48 Input Channels
    • DEEP Processing ready
    • 17 Faders / 6 Layers
    • 12 Stereo mixes + LR
    • 3 Stereo Matrix
    • 8 Stereo FX Engines + dedicated returns
    • 7” capacitive touchscreen
    • SLink port for remote audio / expansion
    • 64ch I/O Port for audio networking
    • 32×32 USB audio interface
    • SQ-Drive direct recording to USB
    • AES output
    • Chromatic channel metering
    • Integrated LED illumination
    • Dedicated physical controls
    • 8 Assignable SoftKeys
    • Channel LCD displays
    • 19” rack mountable
SPECIFICATIONS
    • Input Sensitivity: -60 to +0dBu
    • Switchable Pad: -20dB
    • Analogue Gain: 0dB to +60dB, 1dB steps
    • Maximum Input Level: +30dBu
    • Input Impedance: >5k(omega)
    • THD+N, Unity gain 0dB: 0.002% -92dBu (20Hz-20kHz, AES Direct Out, @0dBu 1kHz)
    • THD+N, Mid gain +30dB: 0.003% -91dBu (20Hz-20kHz, AES Direct Out, @-30dBu INPUT 1kHz)
    • Phantom Power: +48V (+3V / -2V)
    • ST1, ST2 connectors: Balanced, 1/4" TRS jack
    • ST3 connector: Unbalanced, stereo 3.5mm Mini Jack
    • Input Sensitivity (ST1, ST2 / ST3): Nominal +4dBu ST1, ST2 / 0dBu ST3
    • Trim: +/-24dB
    • Maximum Input Level (ST1, ST2 / ST3): +22dBu / +18dBu
    • Input Impedance: >7k(omega)
    • Outputs A and B: Balanced 1/4" TRS Jack
    • Source: Patchable
    • Output Impedance: <75(omega)
    • Nominal Output: +4dBu = 0dB meter reading
    • Maximum Output Level: +22dBu
    • Residual Output Noise: -90dBu (muted, 20Hz-20kHz)
    • dSnake mode (48kHz devices): 64 channels assignable, compatible with AR2412, AR84, AB168, ME
    • dx mode (96kHz devices): 32 channels assignable,...
    • 8 dedicated Stereo FX returns: Fader, Pan, Mute, Routing to Mix/LR, 4-Band PEQ
    • PAFL: PFL or stereo in-place AFL, 0 to -24dB Trim, PAFL Delay Up to 682ms
    • Talkback: Dedicated input, Assignable to any mix, Gain, Pad, 48V, 12dB/oct HPF
    • Signal Generator: Assignable to any mix, Sine/White/Pink/Bandpass Noise
    • RTA: 31-Bands 1/3 octave 20-20kHz, follows PAFL source
    • SQ-Drive: USB A
    • Stereo Record: 2 channel, WAV, 96kHz, 24-bit, source fully patchable
    • Stereo Playback: 1/2 channel, WAV, 44.1, 48, 96kHz 16, 24-bit, fully patchable
    • Multitrack Record: 16 channel, WAV, 96kHz, 24-bit, track sources fully patchable
    • Multitrack Playback: 16 channel, WAV, 96kHz, 24-bit fully patchable
    • Send (upstream): 32 channel, 96kHz, 24-bit
    • Return (downstream): 32 channel, 96kHz, 24-bit
    • Desk mounted: 440 W x 514.9 D x 198 mm H (17.3" x 20.3" x 7.8")
    • Packed in shipping box: 610 W x 680 D x 360 mm H (24" x 26.8" x 14.2")
    • Unpacked weight: 10.5 kg (23.1 lbs)
    • Packed weight: 14 kg (30.9 lbs)
CONTENTS
    (1) Allen and Heath SQ-5 Digital Mixer
    (1) Operator's Instructions
    (1) Power Cord
